EXTERIOR LAMP BATTERY SAVER SYSTEM

EXL-49

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

EXTERIOR LAMP BATTERY SAVER SYSTEM

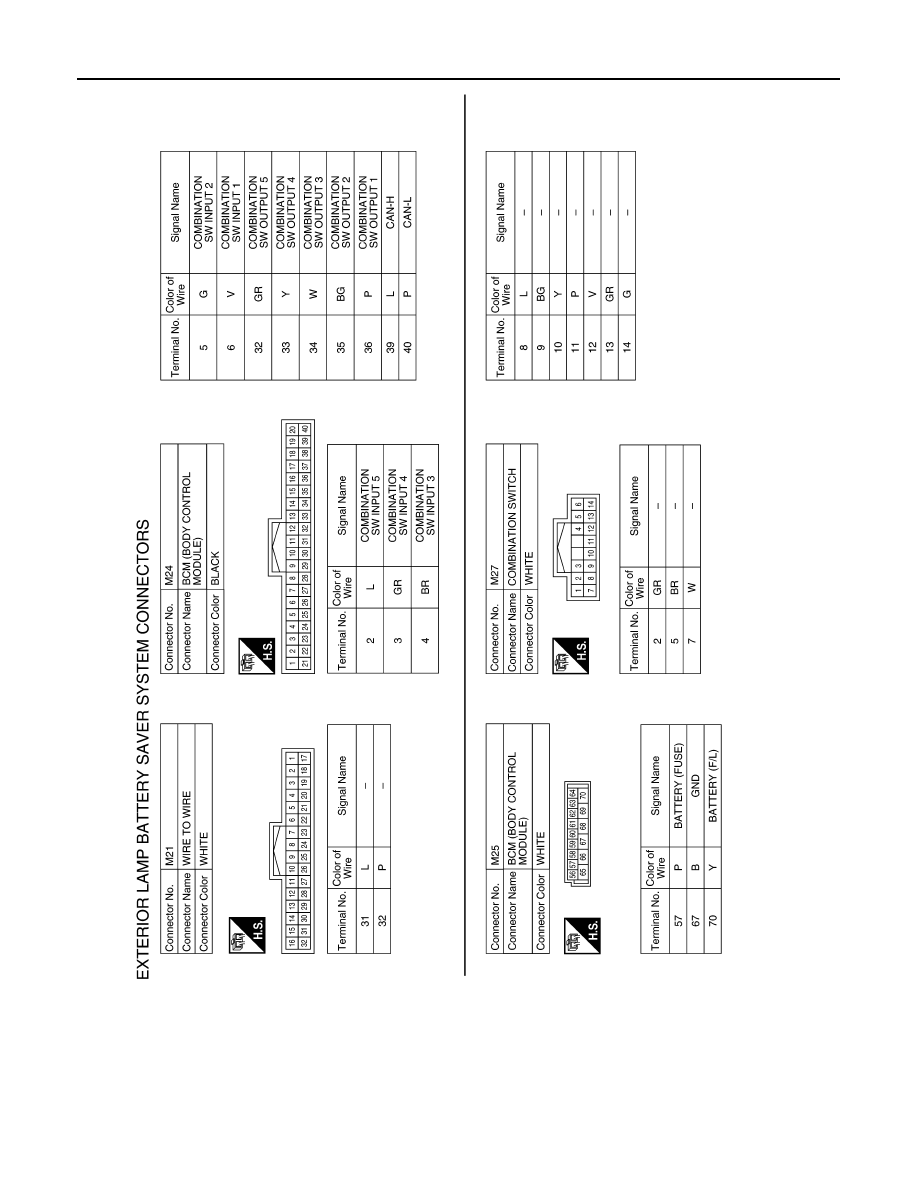

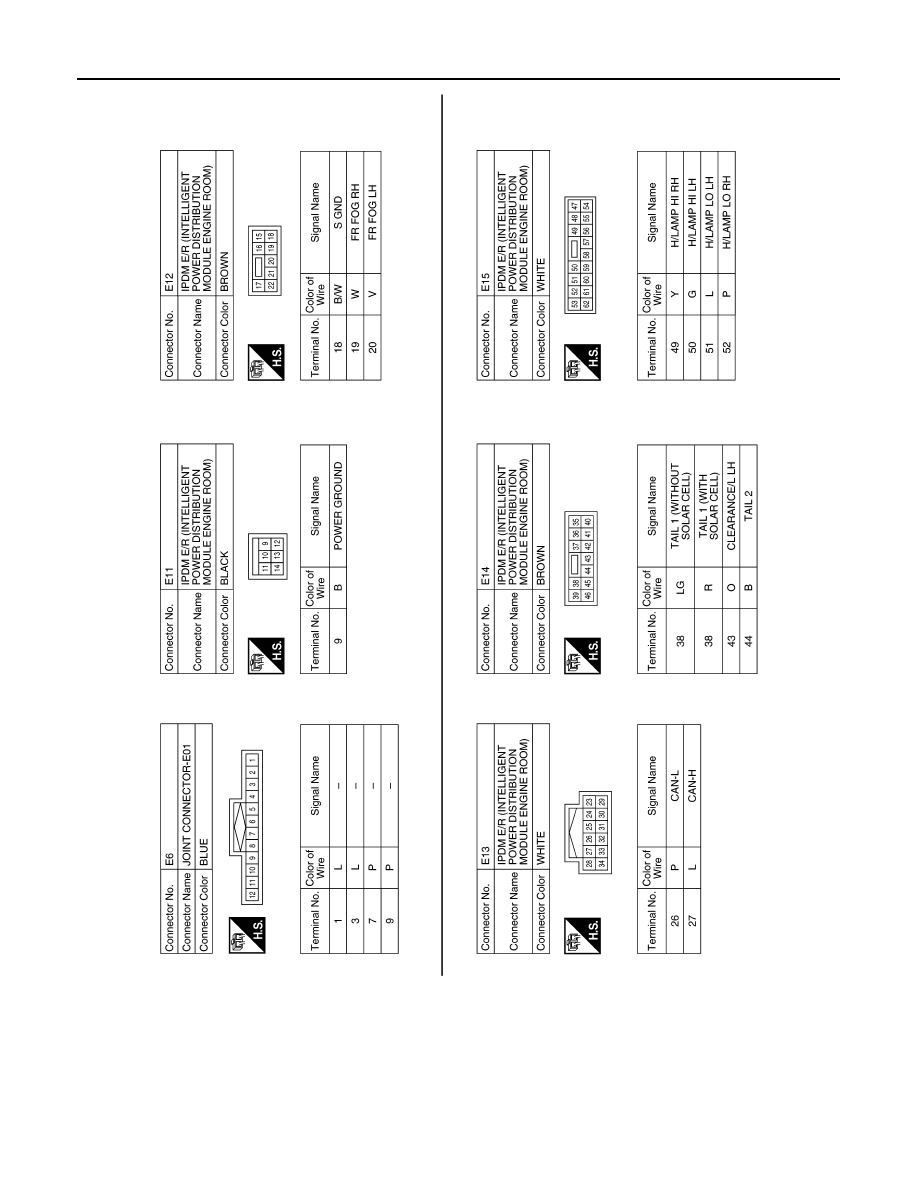

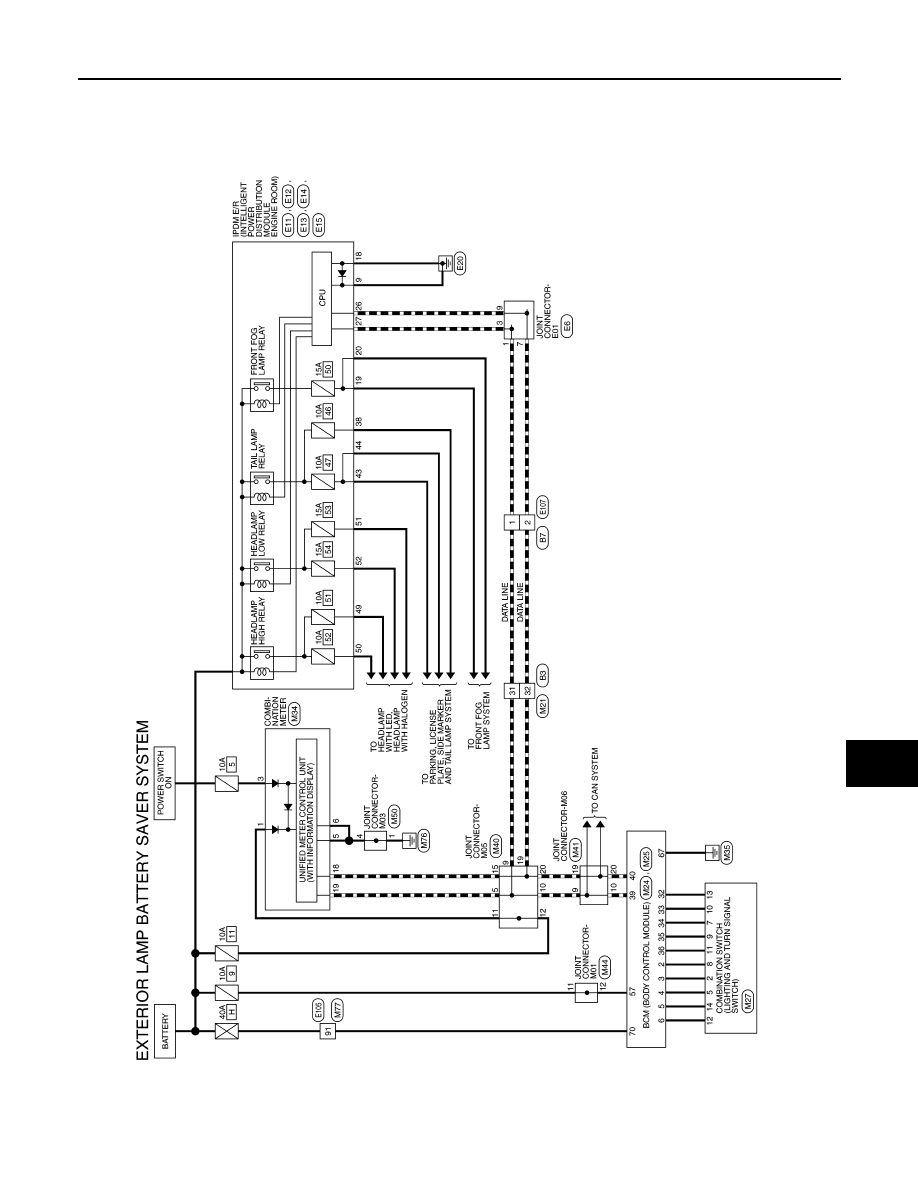

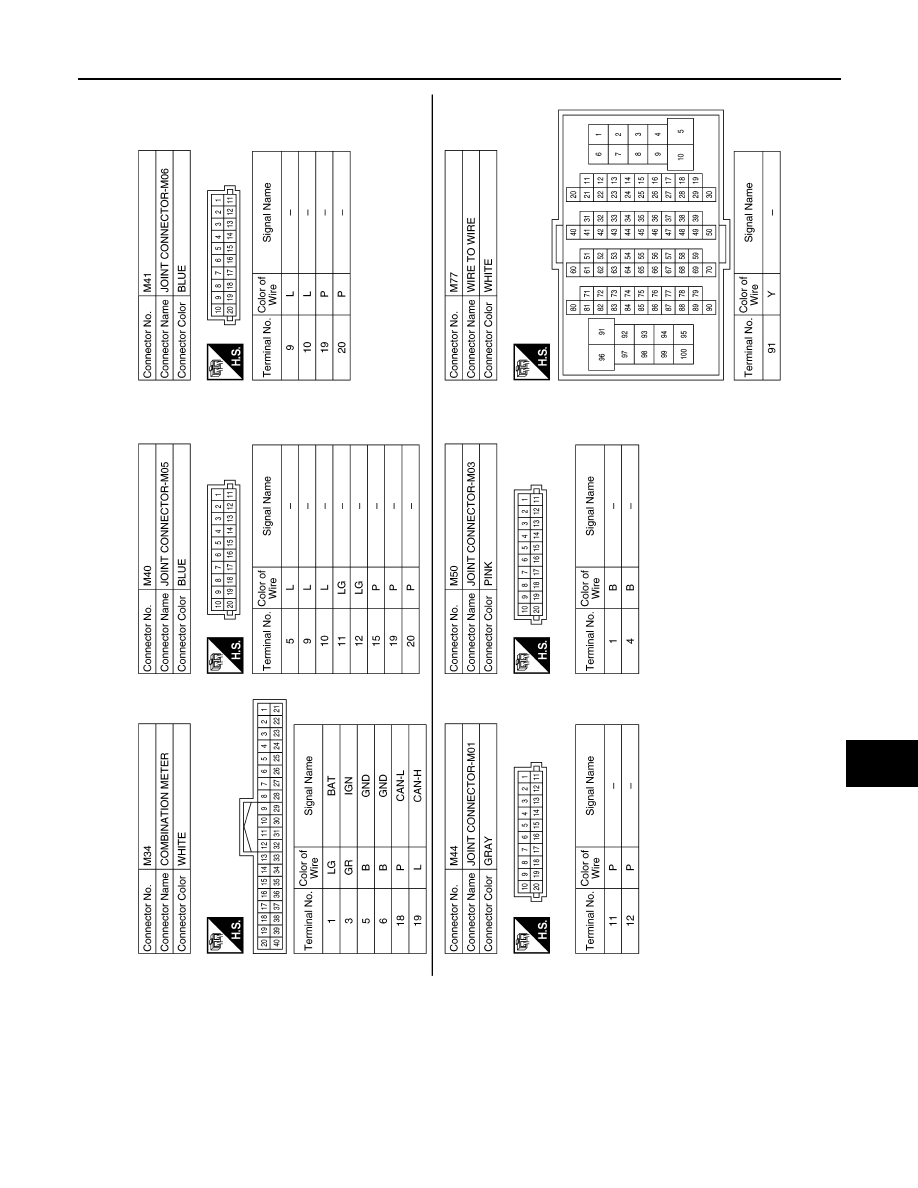

Wiring Diagram

INFOID:0000000010546180

AALWA0857GB

EXL-50

< WIRING DIAGRAM >

[LED HEADLAMP]

EXTERIOR LAMP BATTERY SAVER SYSTEM

AALIA2490GB

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXL-51

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA2491GB

EXL-52

< WIRING DIAGRAM >

[LED HEADLAMP]

EXTERIOR LAMP BATTERY SAVER SYSTEM

AALIA2492GB
