ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000010121337

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

IPDM E/R

PCS-14, "Reference Value"

PCS-17, "Fail-Safe"

PCS-18, "DTC Index"

EXL-30

< WIRING DIAGRAM >

[LED HEADLAMP]

HEADLAMP

WIRING DIAGRAM

HEADLAMP

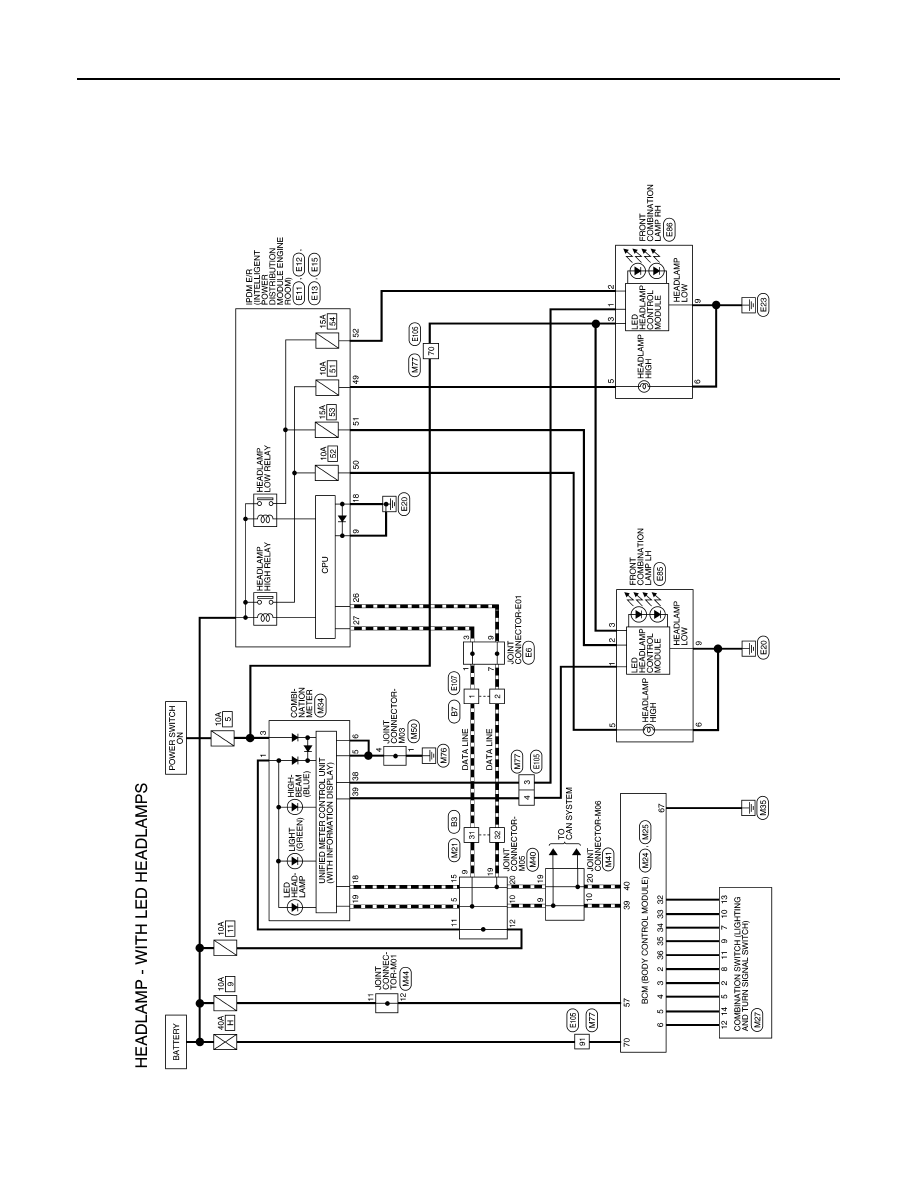

Wiring Diagram

INFOID:0000000010546092

AALWA0860GB

HEADLAMP

EXL-31

< WIRING DIAGRAM >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

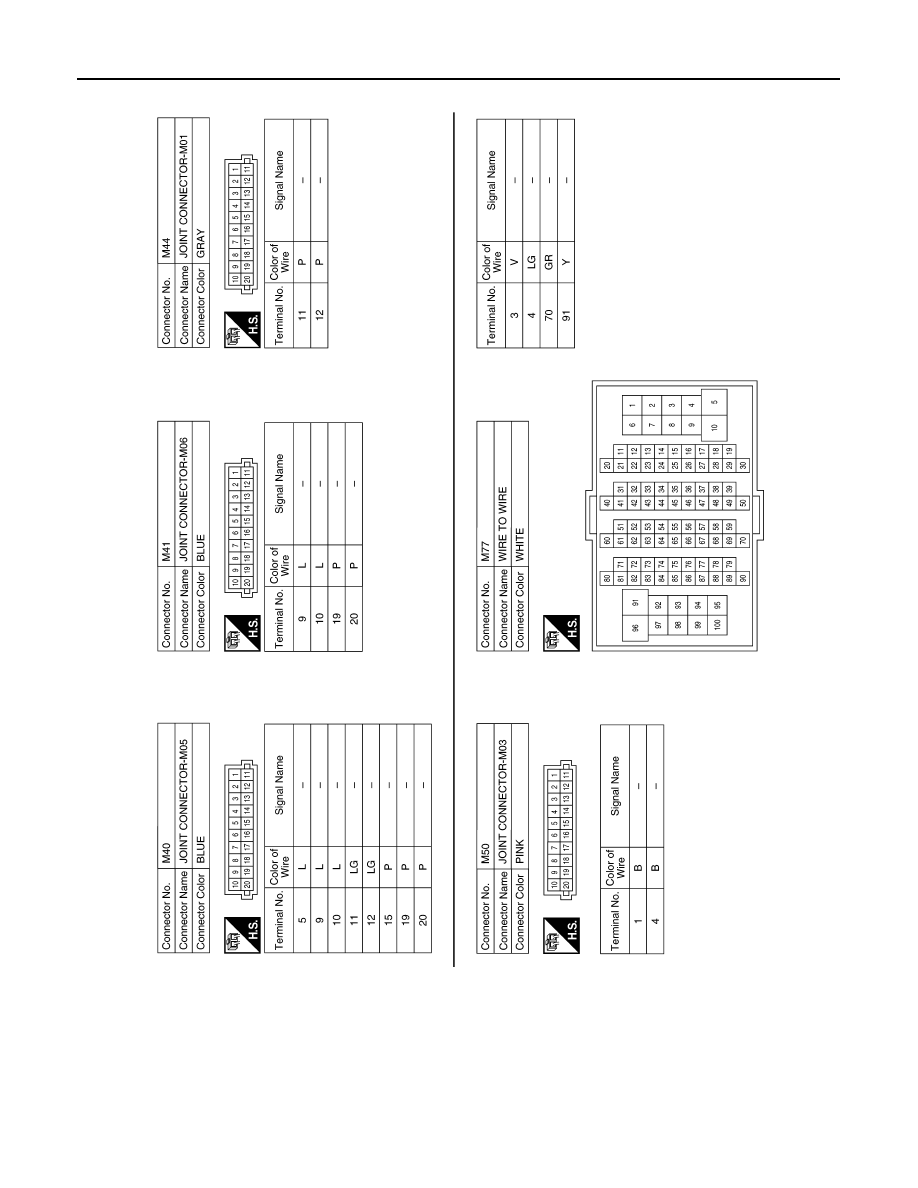

AALIA2502GB

EXL-32

< WIRING DIAGRAM >

[LED HEADLAMP]

HEADLAMP

AALIA2503GB
