EVC-36

< SYSTEM DESCRIPTION >

COMPONENT PARTS

• When Li-ion battery cannot output power normally, a motor torque limit signal is transmitted to VCM.

WARNING/INDICATOR OPERATING CONDITION

For warning/indicator operating condition, refer to

EVC-48, "MOTOR POWER CONTROL : System Descrip-

tion"

.

WARNING/INDICATOR CANCEL CONDITION

The traction motor or Li-ion battery returns from the output limiting state.

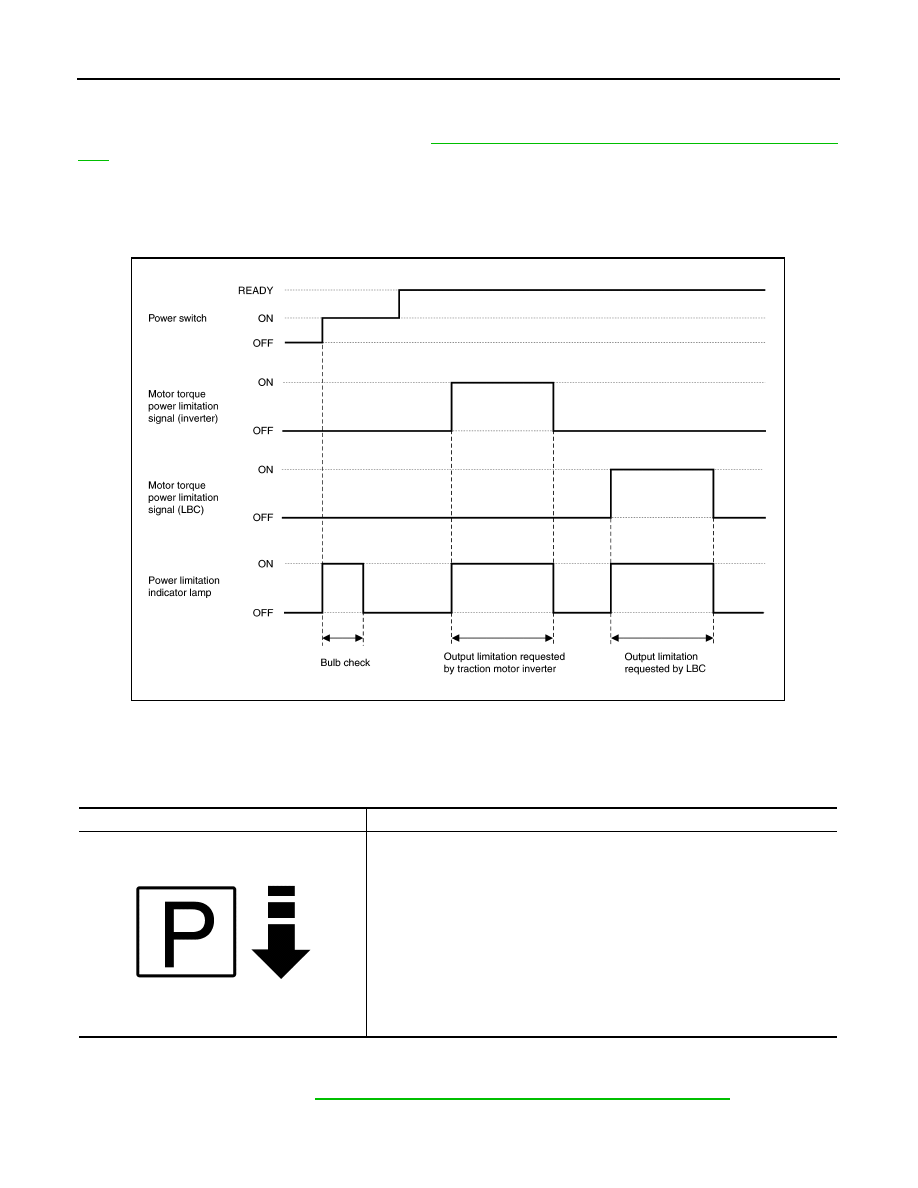

TIMING CHART

Power limitation warning is displayed in synchronization with the power limitation indicator lamp.

WARNING/INDICATOR (ON INFORMATION DISPLAY) : Shift P Warning

INFOID:0000000010120549

DESIGN/PURPOSE

Shift P warning warns that the driver is getting off the vehicle with the shift position not in P position.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.

For master warning lamp, refer to

MWI-31, "MASTER WARNING LAMP : System Description"

.

SYNCHRONIZATION WITH WARNING CHIME

JSCIA0518GB

Symbol

Message

Select P

JSCIA0763ZZ

COMPONENT PARTS

EVC-37

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

Synchronization is applied.

For warning chime, refer to

EVC-39, "WARNING CHIME : Shift P Warning Chime"

.

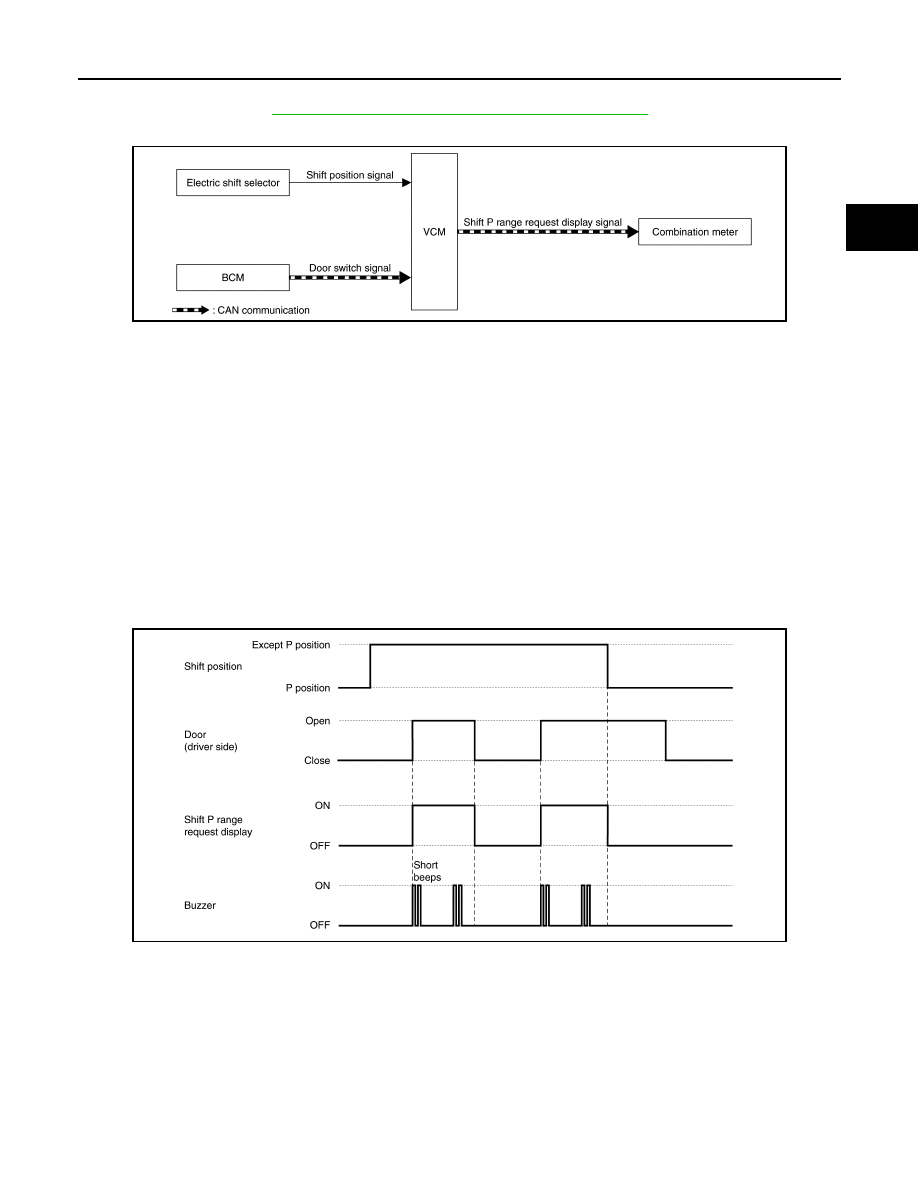

SYSTEM DIAGRAM

SIGNAL PATH

• The electric shift selector sends shift position information to VCM.

• BCM transmits a door switch signal to VCM.

• VCM judges the vehicle condition according to shift position information and a door switch signal. VCM

transmits a shift P range request display signal to the combination meter if the driver’s door is opened with

the shift position not in P position.

WARNING/INDICATOR OPERATING CONDITION

When all of the following conditions are satisfied:

• Shift position: Except P range

• Front door (driver side): Open

WARNING/INDICATOR CANCEL CONDITION

The indication is cancelled when any of the following conditions are satisfied:

• The shift position is changed to P position.

• The driver’s door is closed.

TIMING CHART

WARNING CHIME
WARNING CHIME : DC/DC Converter Warning Chime

INFOID:0000000010120550

PURPOSE

The DC/DC converter warning chime warns the driver that 12V battery voltage is low.

SYNCHRONIZATION WITH WARNING LAMP/INDICATOR LAMP

Not applicable

SYNCHRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)

JSCIA0522GB

JSCIA0523GB

EVC-38

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Synchronization is applied.

For information display, refer to

EVC-32, "WARNING/INDICATOR (ON INFORMATION DISPLAY) : DC/DC

Converter Warning"

.

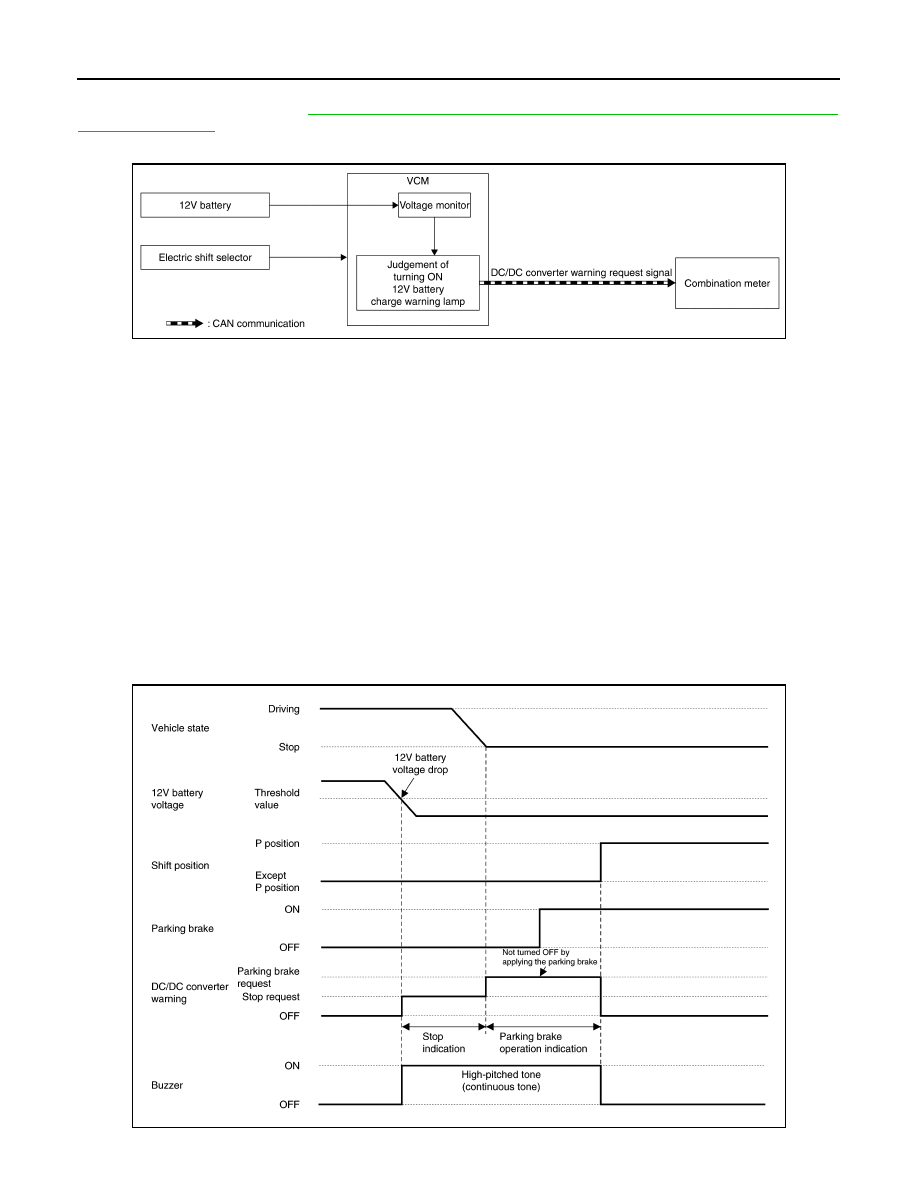

SYSTEM DIAGRAM

SIGNAL PATH

• VCM monitors 12V battery voltage, and if the voltage drops, then VCM transmits a DC/DC converter warning

request signal to the combination meter to operate a DC/DC converter warning chime.

• When VCM receives a P position signal from the electric shift selector, the operation of DC/DC converter

warning chime is cancelled.

WARNING OPERATING CONDITION

When all of the following conditions are satisfied:

• Shift position: Except P range
• 12V battery voltage stays low (approximately 10 – 12 V or less)

*

 for a few consecutive seconds.

*: Threshold voltage depends on vehicle speeds.

NOTE:

When 12V battery voltage drops sharply while in READY state, the READY state is also cancelled.

WARNING CANCEL CONDITION

When any of the following conditions are satisfied:

• Shift position: P range

• The 12V battery voltage returns to approximately 12.5 V or more.

TIMING CHART

JSCIA0545GB

JSCIA0542GB

COMPONENT PARTS

EVC-39

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

WARNING CHIME : Power Switch Reminder Chime

INFOID:0000000010120551

PURPOSE

The power switch reminder chime warns the driver that the driver’s door is opened with power switch ON or in

READY state.

SYNCHRONIZATION WITH WARNING LAMP/INDICATOR LAMP

Not applicable

SYNCHRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)

Synchronization is applied.

For information display, refer to

MWI-35, "INFORMATION DISPLAY : System Description"

.

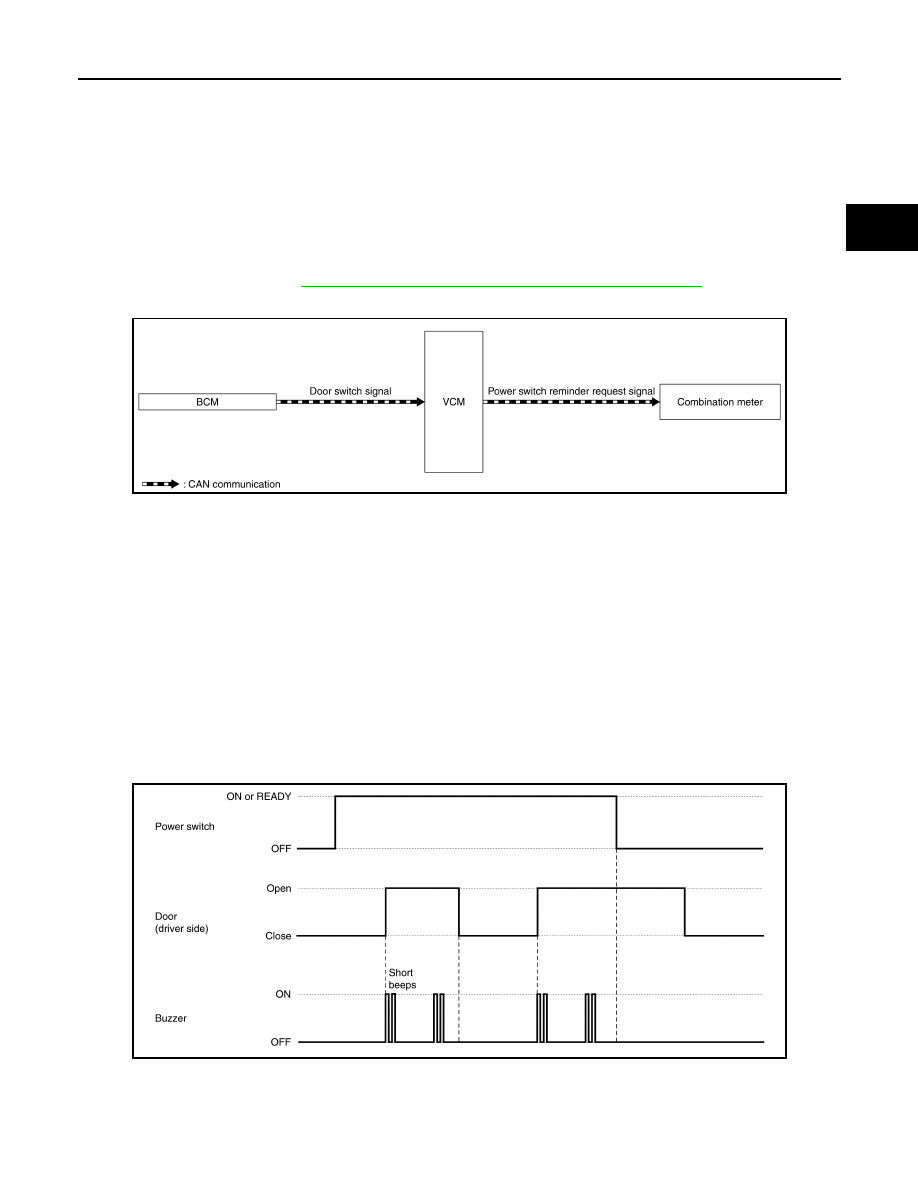

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits a door switch signal to VCM.

• VCM judges the vehicle condition according to a door switch signal and power supply condition. VCM trans-

mits a power switch reminder request signal to the combination meter if the driver’s door is opened with the

power switch ON or in READY state.

WARNING OPERATING CONDITION

When all of the following conditions are satisfied:

• Power switch: ON or READY

• Door switch: ON (Door is open)

WARNING CANCEL CONDITION

When any of the following conditions are satisfied:

• Power switch: Except ON or READY

• Door switch: OFF (Door is closed)

TIMING CHART

WARNING CHIME : Shift P Warning Chime

INFOID:0000000010120552

PURPOSE

The shift P warning chime warns that the drive is getting off the vehicle with the shift position not in P position.

JSCIA0550GB

JSCIA0551GB
