EVC-28

< SYSTEM DESCRIPTION >

COMPONENT PARTS

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Power Limitation Indicator Lamp

INFOID:0000000010120543

DESIGN/PURPOSE

The power limitation indicator lamp turns ON when the traction motor

output is limited.

BULB CHECK

For approximately 2 seconds after the power switch is turned ON.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.

For master warning lamp, refer to

MWI-31, "MASTER WARNING LAMP : System Description"

.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

JSCIA0516GB

JSCIA0027ZZ

COMPONENT PARTS

EVC-29

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

SYSTEM DIAGRAM

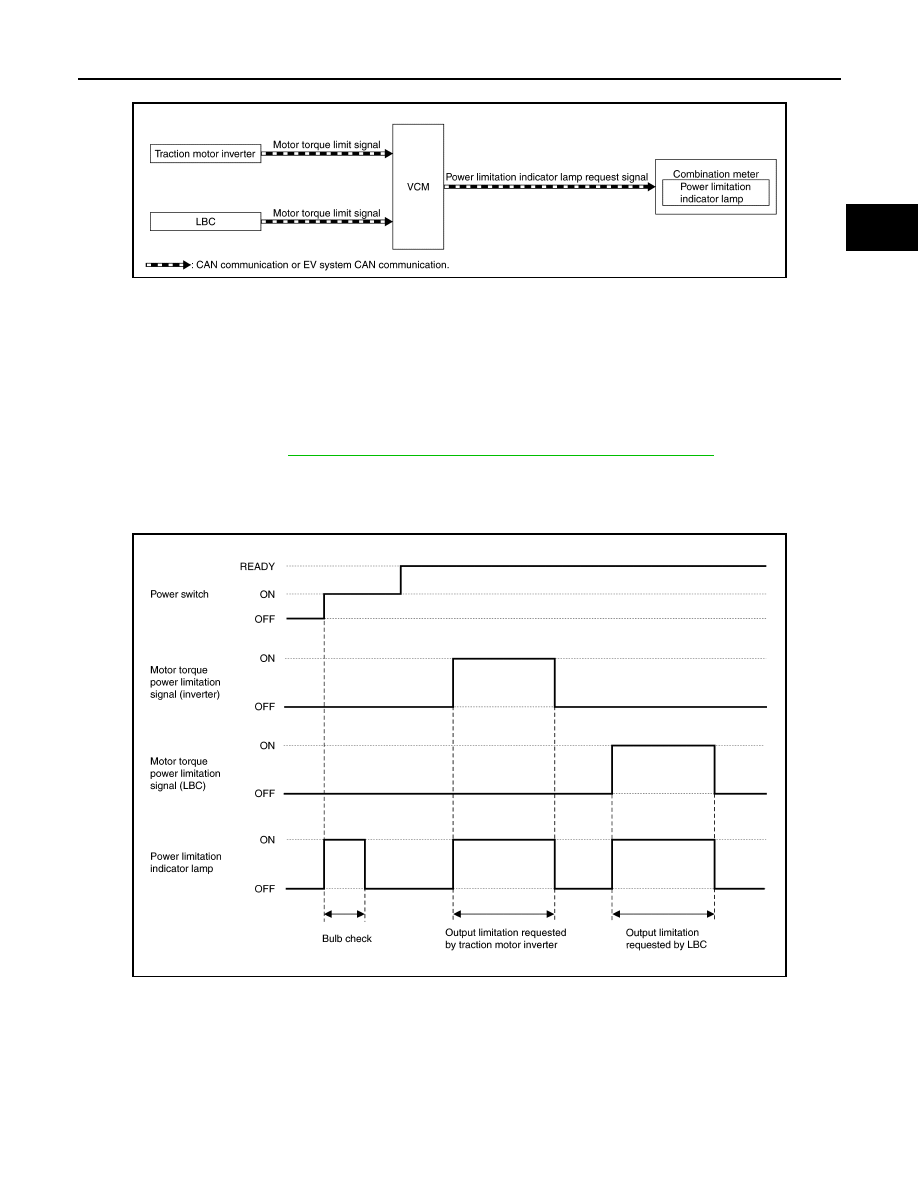

SIGNAL PATH

• The traction motor inverter transmits a motor torque limit signal to VCM when the traction motor needs to be

protected.

• LBC transmits a motor torque limit signal to VCM when Li-ion battery cannot output power normally.

• When receiving a motor torque limit signal from the traction motor inverter or LBC, VCM transmits a power

limitation indicator lamp request signal to the combination meter.

• The combination meter turns ON the power limitation indicator lamp according to the signal.

LIGHTING CONDITION

For lighting condition, refer to

EVC-48, "MOTOR POWER CONTROL : System Description"

.

SHUTOFF CONDITION

The traction motor or Li-ion battery returns from the output limiting state.

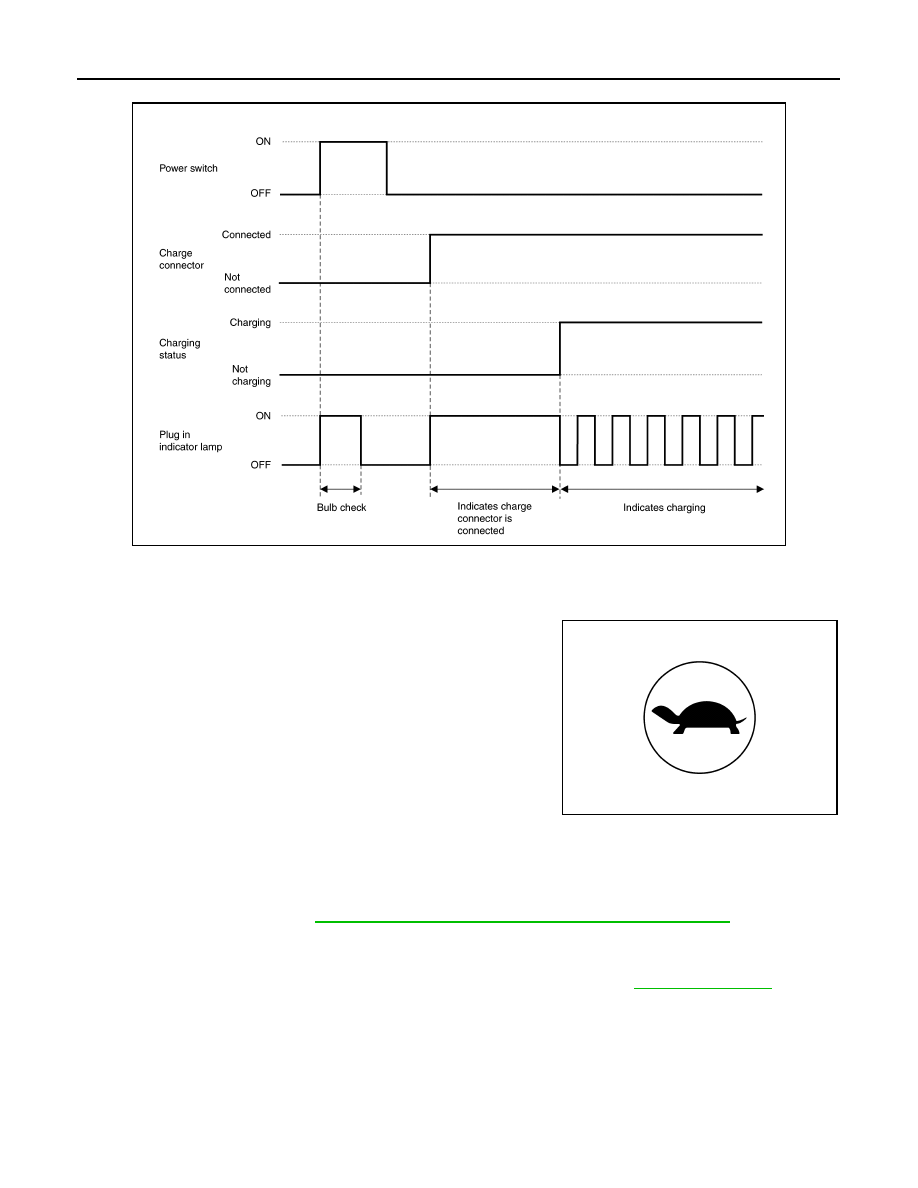

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Ready To Drive Indicator Lamp

INFOID:0000000010120544

DESIGN/PURPOSE

JSCIA0517GB

JSCIA0518GB

EVC-30

< SYSTEM DESCRIPTION >

COMPONENT PARTS

The READY to drive indicator lamp indicates that the vehicle is in a

state allowing vehicle travel.

BULB CHECK

Not applicable

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

SYSTEM DIAGRAM

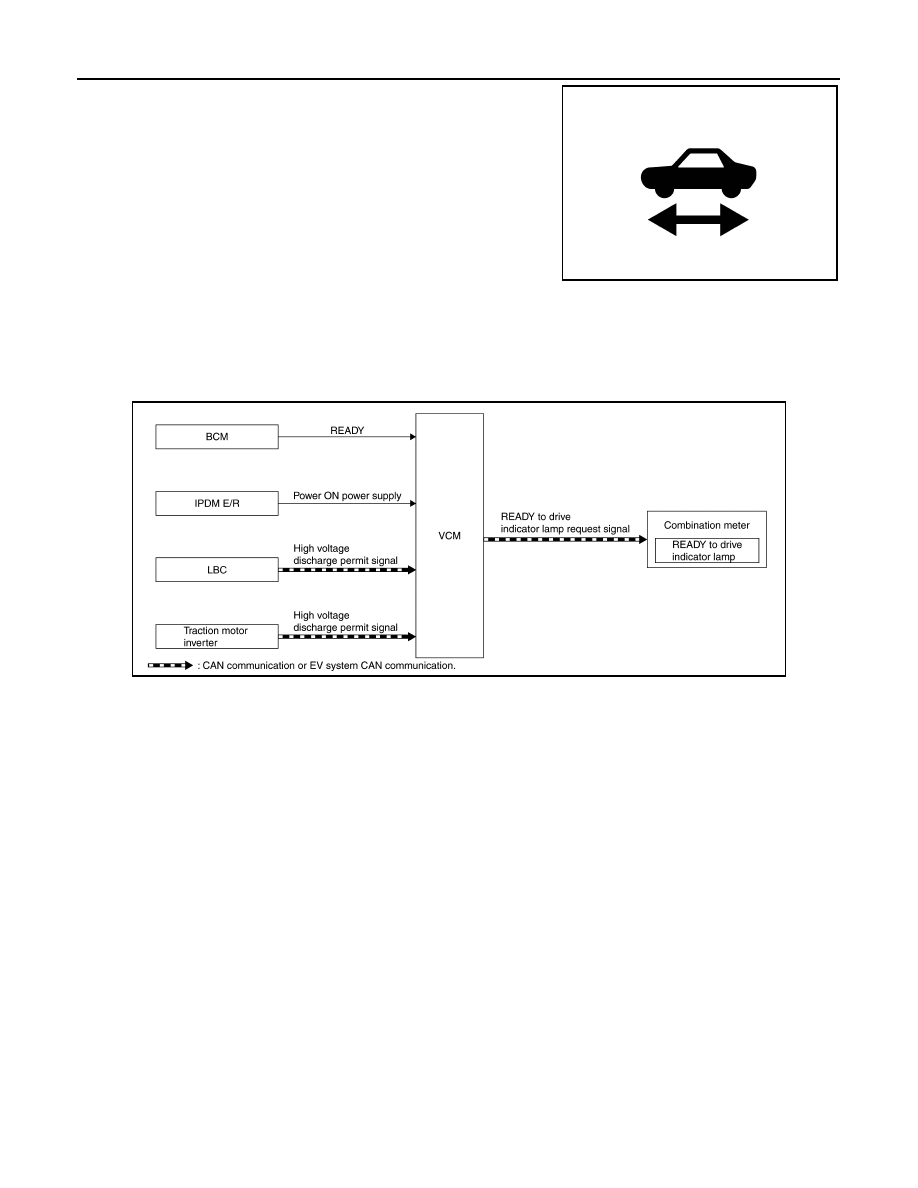

SIGNAL PATH

• BCM transmits a READY signal to VCM when the driver operates the power switch to READY.

• The high voltage circuit is connected when VCM receives a READY signal. When the high voltage circuit is

connected normally, LBC and the traction motor inverter transmit a high voltage discharge permit signal to

VCM.

• When receiving a high voltage discharge permit signal, VCM judges that the vehicle is in a drivable condition

and transmits a READY to drive indicator lamp request signal to the combination meter for turning ON the

READY to drive indicator lamp.

LIGHTING CONDITION

• Vehicle: READY state.

SHUTOFF CONDITION

• Power switch: OFF

• When a malfunction occurs in EV system.

BLINKING CONDITION

• When operating from power switch ON to READY

JSCIA0024ZZ

JSCIA0513GB

COMPONENT PARTS

EVC-31

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

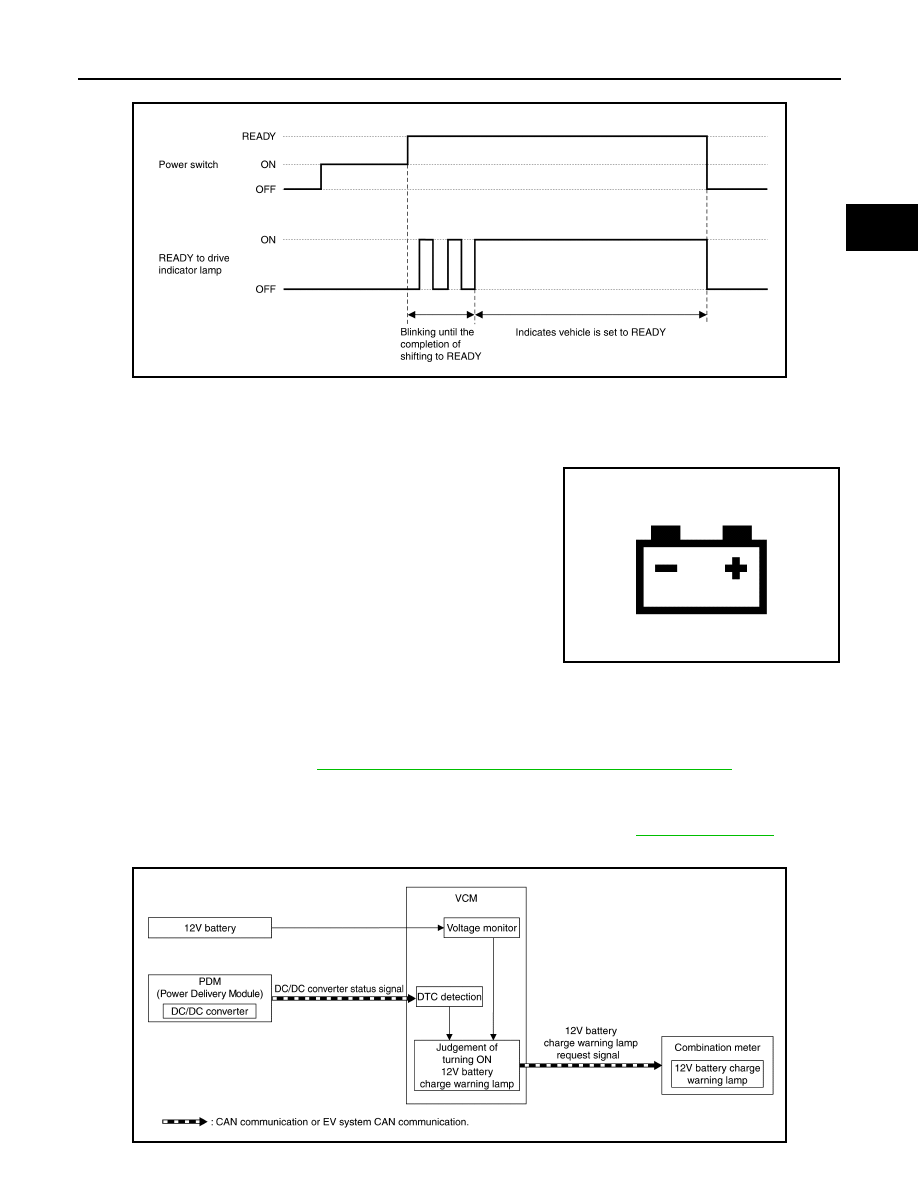

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : 12V Battery Charge Warning Lamp

INFOID:0000000010120545

DESIGN/PURPOSE

The 12V battery charge warning lamp turns ON when a malfunction

occurs in the DC/DC converter simultaneously with a 12V battery

voltage drop.

BULB CHECK

For approximately 2 seconds after the power switch is turned ON.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.

For master warning lamp, refer to

MWI-31, "MASTER WARNING LAMP : System Description"

.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

SYSTEM DIAGRAM

JSCIA0514GB

JSCIA0030ZZ

JSCIA0509GB
