EVC-40

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYNCHRONIZATION WITH WARNING LAMP/INDICATOR LAMP

Not applicable

SYNCHRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)

Synchronization is applied.

For information display, refer to

EVC-36, "WARNING/INDICATOR (ON INFORMATION DISPLAY) : Shift P

Warning"

.

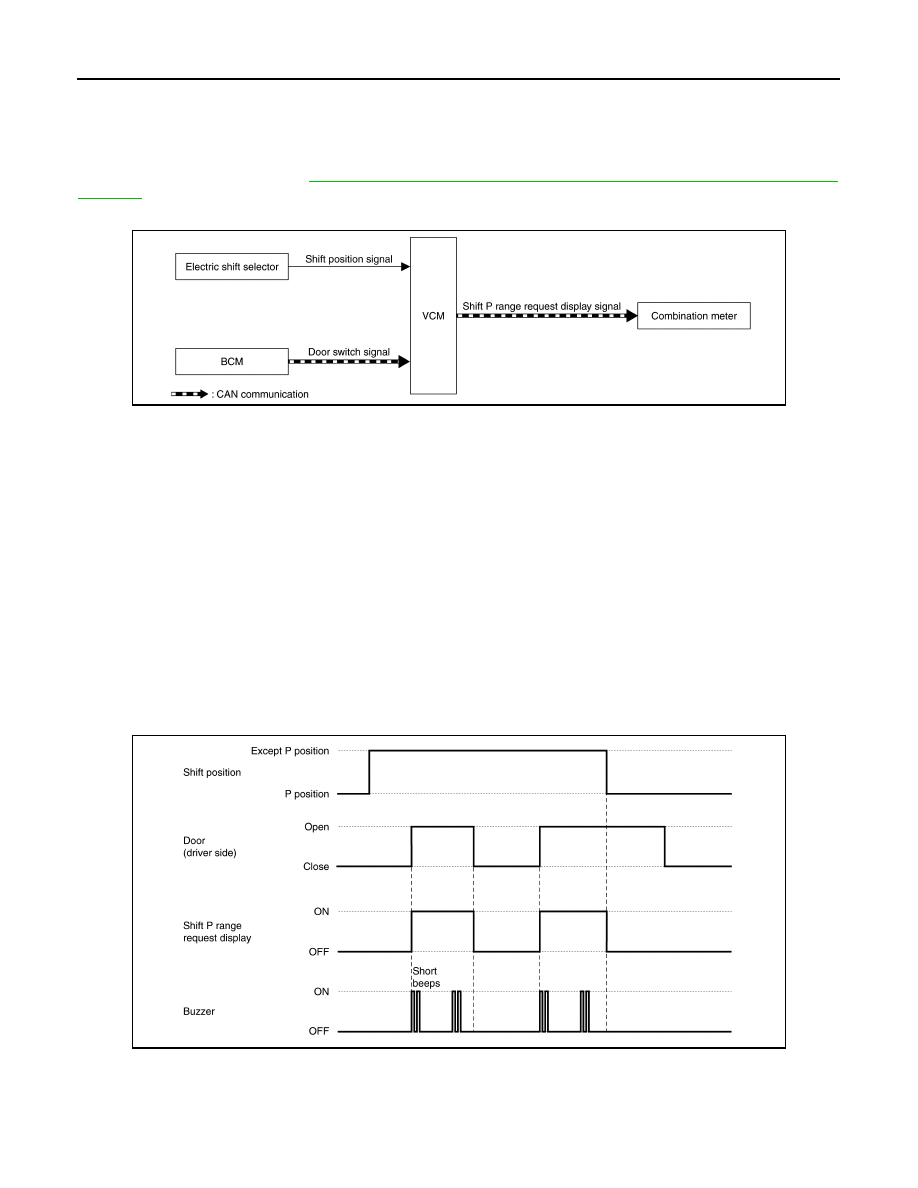

SYSTEM DIAGRAM

SIGNAL PATH

• The electric shift selector sends shift position information to VCM.

• BCM transmits a door switch signal to VCM.

• VCM judges the vehicle condition according to shift position information and a door switch signal. VCM

transmits a shift P range request display signal to the combination meter if the driver's door is opened with

the shift position not in P position.

WARNING OPERATING CONDITION

When all of the following conditions are satisfied:

• Shift position: Except P range

• Front door (driver side): Open

WARNING CANCEL CONDITION

The indication is cancelled when any of the following conditions are satisfied:

• The shift position is changed to P position.

• The driver’s door is closed.

TIMING CHART

JSCIA0522GB

JSCIA0523GB

SYSTEM

EVC-41

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

SYSTEM

ELECTRIC POWER TRAIN SYSTEM
ELECTRIC POWER TRAIN SYSTEM : System Description

INFOID:0000000010120553

CONTROL OUTLINE

EV requires electric power for the operation of all its systems.

The power stored in the Li-ion battery is supplied as high-voltage direct current to the high-voltage system

while also being converted to 13-15 V by the DC/DC converter and supplied to the 12 V power system.

VCM judges the vehicle status from various information and performs various EV system controls in a compre-

hensive manner.

Main Control Contents of EV

ELECTRIC POWER TRAIN SYSTEM : Fail-Safe

INFOID:0000000010120554

FAIL-SAFE PATTERN

• Pattern A: Quick charge prohibited

• Pattern B: Normal charge prohibited

• Pattern C: READY OFF

• Pattern D: High-voltage power supply stop

FAIL-SAFE LIST

×:Applicable

Control

Reference

EV system start-up control

EVC-44, "EV SYSTEM START UP CONTROL : System Descrip-
tion"

High voltage power supply control

EVC-47, "HIGH VOLTAGE POWER SUPPLY CONTROL : System
Description"

Motor power control

EVC-48, "MOTOR POWER CONTROL : System Description"

Motor regeneration control

EVC-49, "MOTOR REGENERATION CONTROL : System De-
scription"

ECO mode / B mode

EVC-50, "ECO MODE/B MODE SYSTEM : System Description"

Electric shift control

TM-42, "ELECTRIC SHIFT SYSTEM : System Description"

Li-ion battery charge control

EVC-51, "LI-ION BATTERY CHARGE CONTROL : System De-
scription"

Cooperative Regenerative brake control

BR-14, "System Description"

High voltage system cooling control

EVC-53, "HIGH VOLTAGE SYSTEM COOLING CONTROL : Sys-
tem Description"

Air conditioner control

EVC-56, "AIR CONDITIONER CONTROL : System Description"

Power voltage variable control

EVC-58, "POWER VOLTAGE VARIABLE CONTROL SYSTEM :
System Description"

Automatic 12V battery charge control

EVC-59, "AUTOMATIC 12V BATTERY CHARGE CONTROL :
System Description"

Power cut off control

EVC-60, "POWER CUT OFF CONTROL : System Description"

Charge port control

EVC-61, "CHARGE PORT CONTROL : System Description"

ASCD (automatic speed control device)

EVC-64, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) :
System Description"

ECO indicator control

EVC-65, "ECO INDICATOR CONTROL : System Description"

DTC

Pattern

Others

A

B

C

D

U1010

TYPE 1

×

TYPE 2

×

×

×

×

EVC-42

< SYSTEM DESCRIPTION >

SYSTEM

P0A8D

×

×

×

×

P0A8E

×

×

×

×

P0AA0

×

×

×

×

Start not possible

P0AA1

×

×

×

×

Start not possible

P0AA2

×

×

×

×

P0AA4

×

×

×

×

Start not possible

P0AA5

×

×

×

×

P0AA6

×

×

Doing READY again is prohibited.

P1564

ASCD operation prohibited

P1572

ASCD operation prohibited

P1574

ASCD operation prohibited

P1610

×

×

×

×

Start not possible

P1611

×

×

×

×

Start not possible

P1612

×

×

×

×

Start not possible

P2122
P2123
P2127
P2128

• Traction motor output is limited.
• Reduced responsiveness during accelerator operation

P2138

TYPE 1

×

TYPE 2

• Traction motor output is limited.
• Reduced responsiveness during accelerator operation

P3100

×

×

×

×

P3101

TYPE 1

×

TYPE 2

×

×

×

×

Start not possible

TYPE 3

No fail-safe.

P3102

Traction motor output is limited.

P3117

• VCM inhibits the operation of the electric compressor.
• VCM inhibits the operation of the PTC heater.

P312B

×

×

×

×

P312C

×

×

×

×

P312D

×

×

×

×

P312E

×

×

×

×

P312F

×

×

×

×

P3130

×

×

×

×

P3131

TYPE 1

×

×

×

×

TYPE 2

No fail-safe.

P3137

×

×

×

×

Start not possible

P3141

×

P315C

×

×

×

×

P316A

×

P316C

×

P316D

×

P316F

TYPE 1

×

×

×

×

TYPE 2

×

×

P3170

×

DTC

Pattern

Others

A

B

C

D

SYSTEM

EVC-43

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

P3173

×

×

Traction motor output is limited.

P3175

×

P3176

×

×

×

×

P3177

×

×

×

×

P3178

×

×

×

×

P317A

×

P317B

×

×

×

×

P317D

×

P317E

×

×

P3182

×

×

×

×

P3183

×

×

P3187

×

P3188

TYPE 1

×

×

Traction motor output is limited.

TYPE 2

No fail-safe.

P318B

TYPE 1

×

Put the gear position in neutral.

TYPE 2

×

×

×

×

P3191

TYPE 1

×

TYPE 2

No fail-safe.

P3193

TYPE 1

×

×

Only driving in creep is possible.

TYPE 2

No fail-safe.

P3196

TYPE 1

×

TYPE 2

×

×

Traction motor output is limited.

P3197

×

P319C

×

P319E

×

×

Only driving in creep is possible.

P31A1

TYPE 1

×

TYPE 2

×

×

Traction motor output is limited.

P31A2

×

P31A7

×

P31A9

×

×

Only driving in creep is possible.

P31AD

×

P31AE

TYPE 1

×

TYPE 2

×

×

Traction motor output is limited.

P31B0

TYPE 1

VCM inhibits the timer charge.

TYPE 2

VCM inhibits the timer charge and the remote climate control.

TYPE 3

No fail-safe.

P31B3

TYPE 1

When the power is turned on and the vehicle is charging, the cooling
fan is operated at a constant speed.

TYPE 2

No fail-safe.

P31B4

TYPE 1

VCM inhibits the timer charge.

TYPE 2

VCM inhibits the remote climate control.

TYPE 3

No fail-safe.

DTC

Pattern

Others

A

B

C

D
