P3375-P3380 CELL OVER DISCHARGE

EVB-123

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

1. Perform “All DTC Reading” with CONSULT.

2. Check systems other than “HV BAT” if any DTC is detected.
Is any DTC detected?

YES

>> After performing trouble diagnosis of detected DTC, GO TO 2.

NO

>> GO TO 2.

2.

PRECONDITIONING

WARNING:

Disconnect high voltage. Refer to

GI-33, "How to Disconnect High Voltage"

.

1. Remove Li-ion battery. Refer to

EVB-181, "Removal and Installation"

.

2. Remove battery pack upper case. Refer to

EVB-191, "BATTERY PACK UPPER CASE : Removal and

Installation"

.

>> GO TO 3.

3.

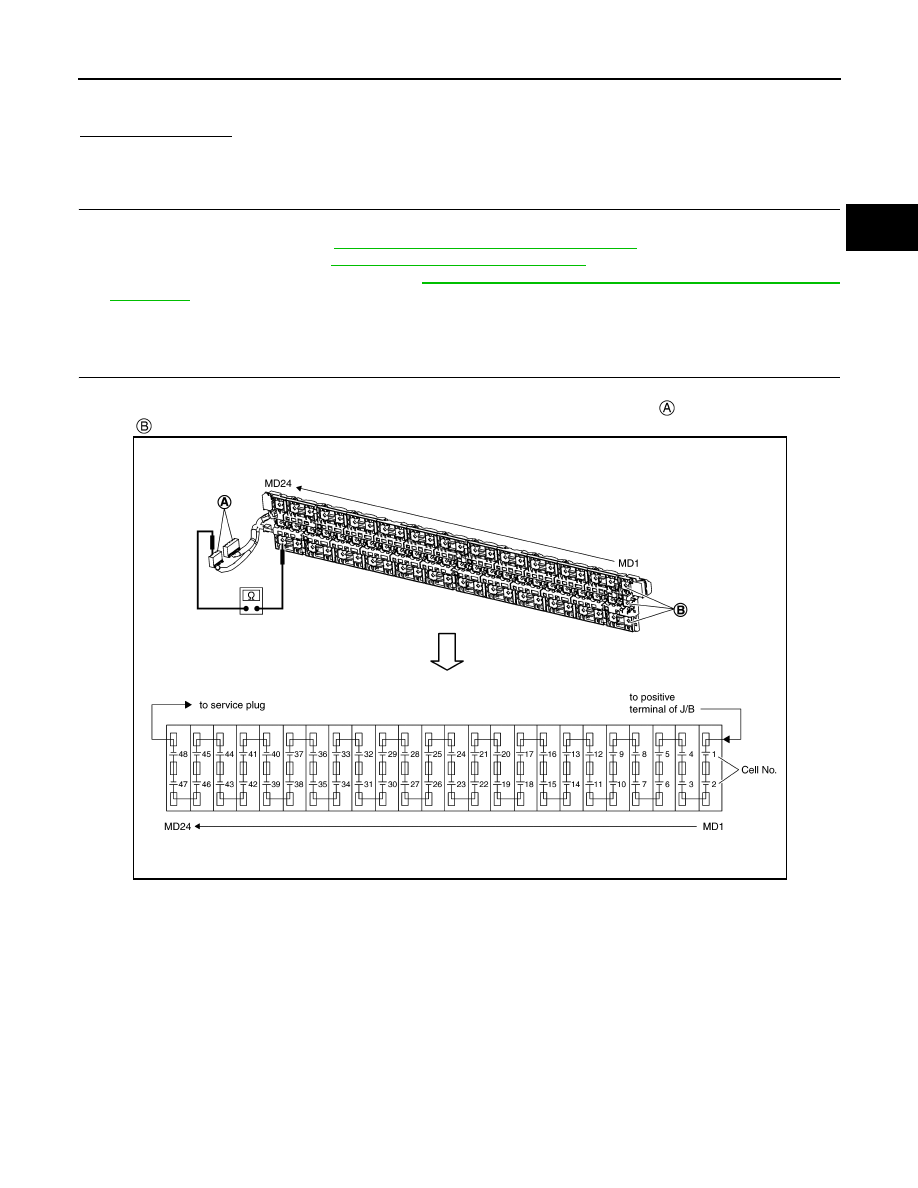

CHECK HARNESS BETWEEN MODULE AND LI-ION BATTERY CONTROLLER

1. Disconnect voltage detection terminal of bus bar and Li-ion battery controller harness connector.
2. Refer to below table and check the continuity between Li-ion battery controller   and corresponding bus

bar .

JSCIA0812GB

EVB-124

< DTC/CIRCUIT DIAGNOSIS >

P3375-P3380 CELL OVER DISCHARGE

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK MODULE VOLTAGE

Check voltage of corresponding module. Refer to

EVB-125, "Component Inspection"

.

Is the inspection result normal?

DTC

Module

No.

Bus bar

Li-ion battery controller

Continuity

Connector

Terminal

P3375

1

LB13

33

Existed

50

34

P3376

2

LB13

34

Existed

51

35

P3377

3

LB13

35

Existed

52

36

P3378

4

LB13

36

Existed

53

37

P3379

5

LB13

37

Existed

54

38

P337A

6

LB13

38

Existed

55

39

P337B

7

LB13

39

Existed

56

40

P337C

8

LB13

40

Existed

57

42

P337D

9

LB13

42

Existed

58

43

P337E

10

LB13

43

Existed

59

44

P330F

11

LB13

44

Existed

60

45

P3380

12

LB13

45

Existed

61

46

P3375-P3380 CELL OVER DISCHARGE

EVB-125

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

YES

>> Replace Li-ion battery controller. Refer to

EVB-201, "LI-ION BATTERY CONTROLLER : Removal

and Installation"

.

NO

>> Replace corresponding module. Refer to

EVB-248, "REAR MODULE STACK : Disassembly and

Assembly"

.

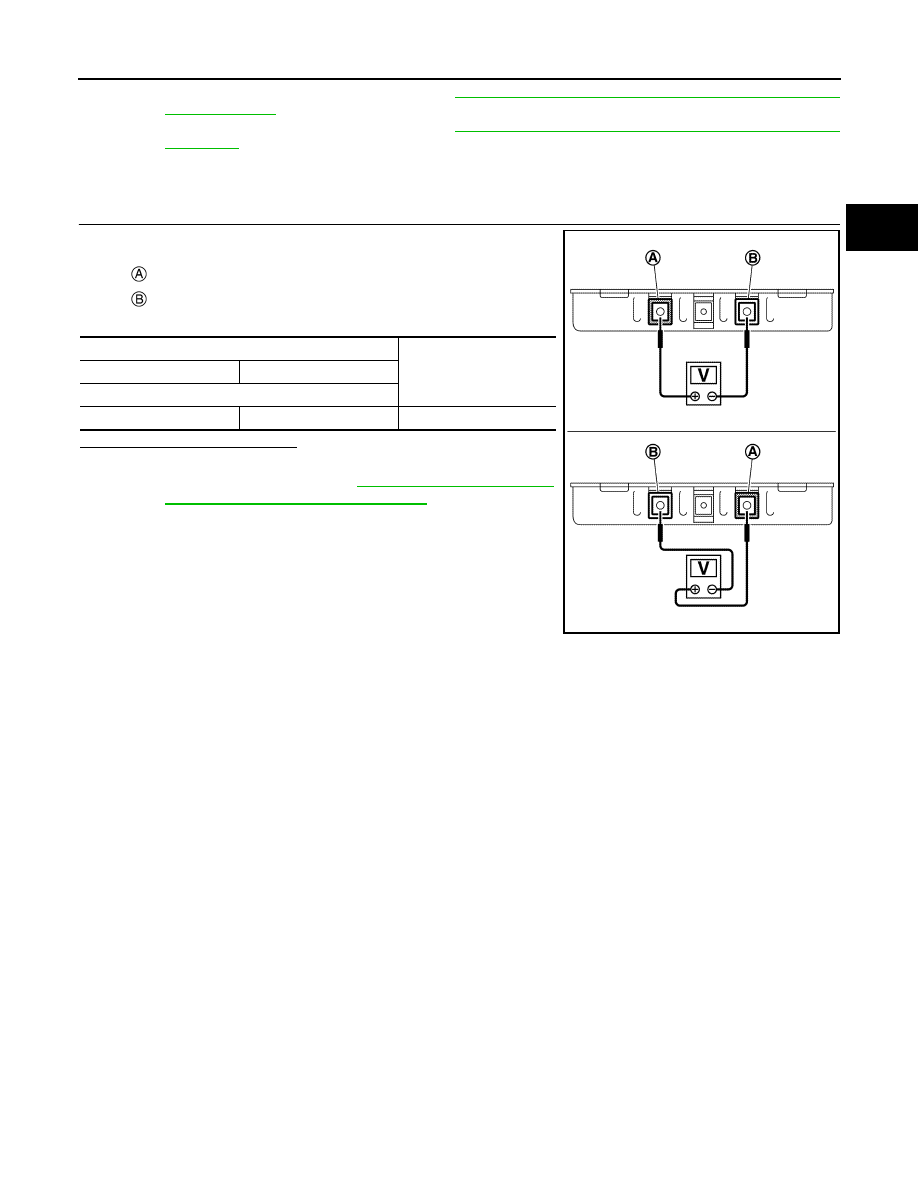

Component Inspection

INFOID:0000000010121123

1.

CHECK MODULE VOLTAGE

Check voltage of module.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace module. Refer to

EVB-248, "REAR MODULE

STACK : Disassembly and Assembly"

.

: Positive terminal (Red)
: Negative terminal (Black)

Terminals

Voltage

(Approx.)

(+)

(-)

Module

Positive terminal (Red)

Negative terminal (Black)

5.0 - 8.5 V

JSCIA0338ZZ

EVB-126

< DTC/CIRCUIT DIAGNOSIS >

P3381-P338C CELL OVER DISCHARGE

P3381-P338C CELL OVER DISCHARGE

DTC Logic

INFOID:0000000010121124

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait for 10 seconds or more.

2. Select “Self Diagnostic Result” of “HV BAT”.

3. Check DTC.
Is any DTC detected?

YES

>> Refer to

EVB-133, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010121125

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them.

• Refer to

EVB-7, "High Voltage Precautions"

.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

1.

CHECK SELF-DIAGNOSIS RESULTS

With CONSULT

DTC

Trouble diagnosis name

DTC detecting condition

Possible causes

P3381

CELL OVER DISCHARGE MODULE13

When cell voltage lowers below the allowable
working voltage range.

• Overcharge caused by trac-

tion motor inverter/VCM mal-
function

• Module
• Li-ion battery controller
• Bus bar
• Harness or connector

P3382

CELL OVER DISCHARGE MODULE14

P3383

CELL OVER DISCHARGE MODULE15

P3384

CELL OVER DISCHARGE MODULE16

P3385

CELL OVER DISCHARGE MODULE17

P3386

CELL OVER DISCHARGE MODULE18

P3387

CELL OVER DISCHARGE MODULE19

P3388

CELL OVER DISCHARGE MODULE20

P3389

CELL OVER DISCHARGE MODULE21

P338A CELL OVER DISCHARGE MODULE22

P338B CELL OVER DISCHARGE MODULE23

P338C CELL OVER DISCHARGE MODULE24
