P3326-P3331 CELL OVER VOLTAGE
EVB-119
< DTC/CIRCUIT DIAGNOSIS >
D
E
F
G
H
I
J
K
L
M
A
B
EVB
N
O
P
P3326-P3331 CELL OVER VOLTAGE
DTC Logic
INFOID:0000000010121118
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.
PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1. Power switch ON and wait for 10 seconds or more.
2. Select “Self Diagnostic Result” of “HV BAT”.
3. Check DTC.
Is any DTC detected?
YES
>> Refer to
EVB-119, "Diagnosis Procedure"
NO
>> INSPECTION END
Diagnosis Procedure
INFOID:0000000010121119
DANGER:
Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of
electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are
handled incorrectly. Be sure to follow the correct work procedures when performing inspection and
maintenance.
WARNING:
• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-
ing inspection or maintenance of high voltage system harnesses and parts.
• The removed service plug must always be carried in a pocket of the responsible worker or placed in
the tool box during the procedure to prevent the plug from being connected by mistake.
• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses
before beginning work on the high voltage system.
• Never allow workers other than the responsible person to touch the vehicle containing high voltage
parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-
lating sheet except when using them.
• Refer to
EVB-7, "High Voltage Precautions"
.
CAUTION:
Never bring the vehicle into the READY status with the service plug removed unless otherwise
instructed in the Service Manual. A malfunction may occur if this is not observed.

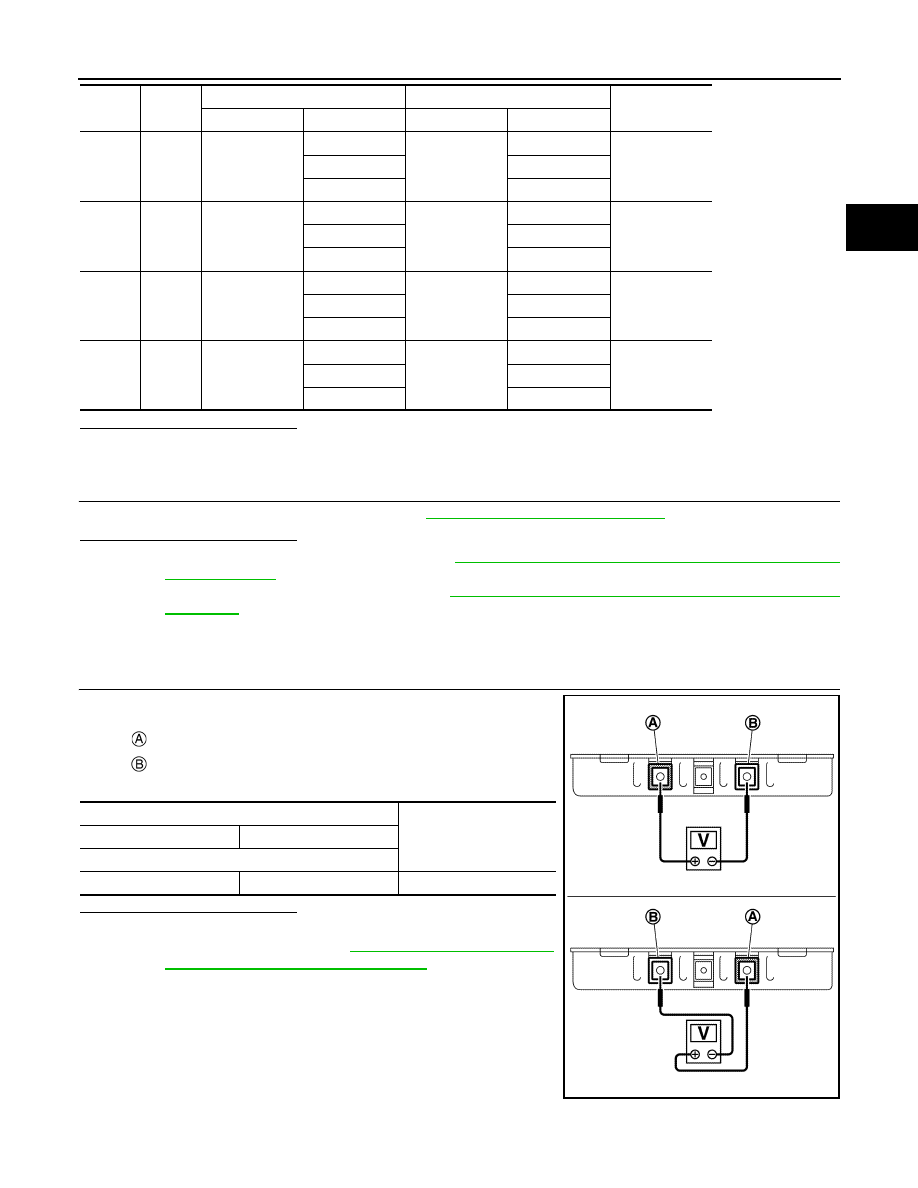

1.
CHECK SELF-DIAGNOSIS RESULTS
With CONSULT
DTC
Trouble diagnosis name
DTC detecting condition
Possible causes
P3326
CELL OVER VOLTAGE MODULE37
When cell voltage exceeds the allowable
working voltage range.
• Overcharge caused by traction
motor inverter/VCM malfunction
• Module
• Li-ion battery controller
• Bus bar
• Harness or connector
P3327
CELL OVER VOLTAGE MODULE38
P3328
CELL OVER VOLTAGE MODULE39
P3329
CELL OVER VOLTAGE MODULE40
P332A
CELL OVER VOLTAGE MODULE41
P332B
CELL OVER VOLTAGE MODULE42
P332C
CELL OVER VOLTAGE MODULE43
P332D
CELL OVER VOLTAGE MODULE44
P332E
CELL OVER VOLTAGE MODULE45
P332F
CELL OVER VOLTAGE MODULE46
P3330
CELL OVER VOLTAGE MODULE47
P3331
CELL OVER VOLTAGE MODULE48
