INSTALLATION

Installation is in the reverse order of removal.

DLK-168

< REMOVAL AND INSTALLATION >

FRONT FENDER

FRONT FENDER

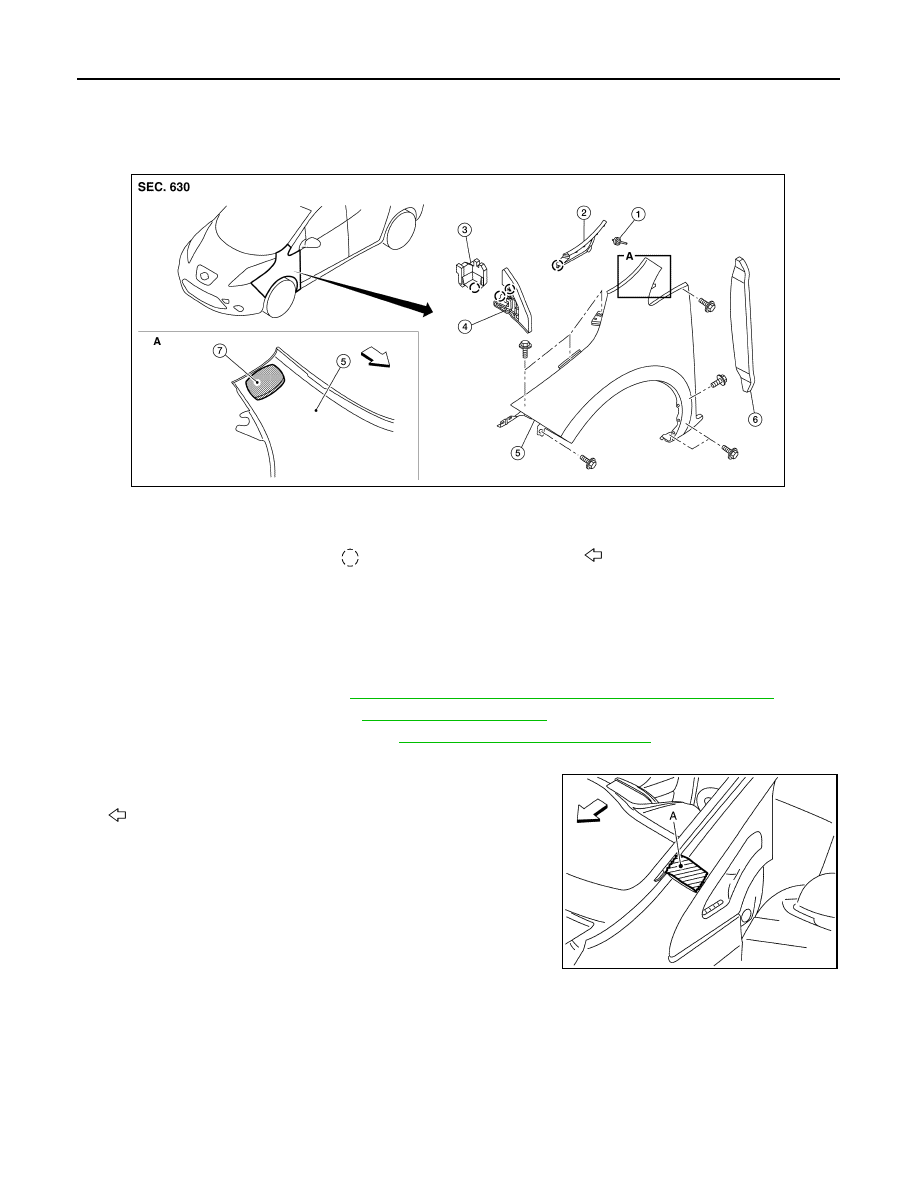

Exploded View

INFOID:0000000010119863

Removal and Installation

INFOID:0000000010119864

CAUTION:

Use shop cloths to protect the body from damage during removal and installation.

REMOVAL

1. Remove fender protector. Refer to

EXT-21, "FENDER PROTECTOR : Removal and Installation"

.

2. Remove front fender cover. Refer to

DLK-168, "Exploded View"

.

3. Remove front combination lamp. Refer to

EXL-130, "Removal and Installation"

.

4. Remove the front fender bolts.
5. Apply protective tape (A) on the body side outer panel to protect

the painted surface from damage.

: Front

1.

Rivet

2.

Front fender cover

3.

Front fender seal

4.

Front fender upper insulator

5.

Front fender assembly

6.

Front fender seal

7.

Front fender stiffener

Pawl

Front

AWKIA2361ZZ

JMKIA9360ZZ

FRONT FENDER

DLK-169

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

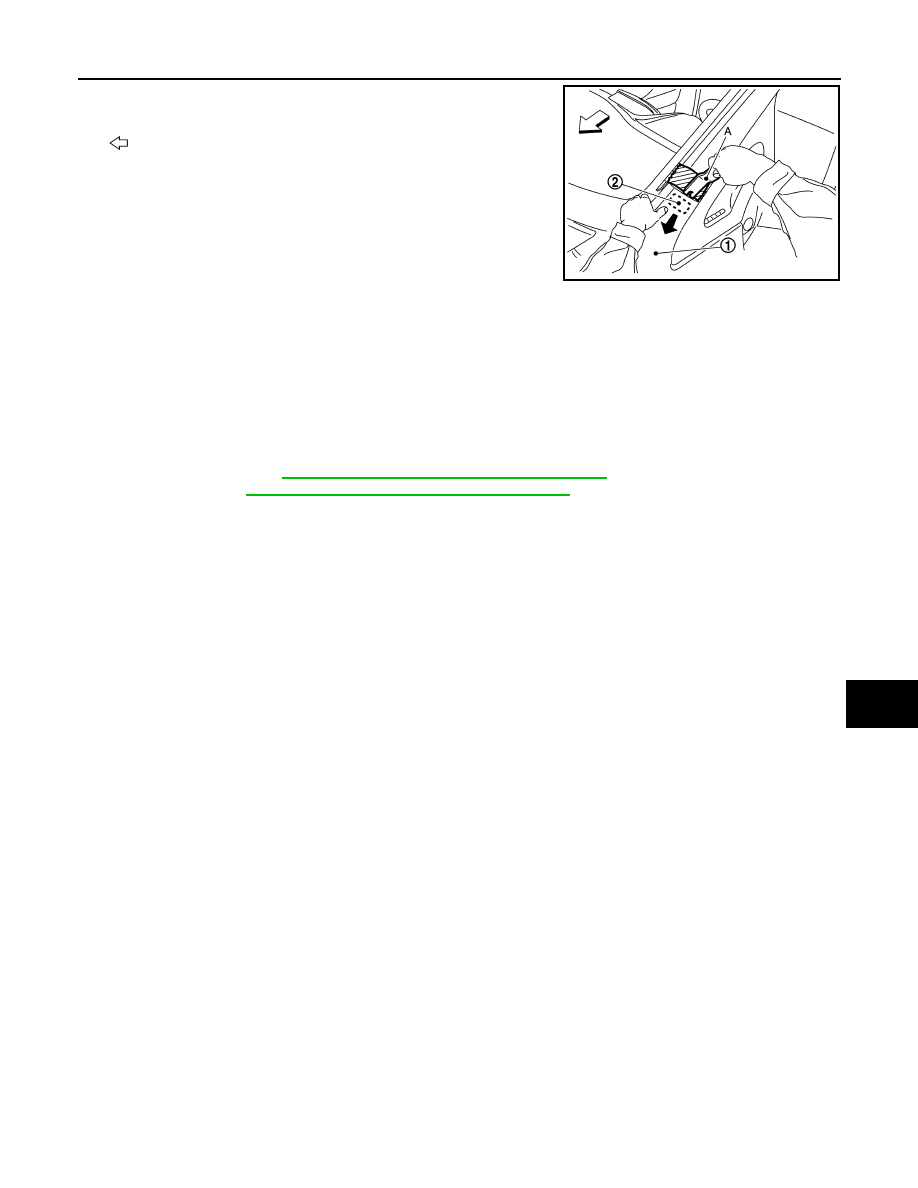

6. Using a suitable tool (A), remove front fender stiffener (2) from

the vehicle body while carefully pulling the portion of front fender

(1) toward vehicle outside.

: Front

7. Remove the front fender assembly.

CAUTION:

Use care when removing the front fender. The front fender baffle foam adheres the front fender to

the body side outer. Carefully release the baffle foam or damage to the front fender may occur.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply touch-up paint (body color) to the head of front fender bolts.

• After installation, adjust the following parts:

- Hood assembly: Refer to

DLK-155, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-172, "DOOR ASSEMBLY : Adjustment"

.

JMKIA9361ZZ

DLK-170

< REMOVAL AND INSTALLATION >

FRONT DOOR

FRONT DOOR

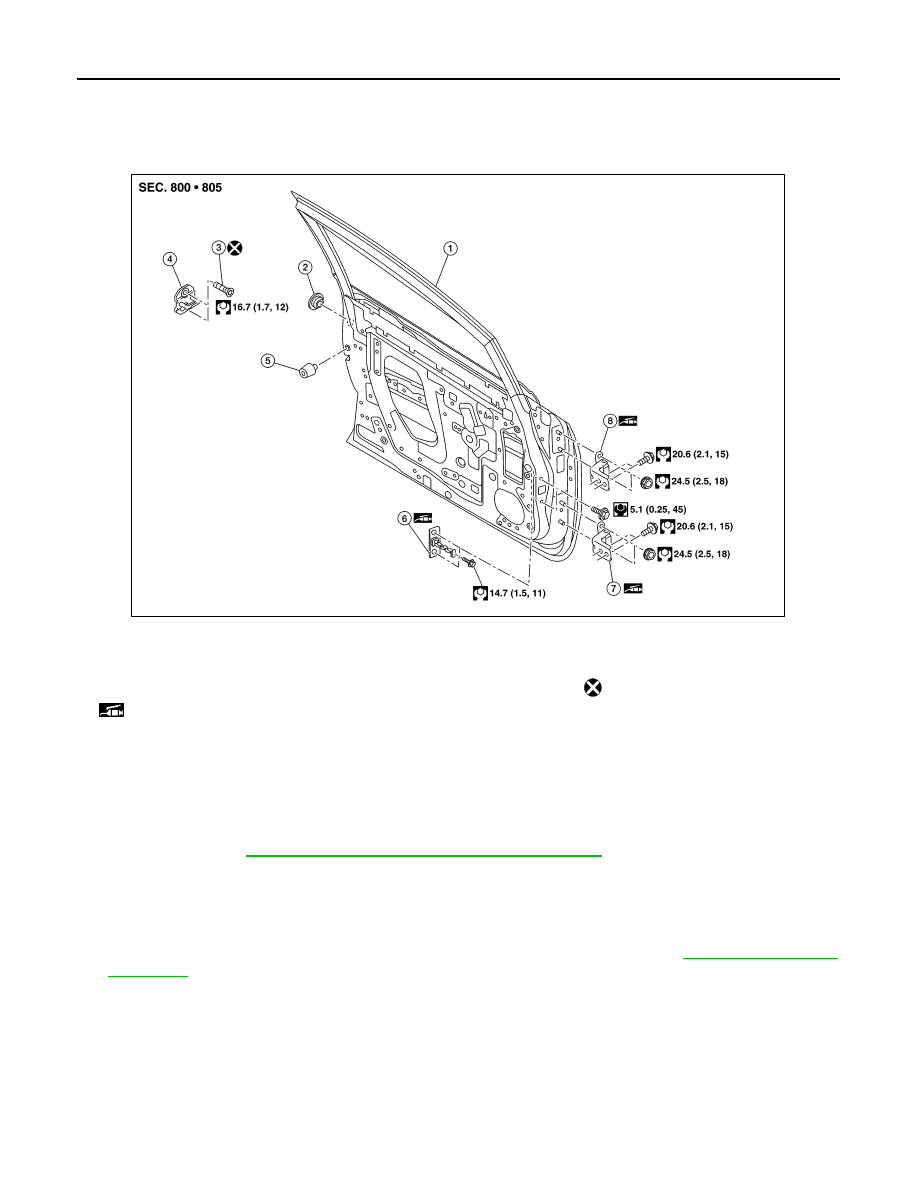

Exploded View

INFOID:0000000010119865

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010119866

WARNING:

Before servicing, push power switch OFF, disconnect 12V battery negative terminal and wait five min-

utes or more. Refer to

DLK-10, "Precaution for Removing 12V Battery"

.

CAUTION:

• Use two people when removing or installing the front door due to its heavy weight.

• When removing and installing front door assembly, support front door with a suitable tool.

REMOVAL

1. Disconnect the negative battery terminal and wait at least five minutes. Refer to

PG-89, "Removal and

Installation"

.

1.

Front door panel

2.

Grommet

3.

Bolt

4.

Door striker

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Do not reuse

Grease

AWKIA2423ZZ
