B2626 OUTSIDE ANTENNA

DLK-75

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Check continuity between BCM harness connector and outside key antenna (RH) harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

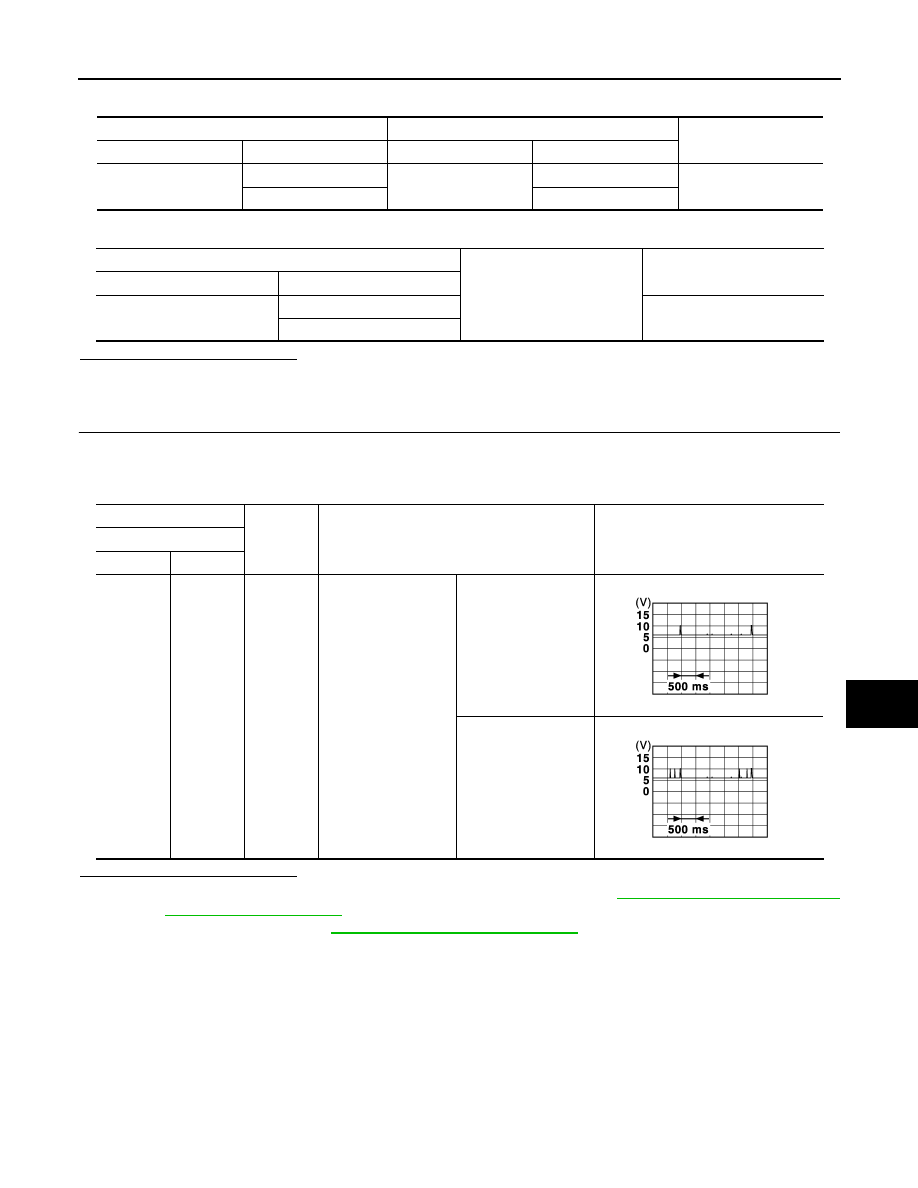

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (RH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (RH) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace front outside handle RH (outside key antenna). Refer to

DLK-207, "PASSENGER SIDE :

Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

BCM

Outside key antenna (RH)

Continuity

Connector

Terminal

Connector

Terminal

M23

80

D108

1

Yes

81

2

BCM

Ground

Continuity

Connector

Terminal

M23

80

No

81

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

80
81

Ground

When the RH request
switch is operated
with power switch
OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

DLK-76

< DTC/CIRCUIT DIAGNOSIS >

B2627 OUTSIDE ANTENNA

B2627 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000010119749

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Disconnect outside key antenna (LH) connector.

2. Perform  “Self Diagnostic Result” of “INTELLIGENT KEY” using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-76, "Diagnosis Procedure"

.

NO

>> Outside key antenna (LH) is OK.

Diagnosis Procedure

INFOID:0000000010119750

Regarding Wiring Diagram information, refer to

DLK-44, "Wiring Diagram"

.

1.

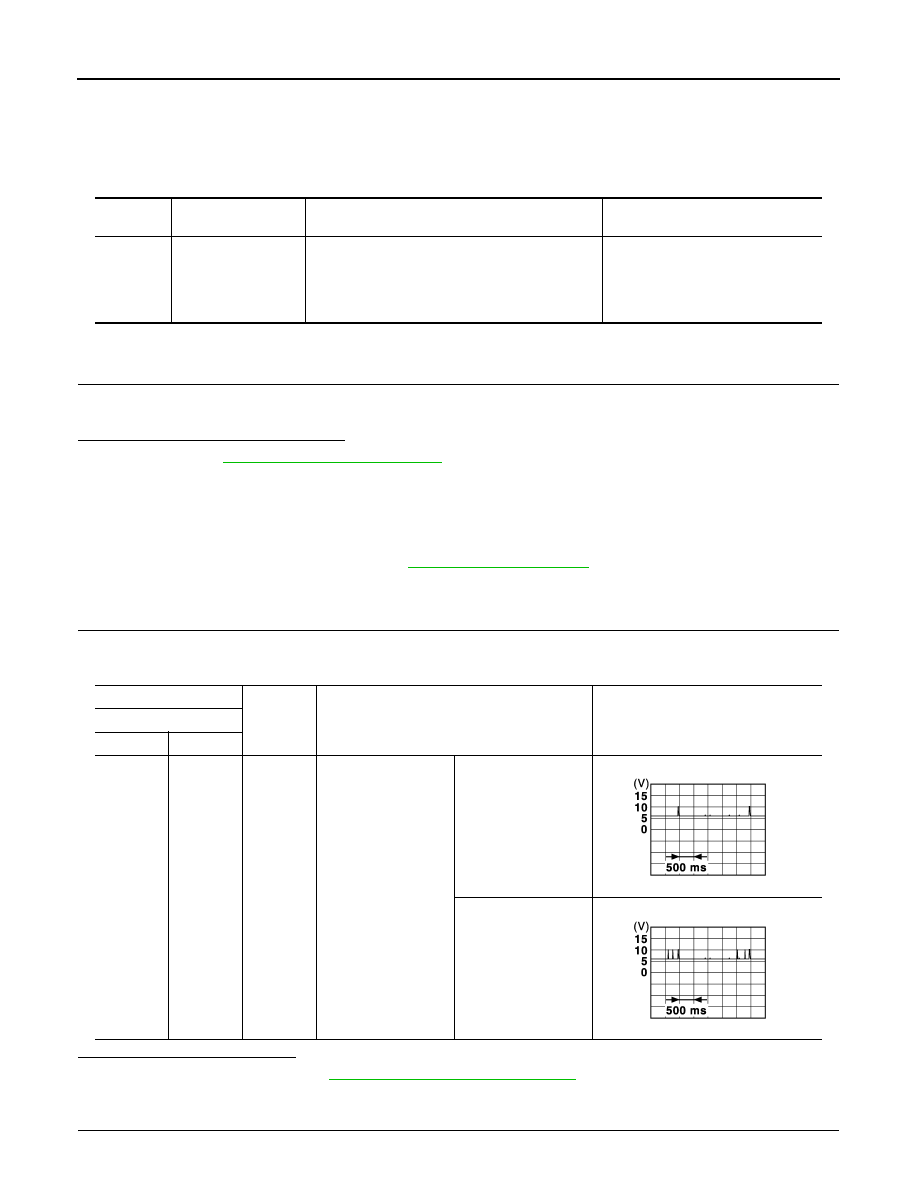

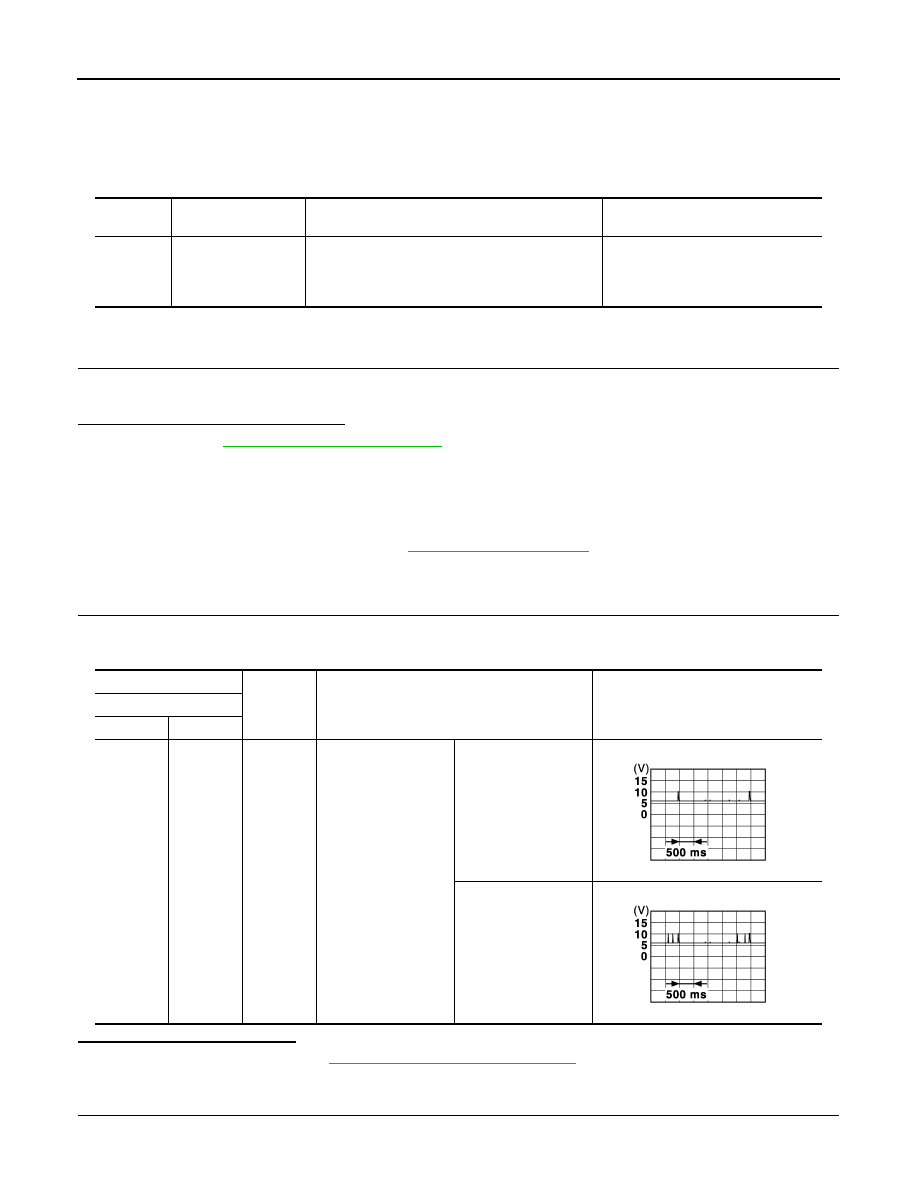

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn power switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (LH) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2627

OUTSIDE 2 ANTEN-
NA

An excessive high or low voltage from outside key
antenna (LH) is sent to BCM.

• Outside key antenna (LH)
• Harness or connector

[Outside key antenna (LH) circuit is
open or shorted]

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

78
79

Ground

When the LH request
switch is operated
with power switch
OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

B2627 OUTSIDE ANTENNA

DLK-77

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Check continuity between BCM harness connector and outside key antenna (LH) harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (LH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (LH) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace front outside handle LH (outside key antenna). Refer to

DLK-207, "DRIVER SIDE :

Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

BCM

Outside key antenna (LH)

Continuity

Connector

Terminal

Connector

Terminal

M23

78

D6

1

Yes

79

2

BCM

Ground

Continuity

Connector

Terminal

M23

78

No

79

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

78
79

Ground

When the LH request
switch is operated
with power switch
OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB

DLK-78

< DTC/CIRCUIT DIAGNOSIS >

B2628 OUTSIDE ANTENNA

B2628 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000010119751

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Disconnect outside key antenna (rear bumper) connector.

2. Perform “Self Diagnostic Result”of “INTELLIGENT KEY” using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-78, "Diagnosis Procedure"

.

NO

>> Outside key antenna (rear bumper) is OK.

Diagnosis Procedure

INFOID:0000000010119752

Regarding Wiring Diagram information, refer to

DLK-44, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn power switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2628

OUTSIDE 3 ANTEN-
NA

An excessive high or low voltage from outside key
antenna (rear bumper) is sent to BCM.

• Outside key antenna (rear

bumper)

• Harness or connector

[Outside key antenna (rear
bumper) circuit is open or shorted]

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

82
83

Ground

When the back door
request switch is oper-
ated with power
switch OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB
