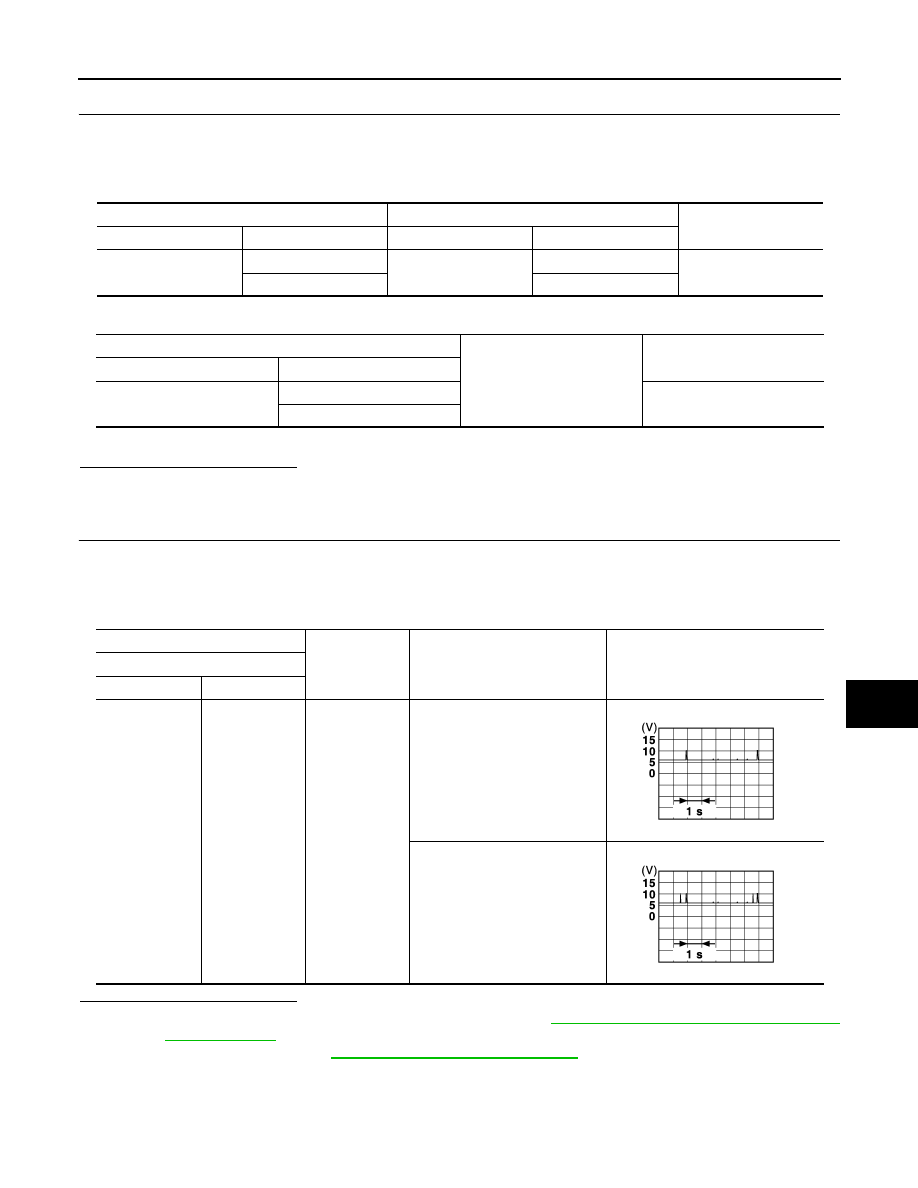

B2622 INSIDE ANTENNA

DLK-71

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1. Turn power switch OFF.

2. Disconnect BCM connector and inside key antenna (rear seat) connector.

3. Check continuity between BCM harness connector and inside key antenna (rear seat) harness connector.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace inside key antenna (rear seat). (New antenna or other antenna)

2. Connect BCM connector and inside key antenna (rear seat) connector.

3. Turn power switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (rear seat). Refer to

DLK-205, "REAR SEAT : Removal and Installa-

tion"

.

NO

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

BCM

Inside key antenna (rear seat)

Continuity

Connector

Terminal

Connector

Terminal

M23

86

B81

1

Yes

87

2

BCM

Ground

Continuity

Connector

Terminal

M23

86

No

87

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

86
87

Ground

When Intelligent Key is in the an-
tenna detection area

When Intelligent Key is not in the
antenna detection area

JMKIA3839GB

JMKIA5951GB

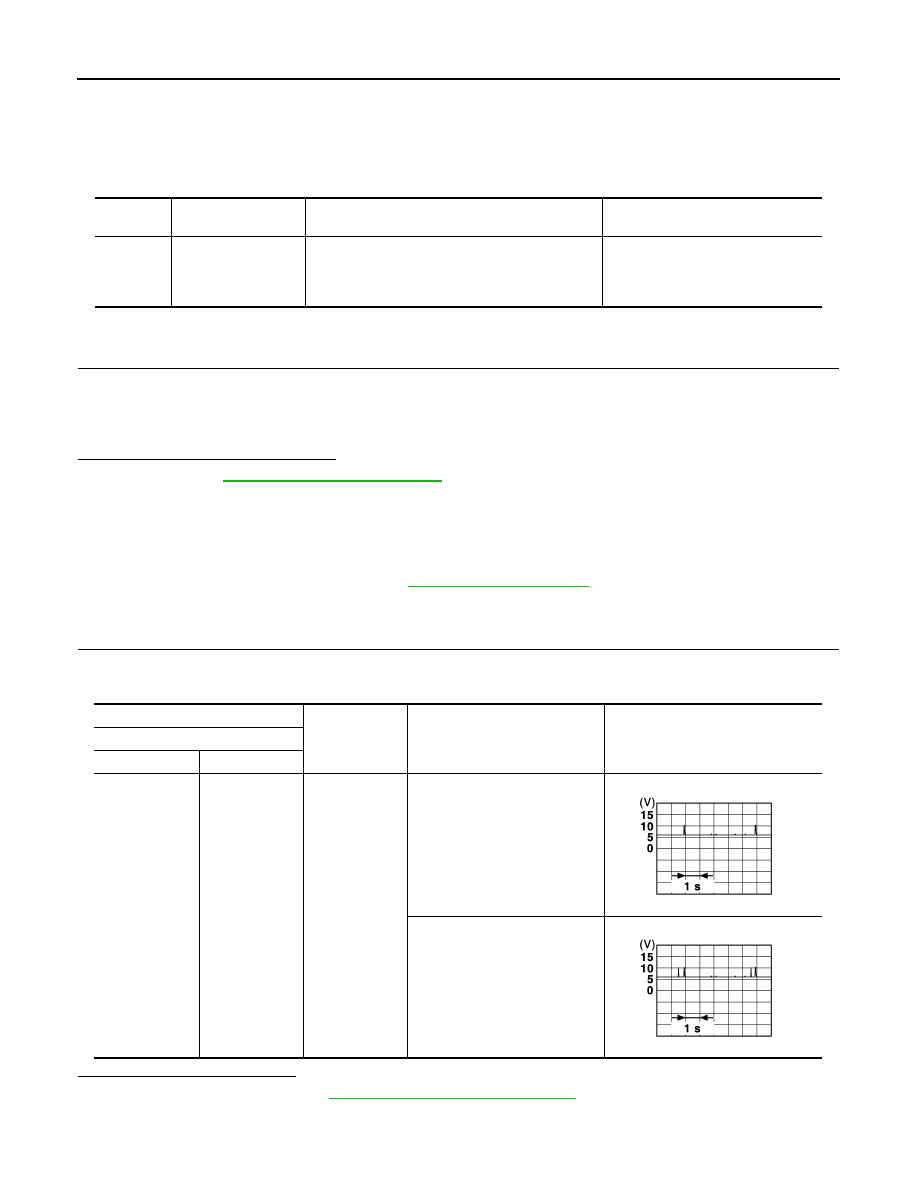

DLK-72

< DTC/CIRCUIT DIAGNOSIS >

B2623 INSIDE ANTENNA

B2623 INSIDE ANTENNA

DTC Logic

INFOID:0000000010119745

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “INSIDE ANT DIAGNOSIS” in “Work support”.

3. Perform inside key antenna (“INSIDE ANT DIAGNOSIS”) in “Work support” of “INTELLIGENT KEY”.

4. Check BCM for DTC.
Is inside key antenna DTC detected?

YES

>> Refer to

DLK-72, "Diagnosis Procedure"

.

NO

>> Inside key antenna (luggage room) is OK.

Diagnosis Procedure

INFOID:0000000010119746

Regarding Wiring Diagram information, refer to

DLK-44, "Wiring Diagram"

.

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn power switch ON.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> GO TO 2.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2623

INSIDE ANTENNA 3

An excessive high or low voltage from inside anten-
na (luggage room) is sent to BCM.

• Inside key antenna (luggage room)
• Harness or connector

[Inside key antenna (luggage
room) circuit is open or shorted]

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

88
89

Ground

When Intelligent Key is in the an-
tenna detection area

When Intelligent Key is not in the
antenna detection area

JMKIA3839GB

JMKIA5951GB

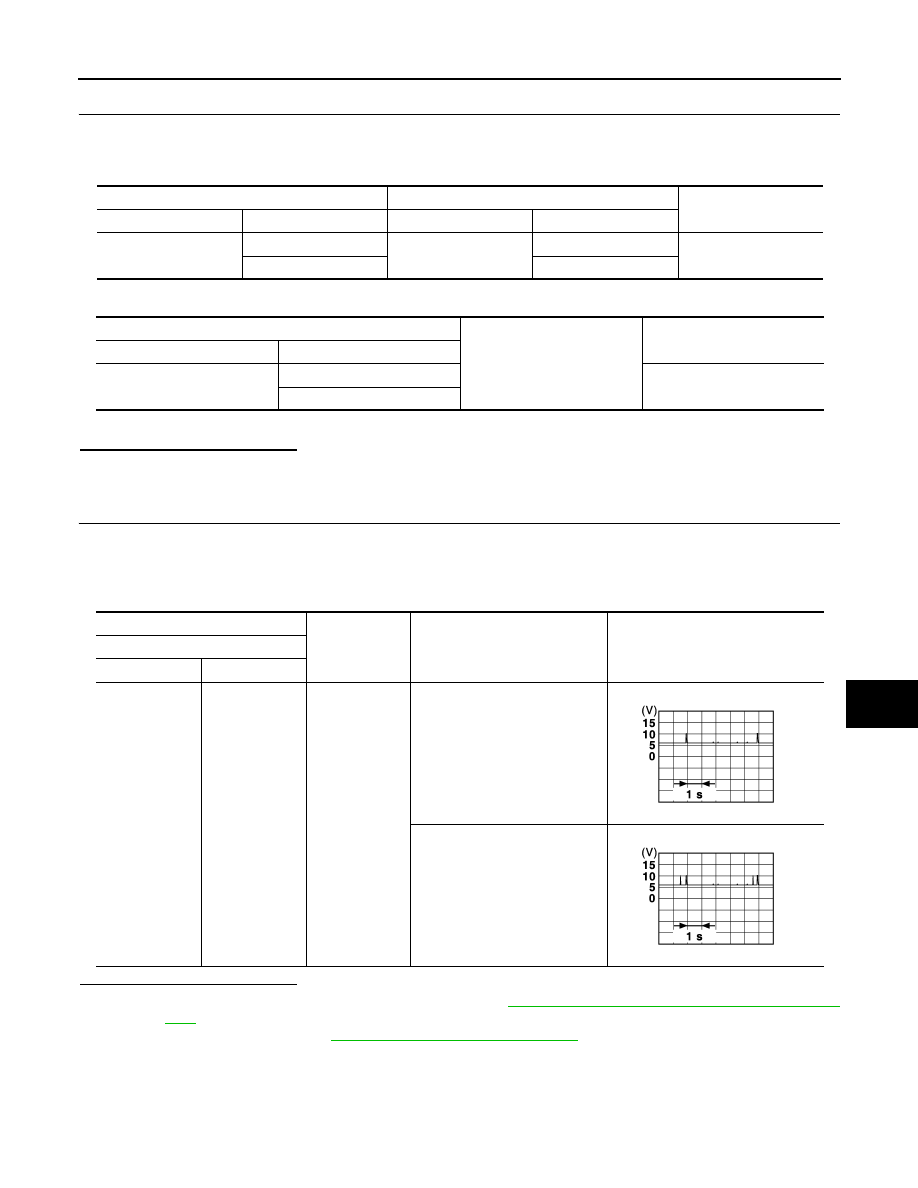

B2623 INSIDE ANTENNA

DLK-73

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1. Turn power switch OFF.

2. Disconnect BCM connector and inside key antenna (luggage room) connector.

3. Check continuity between BCM harness connector and inside key antenna (luggage room) harness con-

nector.

4. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace inside key antenna (luggage room). (New antenna or other antenna)

2. Connect BCM connector and inside key antenna (luggage room) connector.

3. Turn power switch ON.

4. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (luggage room). Refer to

DLK-205, "LUGGAGE ROOM : Removal

and Installation"

.

NO

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

BCM

Inside key antenna (luggage room)

Continuity

Connector

Terminal

Connector

Terminal

M23

88

B82

1

Yes

89

2

BCM

Ground

Continuity

Connector

Terminal

M23

88

No

89

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

88
89

Ground

When Intelligent Key is in the an-
tenna detection area

When Intelligent Key is not in the
antenna detection area

JMKIA3839GB

JMKIA5951GB

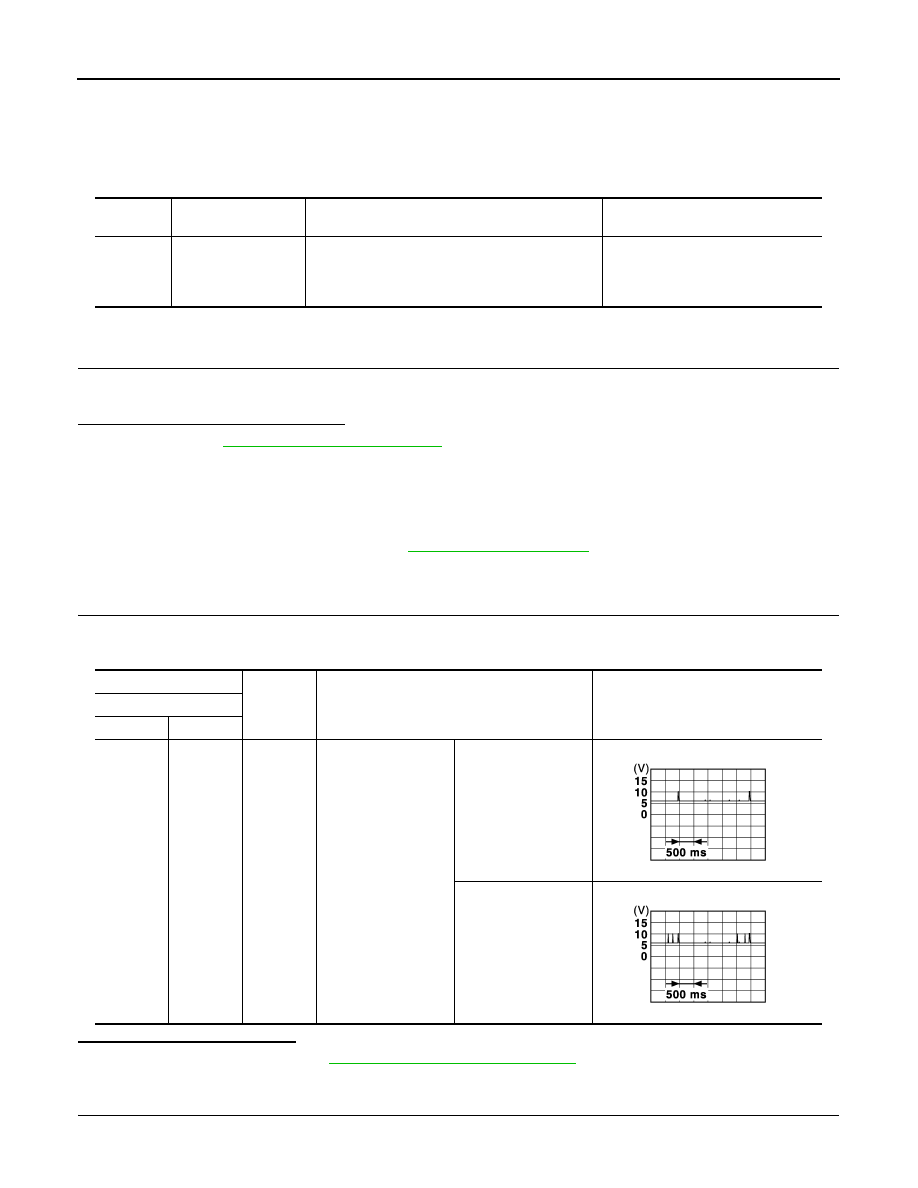

DLK-74

< DTC/CIRCUIT DIAGNOSIS >

B2626 OUTSIDE ANTENNA

B2626 OUTSIDE ANTENNA

DTC Logic

INFOID:0000000010119747

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Disconnect outside key antenna (RH) connector.

2. Perform “Self Diagnostic Result” of “INTELLIGENT KEY” using CONSULT.
Is outside key antenna DTC detected?

YES

>> Refer to

DLK-74, "Diagnosis Procedure"

.

NO

>> Outside key antenna (RH) is OK.

Diagnosis Procedure

INFOID:0000000010119748

Regarding Wiring Diagram information, refer to

DLK-44, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn power switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (RH) connector.

DTC

CONSULT display

description

DTC detecting condition

Possible cause

B2626

OUTSIDE 1 ANTEN-
NA

An excessive high or low voltage from outside key
antenna (RH) is sent to BCM.

• Outside key antenna (RH)
• Harness or connector

[Outside key antenna (RH) circuit
is open or shorted]

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M23

80
81

Ground

When the RH request
switch is operated
with power switch
OFF

When Intelligent Key
is in the antenna de-
tection area (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less)

When Intelligent Key
is not in the antenna
detection area (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m)

JMKIA5955GB

JMKIA5954GB
