Nissan Leaf. Manual - part 381

COMPONENT PARTS

DLK-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

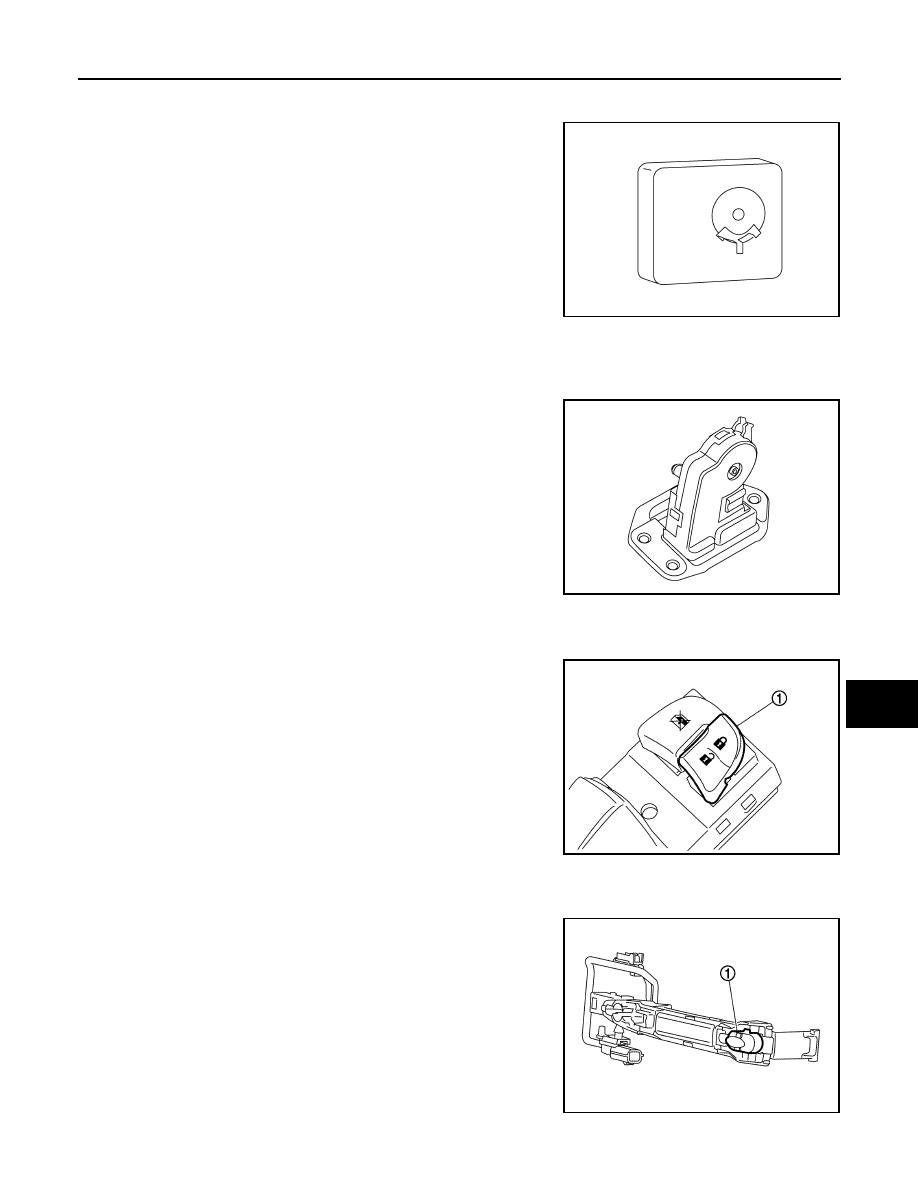

Intelligent Key Warning Buzzer

INFOID:0000000010119713

• Intelligent Key warning buzzer warns the user, who is outside vehi-

cle, of operation confirmation according to Intelligent Key operation

and door request switch operation, or of an inappropriate opera-

tion.

• Intelligent Key warning buzzer is installed in the rear of front

bumper and underneath headlight RH.

Back Door Lock Assembly

INFOID:0000000010119714

• Back door lock assembly lock assembly integrates door opener actuator and back door switch.

• Door opener actuator opens the back door according to the door open signal from BCM.

• Back door switch detects open/close status of back door.

Door Lock and Unlock Switch

INFOID:0000000010119715

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.

• Door lock and unlock switch (1) is integrated in the main power

window and door lock/unlock switch and power window and door

lock/unlock switch RH.

Front Door Request Switch (LH)

INFOID:0000000010119716

• Front door request switch (LH) transmits door request switch signal to BCM.

• Front door request switch (LH) (1) is integrated in front outside

handle (LH).

JMKIA8650ZZ

JMKIA8651ZZ

JMKIA9352ZZ

JMKIA9353ZZ

DLK-20

< SYSTEM DESCRIPTION >

COMPONENT PARTS

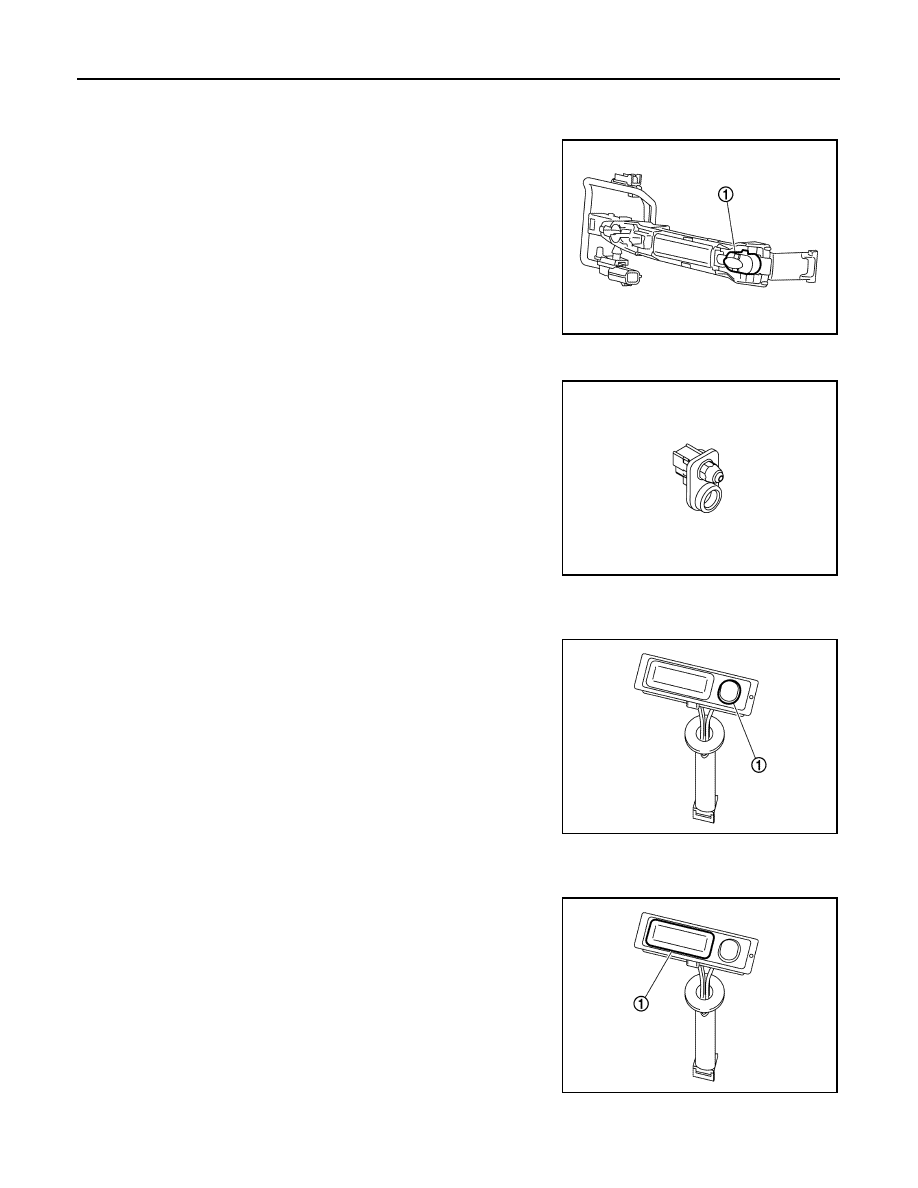

Front Door Request Switch (RH)

INFOID:0000000010119717

• Front door request switch (RH) transmits door request switch signal to BCM.

• Front door request switch (RH) (1) is integrated in front outside

handle (RH).

Door Switch

INFOID:0000000010119718

Door switch detects open/close status of door and transmits door

switch signal to BCM.

Back Door Request Switch

INFOID:0000000010119719

• Back door request switch transmits back door request switch signal to BCM.

• Back door request switch (1) is integrated in the back door opener

switch assembly.

Back Door Opener Switch

INFOID:0000000010119720

• Back door opener switch transmits back door opener switch signal to BCM.

• Back door opener switch (1) is integrated in the back door opener

switch assembly.

JMKIA9353ZZ

JMKIA6526ZZ

JMKIA9355ZZ

JMKIA9354ZZ

COMPONENT PARTS

DLK-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

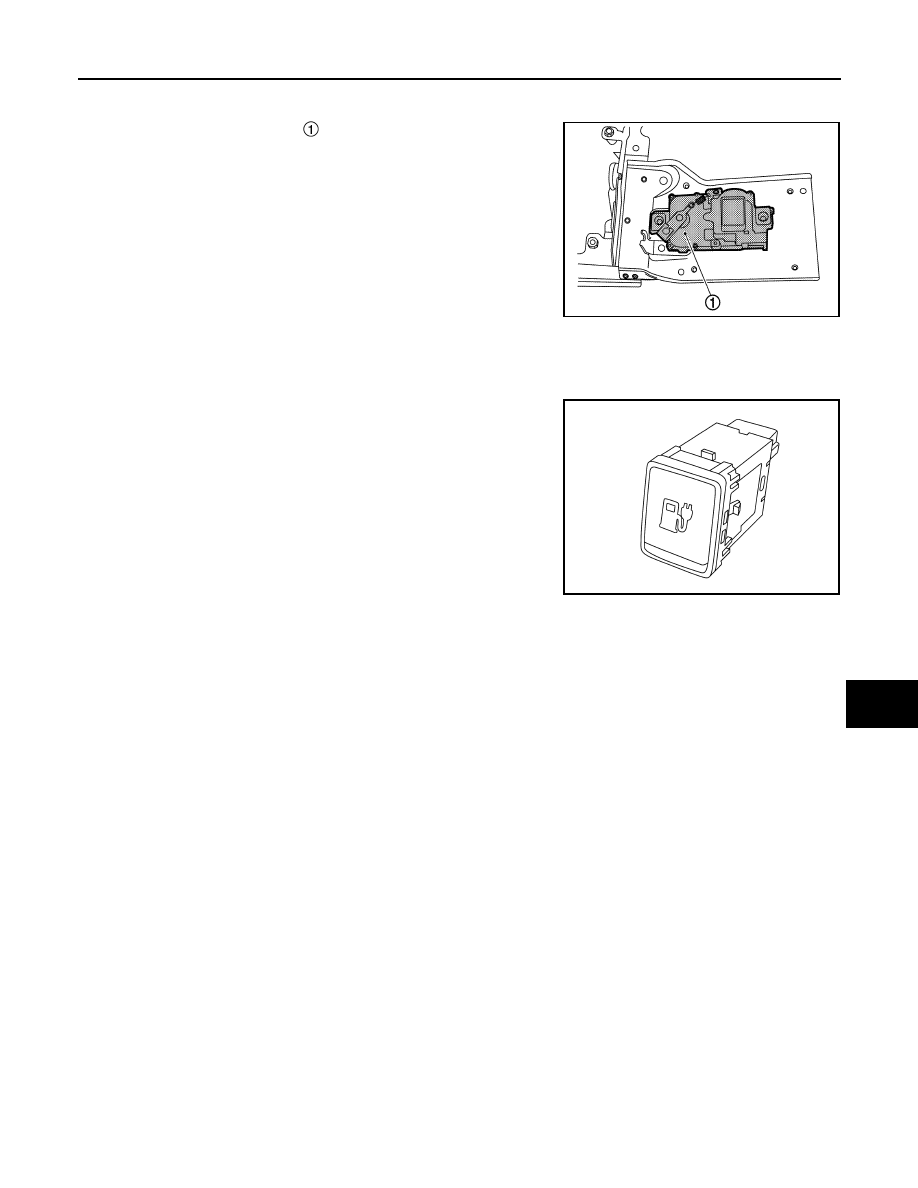

Charge Port Lid Opener Actuator

INFOID:0000000010119721

Charge port lid opener actuator   opens the charge port lid accord-

ing to the charge port lid open signal from VCM.

Charge Port Lid Opener Switch

INFOID:0000000010119722

• When charge port lid opener switch is pressed, charge port lid open operation is detected and charge port lid

opener switch signal is transmitted to VCM.

• Charge port lid opener switch is installed on instrument lower panel

LH

JMKIB0826ZZ

JMKIB0787ZZ

DLK-22

< SYSTEM DESCRIPTION >

SYSTEM (POWER DOOR LOCK SYSTEM)

SYSTEM (POWER DOOR LOCK SYSTEM)

System Description

INFOID:0000000010119723

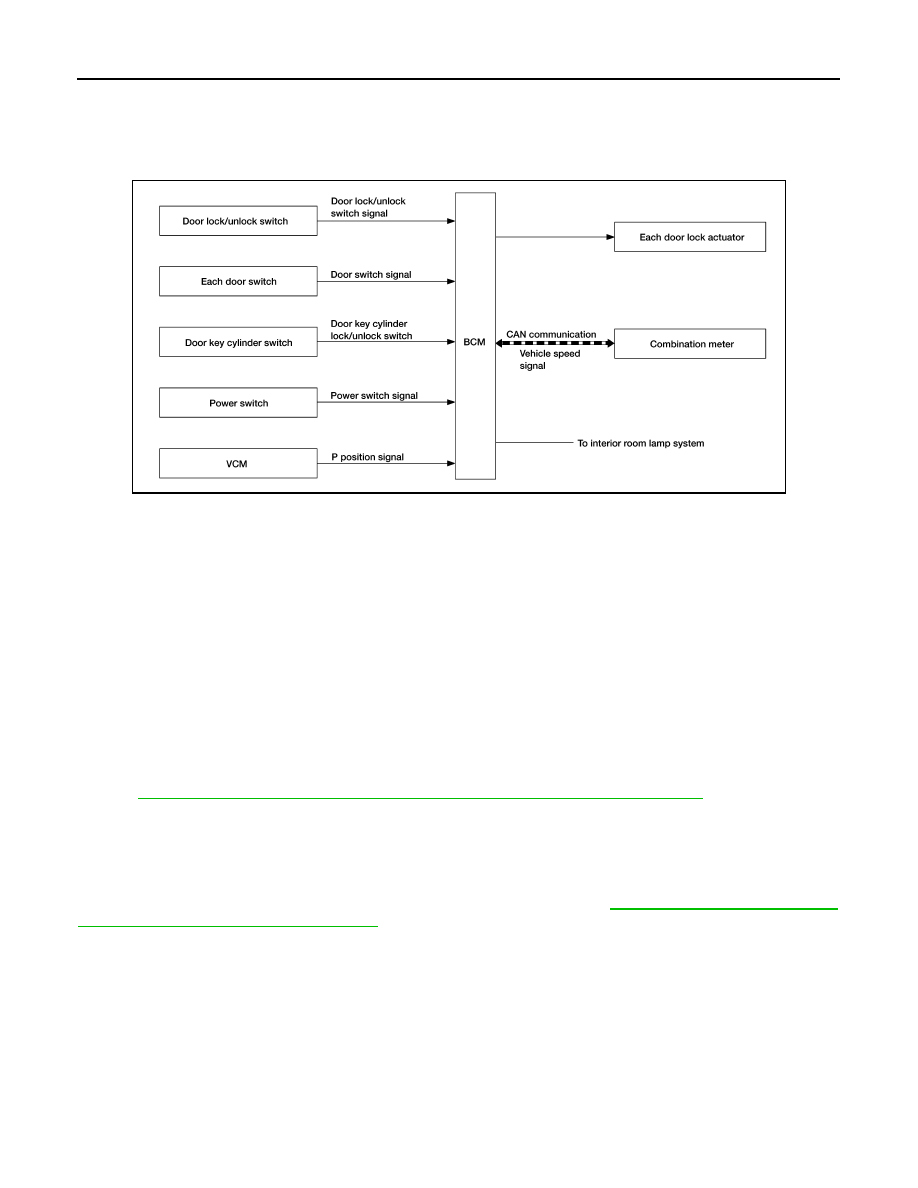

SYSTEM DIAGRAM

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (LH) is built into main power window and door lock/unlock switch.

• The door lock and unlock switch (RH) is built into power window and door lock/unlock switch RH.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked.

Door Key Cylinder Switch

• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once

unlocks the driver side door, turning it to unlock position again within 5 seconds after the first unlock opera-

tion unlocks all of the other doors actuator. (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using CONSULT.

Refer to

BCS-20, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

POWER POSITION WARNING FUNCTION

When door lock and unlock switch are operated while driver side door is open and power position is ACC or

ON, door locks once but immediately unlocks.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state. Refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-

tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the power switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

P Position Interlock Door Lock

All doors are locked when shifting the selector lever from the P position to any position other than P.

ALKIA3115GB
