PRECAUTIONS

DLK-11

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check that the charge status indicator lamp does not blink and wait for 5 minutes or more.

NOTE:

 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

Precaution for Work

INFOID:0000000010119701

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

DLK-12

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000010119702

The actual shape of the tools may differ from those illustrated here.

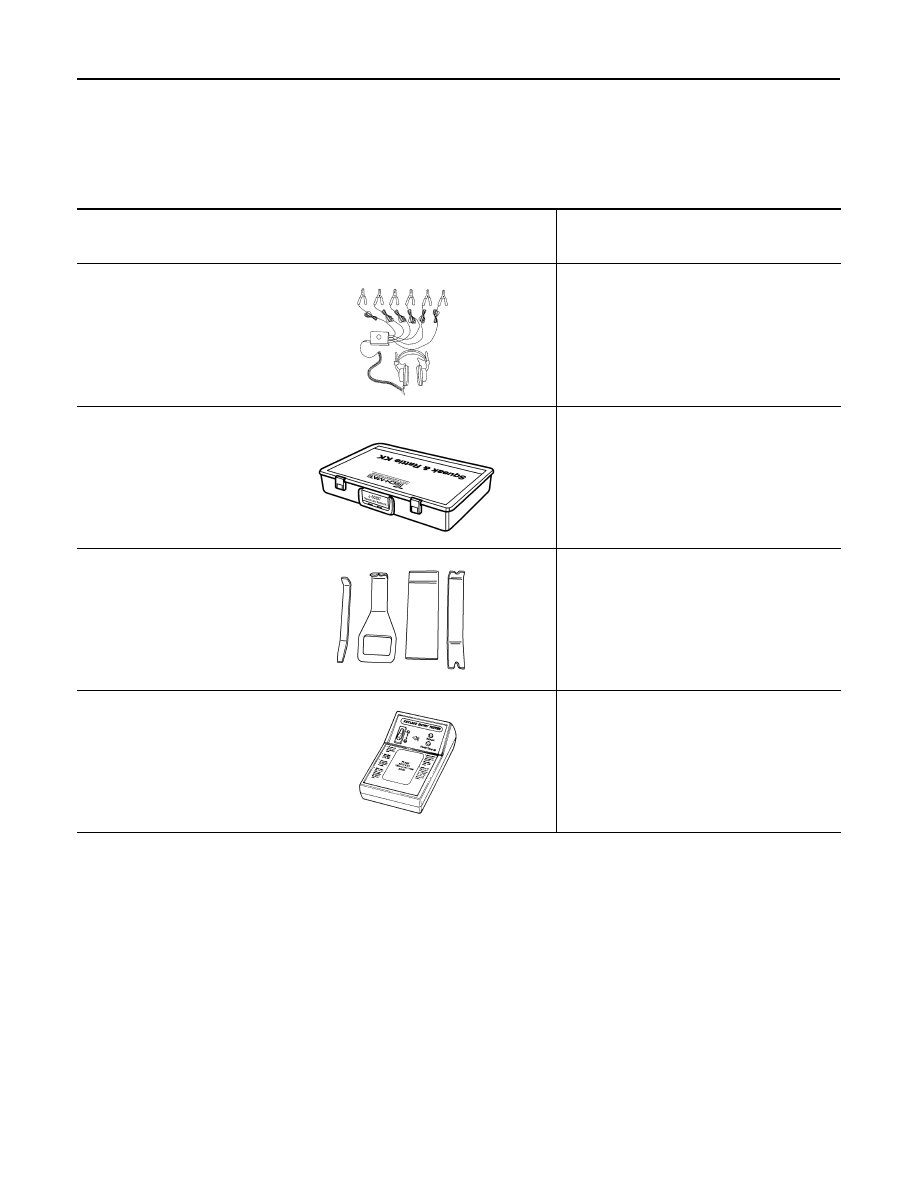

Tool number
(TechMate No.)
Tool name

Description

(J-39570)
Chassis Ear

Locating the noise

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

(J-46534)
Trim Tool Set

Removing trim components

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

LEL946A

PREPARATION

DLK-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Commercial Service Tools

INFOID:0000000010119703

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS

transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Test remote keyless entry keyfob relative

signal strength

• Check Intelligent Key relative signal strength
• Confirm vehicle Intelligent Key antenna sig-

nal strength

• Compatible with future sensors
• Equipped with a display

KV48105501
(J-45295-A)
Transmitter Activation Tool

• Activate TPMS transmitter IDs
• Compatible with future sensors
• Equipped with a display (KV48105501 only)

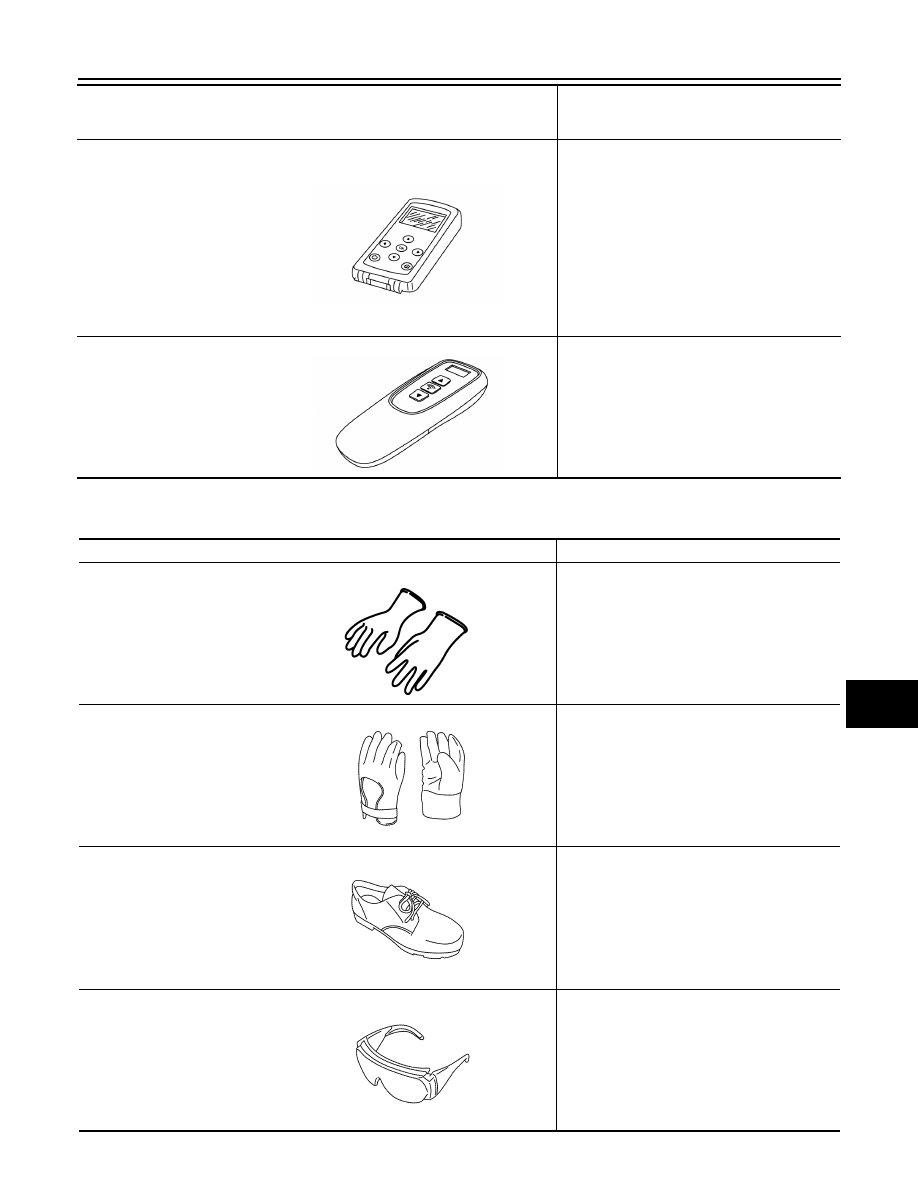

Tool number
(TechMate No.)
Tool name

Description

ALEIA0131ZZ

ALEIA0183ZZ

Tool name

Description

Insulated gloves
[Guaranteed insulation per-
formance for 1000V/300A]

Removing and installing high voltage compo-
nents

Leather gloves
[Use leather gloves that can
fasten the wrist tight]

• Removing and installing high voltage com-

ponents

• Protect insulated gloves

Insulated safety shoes

Removing and installing high voltage compo-
nents

Safety glasses
[ANSI Z87.1]

• Removing and installing high voltage com-

ponents

• To protect eye from the spatter on the work

to electric line

JMCIA0149ZZ

JPCIA0066ZZ

JPCIA0011ZZ

JPCIA0012ZZ

DLK-14

< PREPARATION >

PREPARATION

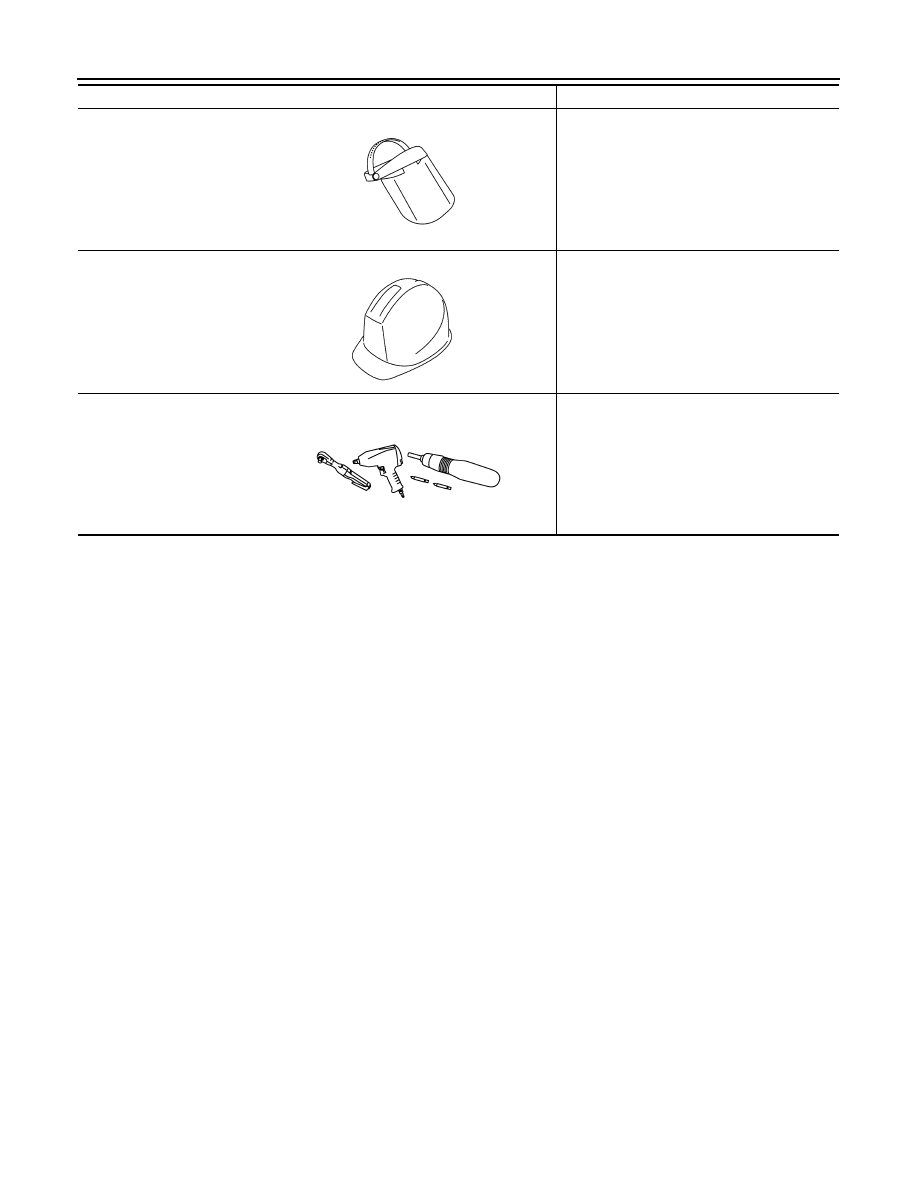

Face shield

• Removing and installing high voltage com-

ponents

• To protect eye from the spatter on the work

to electric line

Insulated helmet

Removing and installing high voltage compo-
nents

Power tool

Loosening nuts, screws and bolts

Tool name

Description

JPCIA0167ZZ

JPCIA0013ZZ

PIIB1407E
