COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

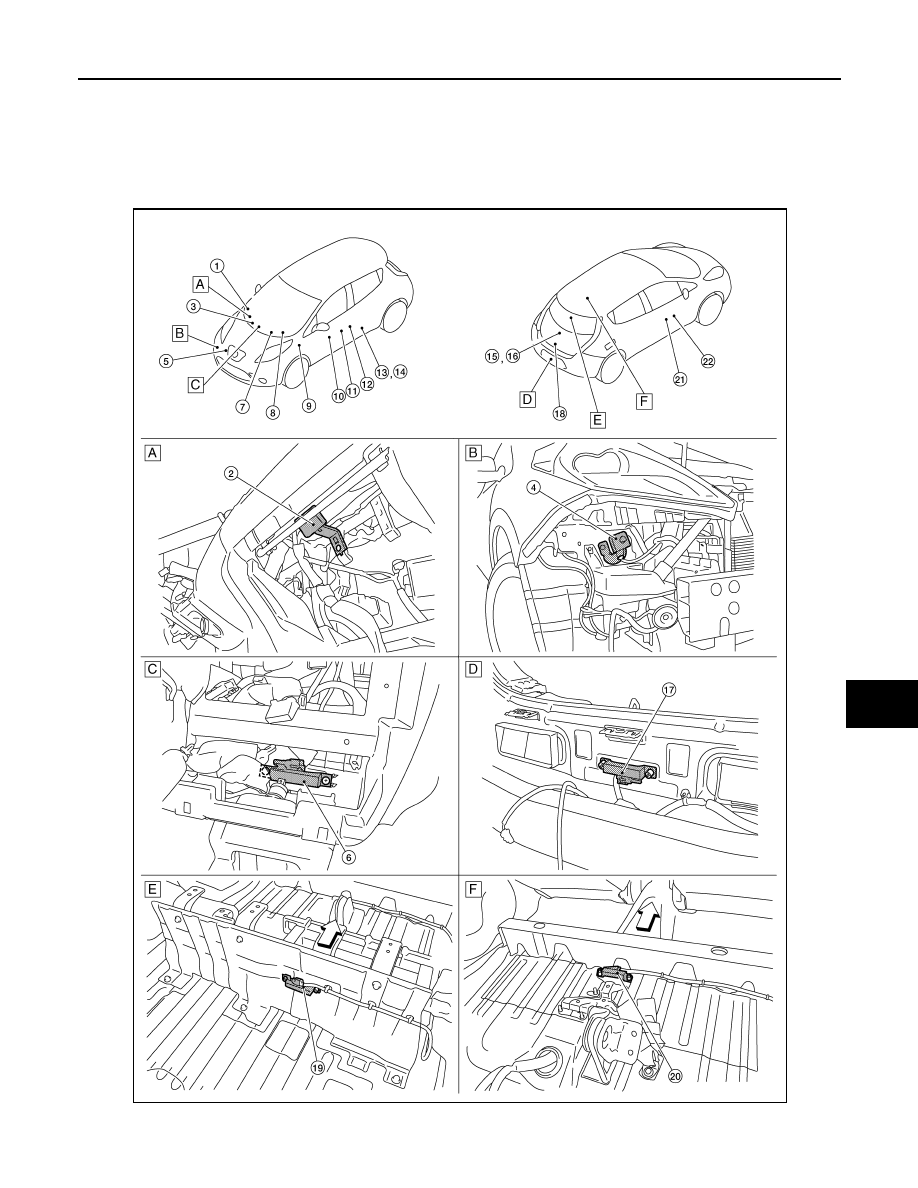

Component Parts Location

INFOID:0000000010119704

ALKIA3114ZZ

DLK-16

< SYSTEM DESCRIPTION >

COMPONENT PARTS

A.

View with glove box lid removed

B.

View with front bumper removed

C.

View with cluster lid C removed

D.

View with rear bumper removed

E.

View with luggage floor upper finisher
removed

F.

View with rear seat removed

No.

Component

Function

1.

VCM

Transmits P position signal to BCM
Refer to

TM-32, "Component Parts Location"

 for detailed installation location

2.

Remote keyless entry receiver

DLK-18, "Remote Keyless Entry Receiver"

3.

BCM

BCM detects the vehicle status according to signals from each door switch, each
outside/inside key antenna, and unlock sensor. BCM transmits drive signal to door
lock actuator when BCM receives operation signal from remote keyless entry receiv-
er and each switch.
Refer to

BCS-5, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location

4.

Intelligent Key warning buzzer

DLK-19, "Intelligent Key Warning Buzzer"

5.

Charge port lid opener actuator

DLK-21, "Charge Port Lid Opener Actuator"

6.

Inside key antenna (instrument cen-
ter)

DLK-17, "Inside Key Antenna (Instrument Center)"

7.

Power switch

• Changes power position
• Inputs power switch ON/OFF condition to BCM
Refer to

SEC-9, "Component Parts Location"

 for detailed installation location

8.

Combination meter

• Displays each operation method guide and warning for system malfunction
• Performs operation method guide and warning with buzzer
• Transmits vehicle speed signal to CAN communication line
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location

9.

Charge port lid opener switch

DLK-21, "Charge Port Lid Opener Switch"

10.

Main power window and door lock
and unlock switch (RH similar)

DLK-19, "Door Lock and Unlock Switch"

11.

Front outside handle LH (outside
key antenna)

DLK-18, "Outside Key Antenna (LH)"

12.

Front outside handle LH (request
switch)

DLK-19, "Front Door Request Switch (LH)"

13.

Front door lock assembly (LH)

DLK-18, "Front Door Lock Assembly (LH)"

14.

Front door switch LH

DLK-20, "Door Switch"

15.

Back door request switch

DLK-20, "Back Door Request Switch"

16.

Back door opener switch

DLK-20, "Back Door Opener Switch"

17.

Outside antenna (rear bumper)

DLK-17, "Outside Key Antenna (Rear Bumper)"

18.

Back door lock assembly (door
opener actuator)

DLK-19, "Back Door Lock Assembly"

19.

Inside key antenna (luggage room)

DLK-17, "Inside Key Antenna (Luggage Room)"

20.

Inside key antenna (rear seat)

DLK-17, "Inside Key Antenna (Rear Seat)"

21.

Front outside handle RH (request
switch)

DLK-20, "Front Door Request Switch (RH)"

22.

Front outside handle RH (outside
key antenna)

DLK-18, "Outside Key Antenna (RH)"

COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

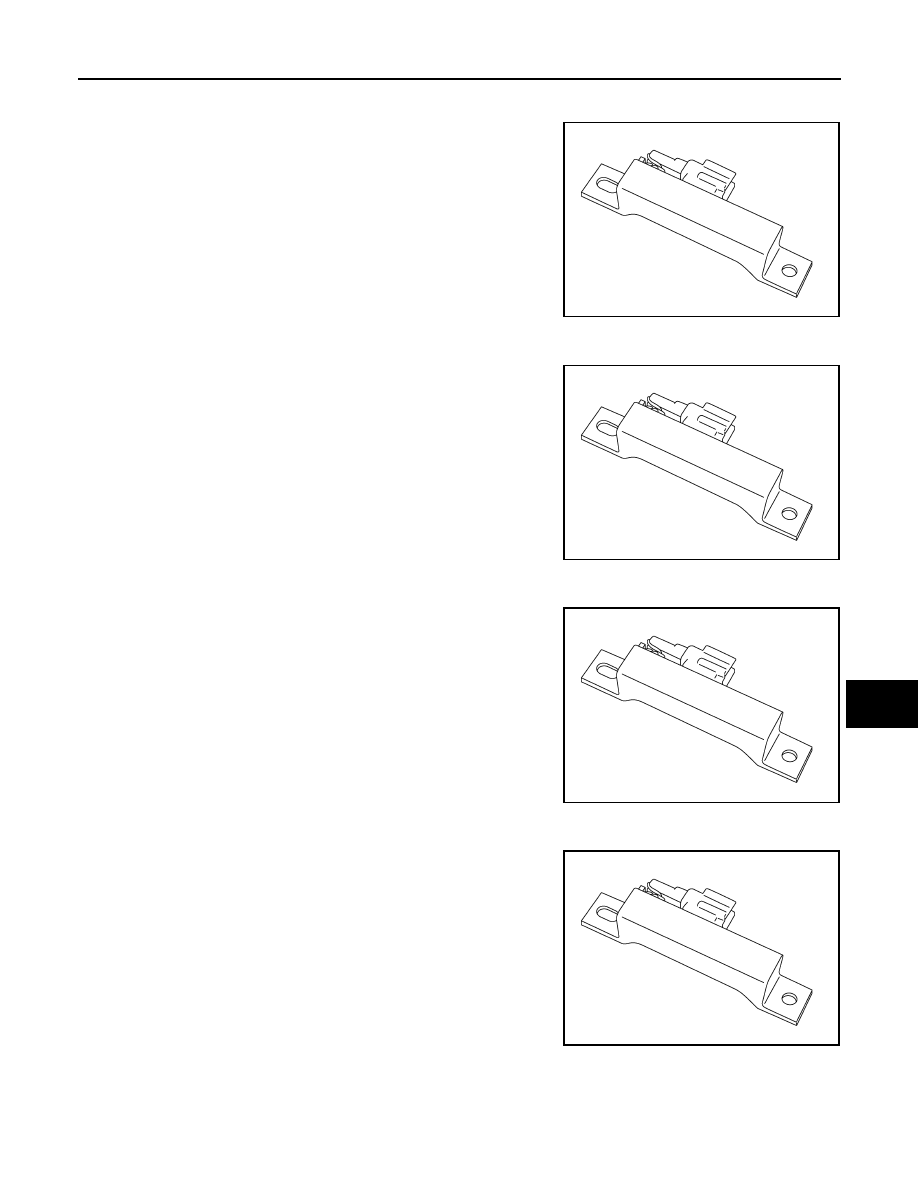

Inside Key Antenna (Instrument Center)

INFOID:0000000010119705

• Inside key antenna (instrument center) detects that Intelligent Key

is within the inside detection area, and then transmits detection

status to BCM.

• Inside key antenna (instrument center) is installed in the rear of

cluster lid C of instrument center.

Inside Key Antenna (Rear Seat)

INFOID:0000000010119706

• Inside key antenna (rear seat) detects that Intelligent Key is within

the inside detection area, and then transmits detection status to

BCM.

• Inside key antenna (rear seat) is installed underneath rear seat

cushion.

Inside Key Antenna (Luggage Room)

INFOID:0000000010119707

• Inside key antenna (luggage room) detects that Intelligent Key is

within the inside detection area, and then transmits detection sta-

tus to BCM.

• Inside key antenna (luggage room) is installed in the rear of lug-

gage floor upper finisher.

Outside Key Antenna (Rear Bumper)

INFOID:0000000010119708

• Outside key antenna (rear bumper) detects that Intelligent Key is

within the outside detection area, and then transmits detection sta-

tus to BCM. Request signal is transmitted simultaneously to Intelli-

gent Key.

• Outside key antenna (rear bumper) is installed in the rear of rear

bumper.

JMKIA8646ZZ

JMKIA8646ZZ

JMKIA8646ZZ

JMKIA8646ZZ

DLK-18

< SYSTEM DESCRIPTION >

COMPONENT PARTS

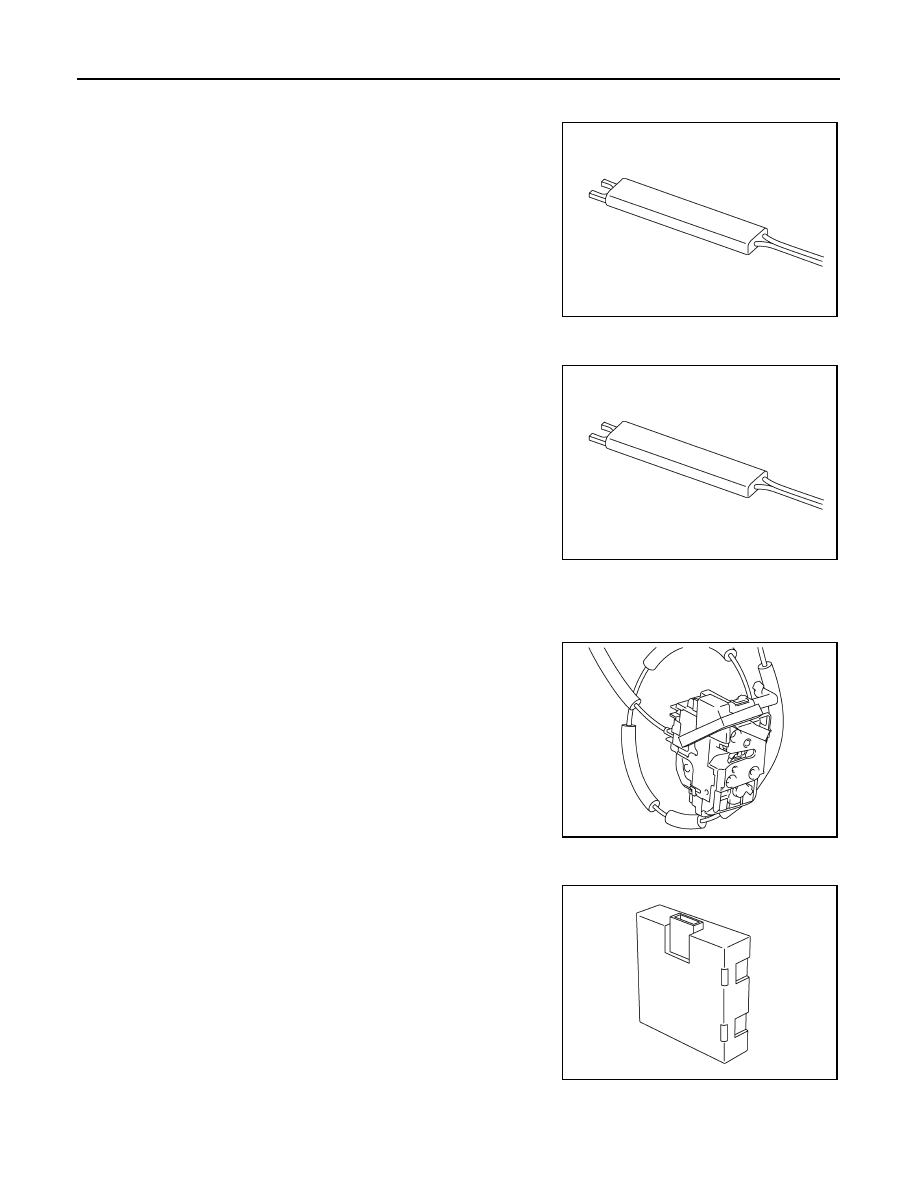

Outside Key Antenna (LH)

INFOID:0000000010119709

• Outside key antenna (LH) detects that Intelligent Key is within the

outside detection area, and then transmits detection status to

BCM. Request signal is transmitted simultaneously to Intelligent

Key.

• Outside key antenna (LH) is installed in the front outside handle

(LH).

Outside Key Antenna (RH)

INFOID:0000000010119710

• Outside key antenna (RH) detects that Intelligent Key is within the

outside detection area, and then transmits detection status to

BCM. Request signal is transmitted simultaneously to Intelligent

Key.

• Outside key antenna (RH) is installed in front outside handle (RH).

Front Door Lock Assembly (LH)

INFOID:0000000010119711

• Door lock actuator and unlock sensor are Integrated in front door lock assembly (LH).

• Door lock actuator receives lock/unlock signal from BCM, and then locks/unlocks LH door.

• Only front door lock assembly (LH) integrates unlock sensor.

Unlock sensor transmits lock/unlock status of LH door to BCM.

Remote Keyless Entry Receiver

INFOID:0000000010119712

• Remote keyless entry receiver receives button operation signal

and key ID signal of Intelligent Key, and then transmits them to

BCM.

• Remote keyless entry receiver is installed in the rear of glove box

lid.

JMKIA8648ZZ

JMKIA8648ZZ

JMKIA8649ZZ

JMKIA8647ZZ
