BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

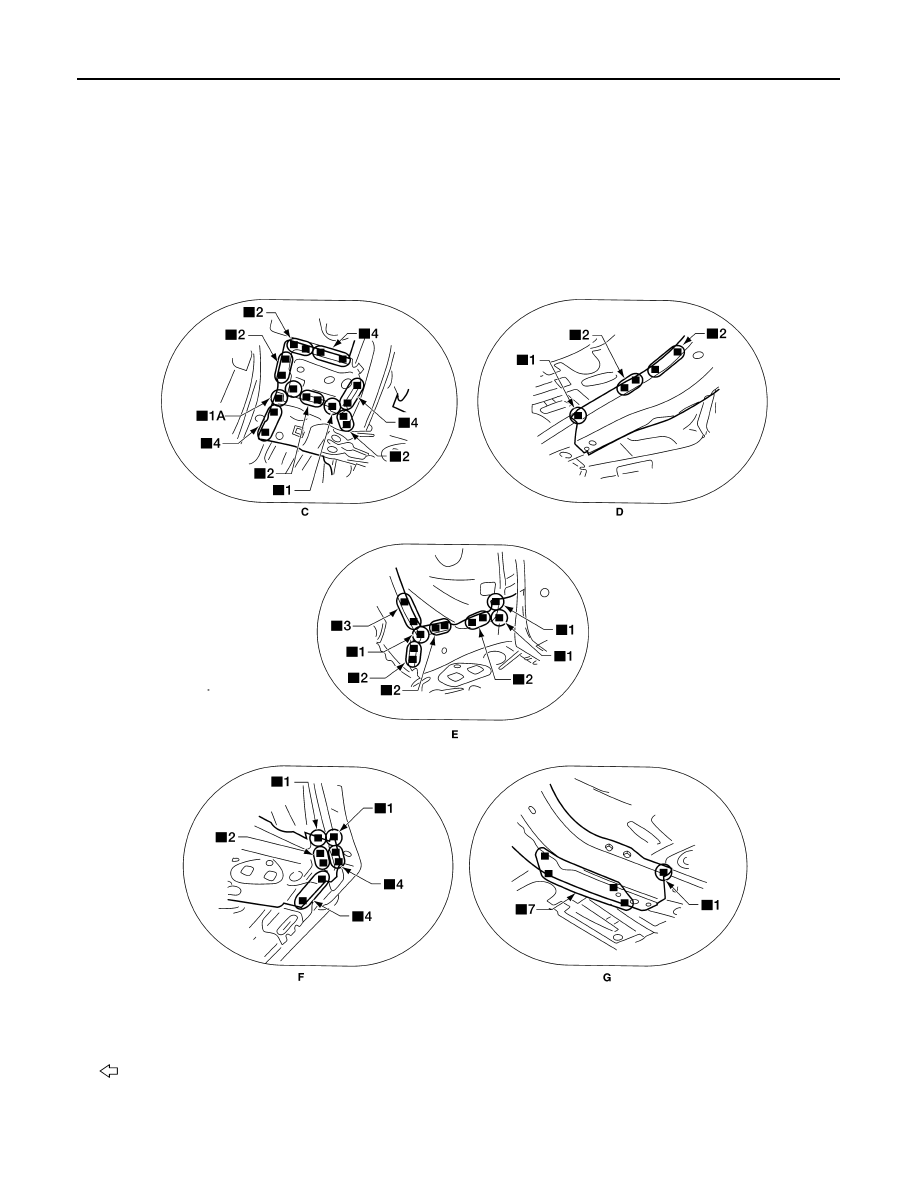

View D and G: Before installing front suspension mounting bracket (Rear)

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

z

Front suspension mounting bracket
(LH Rear)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

z

Charge port

z

PTC elements heater

z

Traction motor

z

Electric compressor

z

Traction motor inverter

z

DC/DC-J/B

 Front

 Drill

φ 8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

AWKIA2294ZZ

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member (Partial Replacement)

INFOID:0000000010121702

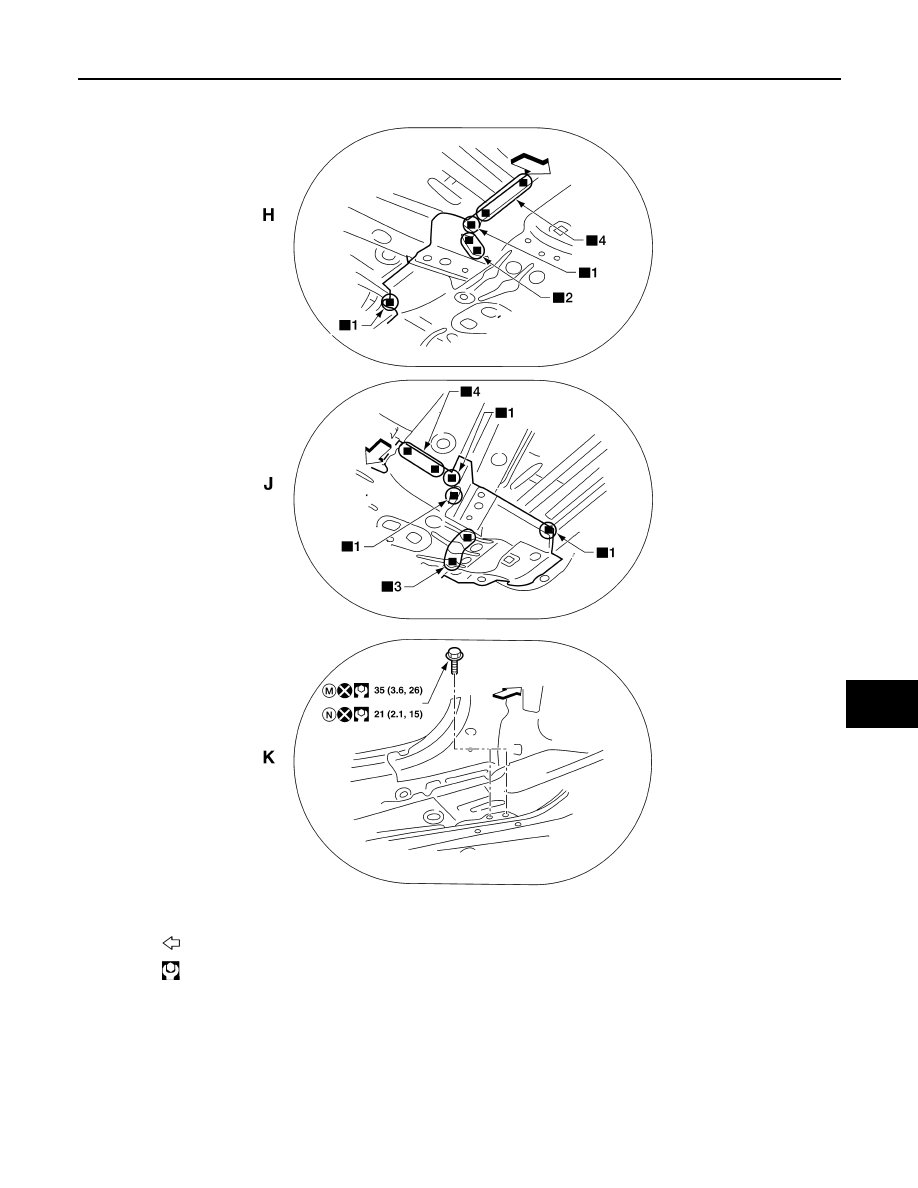

Work after radiator core support is removed.

 Front

 N·m (kg-m, ft-lb)

M. Bolt diameter 12 mm (0.47 in) N. Bolt diameter 13 mm (0.51 in)

AWKIA2384ZZ

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

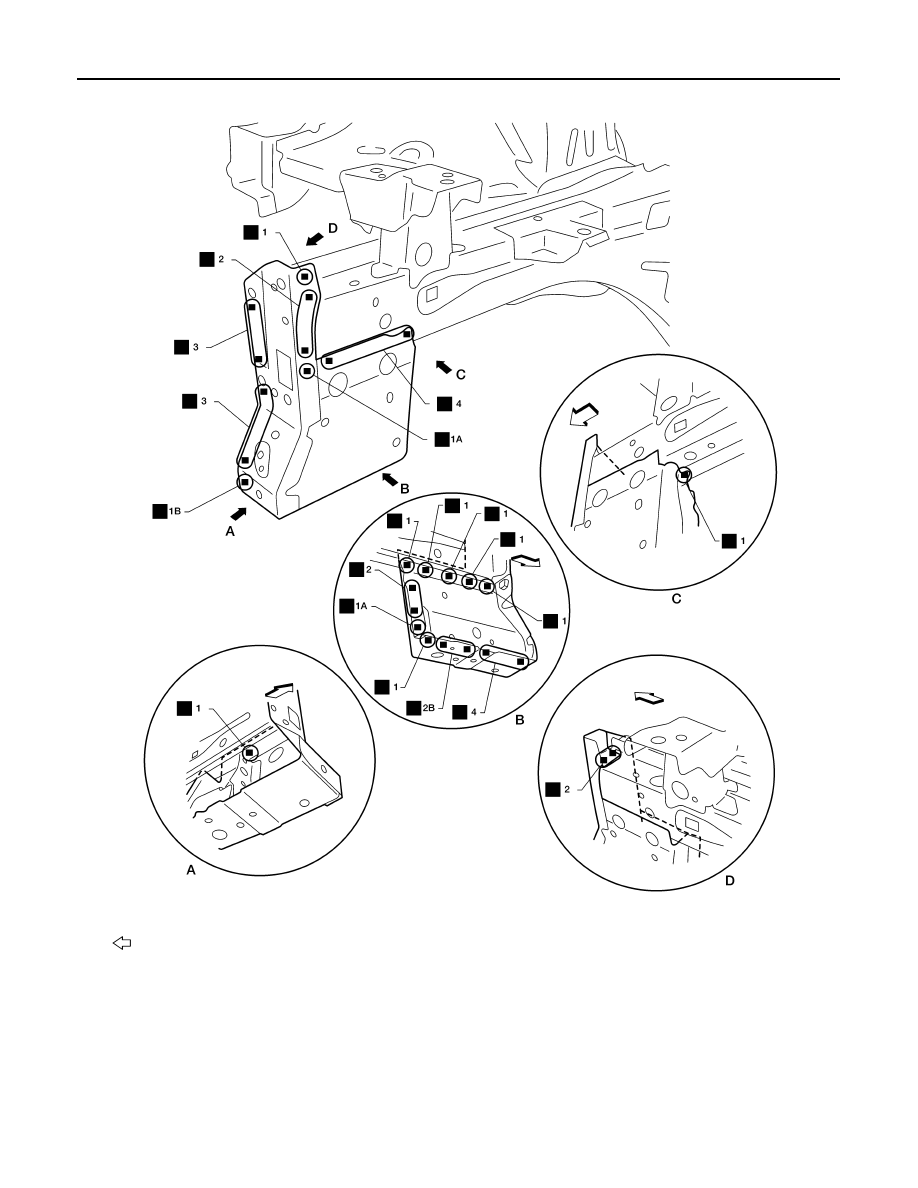

View A: Before installing outer add on frame bracket

 Front

Replacement parts

z

Front suspension mounting bracket
(RH Front)

z

Outer add on frame bracket (RH)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

z

Charge port

AWKIA2388ZZ

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

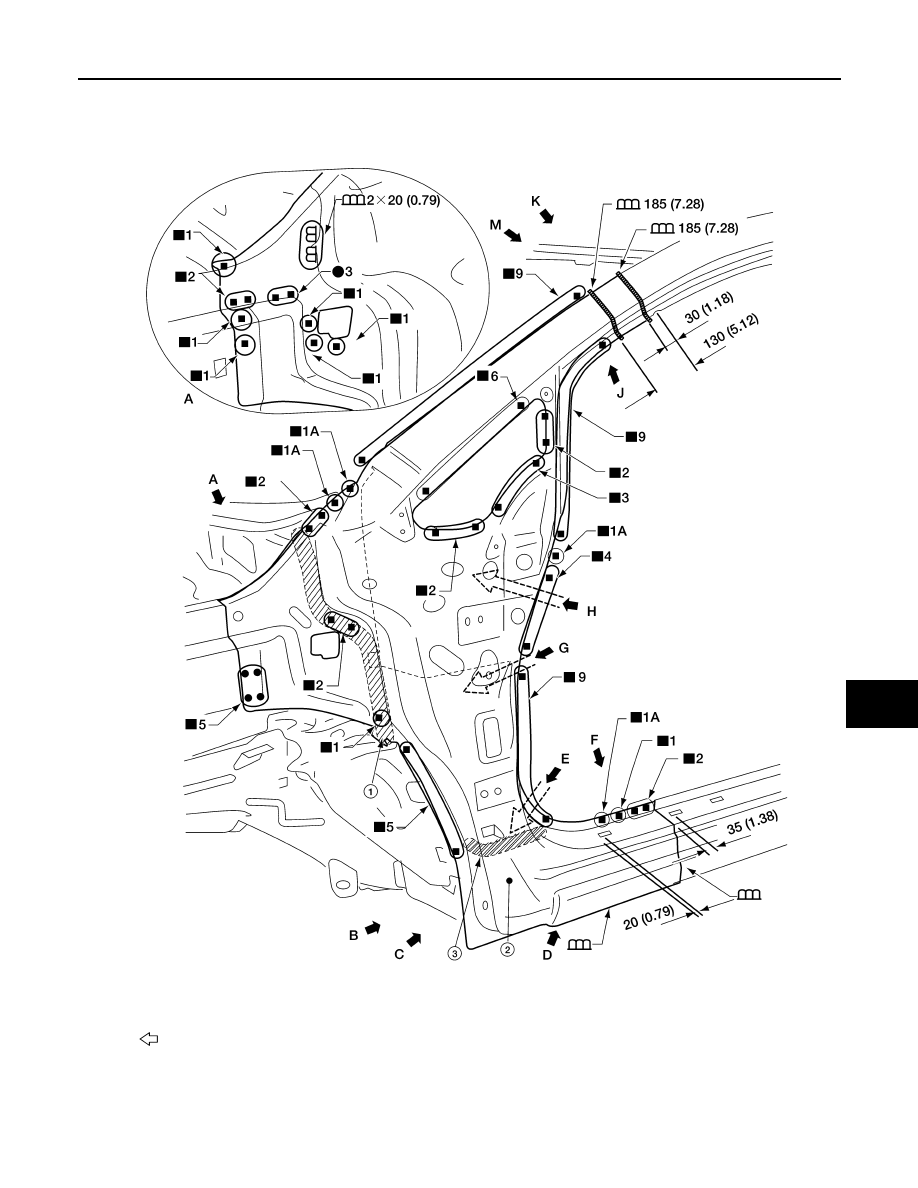

Front Pillar

INFOID:0000000010121703

Work after hoodledge reinforcement is removed.

Unit: mm (in)

1. Body sealing

2. Front pillar brace

3. Urethane foam

       Drill

φ 8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

 Front

Replacement parts

z

Side body assembly (LH)

z

Side dash (LH)

AWKIA2392ZZ
