BRM-36

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

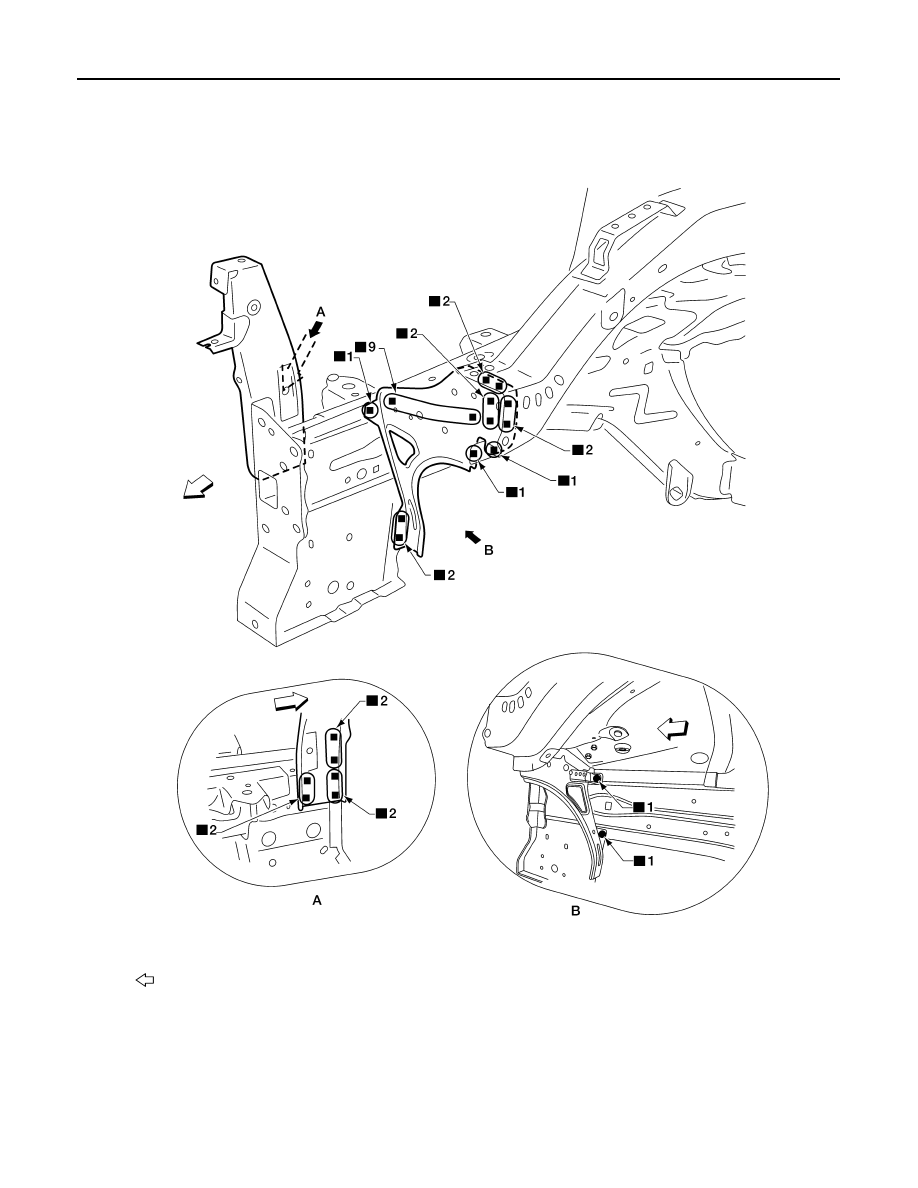

Radiator Core Support

INFOID:0000000010121698

 Front

Replacement parts

z

Side radiator core support (LH)

z

Hoodledge connector (LH)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

z

Charge port

AWKIA2383ZZ

REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

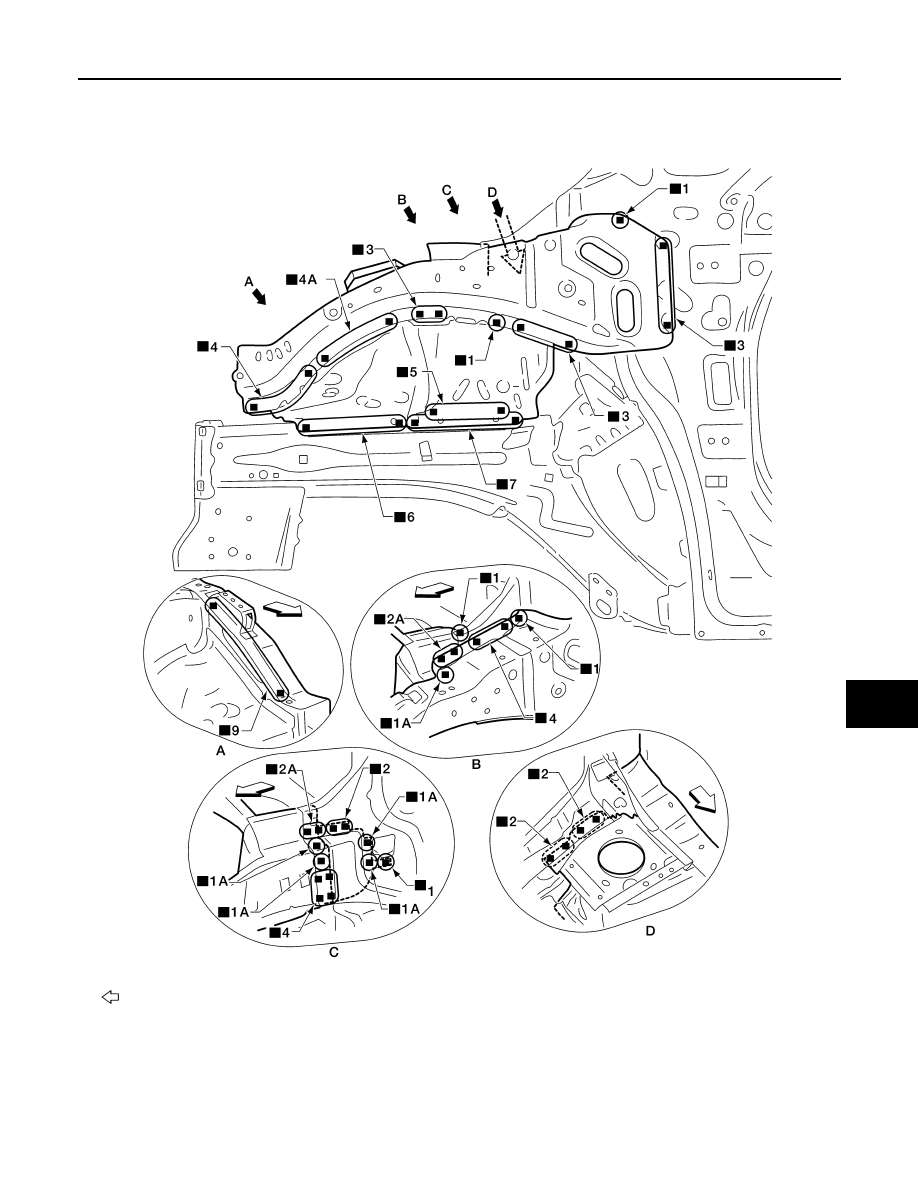

Hoodledge

INFOID:0000000010121699

Work after radiator core support is removed.

 Front

Replacement parts

z

Front strut housing (LH)

z

Hoodledge reinforcement (LH)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

z

Charge port

z

PTC elements heater

z

Traction motor

z

Electric compressor

z

Traction motor inverter

z

DC/DC-J/B

AWKIA2284ZZ

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View C: Before installing hoodledge reinforcement

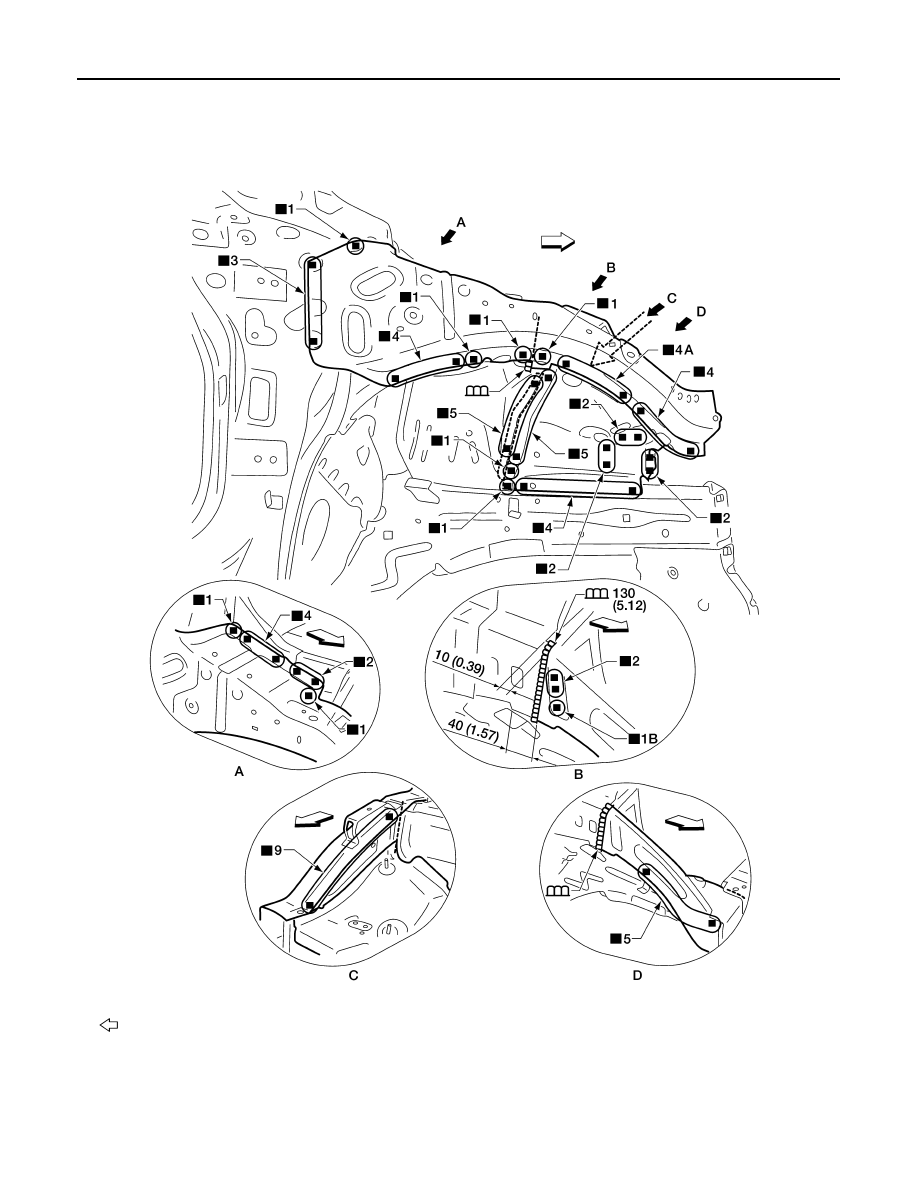

Hoodledge (Partial Replacement)

INFOID:0000000010121700

Work after radiator core support is removed.

Unit:mm (in)

 Front

Replacement parts

z

Upper hoodledge (RH)

z

Lower front hoodledge (RH)

z

Hoodledge reinforcement (RH)

High voltage system parts (Removal required depending on damage)

z

Service plug

z

Front side Li-ion battery high voltage harness connector

AWKIA2287ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View B and D: Before installing hoodledge reinforcement

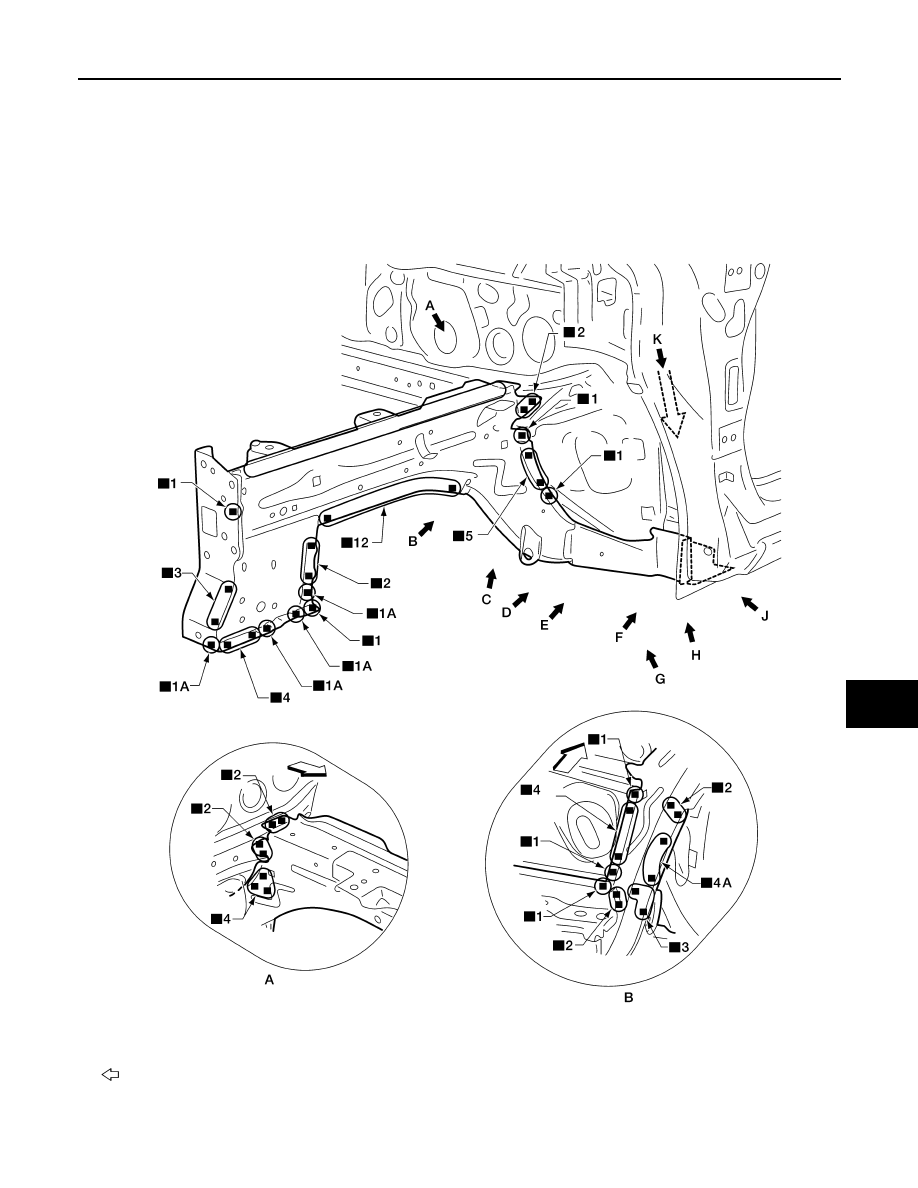

Front Side Member

INFOID:0000000010121701

Work after radiator core support and hoodledge are removed.

z

Charge port

z

PTC elements heater

z

Traction motor

z

Electric compressor

z

Traction motor inverter

z

DC/DC-J/B

 Front

Drill

φ 8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

Replacement parts

AWKIA2387ZZ
