BRC-166

< REMOVAL AND INSTALLATION >

[WITH VDC]

VDC OFF SWITCH

VDC OFF SWITCH

Removal and Installation

INFOID:0000000010120147

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove switch panel. Refer to

IP-17, "Removal and Installation"

.

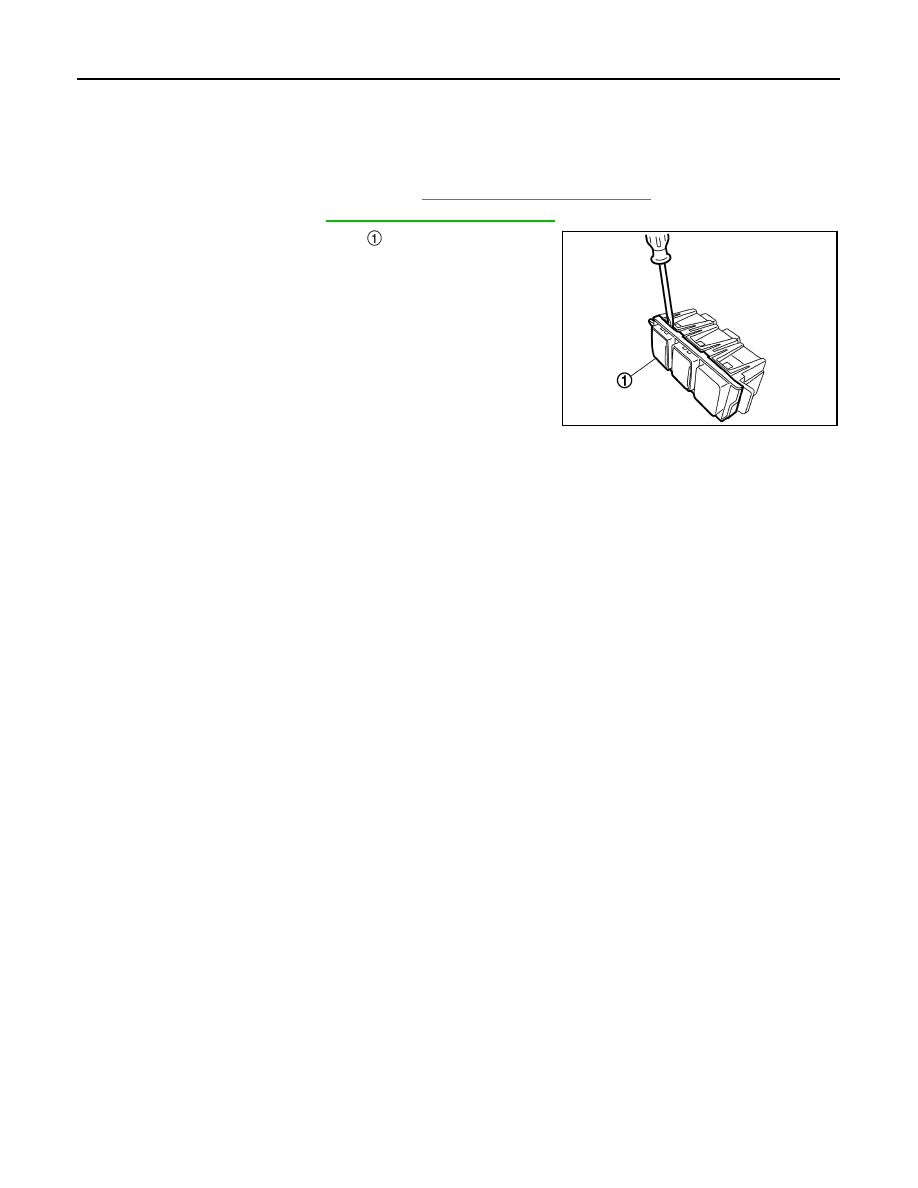

3. Push the pawl of VDC OFF switch   and remove VDC OFF

switch from switch panel.

INSTALLATION

Installation is the reverse order of removal.

JSGIA0900ZZ

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

VEHICLE INFORMATION .............................

3

BODY EXTERIOR PAINT COLOR  .....................

3

Body Exterior Paint Color ..........................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Technicians Using Medical Electric

......

4

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

4

Precaution for Removing 12V Battery .......................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

High Voltage Precautions ..........................................

5

REPAIRING HIGH STRENGTH STEEL ..............

8

High Strength Steel (HSS) ......................................

8

Handling of Ultra High Strength Steel Plate Parts ....

10

PAINTING BOOTH .............................................

11

Criteria for Battery Removal When Drying Painting

....

11

PROTECTION OF VEHICLE ..............................

12

Protection of Vehicle  ...............................................

12

PREPARATION ...........................................

13

REPAIRING MATERIAL  ....................................

13

Foam Repair  ...........................................................

13

LOCATION OF PLASTIC PARTS ......................

14

Precautions for Plastics ...........................................

14

Location of Plastic Parts ..........................................

15

BODY COMPONENT PARTS  ............................

17

Underbody Component Parts ..................................

17

Body Component Parts  ...........................................

20

BASIC INSPECTION  ...................................

23

REPAIR WORK FLOW  .....................................

23

Repair Judgment Flow .............................................

23

REMOVAL AND INSTALLATION ...............

25

CORROSION PROTECTION  ............................

25

Description ...............................................................

25

Undercoating ...........................................................

25

Stone Guard Coat ....................................................

26

Body Sealing  ...........................................................

27

BODY CONSTRUCTION ..................................

31

Body Construction  ...................................................

31

Rear Fender Hemming Process  ..............................

32

REPLACEMENT OPERATIONS .......................

34

Description ...............................................................

34

Radiator Core Support .............................................

36

Hoodledge ...............................................................

37

Hoodledge (Partial Replacement)  ...........................

38

Front Side Member ..................................................

39

Front Side Member (Partial Replacement)  ..............

41

Front Pillar  ...............................................................

43

Center Pillar .............................................................

45

Outer Sill (Partial Replacement)  ..............................

49

Outer Sill ..................................................................

50

Rear Fender  ............................................................

53

Rear Fender Extension ............................................

57

Rear Panel ...............................................................

58

Rear Floor Rear .......................................................

58

Rear Side Member Extension ..................................

59

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

61

BODY ALIGNMENT  ..........................................

61

Body Center Marks ..................................................

61

Description ...............................................................

62

Motor Room .............................................................

62

Underbody ...............................................................

65

Passenger Compartment .........................................

67

BRM-2

Rear Body ..............................................................

70

BODY EXTERIOR PAINT COLOR

BRM-3

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

VEHICLE INFORMATION

BODY EXTERIOR PAINT COLOR

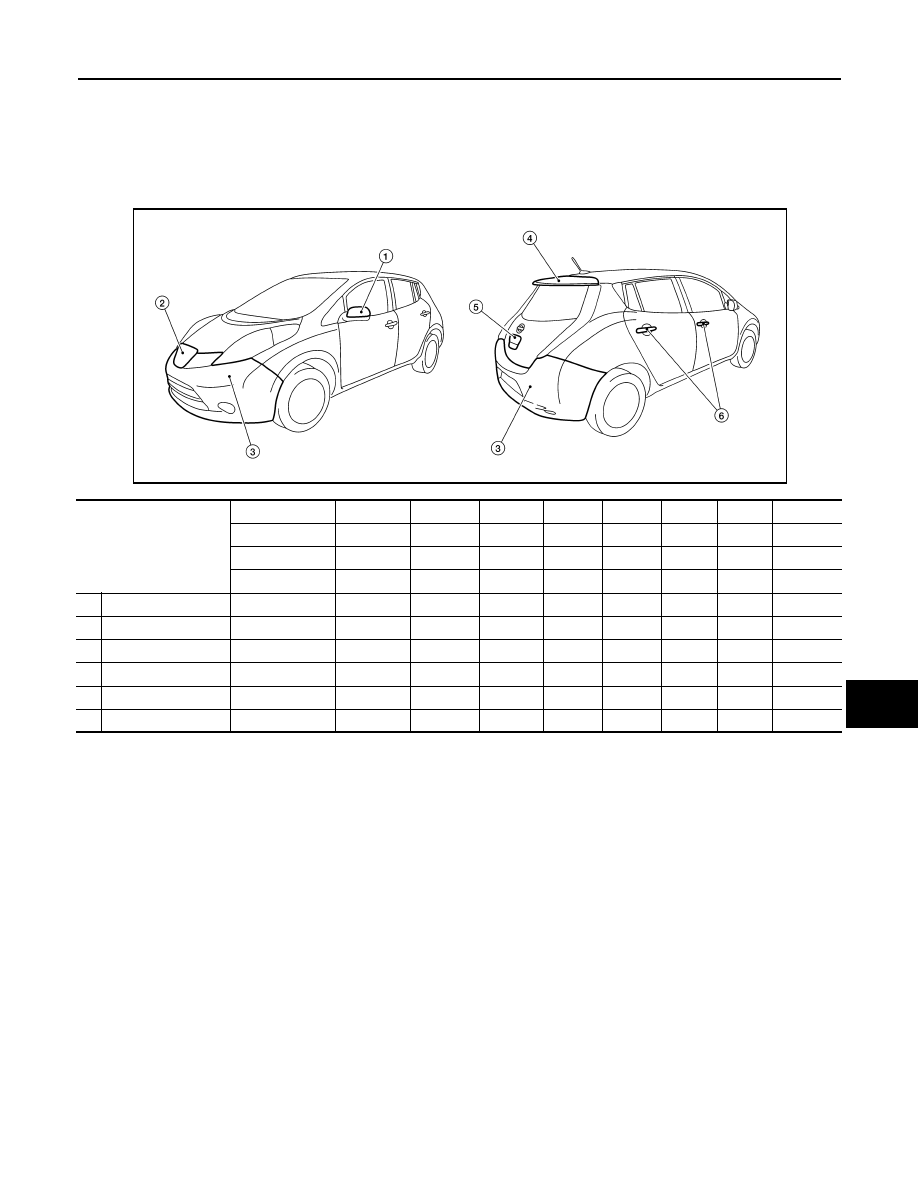

Body Exterior Paint Color

INFOID:0000000010121675

M = Metallic, S = Solid, 2S = Solid and Clear, 2P = 2-Coat Pearl, 3P = 3-Coat Pearl, PM = Pearl Metallic, t = Primerless Diamond Clear
coat, Cr2P = Chromium plate.

AWKIA2378ZZ

Component

Color code

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

Description

Black

Gray

Silver

Red

White

Blue

White

Gray

Paint type

S

2S

M

PM

S

3PM

3P

M

Hard clear coat

t

t

t

t

t

t

t

t

1. Outside mirror cover Body color

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

2. Charge port lid

Body color

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

3. Bumper fascia

Body color

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

4. Rear spoiler

Body color

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

5. Back door handle

Body color

KH3

KBC

K23

NAH

QAK

RBJ

QAB

KAD

6. Door outside handle

Chromium plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P
