BRC-158

< REMOVAL AND INSTALLATION >

[WITH VDC]

WHEEL SENSOR

REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR

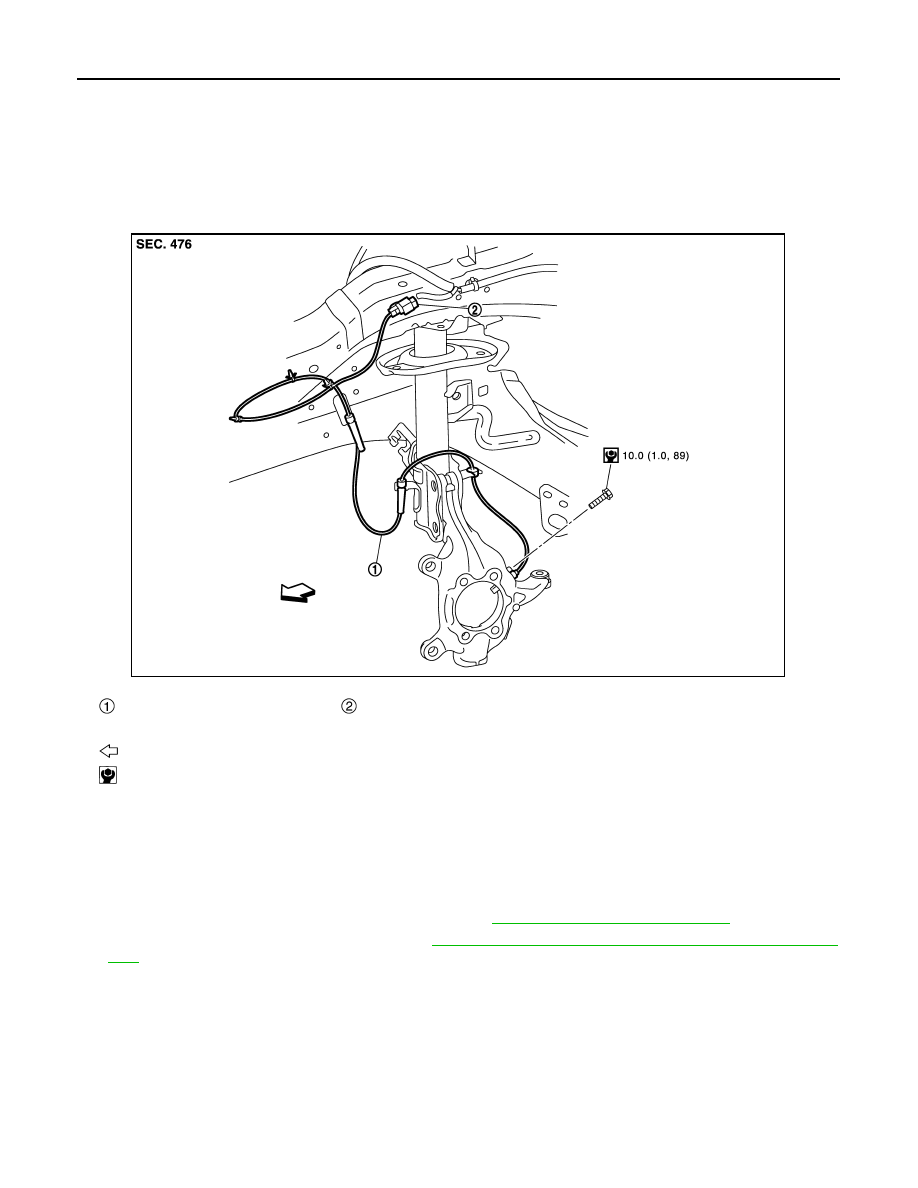

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000010120136

NOTE:

Front RH wheel sensor is symmetrically opposite of LH.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000010120137

REMOVAL

1. Remove front wheel and tire using power tool. Refer to

WT-45, "Removal and Installation"

.

2. Remove the fender protector (front). Refer to

EXT-21, "FENDER PROTECTOR : Removal and Installa-

tion"

.

3. Remove front wheel sensor from steering knuckle.

CAUTION:

To prevent damage to the parts, never rotate and never pull front wheel sensor as much as possi-

ble, when pulling out.

4. Remove front wheel sensor harness from the vehicle.

CAUTION:

To prevent damage to the parts, never twist or pull front wheel sensor harness, when removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.

Front LH wheel sensor

Front LH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

JPFIC0191GB

WHEEL SENSOR

BRC-159

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• Check that there is no foreign material like iron powder or damage on inner surface of front wheel sensor

mounting hole of steering knuckle and sensor rotor. Install after cleaning when there are foreign material like

iron powder, or replace when there is a malfunction.

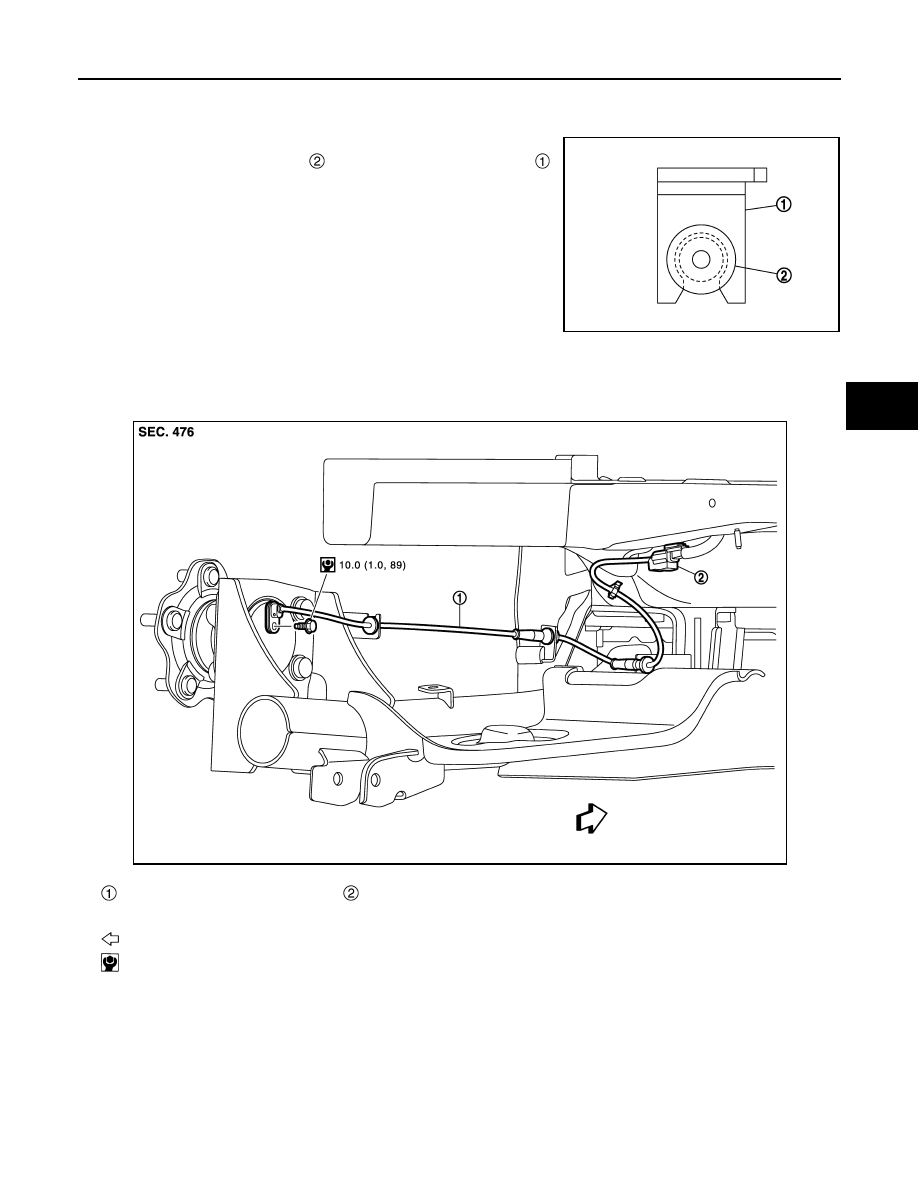

• Never twist front wheel sensor harness when installing front wheel

sensor. Check that grommet   is fully inserted to bracket  .

Check that front wheel sensor harness is not twisted after installa-

tion.

CAUTION:

Check that the identification line of the front wheel sensor is

faced vehicle front.

REAR WHEEL SENSOR
REAR WHEEL SENSOR : Exploded View

INFOID:0000000010120138

NOTE:

Rear RH wheel sensor is symmetrically opposite of LH.

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000010120139

REMOVAL

1. Remove rear wheel sensor from wheel hub and bearing assembly.

CAUTION:

JPFIC0209ZZ

Rear LH wheel sensor

Rear LH wheel sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

JPFIC0192GB

BRC-160

< REMOVAL AND INSTALLATION >

[WITH VDC]

WHEEL SENSOR

To prevent damage to the parts, never rotate or pull rear wheel sensor as much as possible, when

pulling out.

2. Remove rear wheel sensor harness from the vehicle.

CAUTION:

To prevent damage to the parts, never twist and never pull rear wheel sensor harness, when

removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.

• Check that there is no foreign material like iron powder or damage on inner surface of rear wheel sensor

mounting hole of wheel hub and bearing assembly and sensor rotor. Install after cleaning when there are for-

eign material like iron powder, or replace when there is a malfunction.

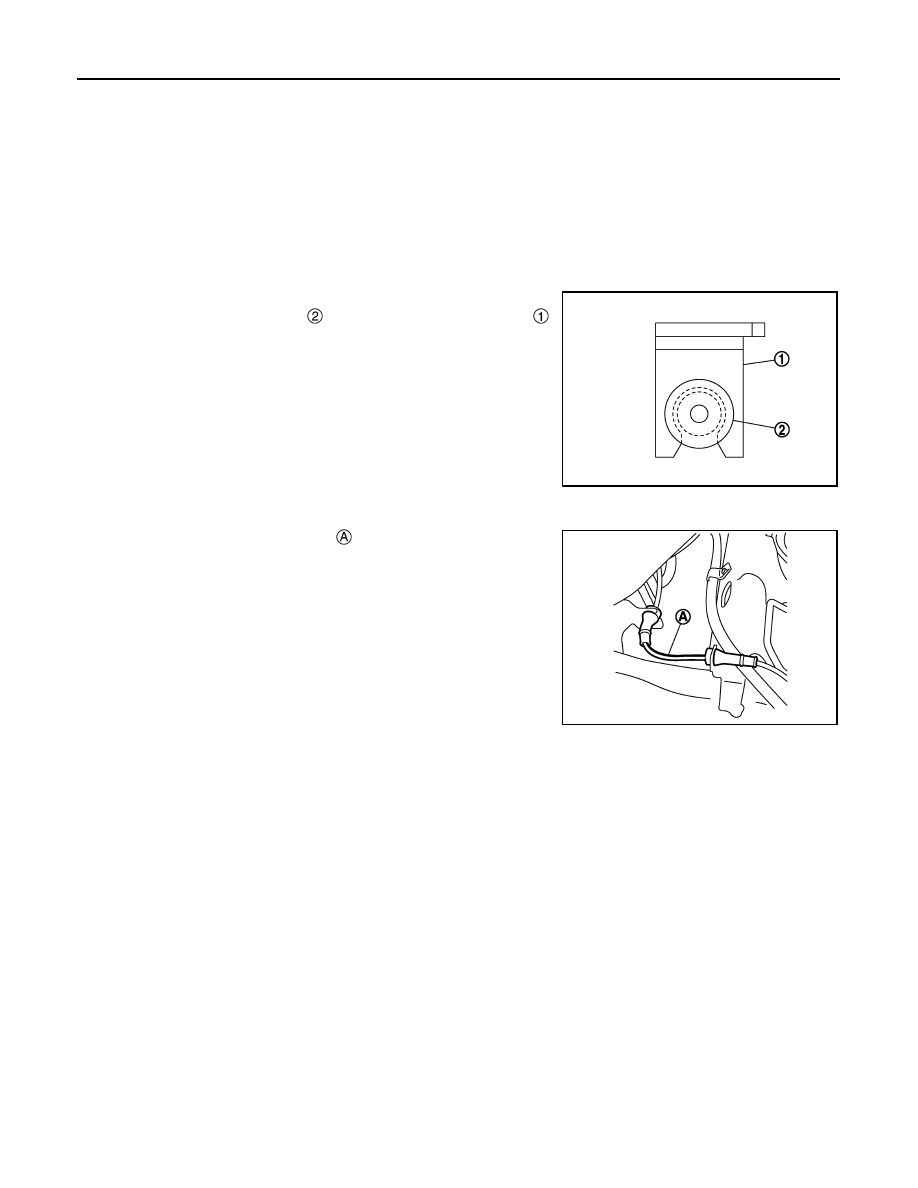

• Never twist rear wheel sensor harness when installing rear wheel

sensor. Check that grommet   is fully inserted to bracket  .

Check that rear wheel sensor harness is not twisted after installa-

tion.

CAUTION:

Check that the identification line   of the rear wheel sensor is

faced upward.

JPFIC0209ZZ

JPFIC0198ZZ

SENSOR ROTOR

BRC-161

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000010120140

REMOVAL

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled. Refer to

FAX-9, "Removal and Installation"

.

INSTALLATION

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled. Refer to

FAX-9, "Removal and Installation"

.

REAR SENSOR ROTOR
REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000010120141

REMOVAL

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled. Refer to

RAX-7, "Removal and Installation"

.

INSTALLATION

Replace wheel hub as an assembly when replacing because sensor rotor cannot be disassembled. Refer to

RAX-7, "Removal and Installation"

.
