Nissan Leaf. Manual - part 151

AV

GPS ANTENNA

AV-595

< REMOVAL AND INSTALLATION >

[TELEMATICS SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

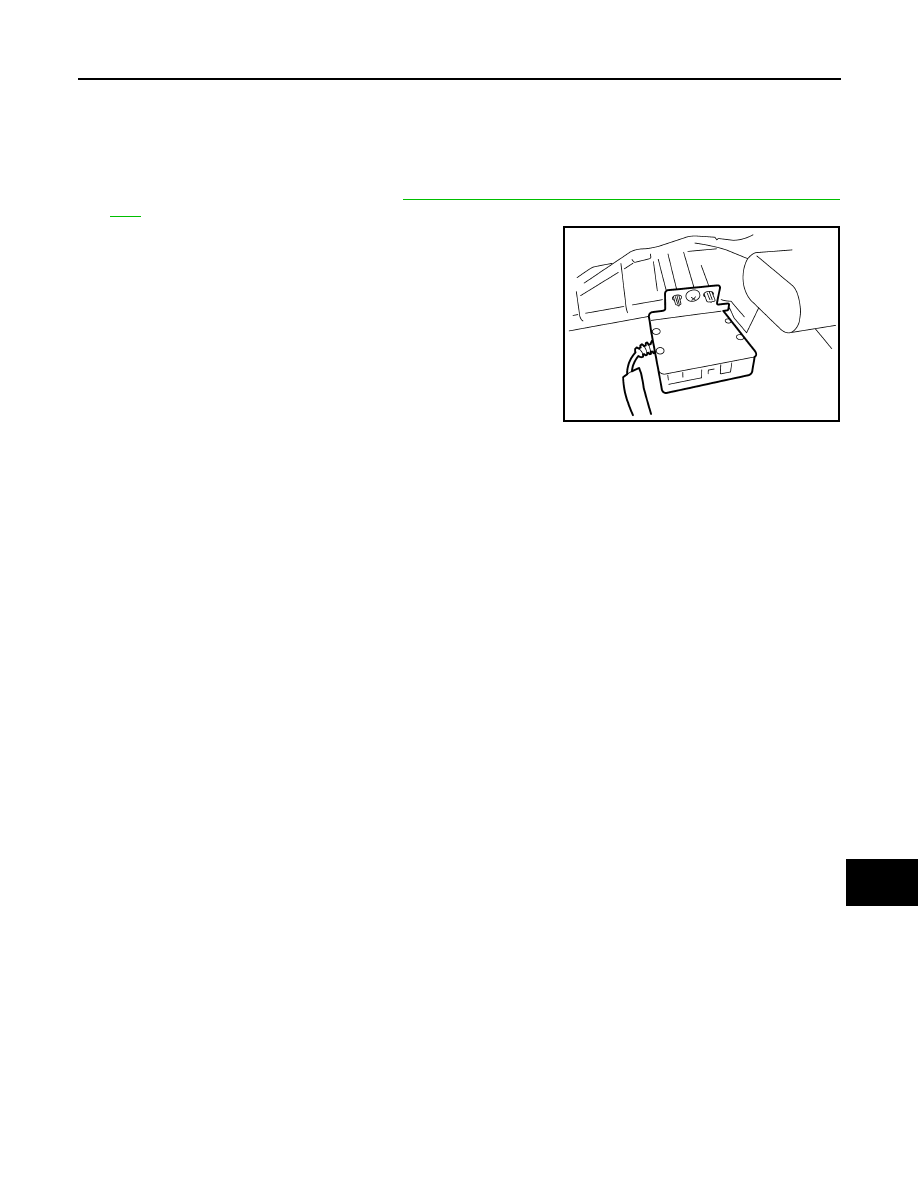

GPS ANTENNA

Removal and Installation

INFOID:0000000010122772

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-17,

"Removal and Installation"

.

2. Remove the screws, clips and the GPS antenna.

INSTALLATION

Install in the reverse order of removal.

JSNIA3580ZZ

AV-596

< REMOVAL AND INSTALLATION >

[TELEMATICS SYSTEM]

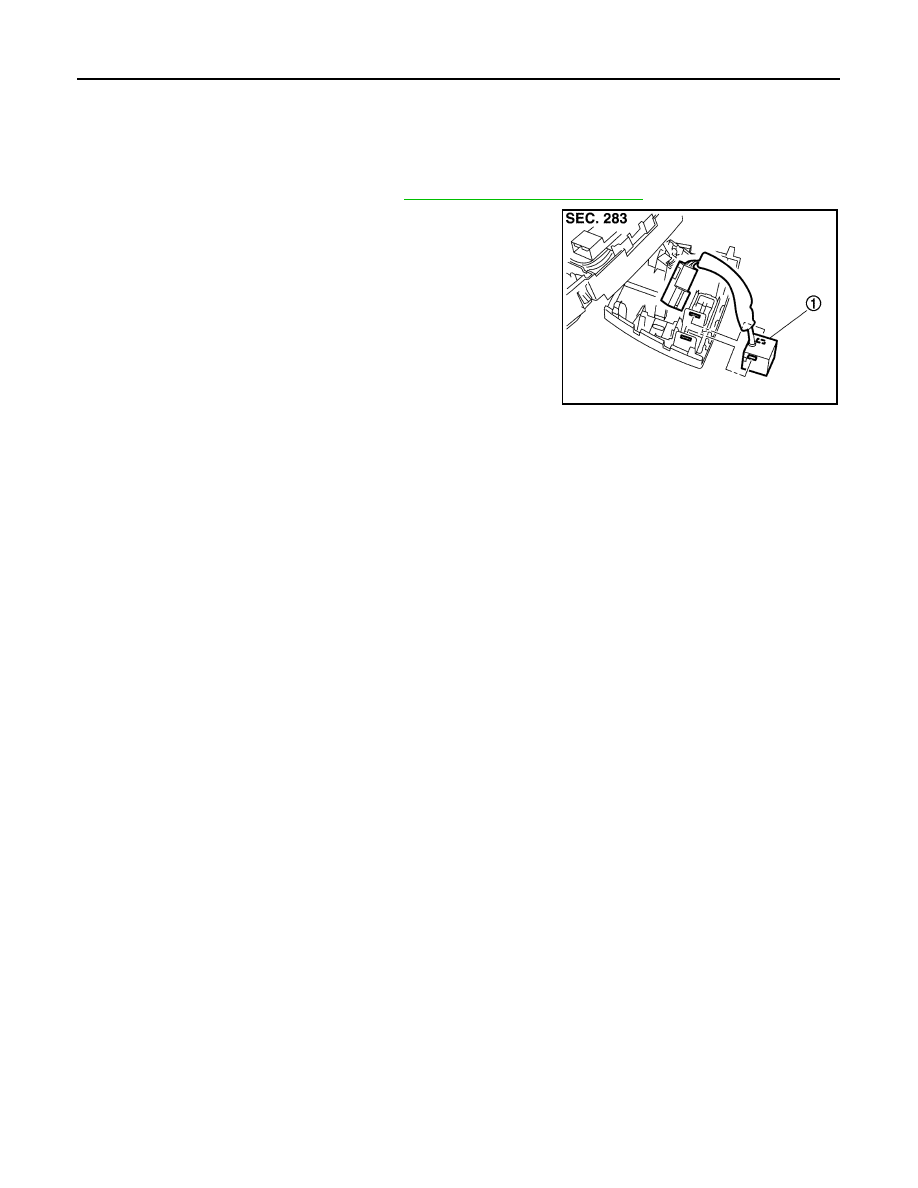

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010122773

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

2. Press the pawl to remove the microphone (1) from the map lamp

assembly.

CAUTION:

Use care when handling the microphone pawl to avoid dam-

aging.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Check the microphone for looseness after the installation.

JPNIA1399ZZ

AV

TEL ANTENNA

AV-597

< REMOVAL AND INSTALLATION >

[TELEMATICS SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

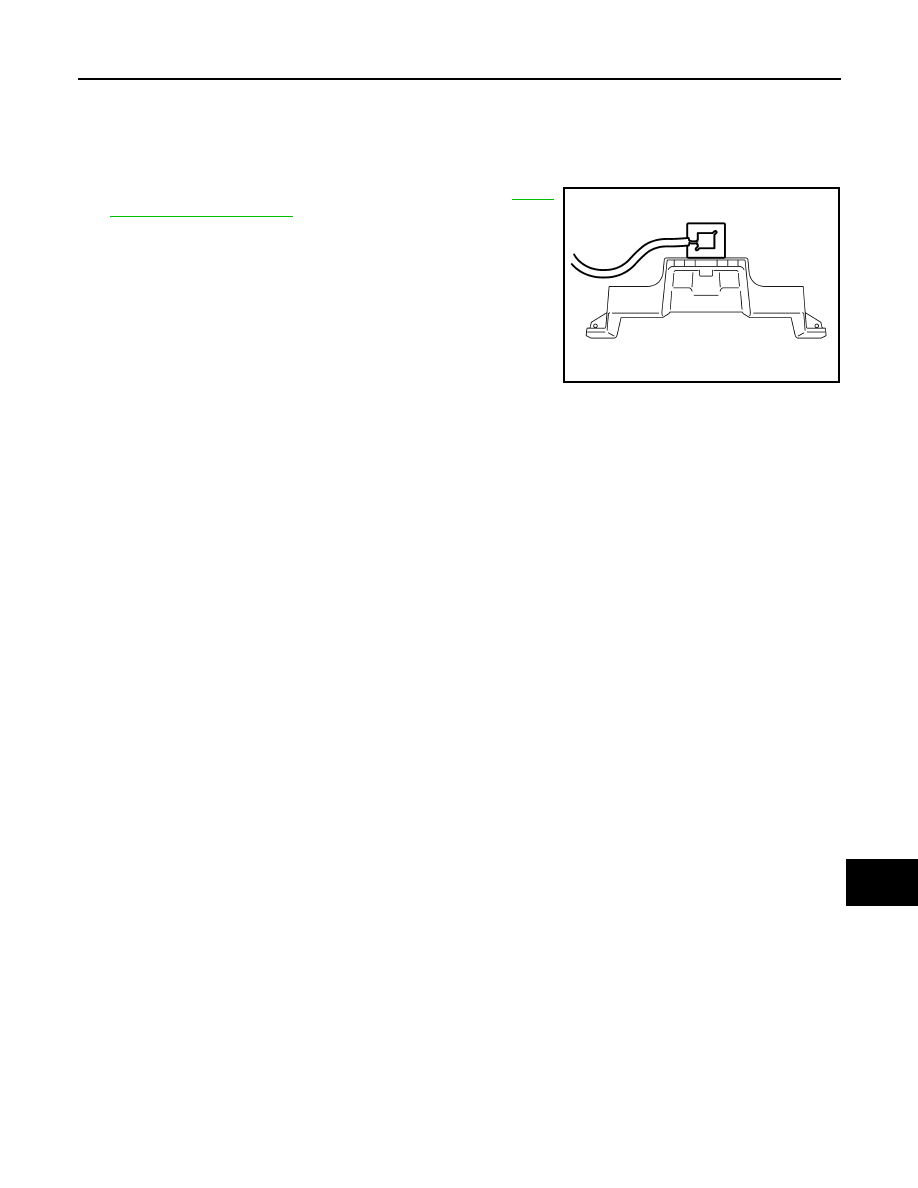

TEL ANTENNA

Removal and Installation

INFOID:0000000010122774

REMOVAL

1. Remove the front defroster duct. Refer to

VTL-15, "FRONT DEFROSTER DUCT : Removal and Installa-

tion"

.

2. Remove screws and tel antenna from the front defroster nozzle.

INSTALLATION

Install in the reverse order of removal.

JSNIA3578ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Technicians Using Medical Electric

......

3

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Removing 12V Battery .......................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

BODY CONTROL SYSTEM  ........................................

5

BODY CONTROL SYSTEM : Component Parts
Location .....................................................................

5

POWER CONSUMPTION CONTROL SYSTEM  .........

5

POWER CONSUMPTION CONTROL SYSTEM :
Component Parts Location ........................................

5

SYSTEM ..............................................................

6

BODY CONTROL SYSTEM  ........................................

6

BODY CONTROL SYSTEM : System Description ......

6

BODY CONTROL SYSTEM : Fail-safe .....................

7

COMBINATION SWITCH READING SYSTEM  ...........

7

COMBINATION SWITCH READING SYSTEM :
System Description  ...................................................

8

SIGNAL BUFFER SYSTEM  ......................................

11

SIGNAL BUFFER SYSTEM : System Description ....

11

POWER CONSUMPTION CONTROL SYSTEM  .......

11

POWER CONSUMPTION CONTROL SYSTEM :
System Description  .................................................

12

DIAGNOSIS SYSTEM (BCM)  ............................

14

COMMON ITEM .........................................................

14

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

14

DOOR LOCK ..............................................................

14

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) ..........................................................

15

REAR DEFOGGER ....................................................

15

REAR DEFOGGER : CONSULT Function (BCM -
REAR DEFOGGER) ................................................

15

BUZZER .....................................................................

16

BUZZER : CONSULT Function (BCM - BUZZER) ....

16

INT LAMP ...................................................................

16

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

16

HEADLAMP ...............................................................

17

HEADLAMP : CONSULT Function (BCM - HEAD
LAMP) ......................................................................

17

WIPER ........................................................................

18

WIPER : CONSULT Function - WIPER ...................

18

FLASHER ...................................................................

19

FLASHER : CONSULT Function (BCM - FLASH-
ER) ..........................................................................

19

AIR CONDITIONER  ...................................................

20

AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER)  ...............................................

20

INTELLIGENT KEY ....................................................

20

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ................................................

20

COMB SW ..................................................................

22

COMB SW : CONSULT Function (BCM - COMB
SW) ..........................................................................

22

BCM ...........................................................................

23

BCM : CONSULT Function (BCM - BCM)  ...............

23
