Nissan Leaf. Manual - part 1305

WW-48

< REMOVAL AND INSTALLATION >

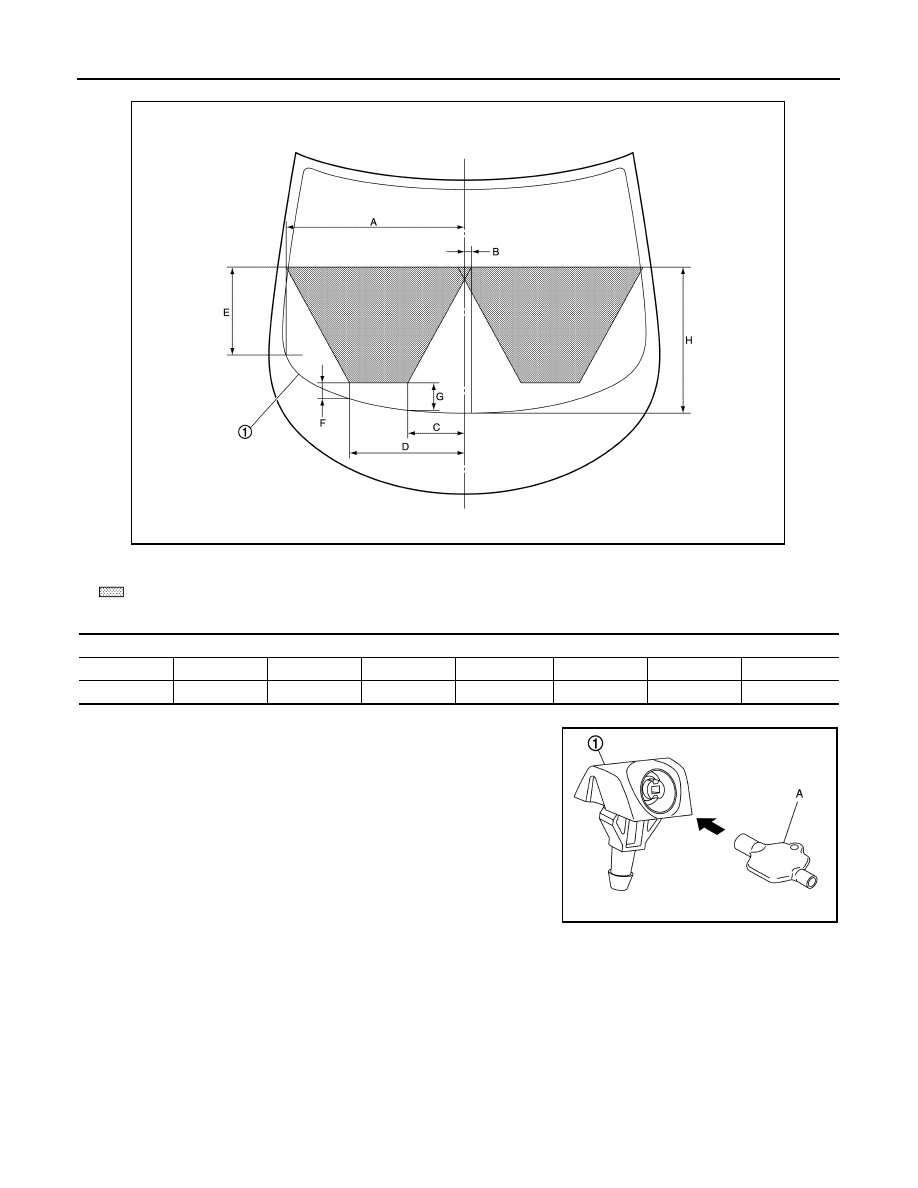

FRONT WASHER NOZZLE AND TUBE

Unit: mm (in)

CAUTION:

• Use washer nozzle adjuster* (A) for nozzle adjustment.

• Do not use needle or small pin for nozzle adjustment.

(Washer nozzle adjuster is included with shipment of nozzle)

NOTE:

If wax or dust gets into the front washer nozzle (1), remove wax or

dust with a needle or small pin.

1.

Black printed frame line
: Spray area

JMLIA1706ZZ

Driver and Passenger side

A

B

C

D

E

F

G

H

626.0 (24.65)

29.2 (1.15)

193.1 (7.60)

399.7 (15.74)

 344.0 (13.54)

58.4 (2.30)

105.4 (4.15)

 547.3 (21.55)

JMLIA1539ZZ

FRONT WIPER ARM

WW-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

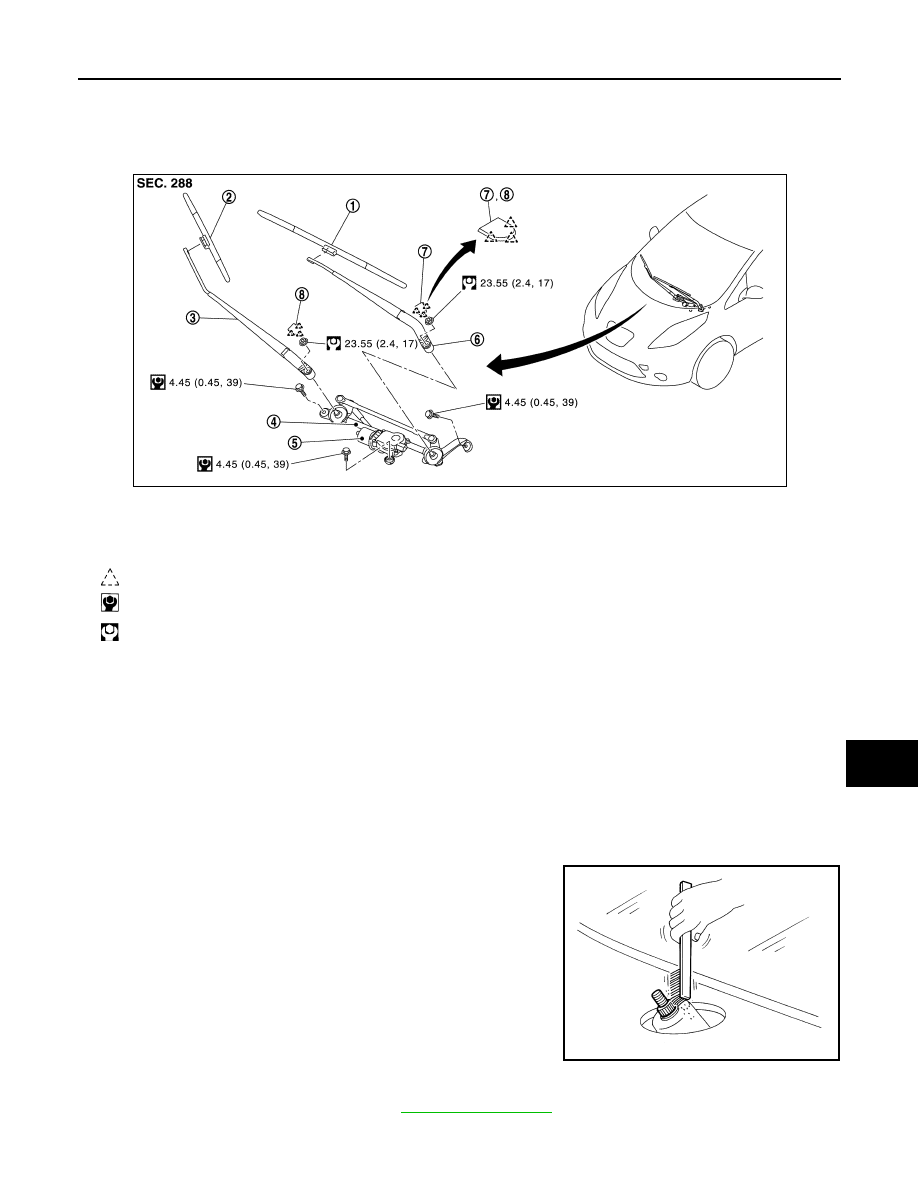

FRONT WIPER ARM

Exploded View

INFOID:0000000010122236

Removal and Installation

INFOID:0000000010122237

REMOVAL

1. Operate front wiper to move it to the auto stop position.
2. Open the hood.
3. Remove front wiper arm caps.
4. Remove front wiper arm mounting nuts.
5. Raise front wiper arm, and then remove front wiper arm from the vehicle.

INSTALLATION

1. Clean wiper arm mount as shown in the figure to prevent nuts

from being loosened.

2. Operate front wiper motor to move the front wiper to the auto stop position.
3. Adjust front wiper blade position. Refer to

WW-50, "Adjustment"

.

4. Install front wiper arm by tightening the mounting nuts.

1.

Front wiper blade LH

2.

Front wiper blade RH

3.

Front wiper arm RH

4.

Front wiper drive assembly

5.

Front wiper motor

6.

Front wiper arm LH

7.

Front wiper arm cap LH

8.

Front wiper arm cap RH

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1678GB

ELH0717D

WW-50

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

5. Inject the washer fluid.
6. Operate front wiper to move it to the auto stop position.
7. Check that the front wiper blades stop at the specified position.
8. Install front wiper arm caps.

Adjustment

INFOID:0000000010122238

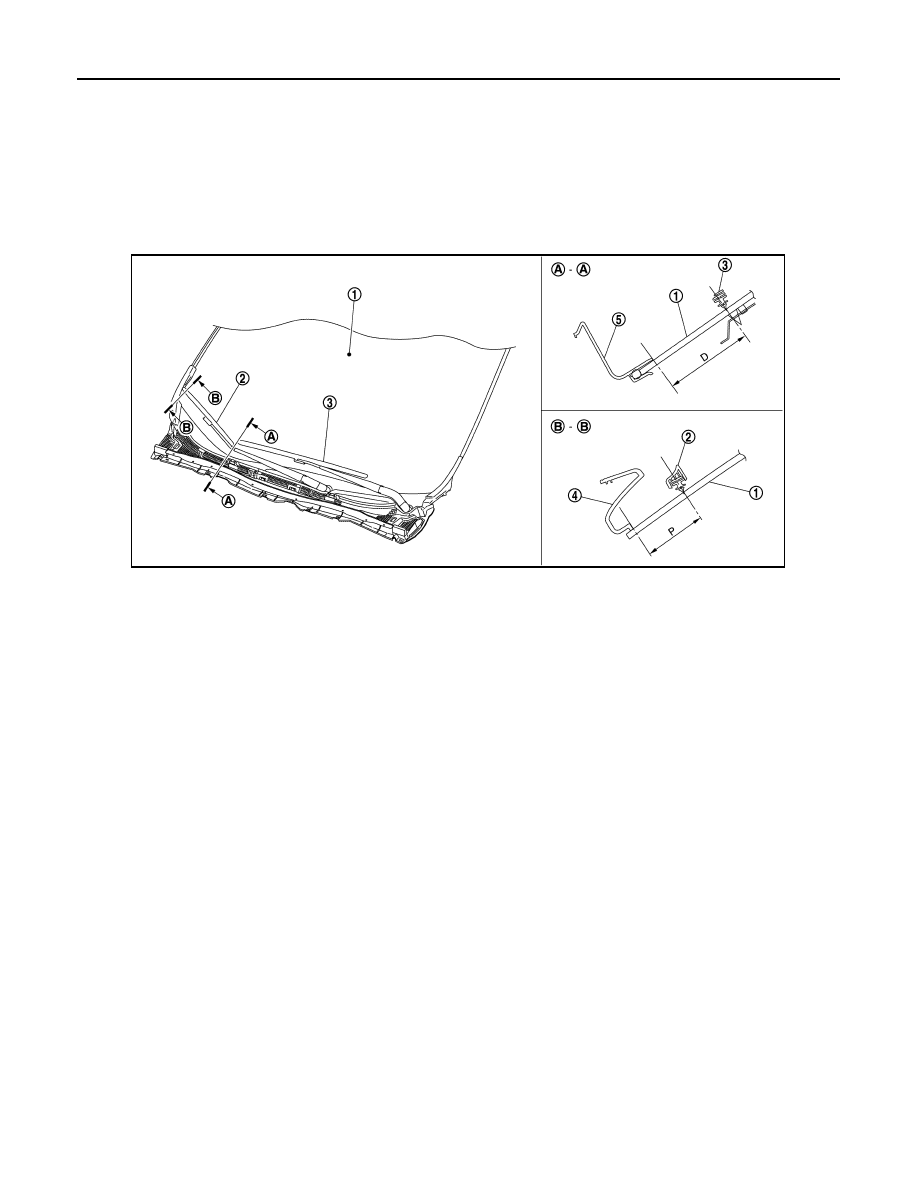

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover/ front fender protector and the top of wiper blade center

Standard clearance

1.

Windshield glass assembly

2.

Front wiper blade RH

3.

Front wiper blade LH

4.

Front fender cover

5.

Cowl top cover

JMLIA1685ZZ

D

: 86.2

± 7.5 mm (3.394 ± 0.295 in)

P

: 48.5

± 7.5 mm (1.909 ± 0.295 in)

FRONT WIPER BLADE

WW-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

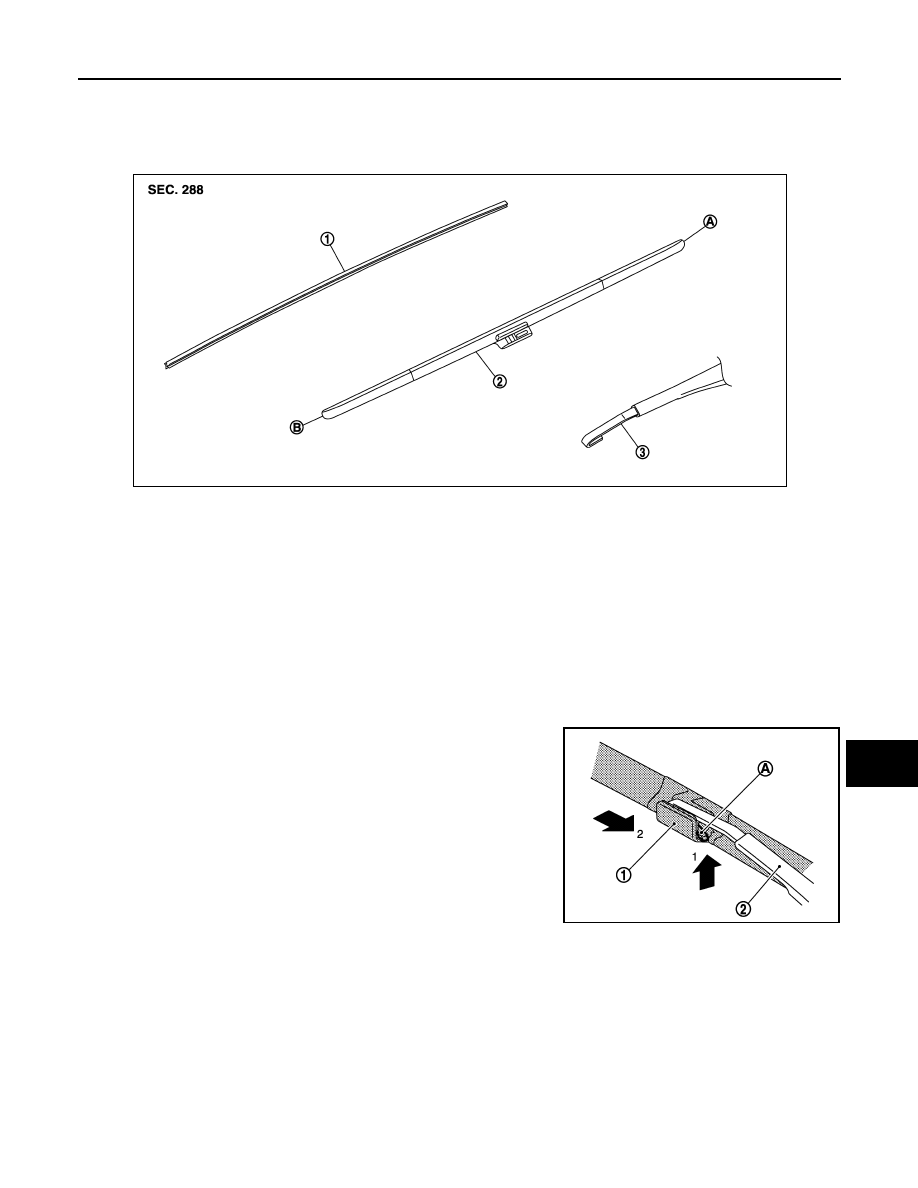

FRONT WIPER BLADE

Exploded View

INFOID:0000000010122239

Removal and Installation

INFOID:0000000010122240

REMOVAL

1. Put the wiper arms into the service position.
a. Turn the ignition switch ON and then OFF.
b. Immediately pull and hold the wiper washer switch towards you until the wiper arms begin to move.

Release the switch as soon as the arms begin to move. The arms will stop in the service position.

2. Lift the arm away from the windshield glass.
3. Push up the lever (A) of wiper blade (1), while sliding wiper

blade toward the direction of the arrow, to remove it from wiper

arm (2).

CAUTION:

Be careful not to drop the wiper blade onto the windshield

glass to prevent damage to the windshield glass.

INSTALLATION

CAUTION:

Return the wiper arm to the service position on the windshield to prevent damage when the hood is

opened.
1. Install wiper blade into wiper arm.
2. Lay the wiper arm back down in the service position on the windshield.
3. Turn the ignition ON and operate the windshield wipers to ensure the repair has been completed properly.

Operating the windshield wipers will cancel service mode.

4. Check that the wiper blade contacts the windshield properly; otherwise the wiper arm may be damaged

from wind pressure while driving.

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A

: Wiper blade end

B

: Wiper blade tip

JMLIA1127ZZ

JMLIA1044ZZ
