WW-52

< REMOVAL AND INSTALLATION >

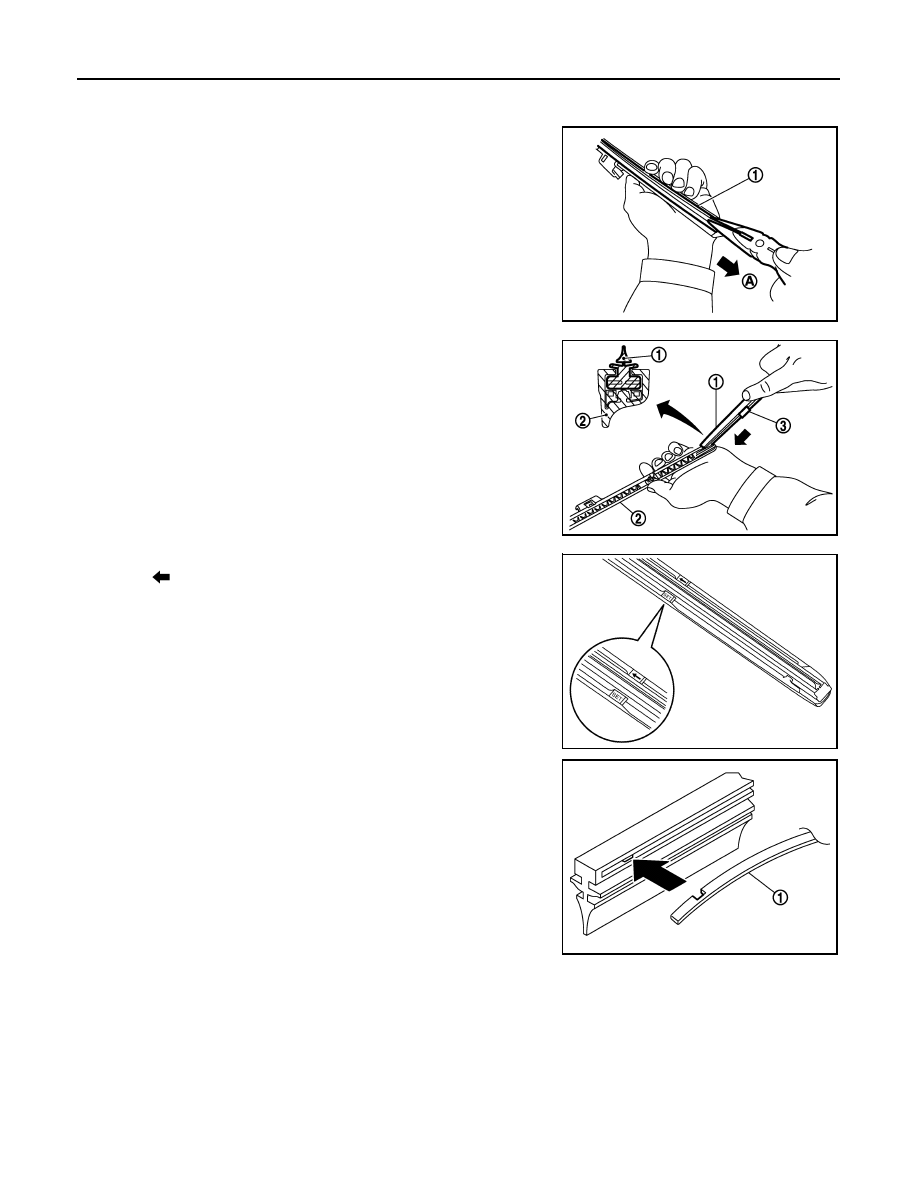

FRONT WIPER BLADE

Replacement

INFOID:0000000010122241

1. Hold the rip of old wiper refill (1) at the rear end of the wiper

blade with long-nose pliers, and pull out the wiper refill to the

direction (A).

2. Insert the tip of new wiper refill (1) into the rear end of wiper

blade (2). Slide the new wiper refill to the direction shown by the

arrow while pressing the new wiper refill onto the wiper blade

rear end.

NOTE:

• Insert the wiper refill to be held securely by tab of wiper blade

as shown in section.

• After the wiper refill is fully inserted, remove the holder

*

 (3).

*

: Attached to service parts.

3. Insert the new wiper refill toward the direction shown by the

mark “

” until the stopper at the rear end of wiper refill fits in the

“SET” mark tab on wiper blade.

4. Untwist the twisted wiper refill at the rear end of wiper blade, if

any.

5. Check the following items after replacing wiper refill.

• Wiper refill is not twisted at all.

• Wiper refill thoroughly fits in the tab on wiper blade.

• Wiper refill is inserted from the proper direction.

NOTE:

When the vertebra is detached.

• Insert the vertebra (1) into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

JPLIA1583ZZ

JMLIA1128ZZ

JMLIA2606ZZ

JPLIA1586ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

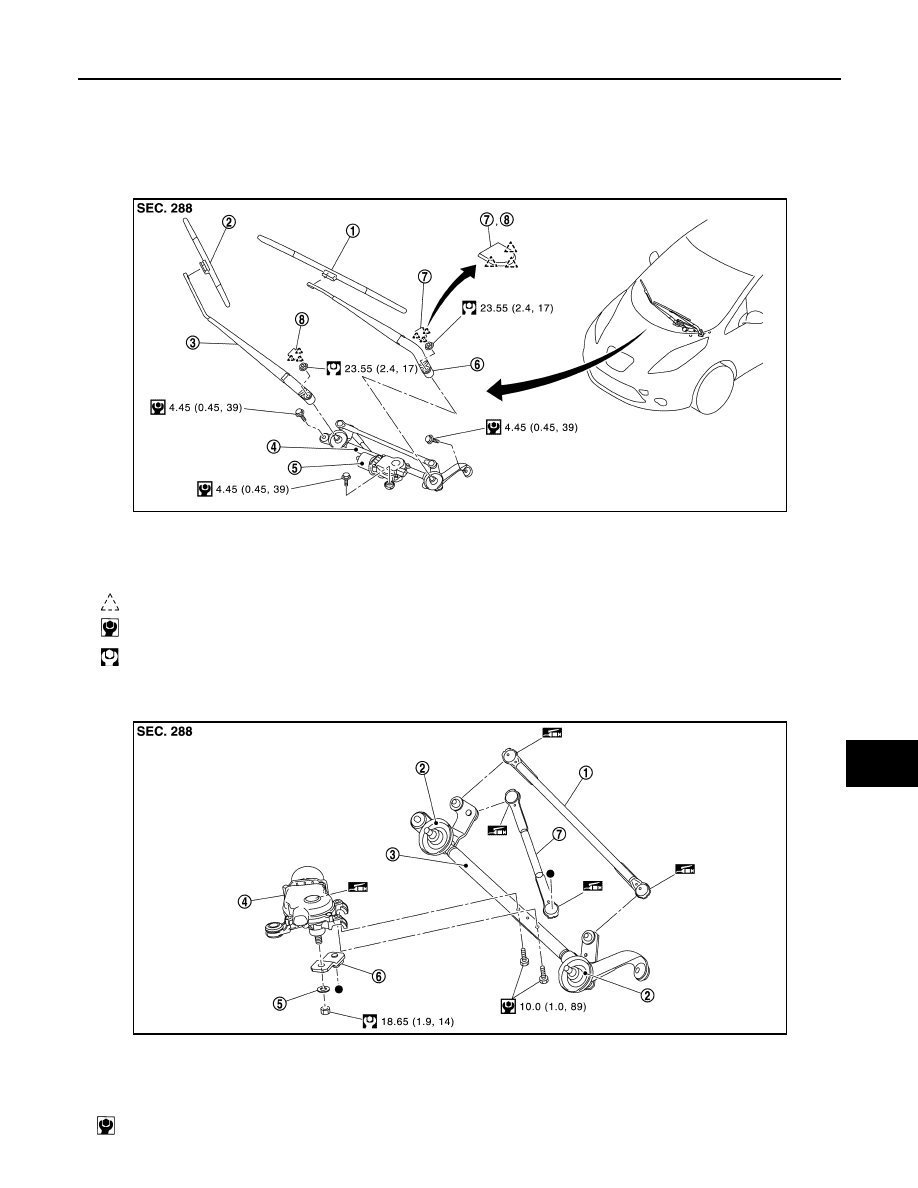

Exploded View

INFOID:0000000010122242

REMOVAL

DISASSEMBLY

1.

Front wiper blade LH

2.

Front wiper blade RH

3.

Front wiper arm RH

4.

Front wiper drive assembly

5.

Front wiper motor

6.

Front wiper arm LH

7.

Front wiper arm cap LH

8

Front wiper arm cap RH

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA1678GB

1.

Front wiper linkage 2

2.

Shaft seal

3.

Front wiper frame

4.

Front wiper motor

5.

Retaining washer

6.

Front wiper motor arm

7.

Front wiper linkage 1

: N·m (kg-m, in-lb)

JMLIA2092GB

WW-54

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

Removal and Installation

INFOID:0000000010122243

REMOVAL

1. Remove front wiper arms (LH and RH). Refer to

WW-49, "Removal and Installation"

.

2. Remove cowl top cover. Refer to

EXT-19, "Removal and Installation"

.

3. Disconnect the front wiper motor harness connector.
4. Remove the mounting bolts from front wiper drive assembly.
5. Remove the front wiper drive assembly from the vehicle.

INSTALLATION

1. Install the front wiper drive assembly to the vehicle.
2. Connect front wiper motor harness connector.
3. Operate front wiper to move it to the auto stop position.
4. Install cowl top cover. Refer to

EXT-19, "Removal and Installation"

.

5. Install front wiper arms. Refer to

WW-49, "Removal and Installation"

.

Disassembly and Assembly

INFOID:0000000010122244

DISASSEMBLY

1. Remove the front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the wiper link-

age.

2. Remove the front wiper motor mounting screws, and then remove the front wiper motor from the front

wiper frame.

ASSEMBLY

1. Connect the front wiper motor harness connector.
2. Operate the front wiper to move it to the auto stop position.
3. Disconnect the front wiper motor harness connector.
4. Install the front wiper motor to the front wiper frame.
5. Install the front wiper linkage 1 to the front wiper motor and to the front wiper frame.
6. Install the front wiper linkage 2 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts, to prevent dam-

age to the wiper motor or to other parts around it.

• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply Multi

−purpose grease or an equivalent if necessary.

: N·m (kg-m, ft-lb)

: Nissan MP special grease No.2

WIPER AND WASHER SWITCH

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000010122245

Wiper and washer switch is integrated in the combination switch. Refer to

BCS-73, "Exploded View"

.
