WW-40

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000010122224

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.

REAR WIPER MOTOR PROTECTION FUNCTION

• BCM may stop rear wiper to protect the rear wiper motor when the rear wiper is stopped for 5 seconds or

more due to a snowfall.

• Rear wiper operates normally one minute after the obstacles are removed with rear wiper OFF.

FRONT WIPER DOES NOT OPERATE

WW-41

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000010122225

The front wiper does not operate under any operation conditions.

Diagnosis Procedure

INFOID:0000000010122226

Regarding Wiring Diagram information, refer to

WW-19, "Wiring Diagram"

.

1.

CHECK WIPER RELAY OPERATION

With CONSULT

1. Select FRONT WIPER of IPDM E/R active test item.

2. While operating the test item, check front wiper operation.

Is front wiper operation normally?

YES

>>  GO TO 5.

NO

>> GO TO 2.

2.

CHECK FRONT WIPER MOTOR FUSE

Check that the following fuse is not blown.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the fuse after repairing the applicable circuit.

3.

CHECK FRONT WIPER MOTOR GROUND CIRCUIT

Check front wiper motor ground circuit. Refer to

WW-32, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK FRONT WIPER MOTOR INPUT VOLTAGE

With CONSULT

1. Turn power switch OFF.

2. Disconnect front wiper motor connector.

3. Turn power switch ON.

4. Select FRONT WIPER of IPDM E/R active test item.

5. While operating the test item, check voltage between front wiper motor harness connector and ground.

Lo

: Front wiper LO operation

Hi

: Front wiper HI operation

Off

: Stop the front wiper.

Unit

Location

No.

Capacity

Front wiper motor

IPDM E/R

45

30 A

(+)

(

−)

Condition

Voltage (Approx.)

Front wiper motor

Connector

Terminal

E32

1

Ground

FRONT WIPER

Lo

Battery voltage

Off

0 V

4

Hi

Battery voltage

Off

0 V

WW-42

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

Is the inspection result normal?

YES

>> Replace front wiper motor. Refer to

WW-54, "Removal and Installation"

.

NO

>> Replace IPDM E/R. Refer to

BCS-72, "Removal and Installation"

.

5.

CHECK FRONT WIPER REQUEST SIGNAL INPUT

With CONSULT

1. Select FR WIP REQ of IPDM E/R data monitor item.

2. Switch the front wiper switch to HI and LO.

3. While operating the front wiper switch, check the status of FR WIP REQ.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation"

.

NO

>> GO TO 6.

6.

CHECK COMBINATION SWITCH

Perform the inspection of the combination switch. Refer to

BCS-71, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

Monitor item

Condition

Monitor status

FR WIP REQ

Front wiper switch HI

On

Hi

Off

Stop

Front wiper switch LO

On

Low

Off

Stop

WASHER TANK

WW-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REMOVAL AND INSTALLATION

WASHER TANK

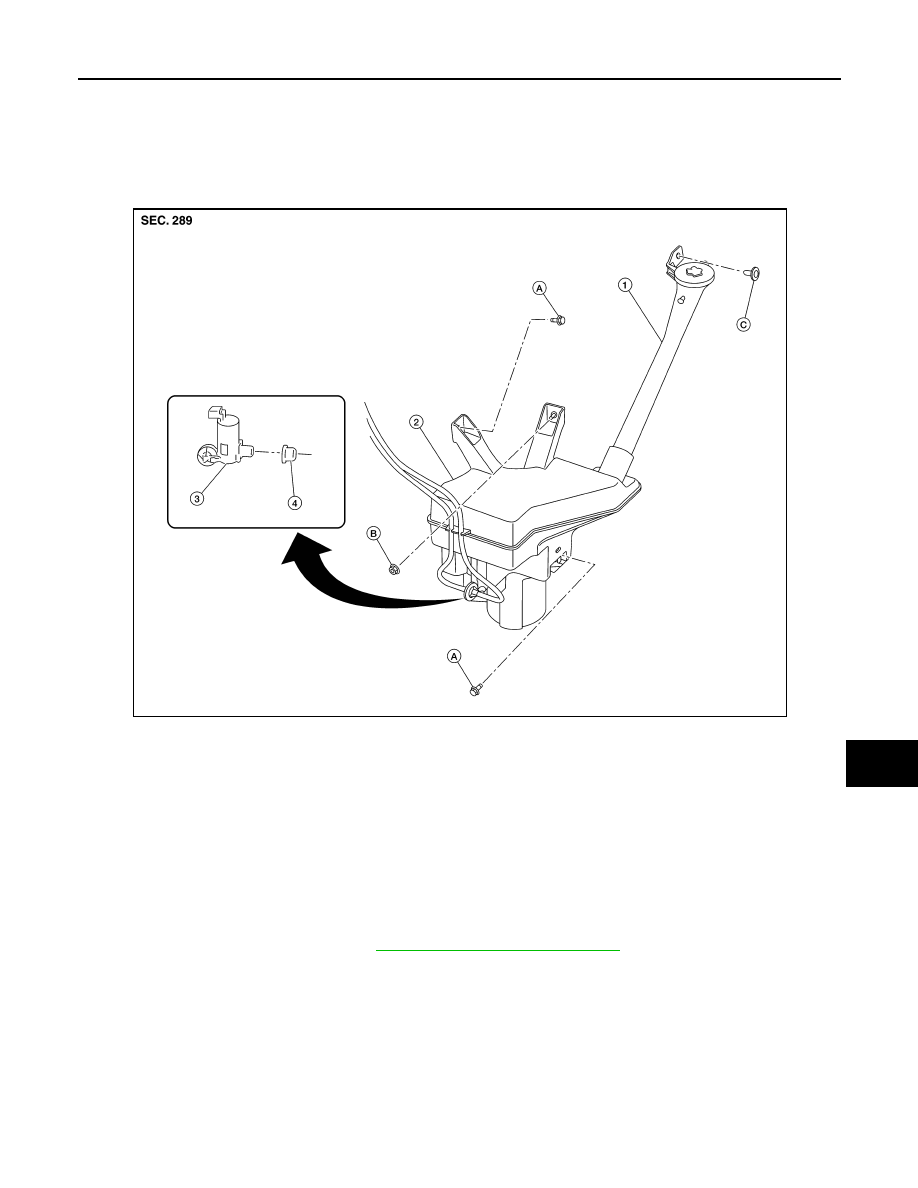

Exploded View

INFOID:0000000010122227

Removal and Installation

INFOID:0000000010122228

REMOVAL

1. Fully open hood.
2. Remove washer tank inlet fixing clip.
3. Pull out washer tank inlet from washer tank.
4. Remove front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

5. Disconnect the harness connector from the washer pump and remove the fixing clip.
6. Disconnect the harness connector from the washer level switch (if equipped).
7. Disconnect front washer tube and rear washer tube.
8. Remove washer tank mounting bolts.
9. Remove washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Add water up to the top of washer tank inlet after installing and check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

3.

Washer pump

4.

Packing

A.

Bolts

B.

Nut

C.

: Clip

ALLIA1268ZZ
