TRANSMITTER

WT-47

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TRANSMITTER

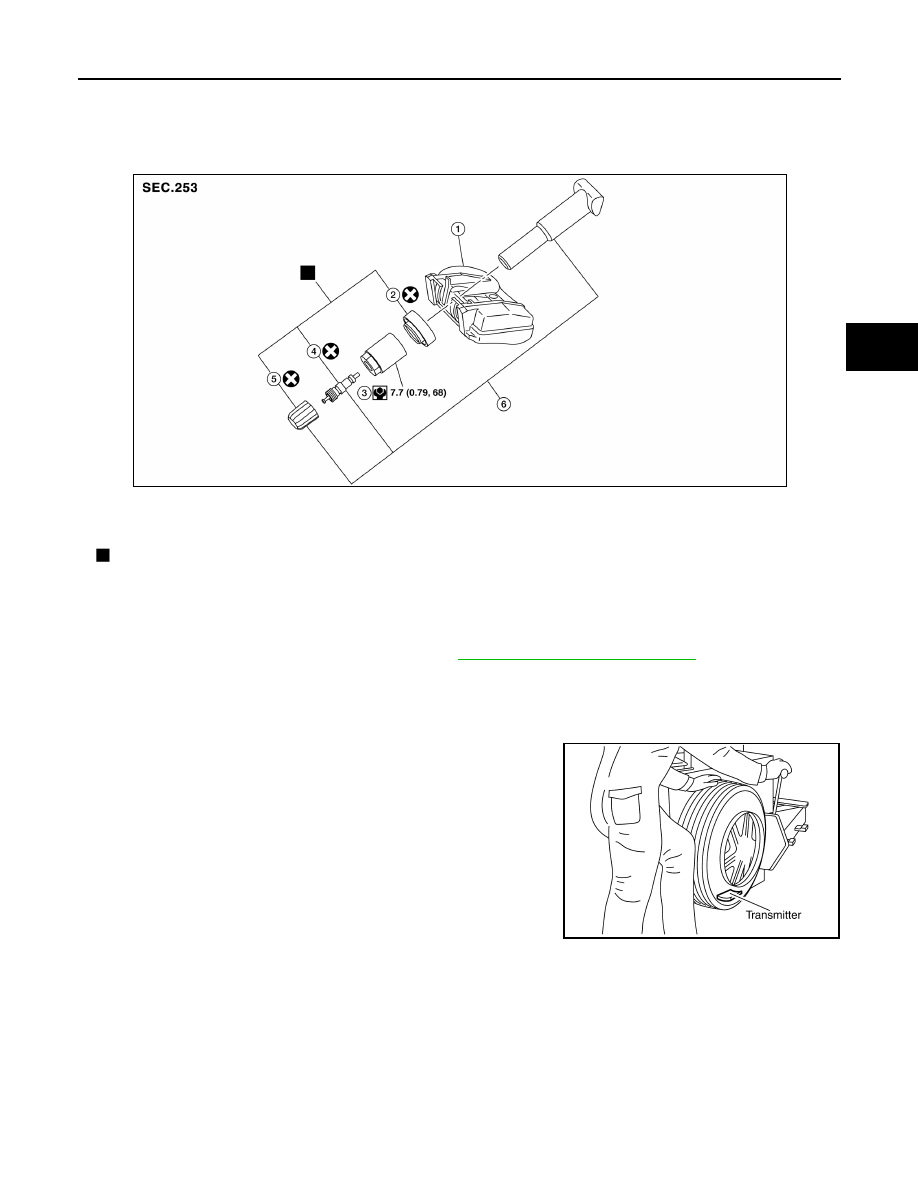

Exploded View

INFOID:0000000010120217

Removal and Installation

INFOID:0000000010120218

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-45, "Removal and Installation"

.

2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the valve stem

assembly for the purpose of wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow transmitter to fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone lubricant, and remove outside of tire from

the wheel. Reach inside the tire and remove the transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

• Be sure not to damage the wheel or transmitter.

• Do not allow lubricant to make contact with transmitter.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

wheel.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

1.

Transmitter (tire pressure sensor)

2.

O-ring

3.

Valve stem nut

4.

Valve core

5.

Valve cap

6.

Valve stem assembly

:

Parts that are replaced as a set when the tire is replaced.

AWEIA0212GB

SEIA0047E

WT-48

< REMOVAL AND INSTALLATION >

TRANSMITTER

• Be sure not to damage the wheel.

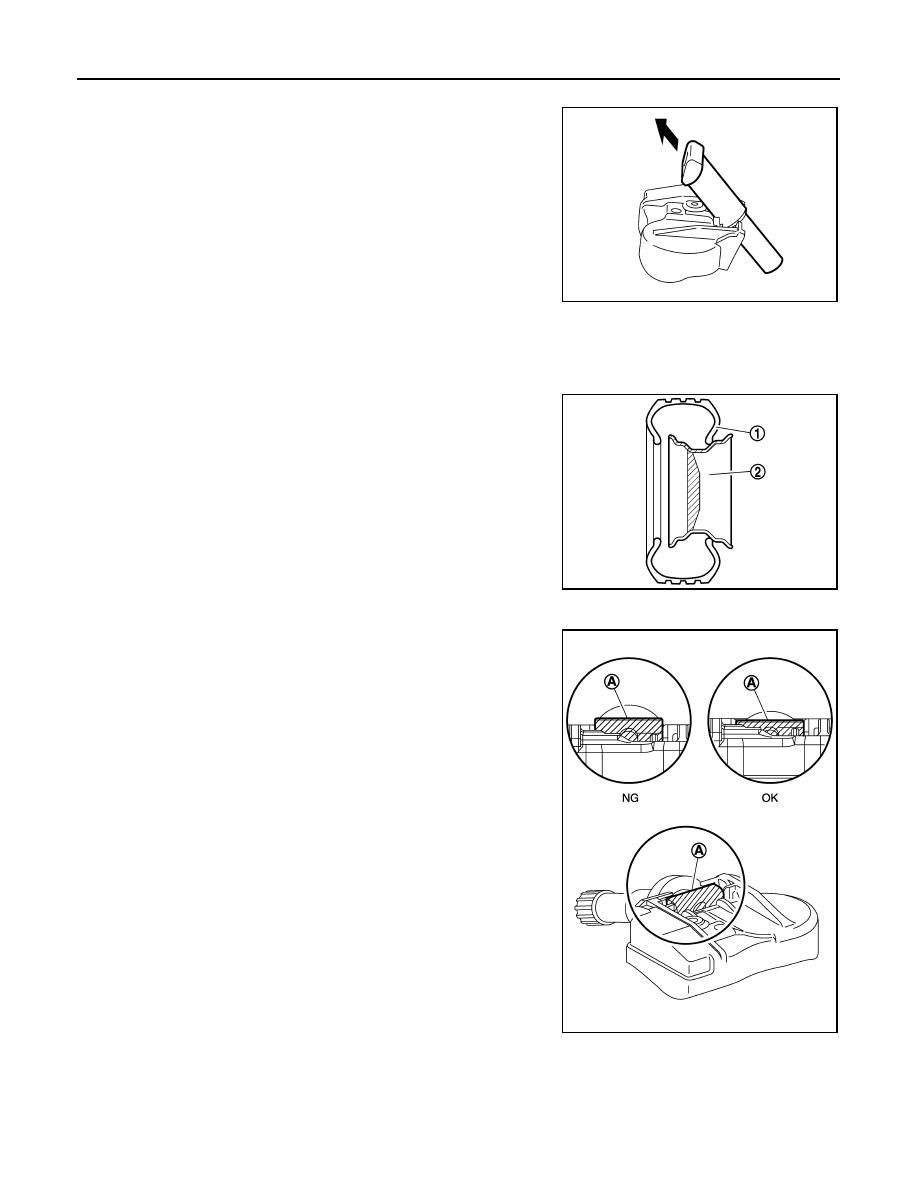

6. Remove the valve stem from the transmitter as shown.

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.

2. Install the tire inside bead (1) onto the wheel (2) in the position

shown.

3. Install the valve stem to the transmitter.
4. Install the O-ring to the transmitter.

CAUTION:

• Do not reuse O-ring

• Insert O-ring to the base of the transmitter.

• The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

JSEIA0378ZZ

JPEIC0105ZZ

JSEIA0376GB

TRANSMITTER

WT-49

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

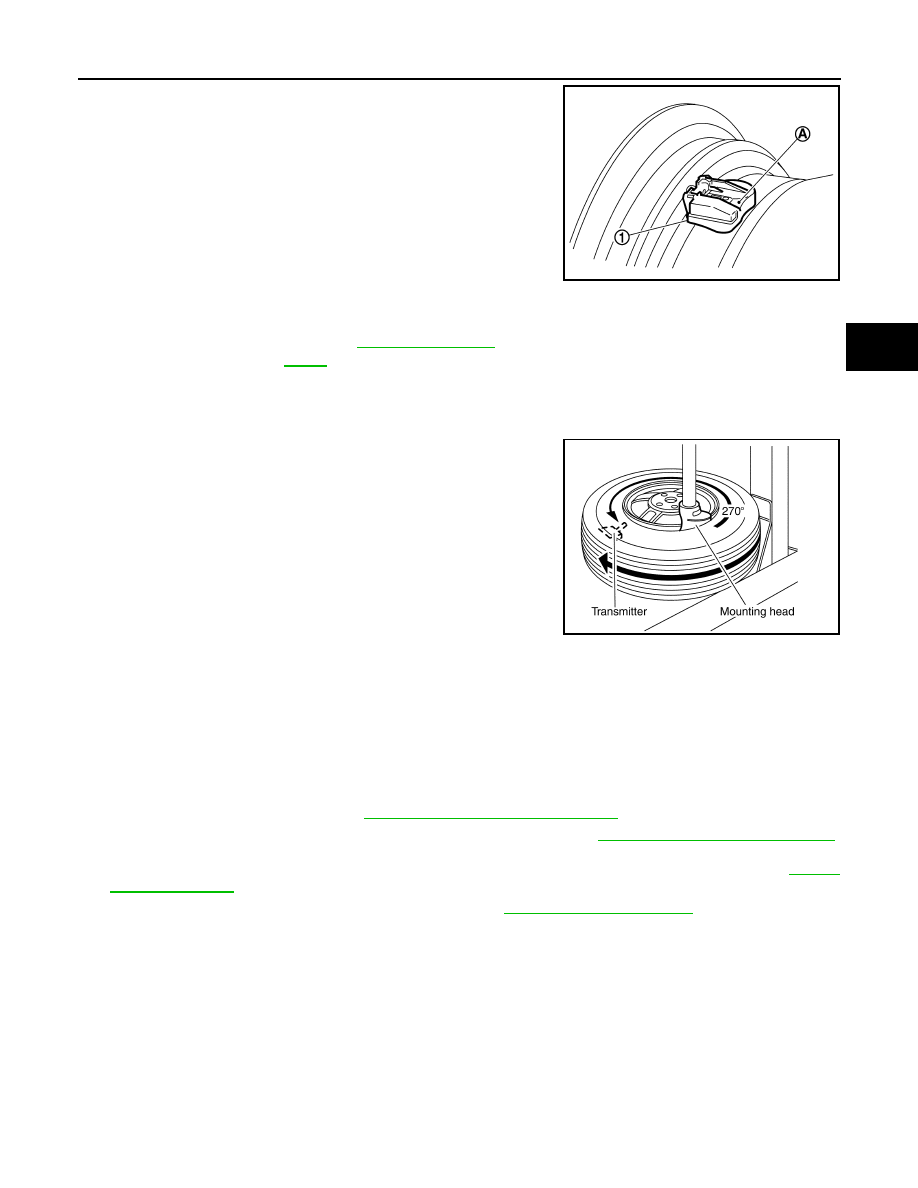

5. Install transmitter (1) to wheel while pressing at position (A).

CAUTION:

• Check that O-ring contacts horizontally with wheel.

• Check that the base of the valve stem is positioned in the

groove of the metal plate.

6. Install and tighten the valve stem nut to the specified torque.

CAUTION:

Do not use power tool for installation.

7. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

8. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and wheel.

• Do not allow lubricant to make contact with transmitter.

9. Install the tire outside bead onto the wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on

the tire with the position of the wheel valve stem assembly for the purpose of wheel and tire balance

adjustment after installation. Make sure that the tire does not rotate relative to wheel.

10. Install the valve core and inflate tire.

CAUTION:

Do not reuse valve core.

11. Install the valve cap.

CAUTION:

Do not reuse valve cap.

12. Balance the wheel and tire. Refer to

WT-43, "Wheel Balance Adjustment"

.

13. Install wheel and tire in appropriate wheel position on vehicle. Refer to

WT-45, "Removal and Installation"

.

NOTE:

If replacing the transmitter, then transmitter ID registration procedure must be performed. Refer to

WT-21,

"Work Procedure"

.

14. Adjust neutral position of steering angle sensor. Refer to

BRC-70, "Work Procedure"

.

JSEIA0377ZZ

Valve stem nut
tightening torque

: Refer to

WT-47, "Exploded

View"

.

WEIA0046E

WT-50

< REMOVAL AND INSTALLATION >

TIRE PRESSURE RECEIVER

TIRE PRESSURE RECEIVER

Removal and Installation

INFOID:0000000010120219

REMOVAL

1. Remove the remote keyless entry receiver. (The tire pressure receiver is incorporated into remote keyless

entry receiver.) Refer to

DLK-209, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
