AV

PRECAUTIONS

AV-507

< PRECAUTION >

[TELEMATICS SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Trouble Diagnosis

INFOID:0000000010122721

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.

• Use the tester with its open terminal voltage being 7.0 V or less.

• Be sure to turn power switch OFF and disconnect the battery cable from the negative terminal before check-

ing the circuit. Refer to

AV-507, "Precaution for Removing 12V Battery"

.

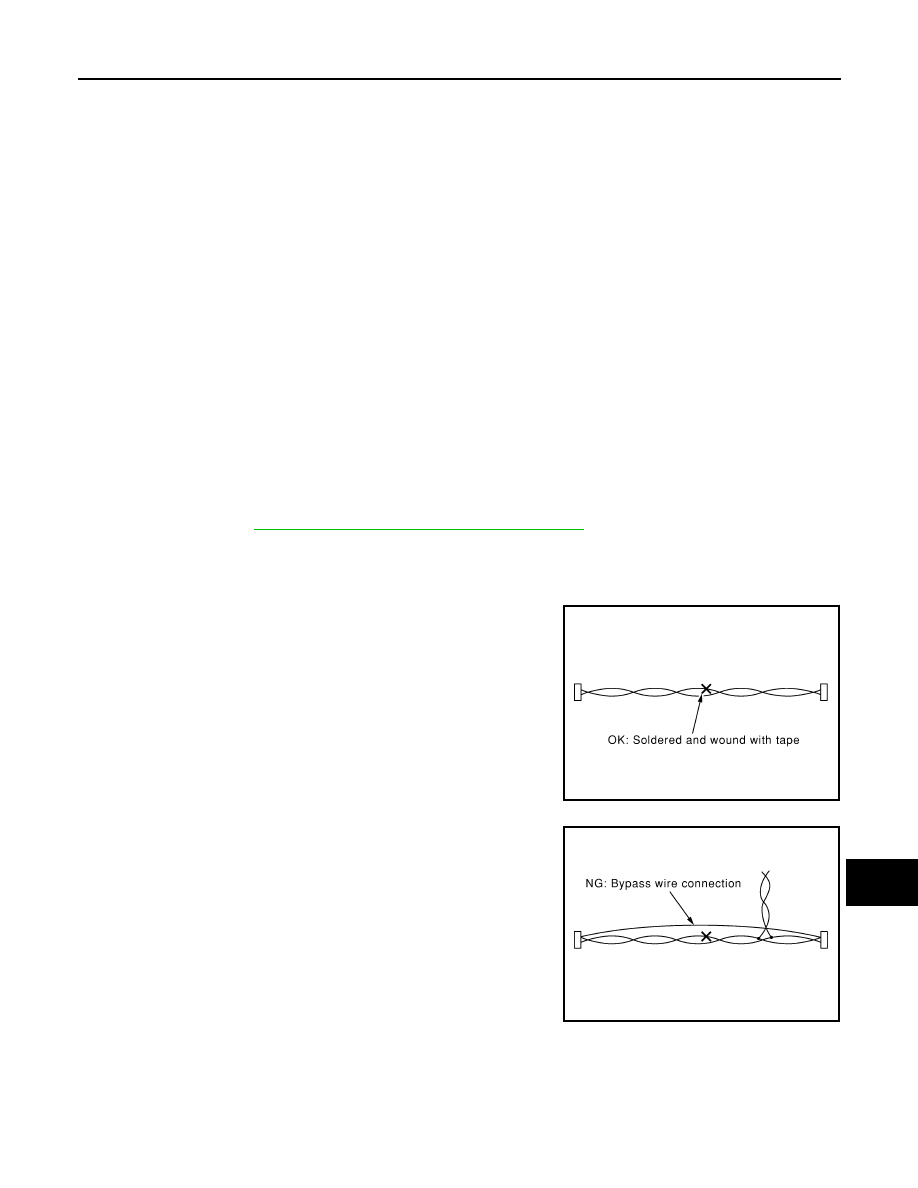

Precaution for Harness Repair

INFOID:0000000010122722

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of

twisted line will be lost.)

Precaution for Removing 12V Battery

INFOID:0000000010122723

1. Check that EVSE is not connected.

NOTE:

If EVSE is connected, the air conditioning system may be automatically activated by the timer A/C func-

tion.

PKIA0306E

PKIA0307E

AV-508

< PRECAUTION >

[TELEMATICS SYSTEM]

PRECAUTIONS

2. Turn the power switch OFF

→ ON → OFF. Get out of the vehicle. Close all doors (including back door).

3. Check that the charge status indicator lamp does not blink and wait for 5 minutes or more.

NOTE:

 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

Cautions in Removing AV Control Unit (Models with AV Control Unit)

INFOID:0000000010122724

CAUTION:

Remove AV control unit after a lapse of 30 seconds or more after turning the power switch OFF.

NOTE:

After the power switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if 12V battery voltage is cut off within 30 seconds.

AV

PREPARATION

AV-509

< PREPARATION >

[TELEMATICS SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

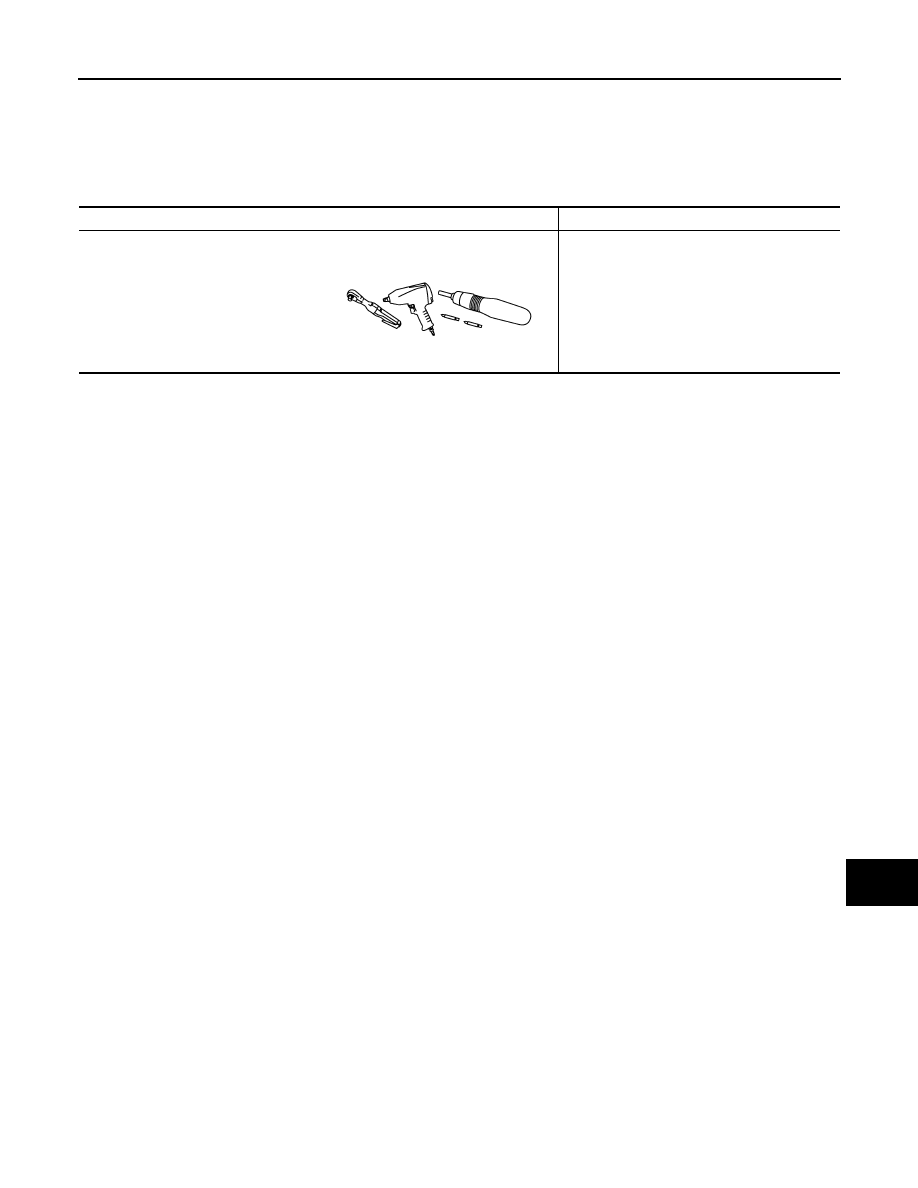

Commercial Service Tool

INFOID:0000000010122725

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV-510

< SYSTEM DESCRIPTION >

[TELEMATICS SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

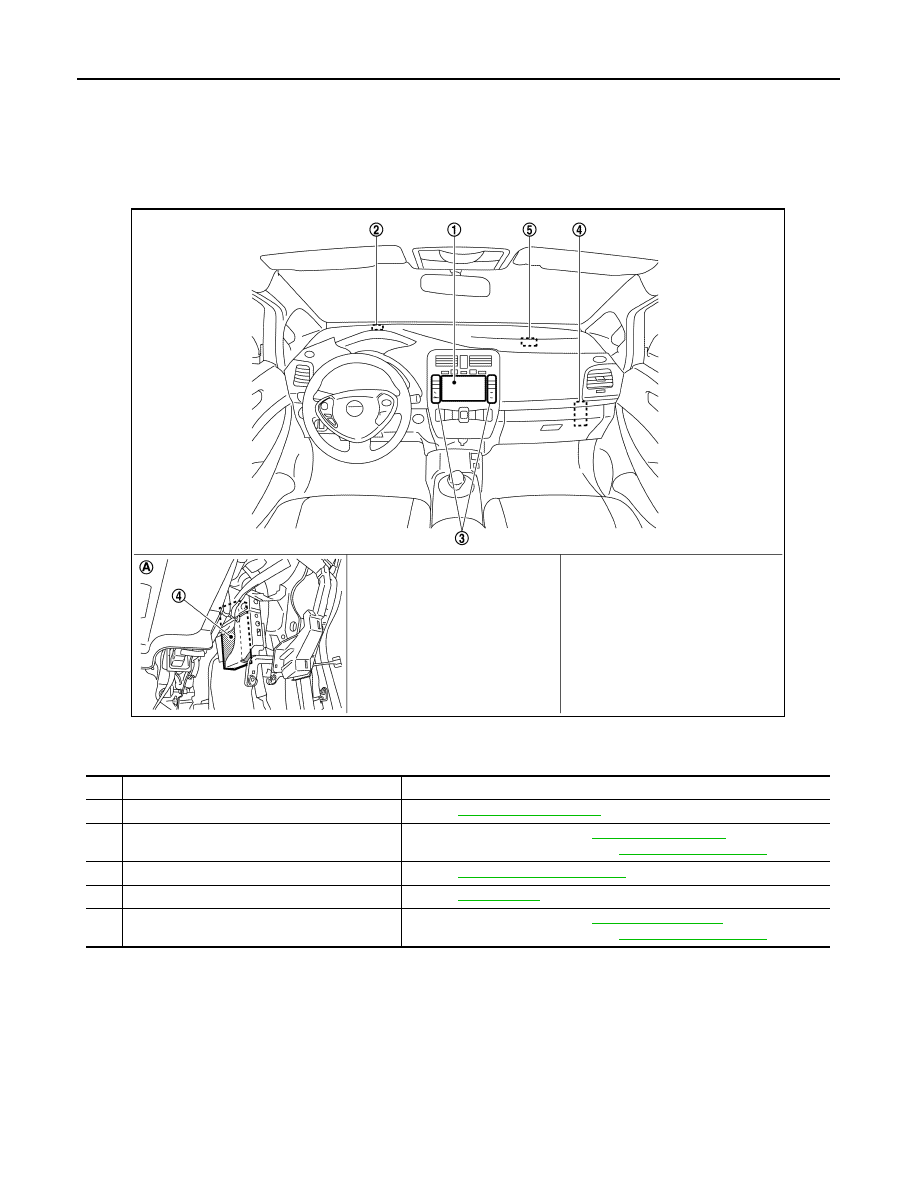

Component Parts Location

INFOID:0000000010122726

JSNIA3998ZZ

A. Glove box cover assembly removed.

No.

Component

Function

1.

AV control unit

Refer to

AV-511, "AV Control Unit"

.

2.

GPS antenna

• For parts explanation, refer to

AV-511, "GPS Antenna"

.

• For antenna feeder layout, refer to

AV-512, "Antenna Feeder"

3.

Multifunction switch

Refer to

AV-511, "Multifunction Switch"

4.

TCU

Refer to

AV-511, "TCU"

.

5.

TEL antenna

• For parts explanation, refer to

AV-512, "TEL Antenna"

.

• For antenna feeder layout, refer to

AV-512, "Antenna Feeder"

.
