USB CONNECTOR

Removal and Installation

INFOID:0000000010122712

REMOVAL

1. Remove the instrument lower center cover. Refer to

IP-17, "Removal and Installation"

.

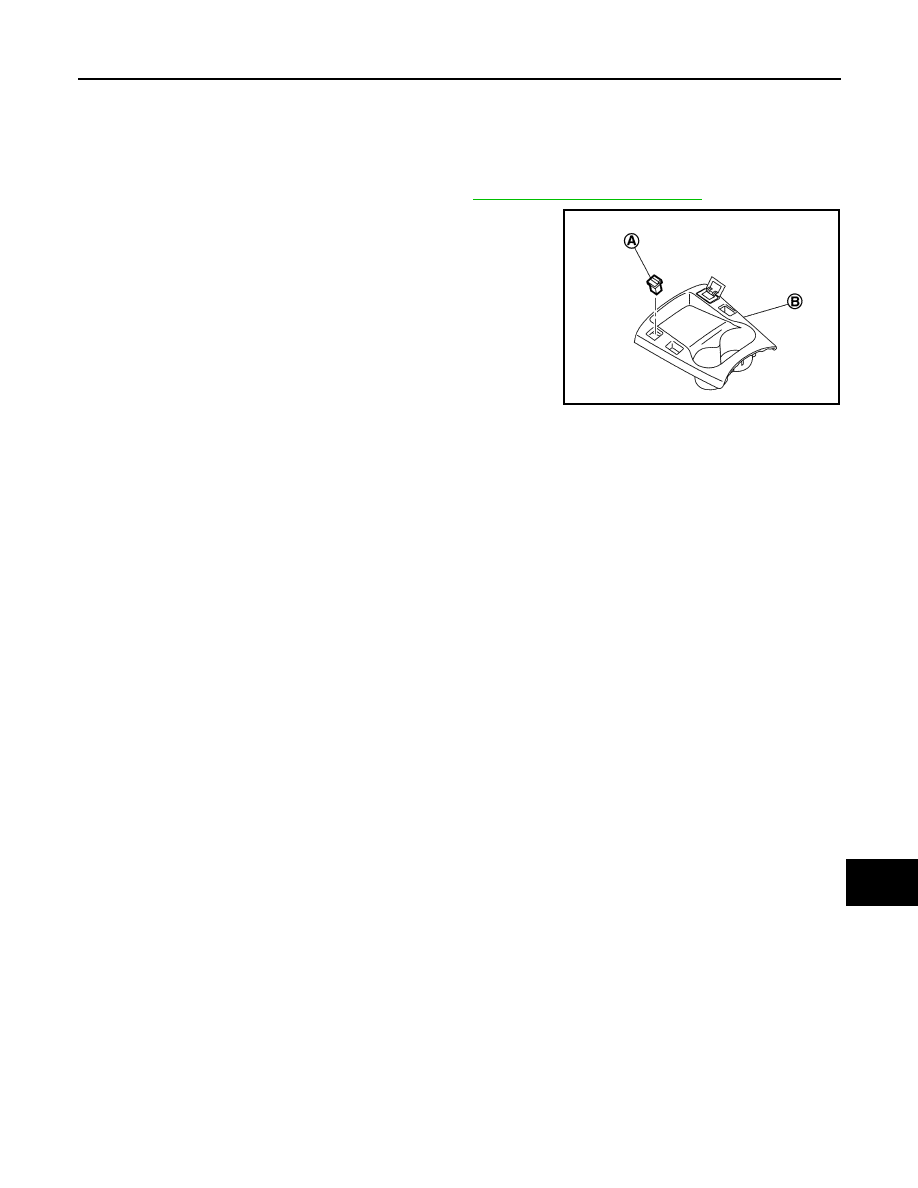

2. Press the tab from the rear of the instrument lower center cover

(B) and remove the USB connector (A).

INSTALLATION

Install in the reverse order of removal.

NOTE:

Align the notch of the instrument panel center lower cover and assemble it.

JSNIA3789ZZ

AV-500

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

SUBWOOFER

SUBWOOFER

Removal and Installation

INFOID:0000000010122713

REMOVAL

1. Open the back door.

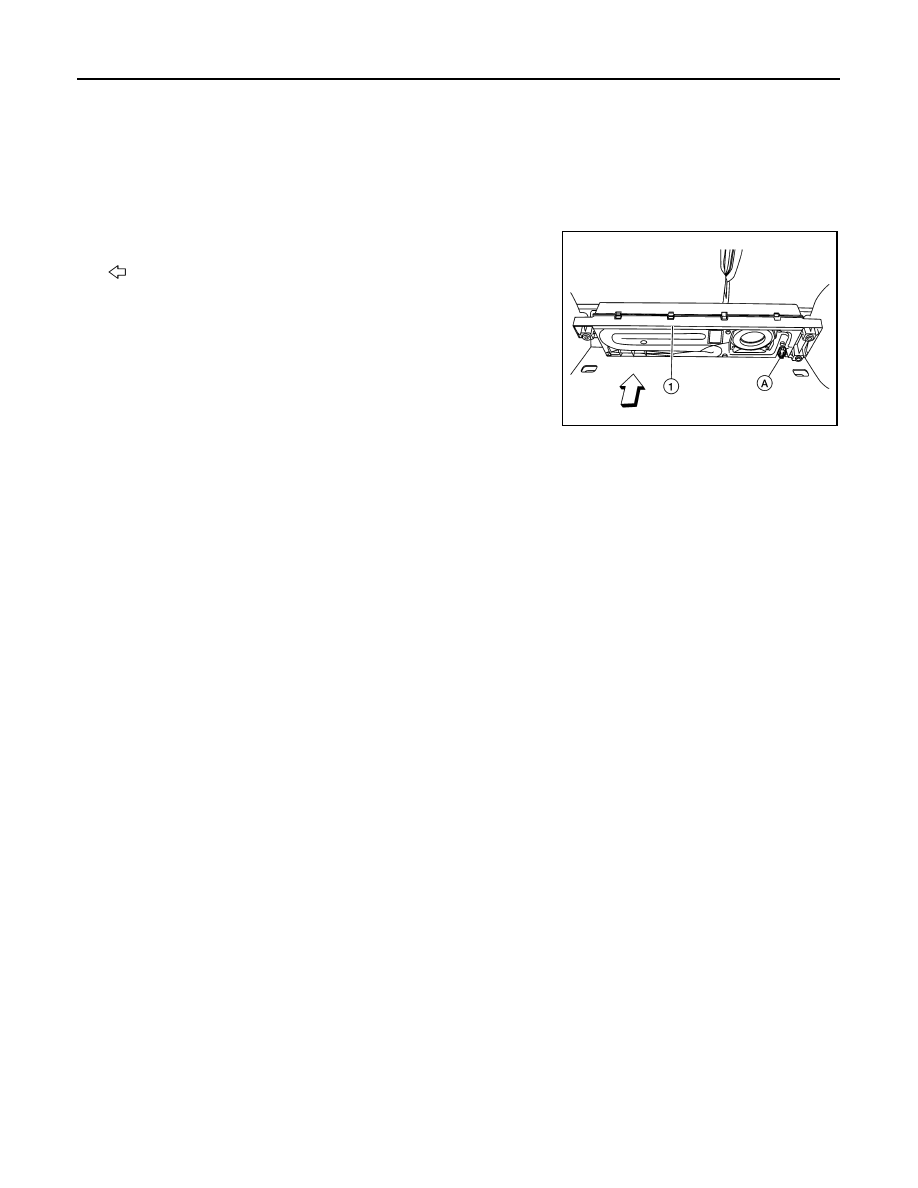

2. Remove the three subwoofer bolts.
3. Lift rear of subwoofer (1) to disconnect the harness connector

(A) and remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1508ZZ

AV

BOSE SPEAKER AMP

AV-501

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000010122714

REMOVAL

1. Remove the luggage side lower finisher (RH). Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

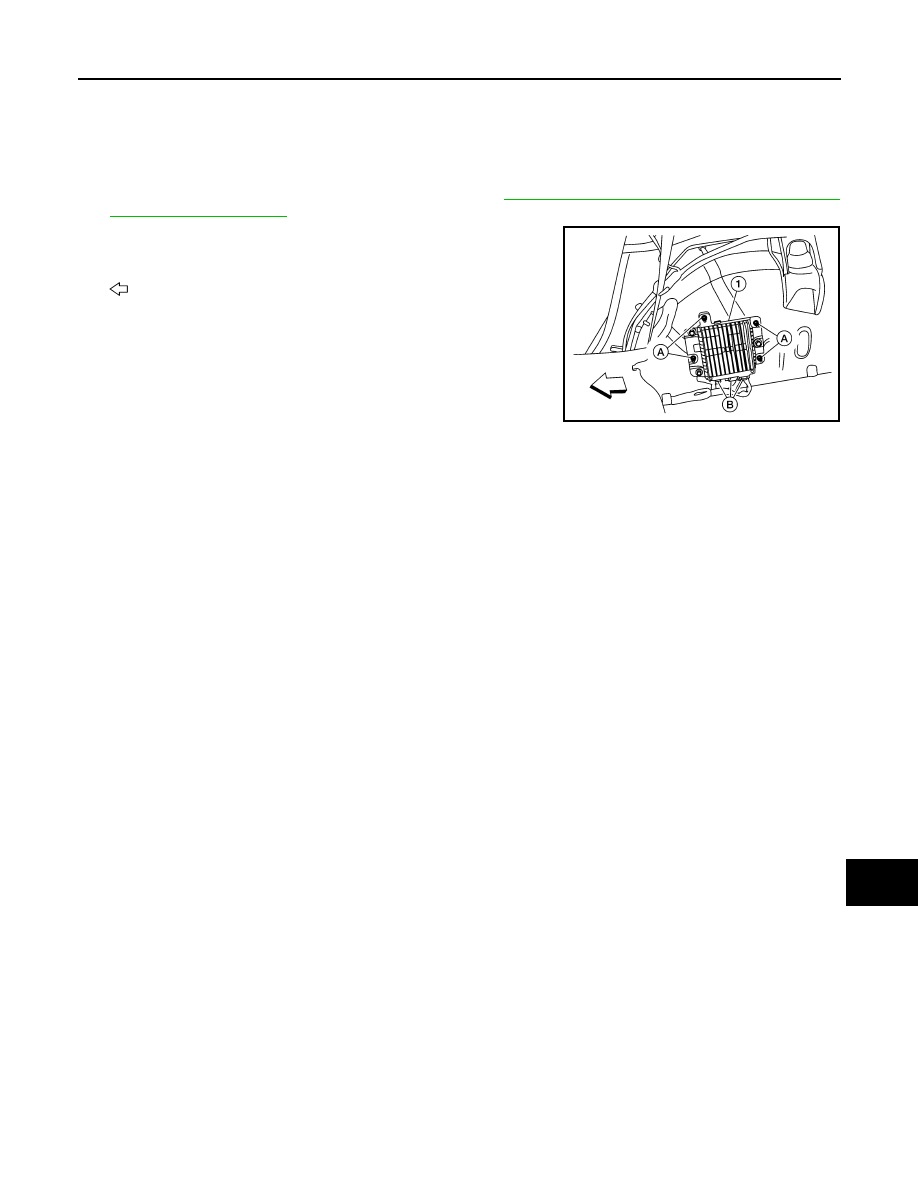

2. Remove the four Bose speaker amp. bolts (A).
3. Disconnect the harness connectors (B) from the Bose speaker

amp. (1) and remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3410ZZ

AV-502

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000010122715

REMOVAL

1. Remove the TCU. Refer to

AV-594, "Removal and Installation"

.

2. Remove the around view monitor control unit screws.
3. Disconnect the harness connectors from the around view monitor control unit and remove.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Perform camera image calibration. Refer to

AV-425, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.
