TWEETER

Removal and Installation

INFOID:0000000010122703

REMOVAL

1. Remove the front pillar garnish. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

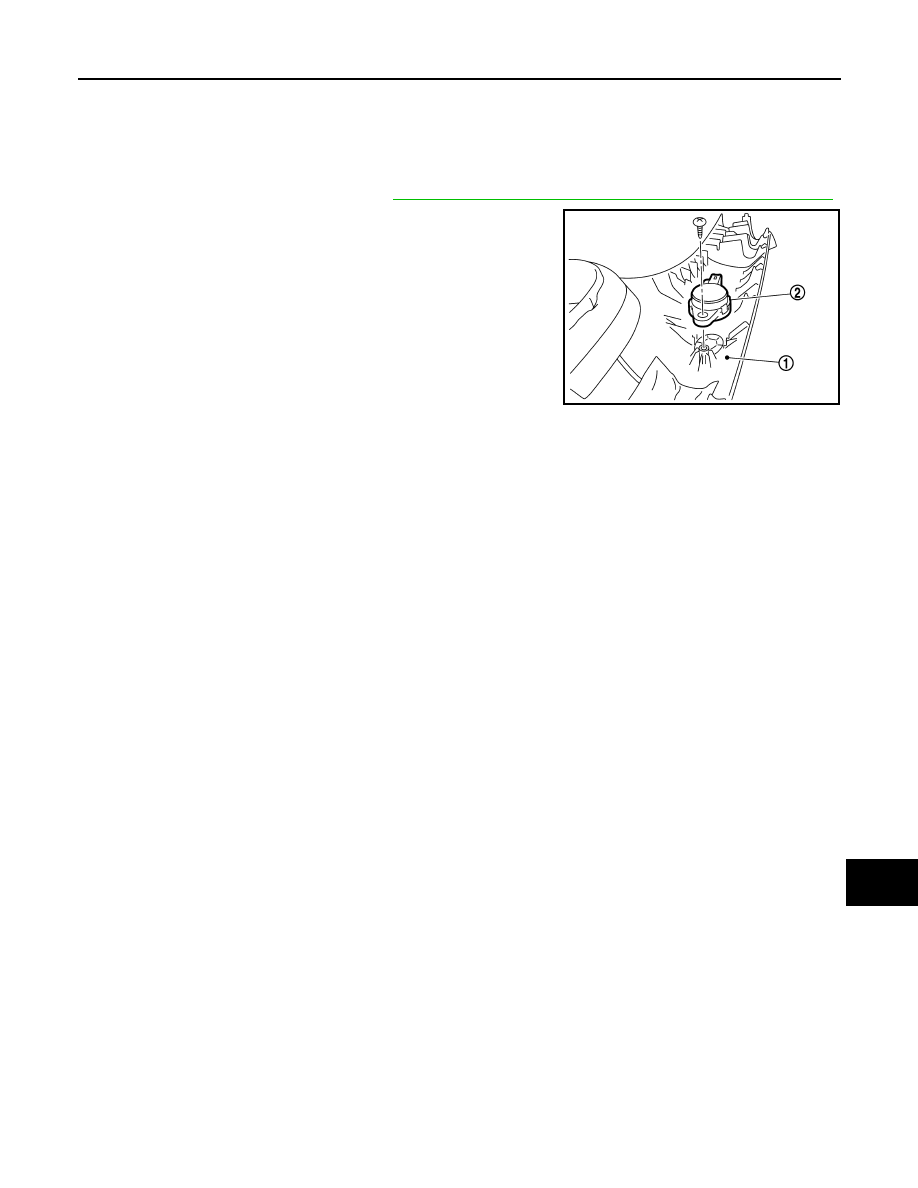

2. Remove the screws and the tweeter from the front pillar garnish.

INSTALLATION

Install in the reverse order of removal.

JSNIA3786ZZ

AV-492

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010122704

REMOVAL

1. Remove the rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the rear door speaker.

INSTALLATION

Install in the reverse order of removal.

AV

GPS ANTENNA

AV-493

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000010122705

REMOVAL

1. Remove the instrument panel assembly. Refer to

IP-17,

"Removal and Installation"

.

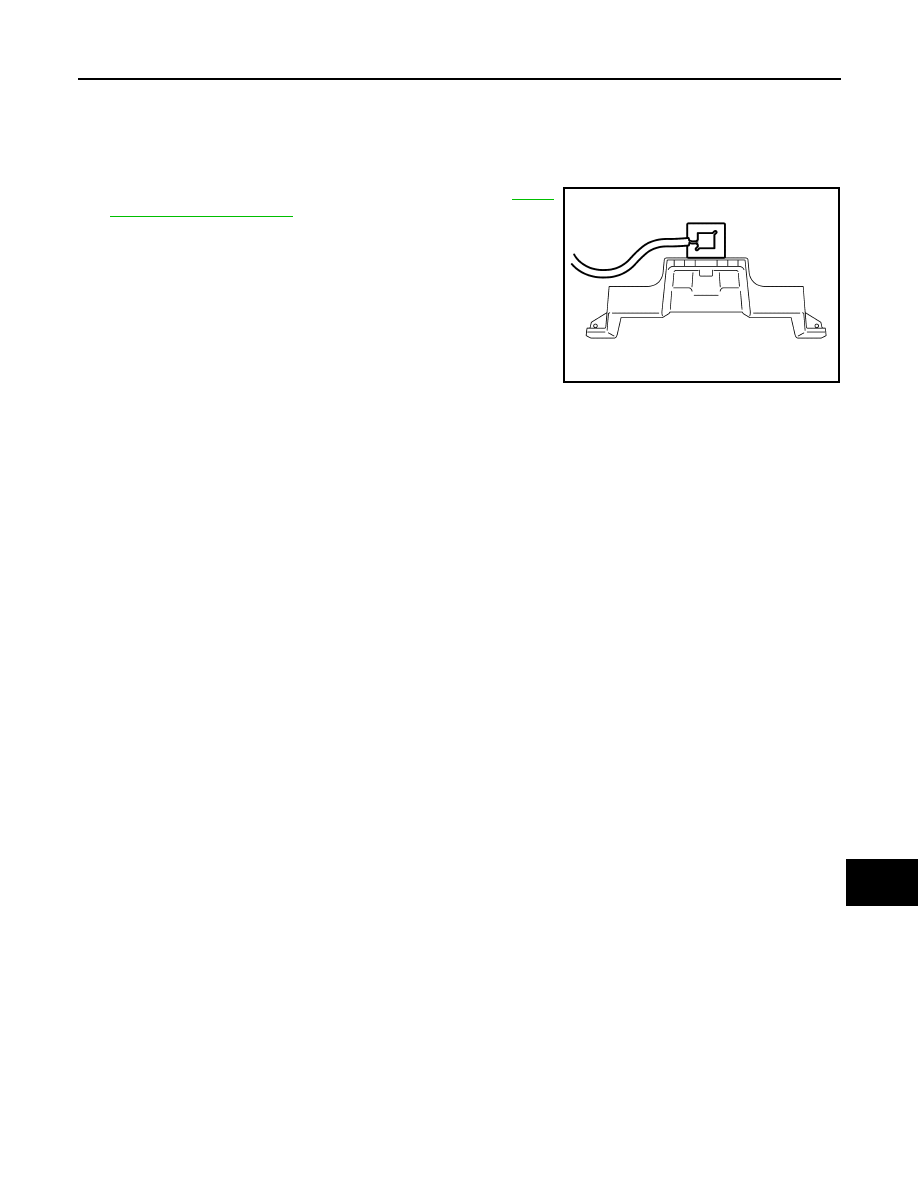

2. Remove the screws, clips and the GPS antenna.

INSTALLATION

Install in the reverse order of removal.

JSNIA3580ZZ

AV-494

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010122706

REMOVAL

1. Remove the map lamp assembly. Refer to

INL-52, "Removal and Installation"

.

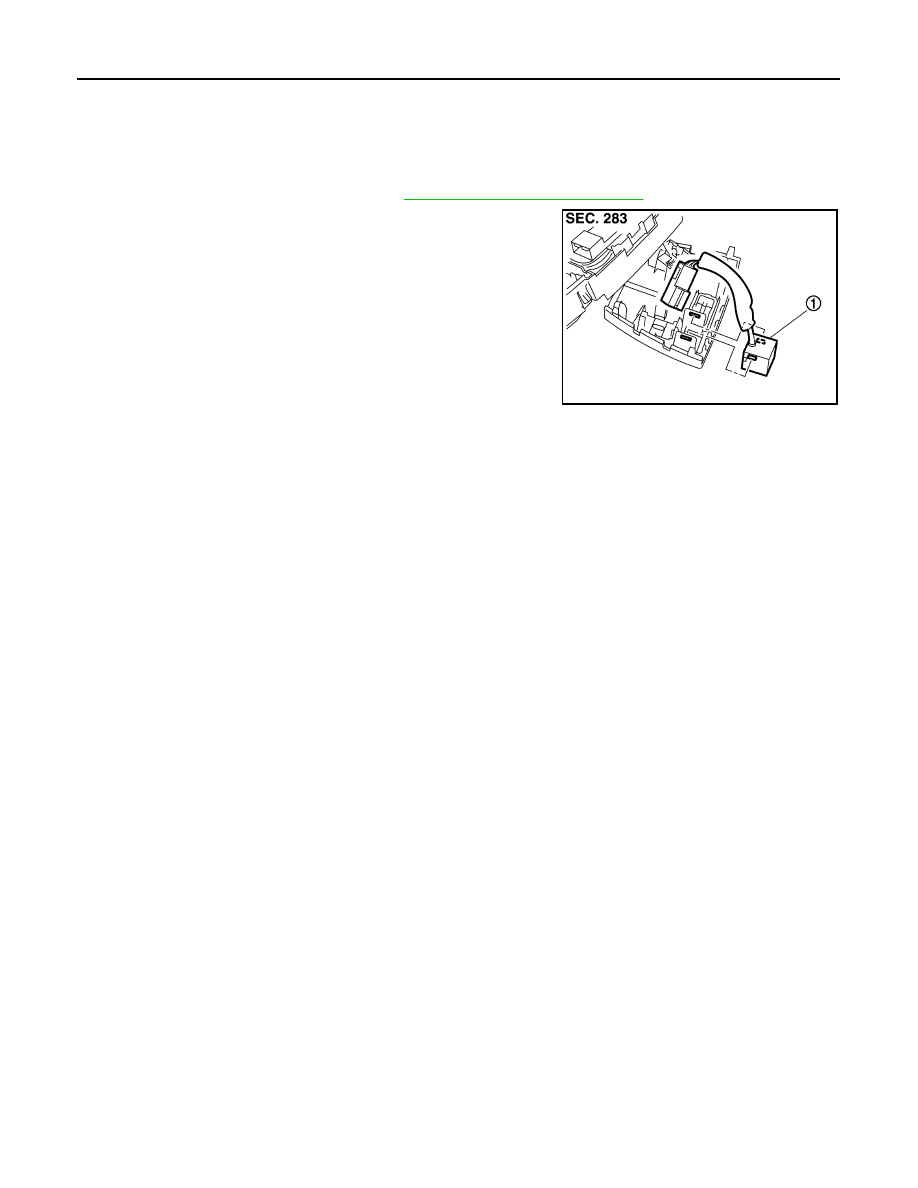

2. Press the pawl to remove the microphone (1) from the map lamp

assembly.

CAUTION:

Use care when handling the microphone pawl to avoid dam-

aging.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Check the microphone for looseness after the installation.

JPNIA1399ZZ
