AV

NORMAL OPERATING CONDITION

AV-487

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

- Because calculation of the current location cannot be done when traveling with the power off, for example

when traveling by ferry or when being towed, the location before travel is displayed. If the precise location

can be detected with GPS, the location will be corrected.

Vehicle Mark Jumps

In the following cases, the vehicle mark may appear to jump as a result of automatic correction of the current

location.

• When map matching has been done

- If the current location and the vehicle mark are different when map matching is done, the vehicle mark may

seem to jump. At this time, the location may be “corrected” to the wrong road or to a location which is not on

a road.

• When GPS location correction has been done

- If the current location and the vehicle mark are different when the location is corrected using GPS measure-

ments, the vehicle mark may seem to jump. At this time, the location may be “corrected” to a location which

is not on a road.

Vehicle Mark is in a River or Sea

The navigation system moves the vehicle mark with no distinction between land and rivers or sea. If the vehi-

cle mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.

Vehicle Mark Automatically Rotates

The system wrongly memorizes the rotating status as stopping when the power switch is turned ON with the

turntable rotating. That causes the vehicle mark to rotate when the vehicle is stopped.

When Driving on Same Road, Sometimes Vehicle Mark is in Right Place and Sometimes it is in Wrong Place

The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.

Depending on the road traveled and the operation of the steering wheel, the location detection results will be

different. Therefore, even on a road on which the location has never been wrong, conditions may cause the

vehicle mark to deviate.

AV-488

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000010122700

REMOVAL

CAUTION:

Remove AV control unit after a lapse of 30 seconds or more after turning the power switch OFF.

NOTE:

After the power switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if 12V battery voltage is cut off within 30 seconds.
1. Disconnect the 12V negative battery terminal. Refer to

PG-89, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

3. Remove the AV control unit screws, disconnect the harness connectors from the AV control unit and

remove with the brackets attached.

4. Remove the bracket screws and the brackets from AV control unit (if necessary).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• If the AV control unit is replaced, input of the user ID and password and time adjustment with VCM

are required.

• If the AV control unit is not replaced, time adjustment with VCM is required.

Input Method of User ID and Password·

1. Turn power switch ON.

2. Select “Sign in” from the CARWINGS screen.

3. Enter the user ID and password.

NOTE:

Since the user ID and password are determined by the user in advance, they are input by the user.

Time Adjustment and Check Method with VCM

Refer to

AV-277, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Work Pro-

cedure"

.

AV

MULTIFUNCTION SWITCH

AV-489

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MULTIFUNCTION SWITCH

Removal and Installation

INFOID:0000000010122701

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

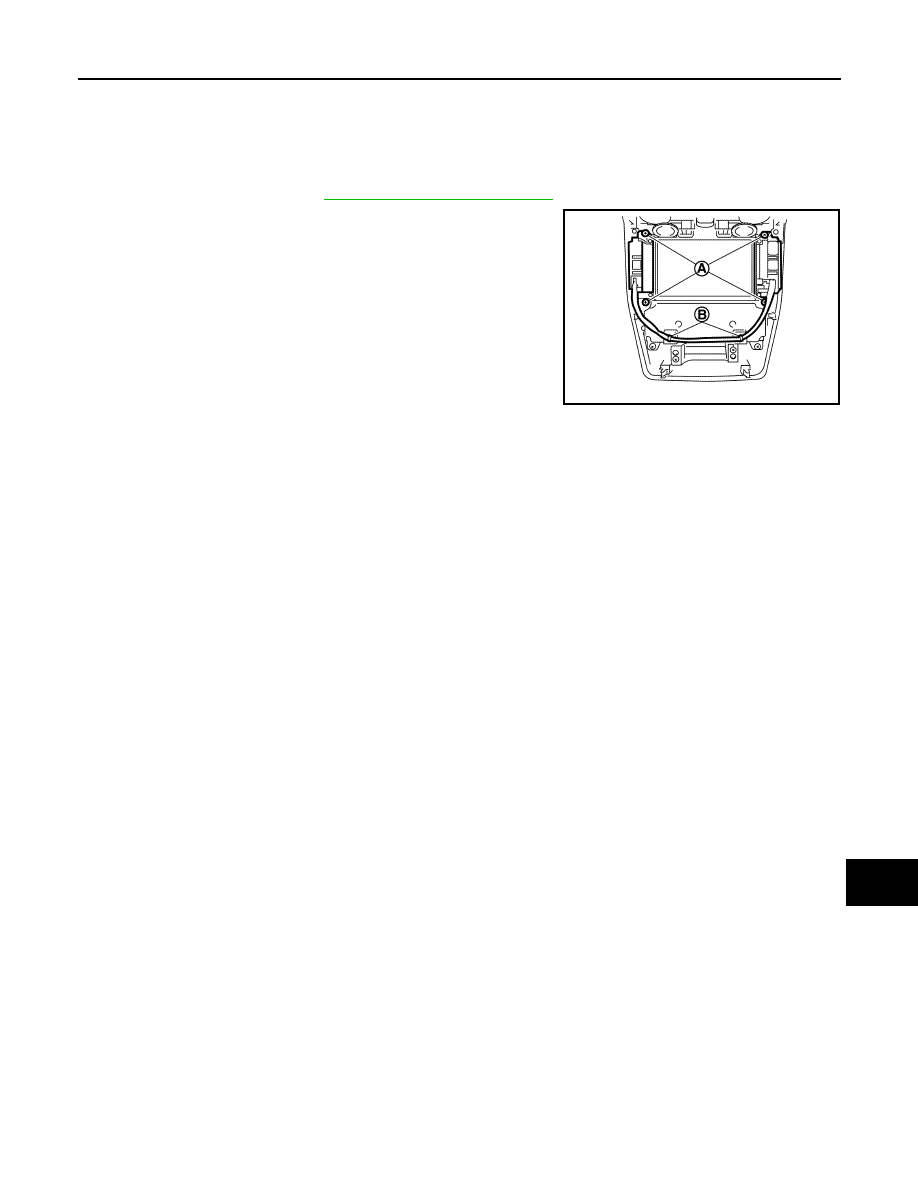

2. Remove the screws (A), clips (B) and the multifunction switch

from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

JSNIA3785ZZ

AV-490

< REMOVAL AND INSTALLATION >

[NAVIGATION WITH BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010122702

REMOVAL

1. Remove the front door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.
