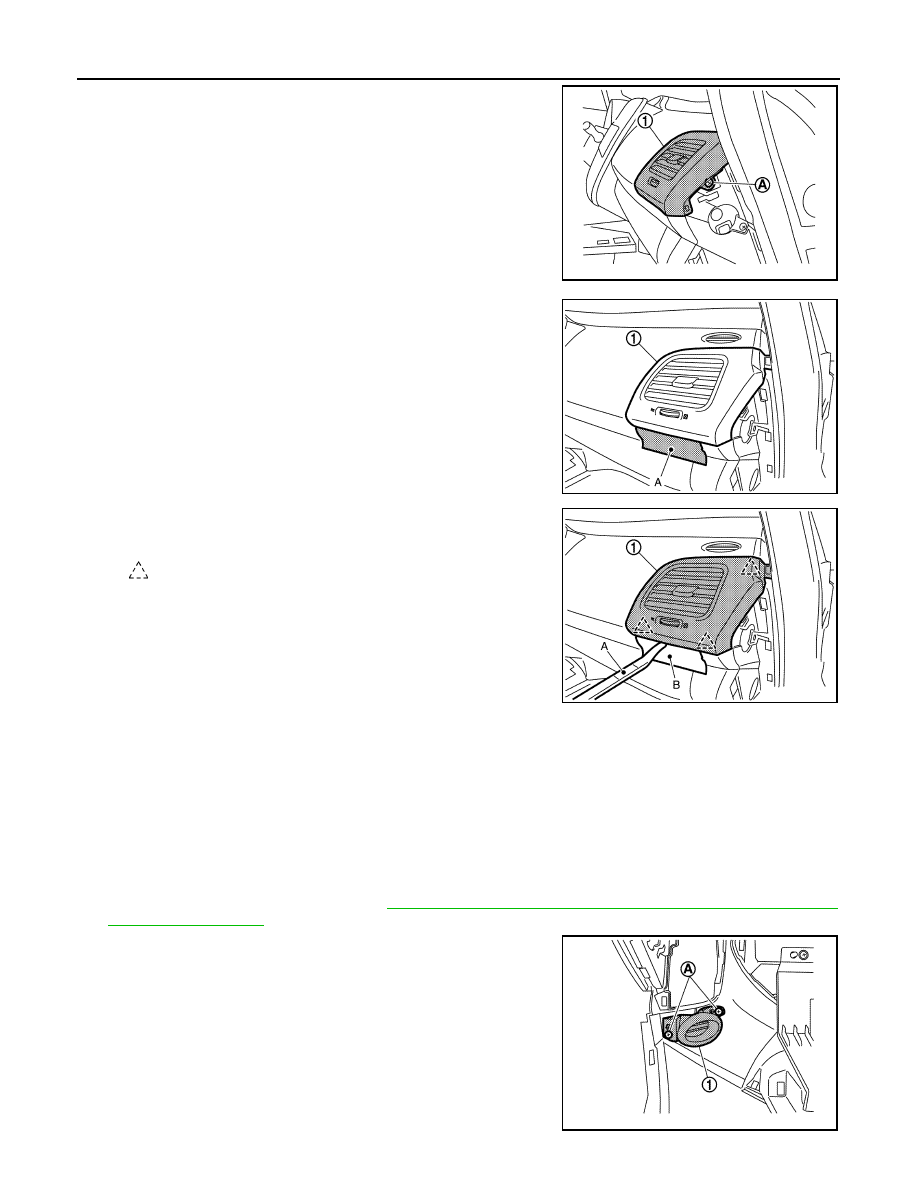

VTL-14

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

4. Remove screw (A) from side ventilator grille RH (1).

5. Apply protective tape (A) on the part to protect it from damage.

6. Disengage side ventilator grille RH (1) pawls using a suitable

tool (A).

7. Remove side ventilator grille RH from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000010120492

REMOVAL

1. Remove side defroster duct 1. Refer to

VTL-16, "SIDE DEFROSTER DUCT : Removal and Installation -

Side Defroster Duct 1"

.

2. Remove screws (A), and then remove side defroster grille (1)

from instrument panel assembly.

JPIIA1824ZZ

1.

: Side ventilator grille RH

JMIIA2123ZZ

: Pawl

JPIIA1839ZZ

JPIIA1825ZZ

DUCTS AND GRILLES

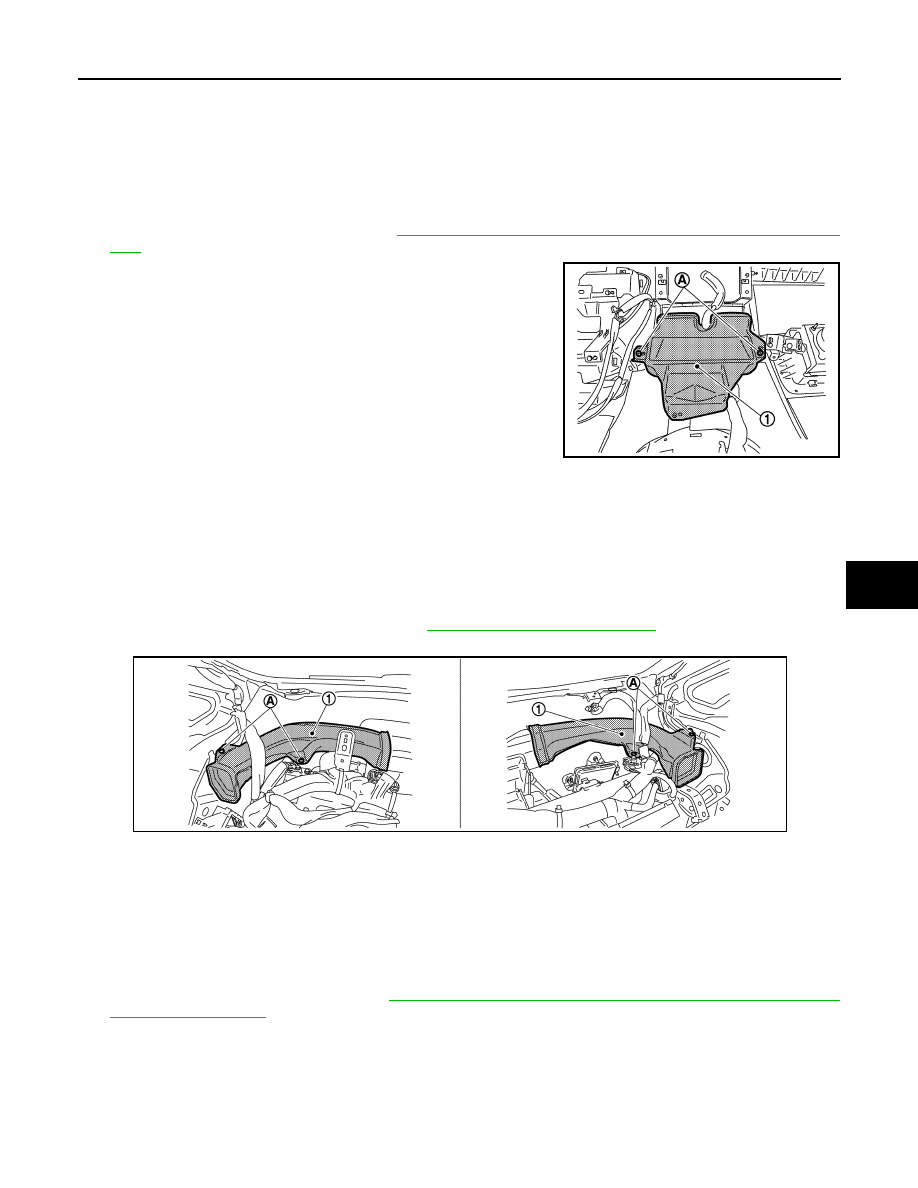

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INSTALLATION

Install in the reverse order of removal.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000010120493

REMOVAL

1. Remove front defroster nozzle. Refer to

VTL-15, "FRONT DEFROSTER DUCT : Removal and Installa-

tion"

.

2. Remove screws (A), and then remove center ventilator duct (1)

from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR DUCT
SIDE VENTILATOR DUCT : Removal and Installation

INFOID:0000000010120494

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws (A), and then remove side ventilator duct (1) from the vehicle.

INSTALLATION

Install in the reverse order of removal.

FRONT DEFROSTER DUCT
FRONT DEFROSTER DUCT : Removal and Installation

INFOID:0000000010120495

REMOVAL

1. Remove side defroster duct 1. Refer to

VTL-16, "SIDE DEFROSTER DUCT : Removal and Installation -

Side Defroster Duct 1"

.

JPIIA1826ZZ

JPIIA1827ZZ

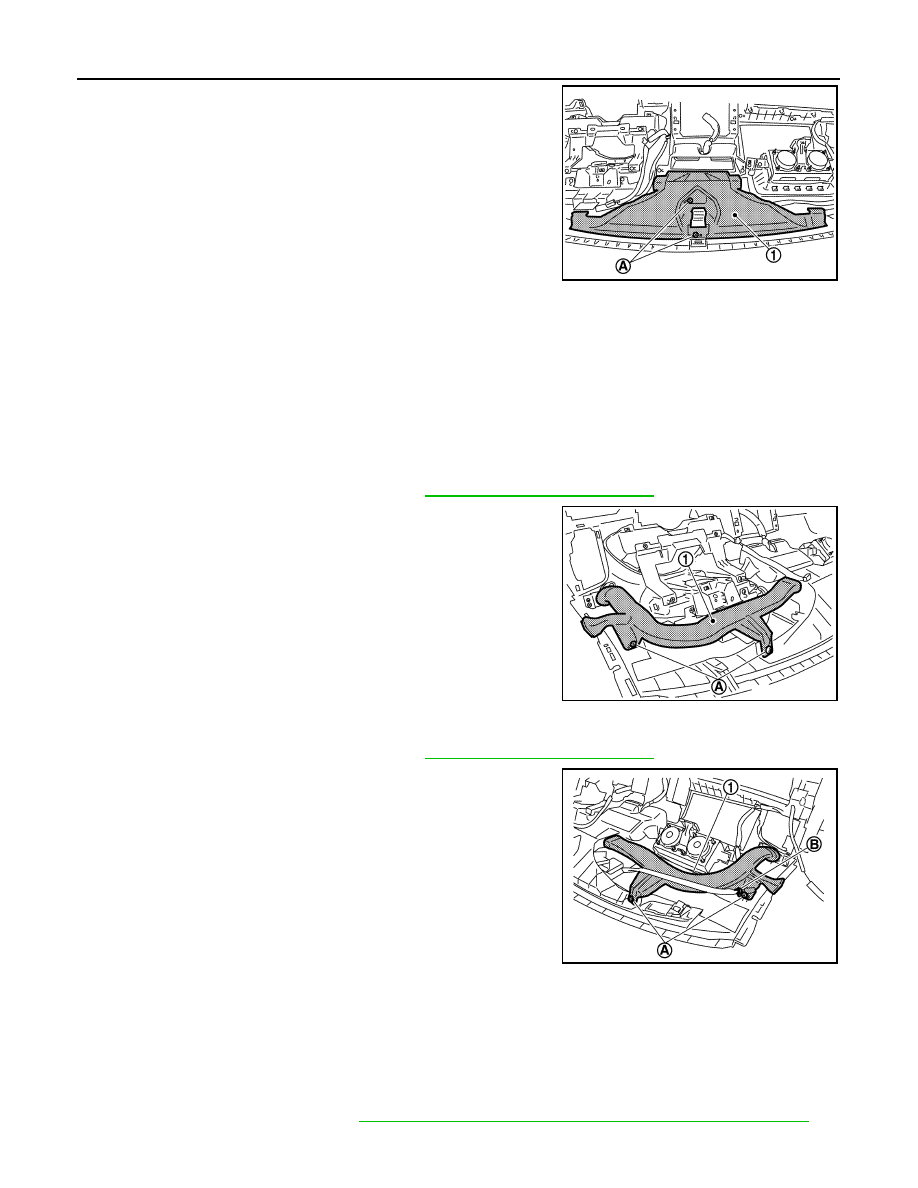

VTL-16

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

2. Remove screws (A), and then remove front defroster duct (1)

from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER DUCT
SIDE DEFROSTER DUCT : Removal and Installation - Side Defroster Duct 1

INFOID:0000000010120496

REMOVAL

Driver side

1. Remove instrument panel assembly. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws (A), and then remove side defroster duct 1 (1)

from instrument panel assembly.

Passenger side

1. Remove instrument panel assembly. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws (A) and harness clip (B), and then remove side

defroster duct 1 (1) from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

SIDE DEFROSTER DUCT : Removal and Installation - Side Defroster Duct 2

INFOID:0000000010120497

REMOVAL

Remove instrument side panel. Refer to

INT-25, "INSTRUMENT SIDE PANEL : Removal and Installation"

.

JPIIA1828ZZ

JPIIA1829ZZ

JPIIA1830ZZ

DUCTS AND GRILLES

VTL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INSTALLATION

Install in the reverse order of removal.

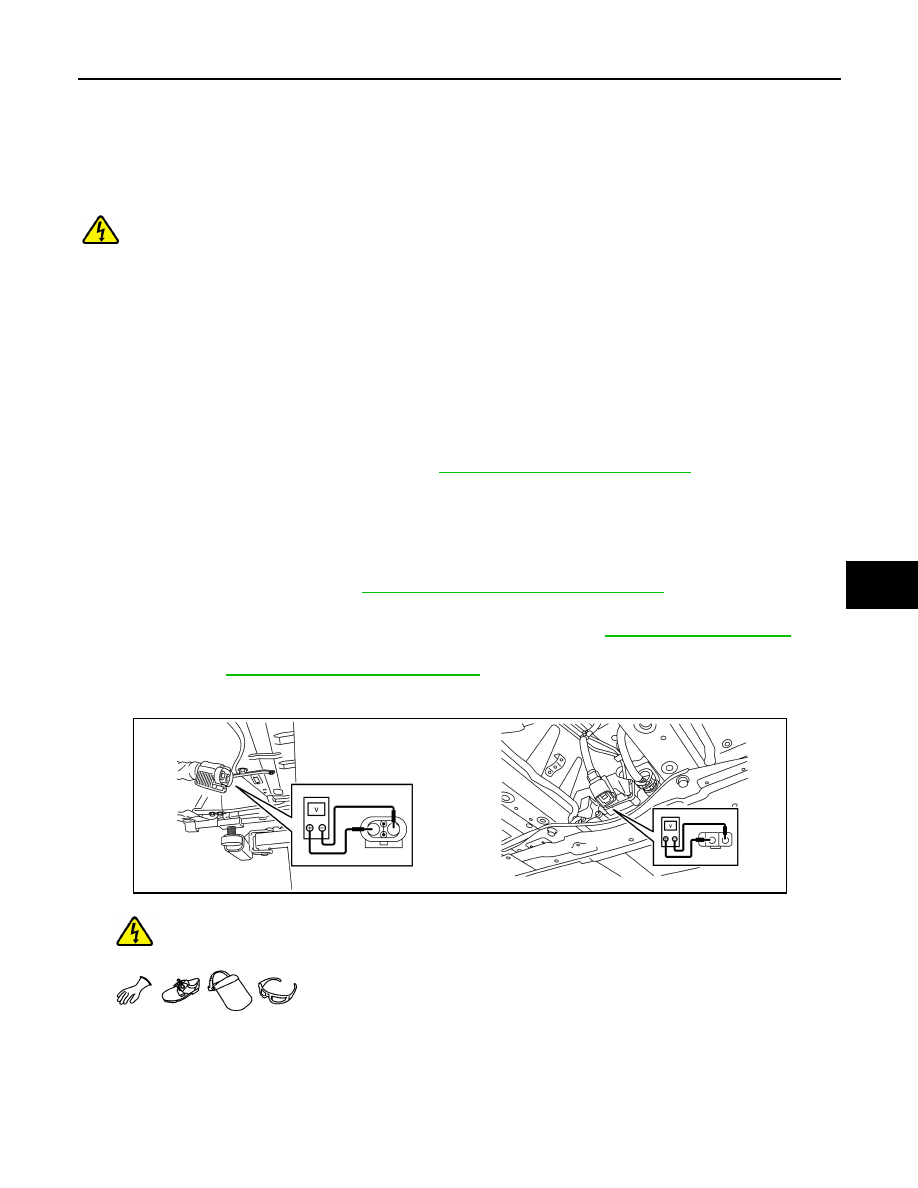

FOOT DUCT
FOOT DUCT : Removal and Installation

INFOID:0000000010120498

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them. Refer to

GI-34, "High Voltage Precautions"

.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

REMOVAL

WARNING:

Disconnect the high voltage. Refer to

GI-33, "How to Disconnect High Voltage"

.

1. Check voltage in high voltage circuit. (Check that condenser are discharged.)
a. Lift up the vehicle and remove the Li-ion battery under covers. Refer to

EVB-181, "Exploded View"

.

b. Disconnect high voltage harness connector and PTC heater harness connector from front side of Li-ion

battery. Refer to

EVB-181, "Removal and Installation"

.

c. Measure voltage between high voltage harness connector terminals and PTC heater harness connector

terminals.

DANGER:



 Touching high voltage components without using the appropriate protective equipment will

cause electrocution.

CAUTION:

For voltage measurements, use a tester which can measure to 500 V or higher.

REMOVAL

Standard

: 5 V or less
