VTL-10

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

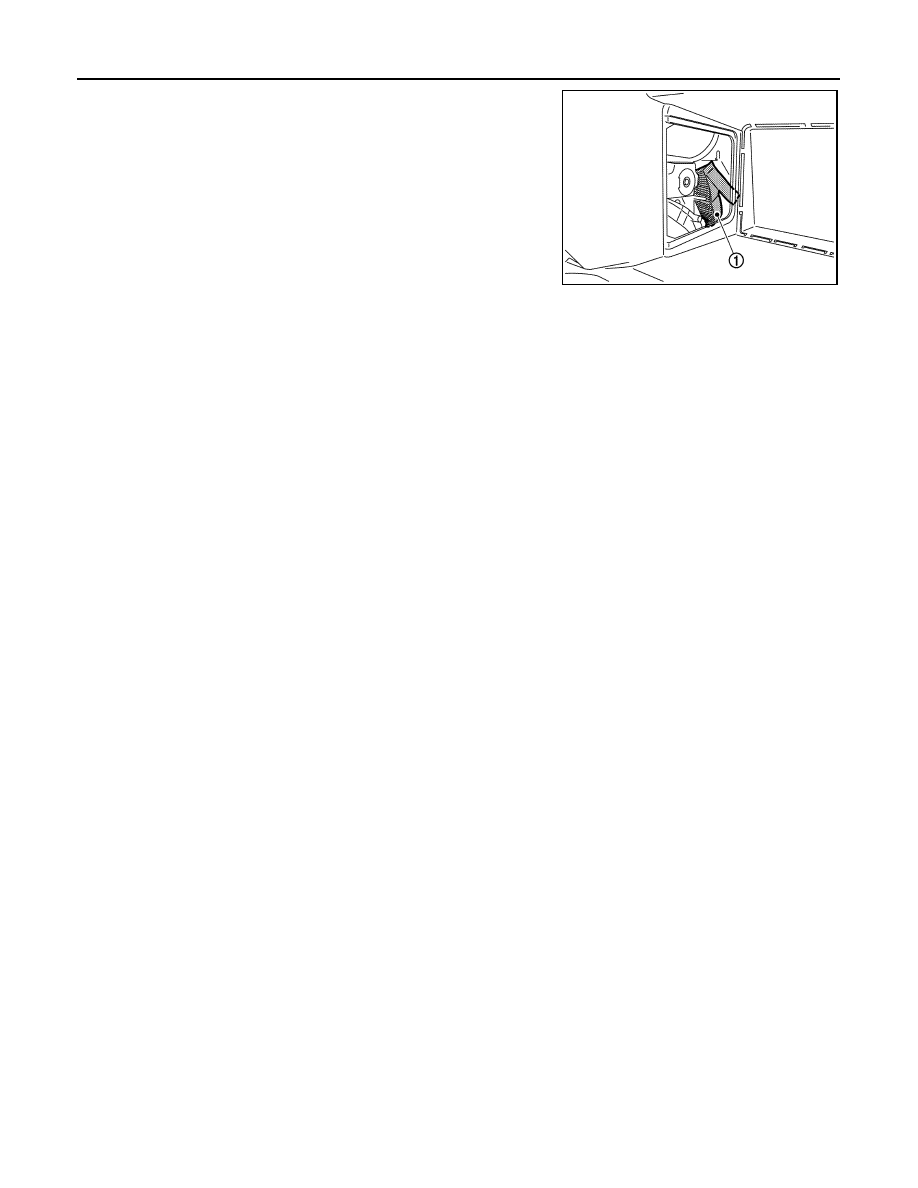

6. Pull out in-cabin microfilter (1) from heating and cooling unit

assembly, and then remove in-cabin microfilter through bottom

of glove box.

CAUTION:

If the filter is deformed/damaged when removing, replace it

with a new one. Deformed/damaged filter may deteriorate

the dust collecting performance.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

When installing in-cabin microfilter, visually check the operation through glove box mask opening.

CAUTION:

When installing, handle the filter with extreme care to avoid deforming/damaging.

JPIIA1846ZZ

VENTILATION SYSTEM

VTL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SYSTEM DESCRIPTION

VENTILATION SYSTEM

System Description

INFOID:0000000010120488

DESCRIPTION

Ventilation system is controlled by the A/C auto amp. Refer to

HAC-25, "A/C Auto Amp."

 (WITH HEAT PUMP)

or

HAC-224, "A/C Auto Amp."

 (WITHOUT HEAT PUMP).

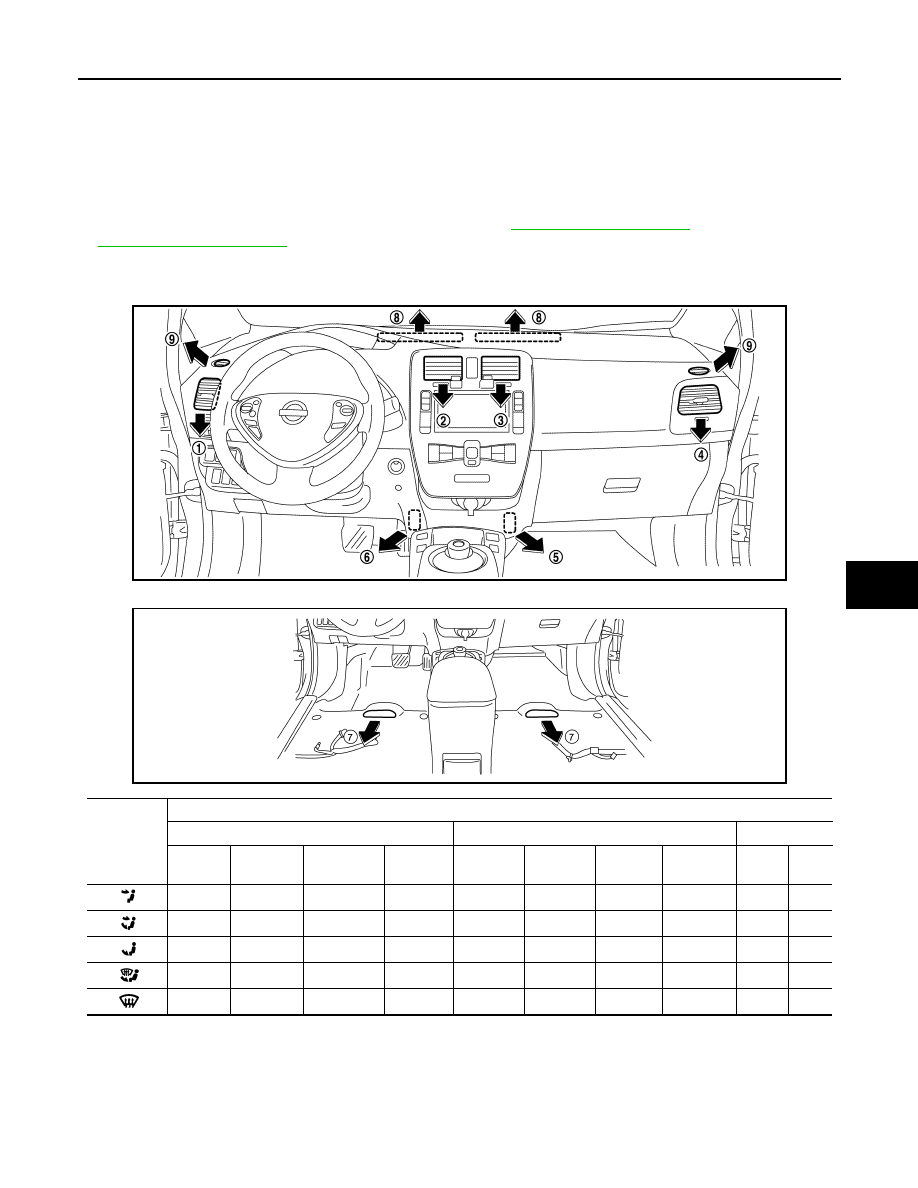

OUTLETS AND AIR MIX RATIO

Front

Rear

JMIIA2034ZZ

AWIIA1660ZZ

MODE/

DEF setting

Air mix ratio (%)

Ventilator

Foot

Defroster

Left side

(1)

Left center

(2)

Right center

(3)

Right side

(4)

Front right

(5)

Front left

(6)

Rear left

(7)

Rear right

(7)

Front

(8)

Side

(9)

25

25

25

25

–

–

–

–

–

–

15

15

15

15

14

14

6

6

–

–

7.5

–

–

7.5

22.5

22.5

10

10

10

10

7.5

–

–

7.5

16

16

6.5

6.5

20

20

7.5

–

–

7.5

–

–

–

–

42.5

42.5

VTL-12

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

REMOVAL AND INSTALLATION

DUCTS AND GRILLES

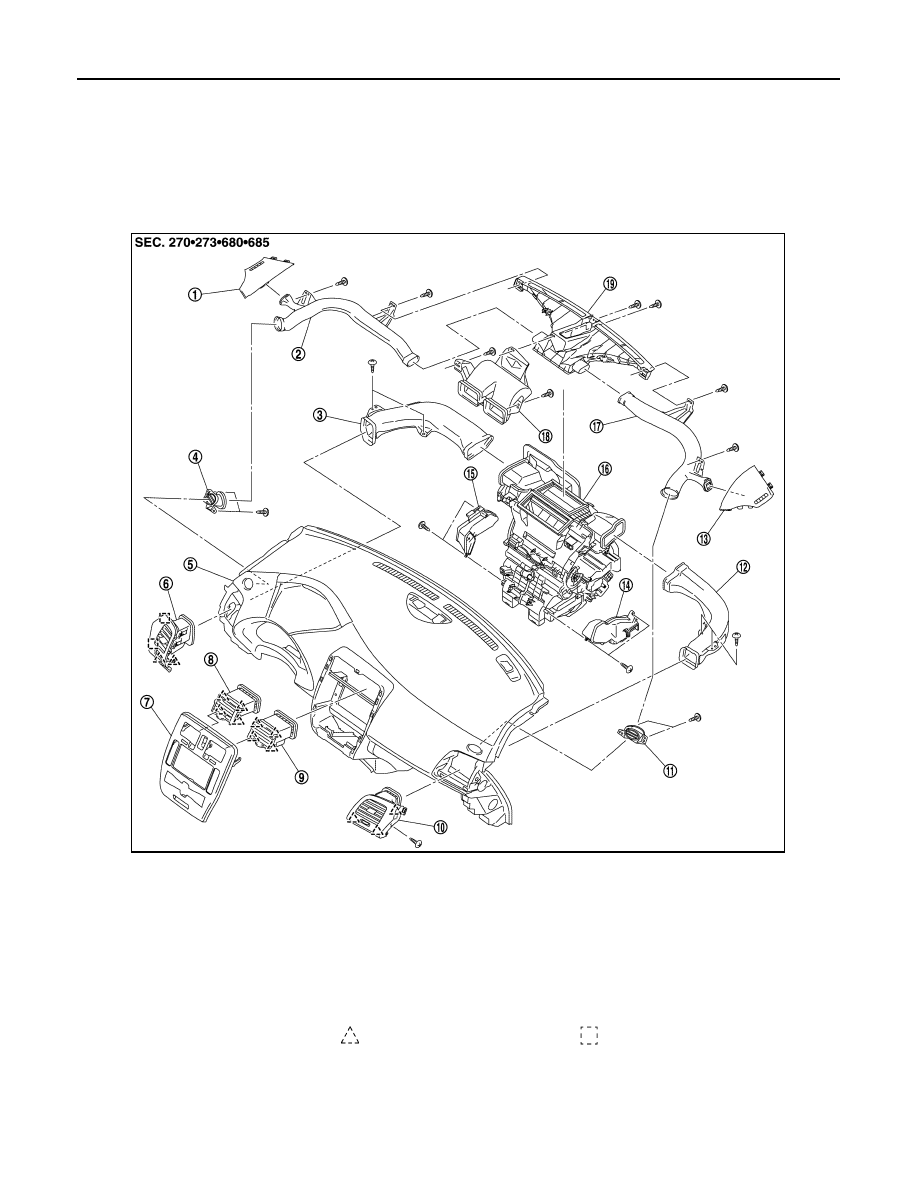

Exploded View

INFOID:0000000010120489

FRONT

CENTER VENTILATOR GRILLE

1.

Side defroster duct 2 LH
(Instrument side panel LH)

2.

Side defroster duct 1 LH

3.

Side ventilator duct LH

4.

Side defroster grille LH

5.

Instrument panel assembly

6.

Side ventilator grille LH

7.

Cluster lid C

8.

Center ventilator grille LH

9.

Center ventilator grille RH

10. Side ventilator grille RH

11. Side defroster grille RH

12. Side ventilator duct RH

13. Side defroster duct 2 RH

(Instrument side panel RH)

14. Foot duct RH

15. Foot duct LH

16. Heating and cooling unit assembly

17. Side defroster duct 1 RH

18. Center ventilator duct

19. Front defroster duct

Pawl

Metal clip

JPIIA1797ZZ

DUCTS AND GRILLES

VTL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

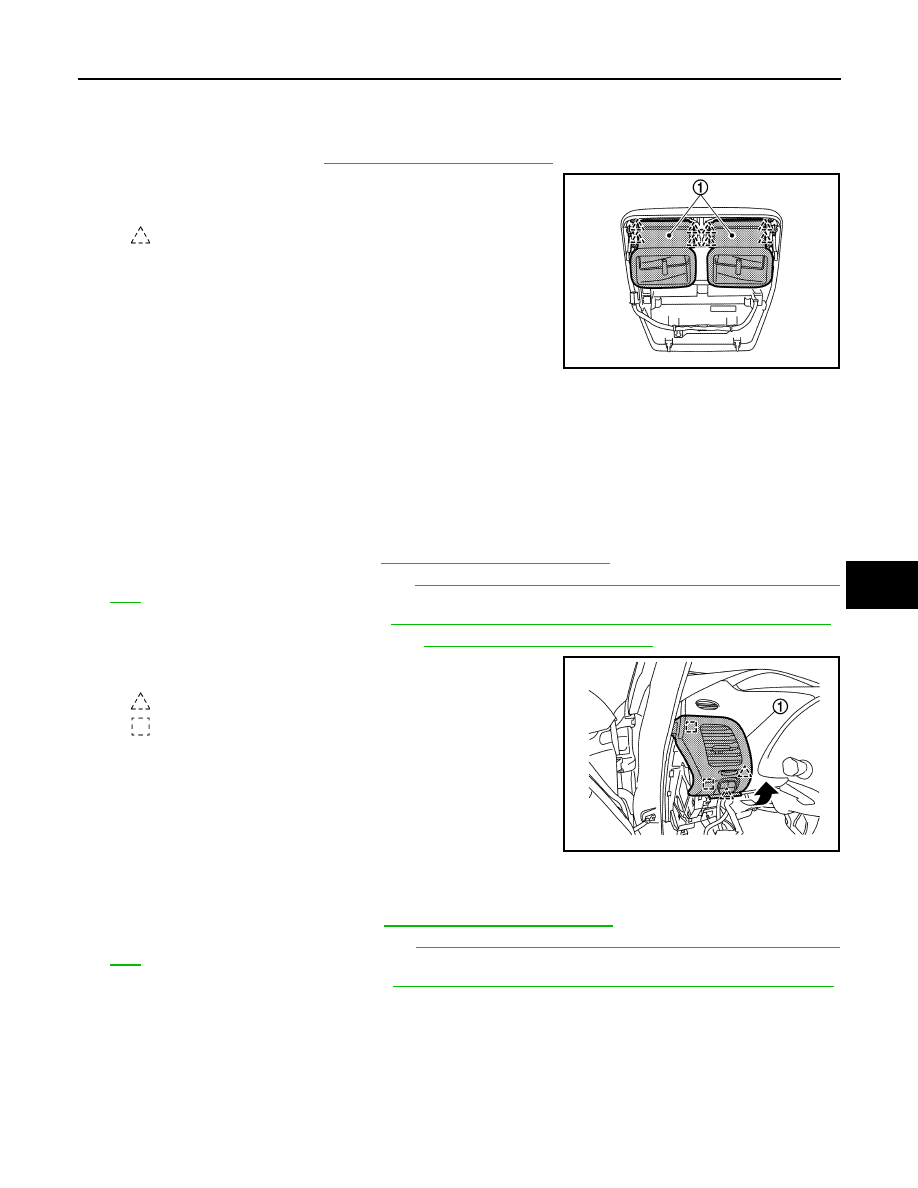

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010120490

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Disengage pawls, and then remove center ventilator grille (1)

from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000010120491

REMOVAL

Driver side

1. Remove instrument mask LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove instrument side panel LH. Refer to

INT-25, "INSTRUMENT SIDE PANEL : Removal and Installa-

tion"

.

3. Remove front pillar garnish LH. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

4. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

5. Disengage side ventilator grille LH (1) pawls and metal clips.

6. Disconnect switch connector, and then remove side ventilator grille LH from instrument panel assembly.

Passenger side

1. Remove instrument mask RH. Refer to

IP-17, "Removal and Installation"

.

2. Remove instrument side panel RH. Refer to

INT-25, "INSTRUMENT SIDE PANEL : Removal and Installa-

tion"

.

3. Remove front pillar garnish RH. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

: Pawl

JPIIA1822ZZ

: Pawl

: Metal clip

JPIIA1892ZZ
