CHARGING STATUS INDICATOR
Removal and Installation
INFOID:0000000010121306
REMOVAL
1. Remove charging status indicator.

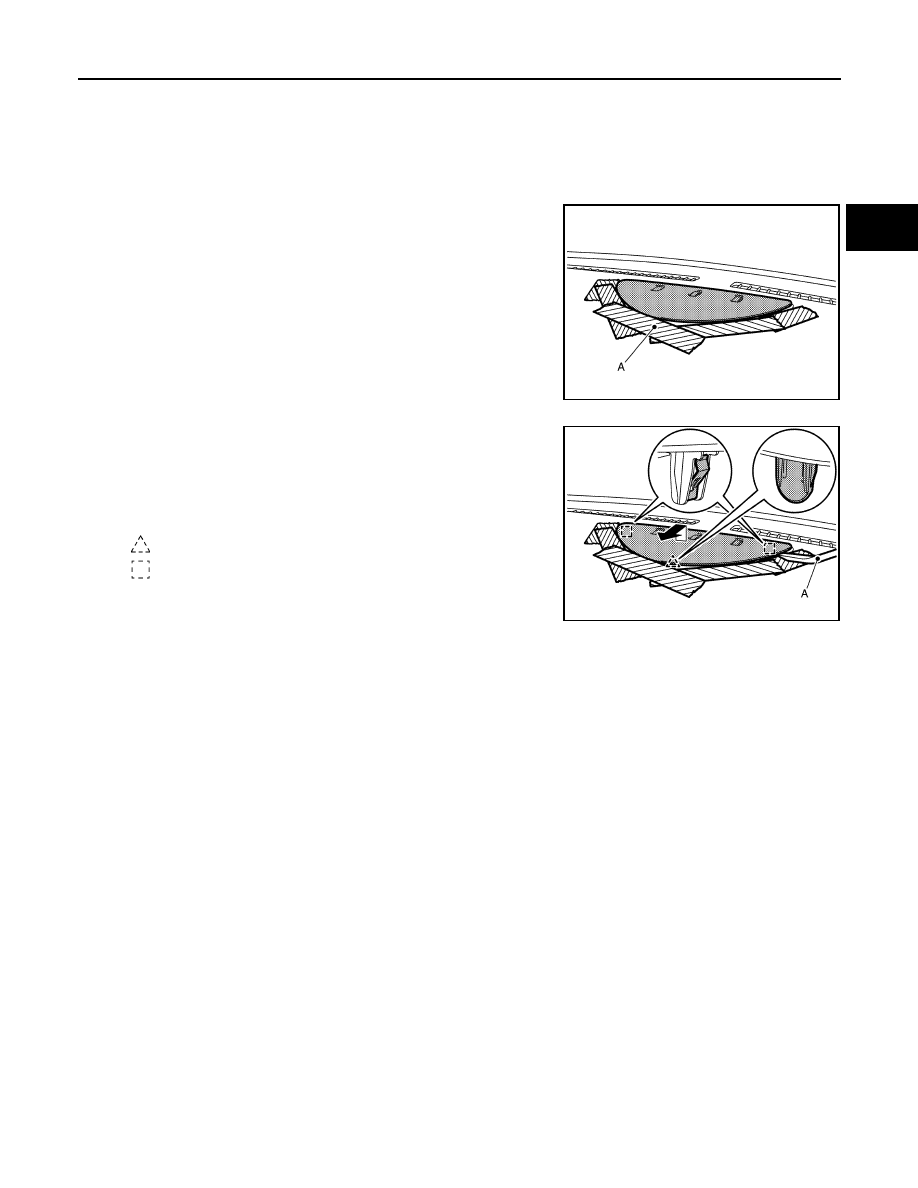

1. Apply protective tape (A) on the part to protect it from dam-
age.
2. Insert remover tool (A) between charging status indicator
and instrument panel assembly to disengage the pawl and
metal clips as shown in the figure.
3. Pull toward the arrow direction.
4. Disconnect harness connector.
CAUTION:
Apply shop cloth or take similar steps at location of tool ful-
crum, and take care that no scratches or dents are made.
INSTALLATION
Position clips, and then press each into the instrument panel to fasten clips in place.
JMJIA6995ZZ
: Pawl
: Metal clip
JMJIA6996ZZ
