CHARGE CONNECTOR LOCK ACTUATOR

VC-143

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

• Refer to

VC-6, "High Voltage Precautions"

.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

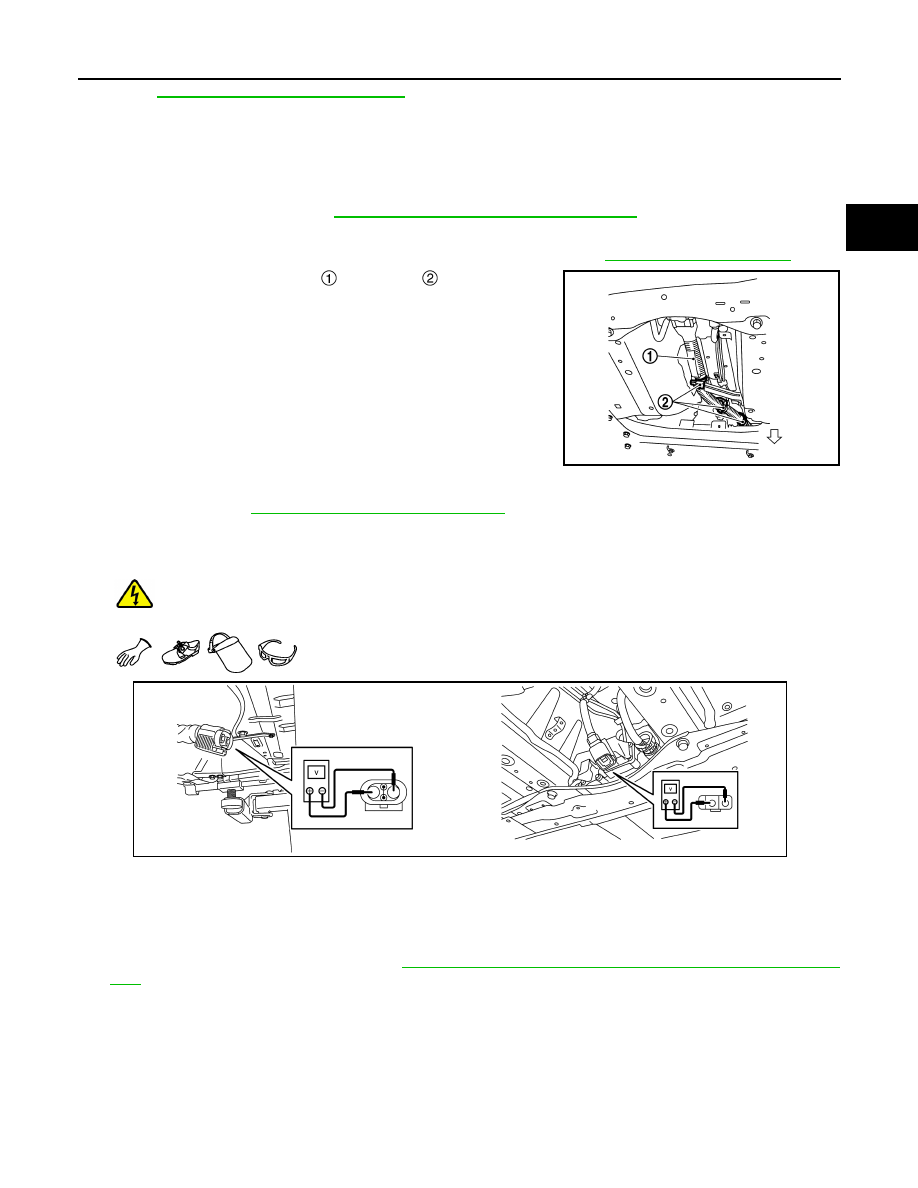

REMOVAL

WARNING:

Disconnect high voltage. Refer to

GI-33, "How to Disconnect High Voltage"

.

1. Check voltage in high voltage circuit. (Check that condenser are discharged.)
a. Lift up the vehicle and remove the Li-ion battery under covers. Refer to

EVB-181, "Exploded View"

.

b. Remove high voltage harness   from clamp  .

c. Disconnect high voltage harness connector and high voltage harness for PTC heater from front side of Li-

ion battery. Refer to

EVB-181, "Removal and Installation"

.

d. Measure voltage between high voltage harness connector terminals and high voltage harness connector

terminals for PTC heater.

DANGER:



 Touching high voltage components without using the appropriate protective equipment will

cause electrocution.

CAUTION:

For voltage measurements, use a tester which can measure to 500 V or higher.

2. Remove the radiator upper grille. Refer to

DLK-165, "RADIATOR UPPER GRILLE : Removal and Installa-

tion"

.

JPCIA0299ZZ

Standard

: 5 V or less

JPCIA0296ZZ

VC-144

< REMOVAL AND INSTALLATION >

CHARGE CONNECTOR LOCK ACTUATOR

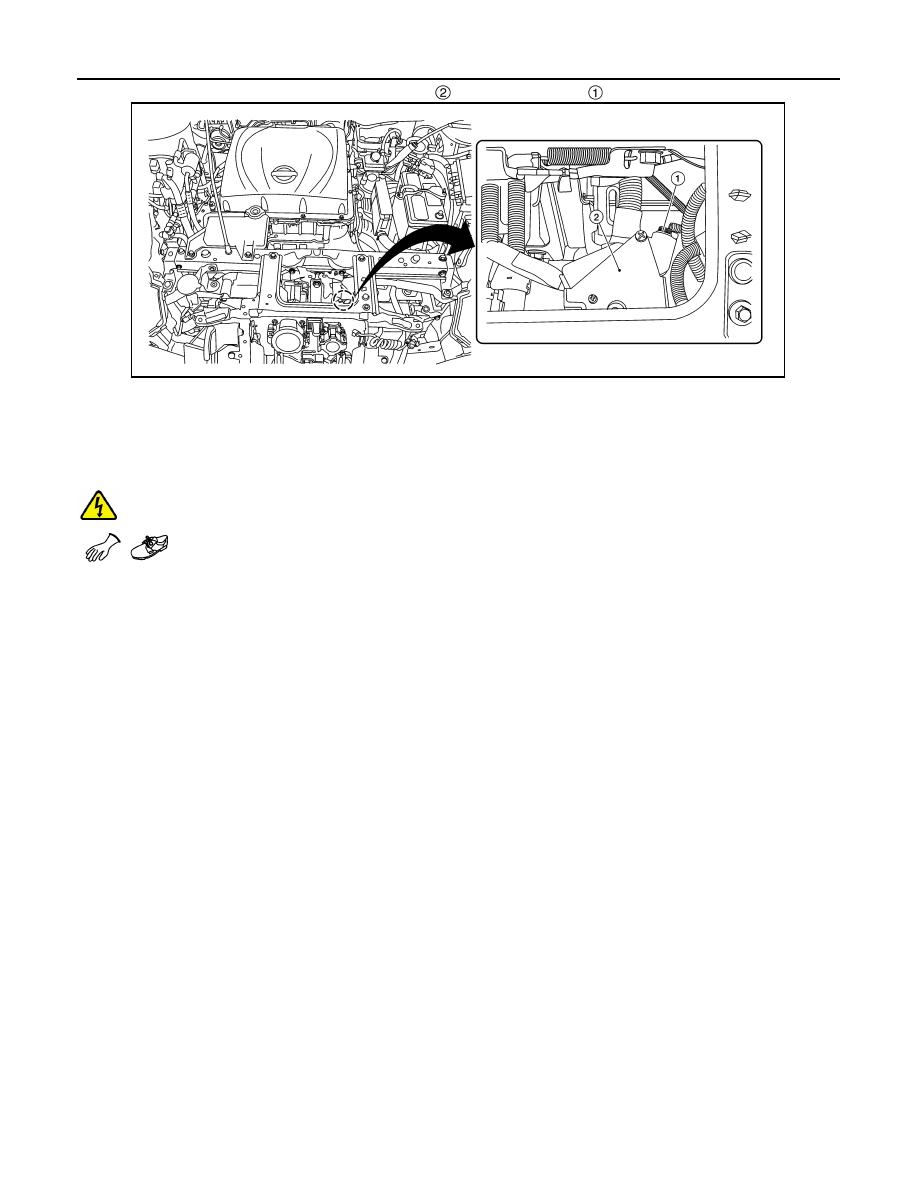

3. Disconnect the charge connector lock actuator   harness connector  .

4. Remove the normal charging port mounting nuts.
5. Remove the charge connector lock actuator.

INSTALLATION

Install in the reverse order of removal.

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage system.

CAUTION:

Be sure to reinstall high-voltage harness clips in their original positions. If a clip is damaged, replace it

with a new clip before installing.

ALCIA0118ZZ

IMMEDIATE CHARGING SWITCH

VC-145

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

IMMEDIATE CHARGING SWITCH

Removal and Installation

INFOID:0000000010121304

REMOVAL

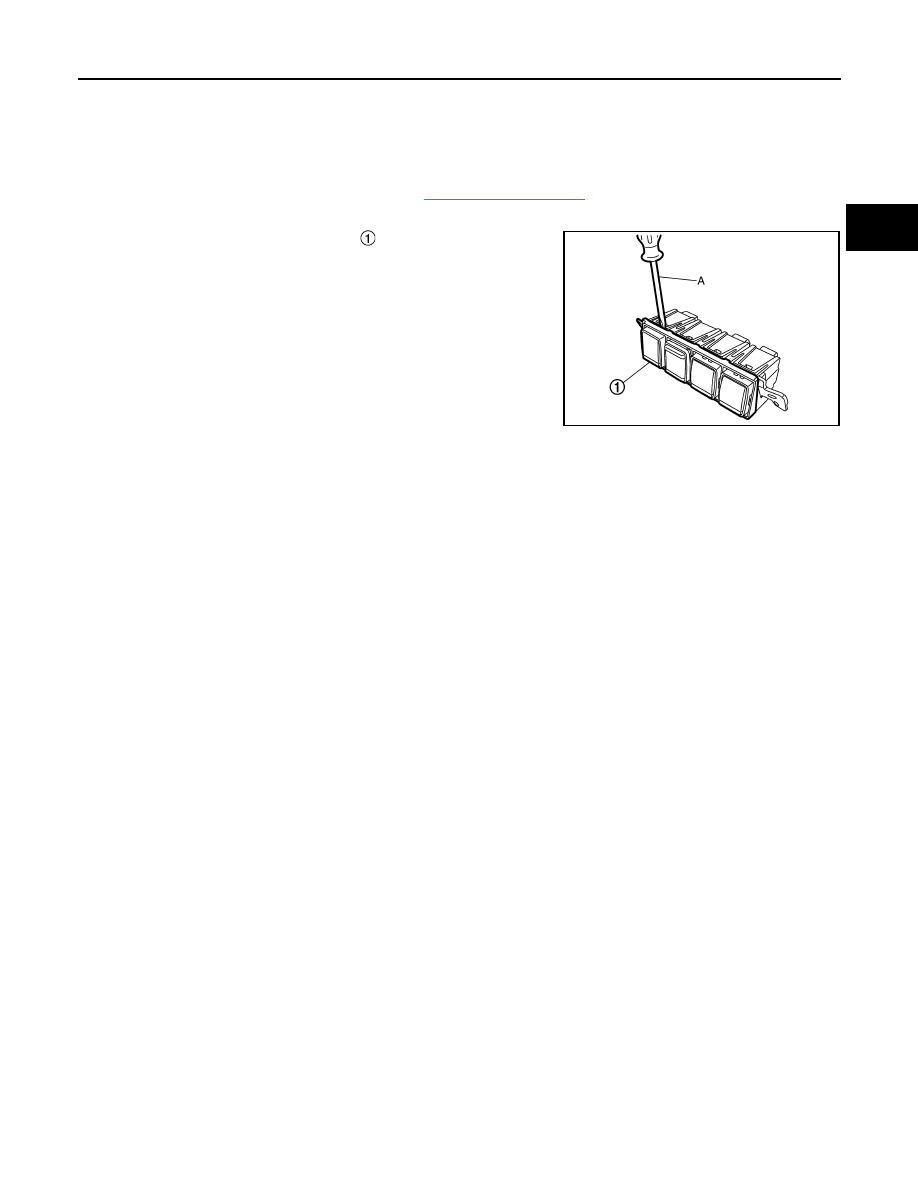

1. Remove instrument lower panel LH. Refer to

IP-16, "Exploded View"

.

2. Remove switch panel assembly from instrument lower panel LH.
3. Remove immediate charging switch   from switch panel using a

suitable tool (A).

INSTALLATION

Install in the reverse order of removal.

JPCIA0378ZZ

VC-146

< REMOVAL AND INSTALLATION >

CHARGE CONNECTOR LOCK SWITCH

CHARGE CONNECTOR LOCK SWITCH

Removal and Installation

INFOID:0000000010121305

REMOVAL

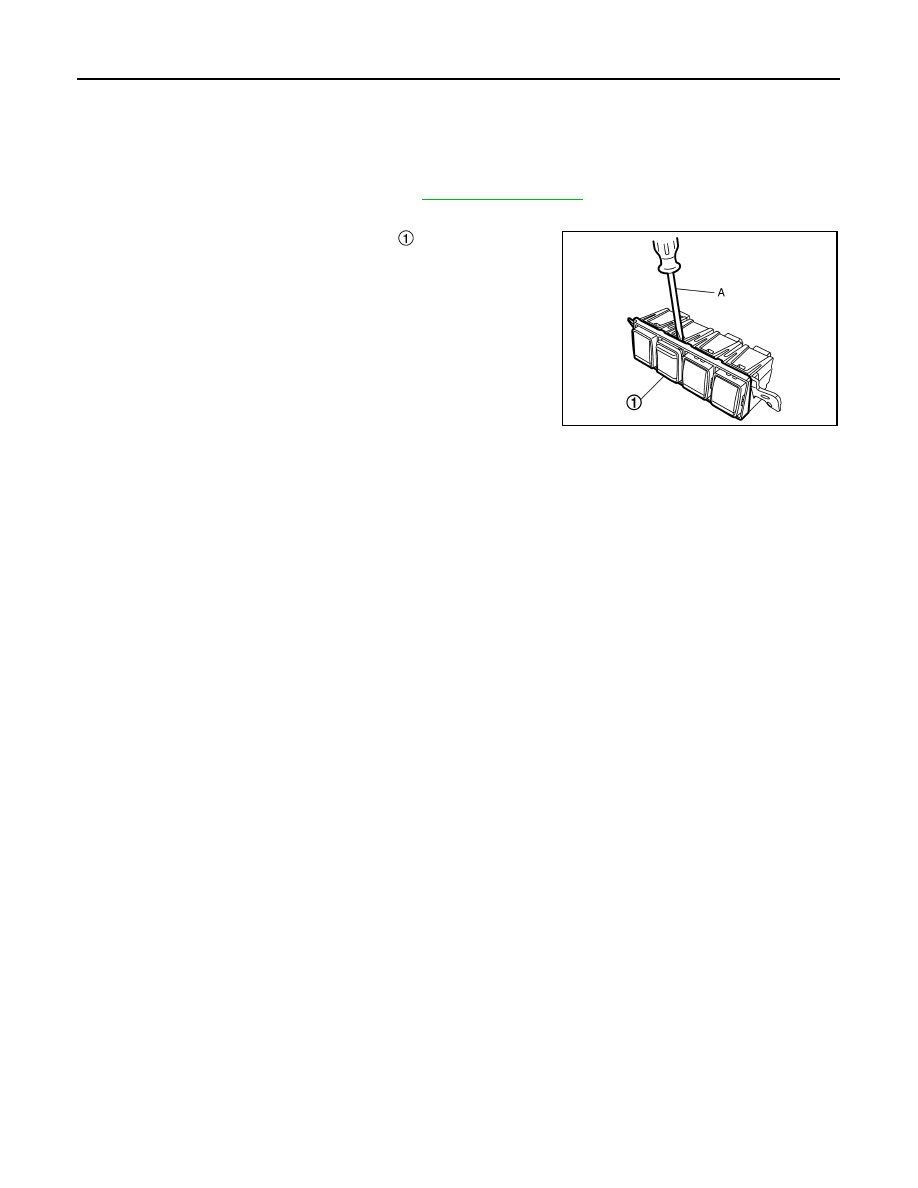

1. Remove instrument lower panel LH. Refer to

IP-16, "Exploded View"

.

2. Remove switch panel assembly from instrument lower panel LH.
3. Remove charge connector lock switch   from switch panel

using a suitable tool (A).

INSTALLATION

Install in the reverse order of removal.

JPCIA0331ZZ
