To prevent electric shock hazards, be sure to put on insulating protective gear before beginning
work on the high voltage system.
INSTALLATION
Note the following, and install in the reverse order of removal.
WARNING:
To prevent electric shock hazards, be sure to put on insulating protective gear before beginning work
on the high voltage system.
CAUTION:
When assembling the reduction gear and traction motor, clean the mating surface and be sure that no
dust, dirt, or foreign material is between the surfaces.

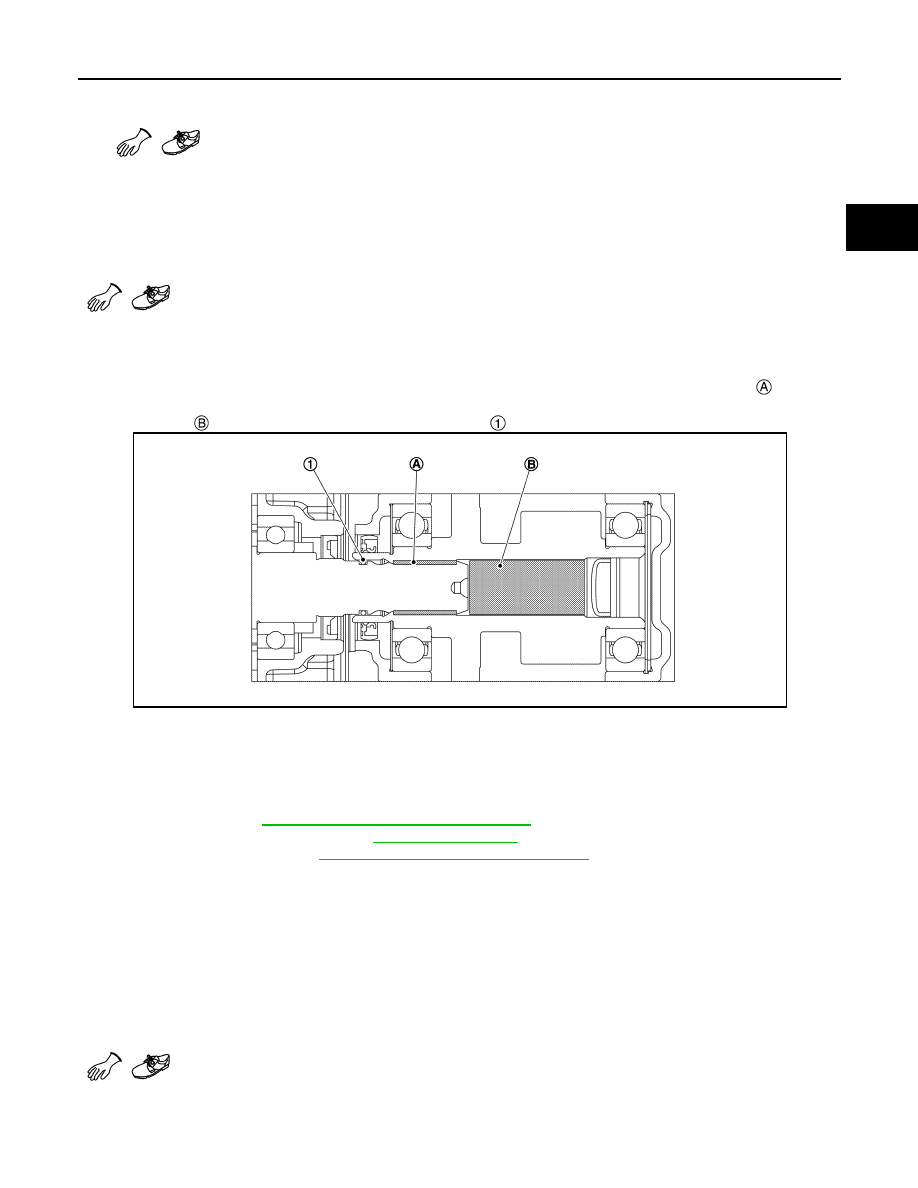

• Before installing reduction gear and traction motor, apply grease to full periphery of shaft spline , and also
inject grease [minimum 10 g (0.4 oz), maximum less than 20 g (0.7 oz)] into reduction gear input shaft
(inside spline) . Take care to prevent damage to O-ring when installing.
CAUTION:
• Before applying grease, clean old grease and wear particles, that are adhered to the grease apply-
ing parts.
• When installing O-ring, clean the O-ring installation groove completely, and then install.
• When all parts are installed, be sure to check equipotential of traction motor, PDM (Power Delivery Module),
and traction motor inverter.
- Traction motor: Refer to
TMS-113, "Inspection and Adjustment"
- PDM (Power Delivery Module): Refer to
- Traction motor inverter: Refer to
TMS-107, "Inspection and Adjustment"
Inspection and Adjustment
INFOID:0000000010121018
INSPECTION AFTER INSTALLATION
After installing traction motor, measure resistance below.
• Between traction motor (aluminum part) and body (ground bolt).
• Between traction motor (aluminum part) and other high voltage system.
WARNING:
To prevent electric shock hazards, be sure to put on insulating protective gear before beginning work
on the high voltage system.
JSDIA2307ZZ
Standard
: Less than 0.1
Ω
