Nissan Leaf. Manual - part 1207





TRACTION MOTOR

TMS-109

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

TMS

N

O

P

UNIT REMOVAL AND INSTALLATION

TRACTION MOTOR

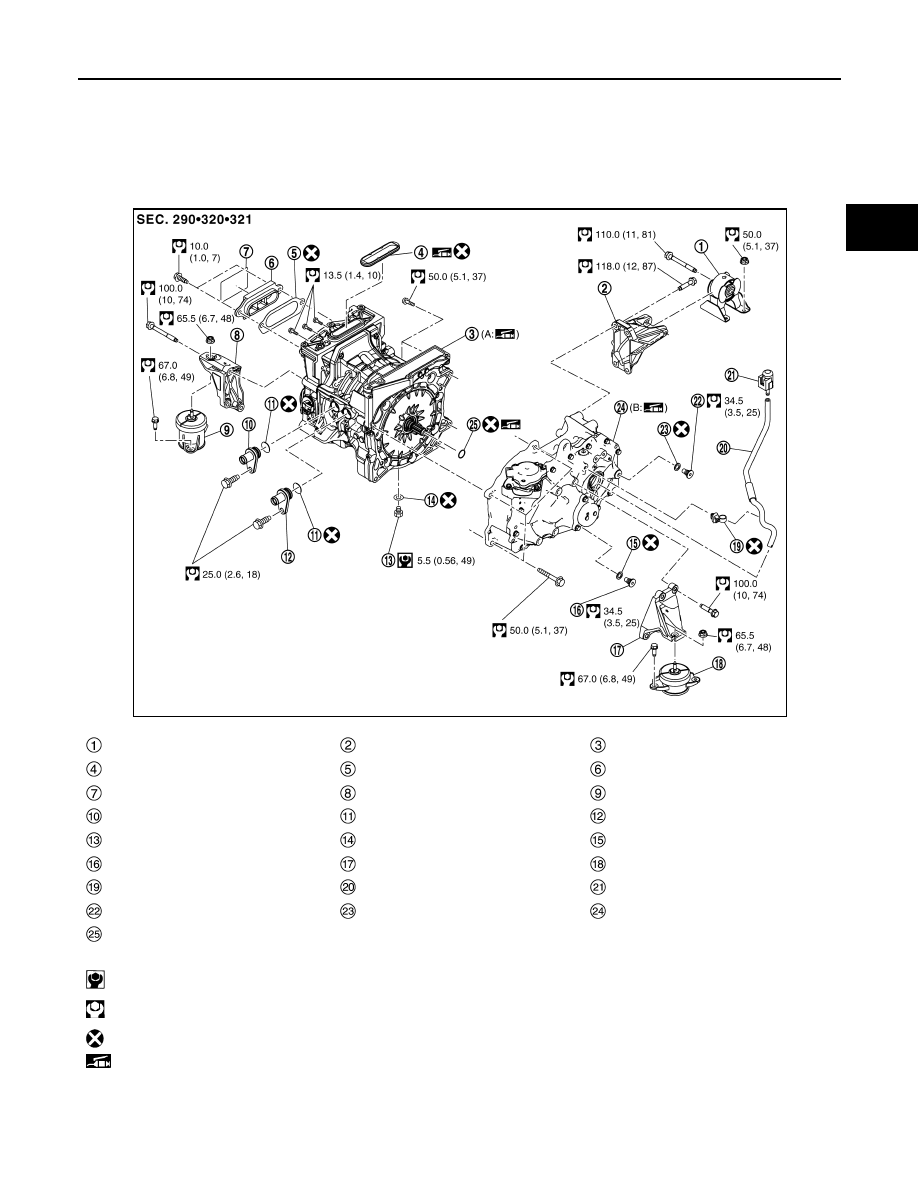

Exploded View

INFOID:0000000010121016

Removal and Installation

INFOID:0000000010121017

DANGER:

Motor mounting rear

Motor mounting rear bracket

Traction motor

Seal

Gasket

3-phase bus bar cover

High voltage warning label

Motor mounting RH bracket

Motor mounting RH

Water inlet

O-ring

Water outlet

Drain plug

Copper washer

Gasket

Drain plug

Motor mounting LH bracket

Motor mounting LH

Clip

Breather hose

Breather box

Filler plug

Gasket

Reduction gear

O-ring

A.

Shaft spline

B.

Inside of input shaft (inside of spline)

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Apply lithium-based grease including molybdenum disulphide.

JSCIA1029GB

TMS-110

< UNIT REMOVAL AND INSTALLATION >

TRACTION MOTOR

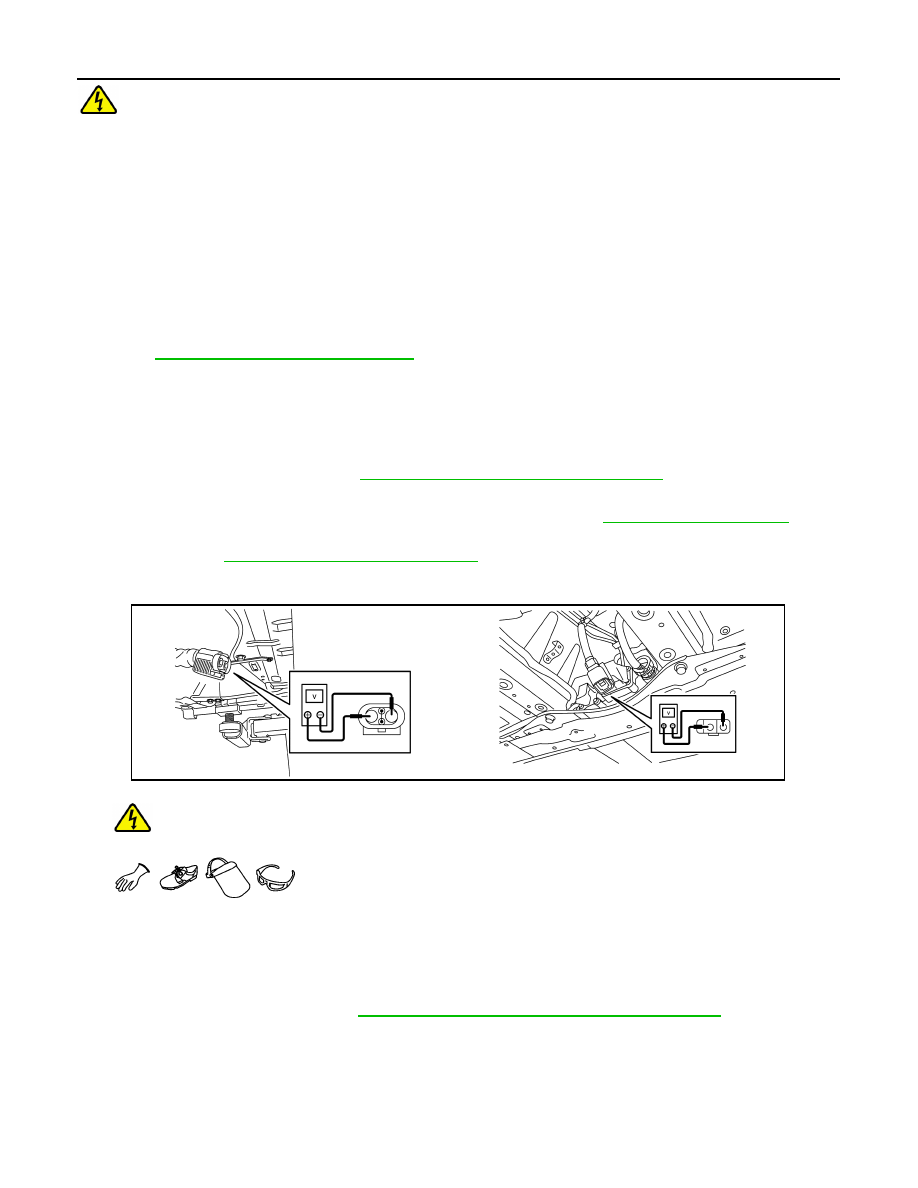

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them.

• Refer to

TMS-5, "High Voltage Precautions"

.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

REMOVAL

WARNING:

Disconnect the high voltage. Refer to

GI-33, "How to Disconnect High Voltage"

.

1. Check voltage in high voltage circuit. (Check that condenser are discharged.)
a. Lift up the vehicle and remove the Li-ion battery under covers. Refer to

EVB-181, "Exploded View"

.

b. Disconnect high voltage harness connector and PTC heater harness connector from front side of Li-ion

battery. Refer to

EVB-181, "Removal and Installation"

.

c.

Measure voltage between high voltage harness connector terminals and PTC heater harness connector

terminals.

DANGER:



 Touching high voltage components without using the appropriate protective equipment will

cause electrocution.

CAUTION:

For voltage measurements, use a tester which can measure to 500 V or higher.

2. Remove front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Exploded View"

.

Standard

: 5 V or less

JPCIA0296ZZ

TRACTION MOTOR

TMS-111

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

TMS

N

O

P

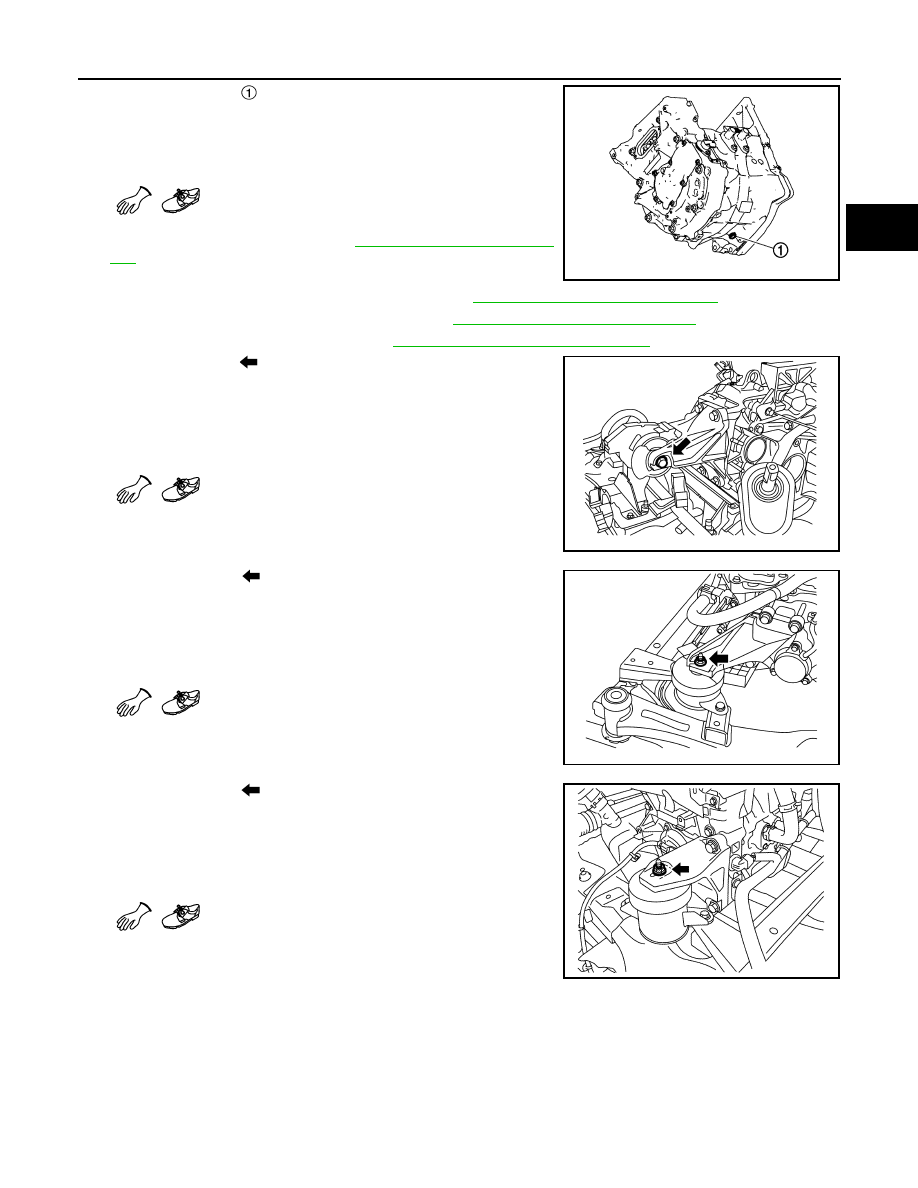

3. Remove drain bolt   of traction motor to drain coolant.

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

4. Drain reduction gear oil. Refer to

TM-13, "Draining and Refill-

ing"

.

5. Remove electric power train and reduction gear from vehicle

together as suspension member assembly. Refer to

FSU-22, "Removal and Installation"

.

6. Remove PDM (Power Delivery Module). Refer to

VC-112, "Removal and Installation"

.

7. Remove traction motor inverter. Refer to

TMS-103, "Removal and Installation"

.

8. Remove joint bolt (

) of motor mounting rear bracket and motor

mounting rear.

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

9. Remove joint bolt (

) of motor mounting LH bracket and motor

mounting LH.

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

10. Remove joint bolt (

) of motor mounting RH bracket and motor

mounting RH.

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

11. Hook the sling belt to each motor mounting bracket and prepare

to disconnect the traction motor and reduction gear from the

front suspension member assembly.

12. Hoist the traction motor and reduction gear and disconnect them from the front suspension member

assembly.

WARNING:

To prevent electric shock hazards, be sure to put on insulating protective gear before beginning

work on the high voltage system.

JSCIA0684ZZ

JSDIA3959ZZ

JSDIA3960ZZ

JSDIA3961ZZ

TMS-112

< UNIT REMOVAL AND INSTALLATION >

TRACTION MOTOR

CAUTION:

When hoisting the traction motor and reduction gear, insert a long bolt into the motor mounting

bracket to prevent the sling belt from slipping out. At that time, be sure to install a nut.

13. Remove support bearing bracket of drive shaft (right side). Refer to

FAX-19, "RIGHT SIDE : Removal and

Installation"

.

WARNING:

To prevent electric shock hazards, be sure to put on insulating protective gear before beginning

work on the high voltage system.

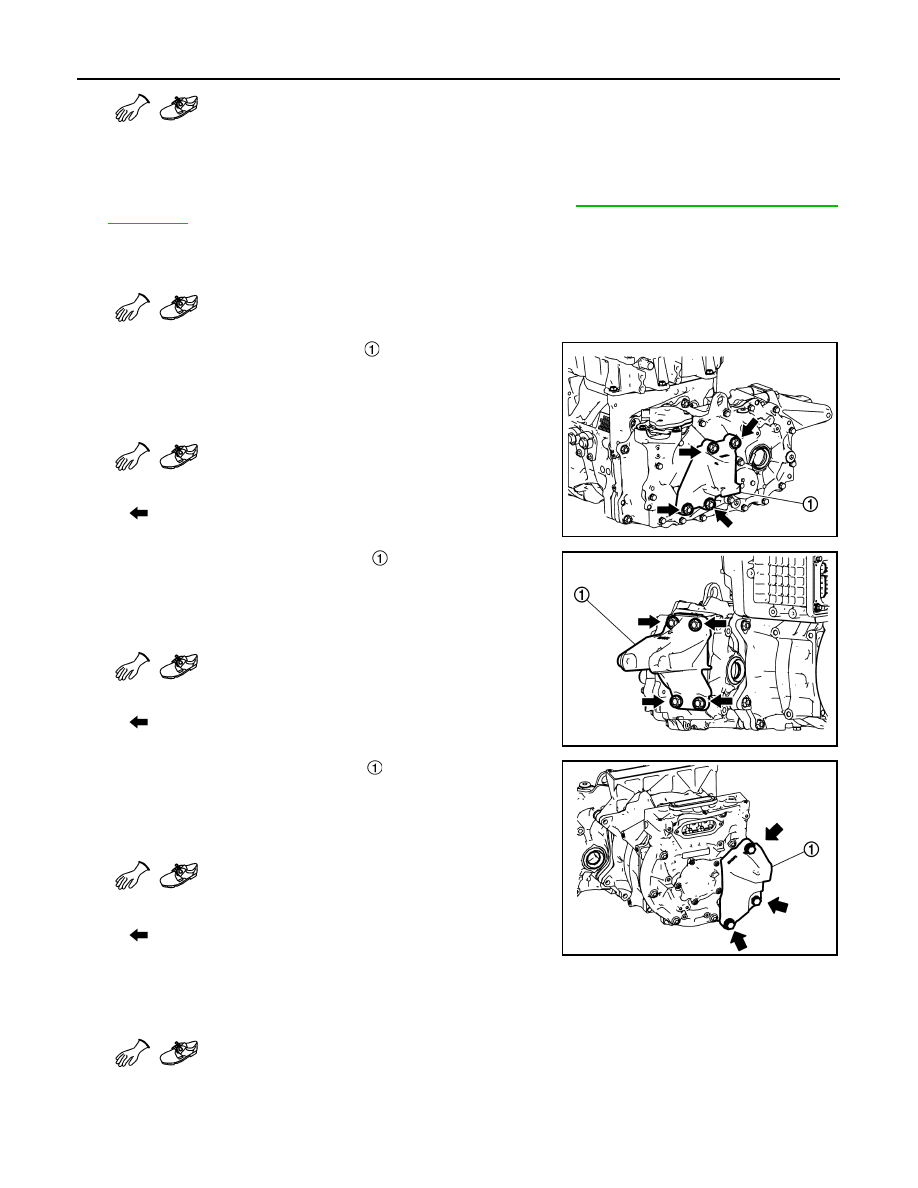

14. Remove motor mounting LH bracket  .

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

15. Remove motor mounting rear bracket  .

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

16. Remove motor mounting RH bracket  .

WARNING:

To prevent electric shock hazards, be sure to put on insulat-

ing protective gear before beginning work on the high volt-

age system.

17. Remove joint bolts traction motor and reduction gear.

WARNING:

To prevent electric shock hazards, be sure to put on insulating protective gear before beginning

work on the high voltage system.

18. Separate traction motor from reduction gear.

WARNING:

: Bolt

JSDIA3963ZZ

: Bolt

JSDIA3964ZZ

: Bolt

JSCIA0685ZZ
