Nissan Leaf. Manual - part 1061





SEC-6

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

PRECAUTIONS

If the timer air conditioner or timer charge (during EVSE connection) is set, the high voltage system starts

automatically even when the power switch is in OFF state.

PREPARATION

SEC-7

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PREPARATION

PREPARATION

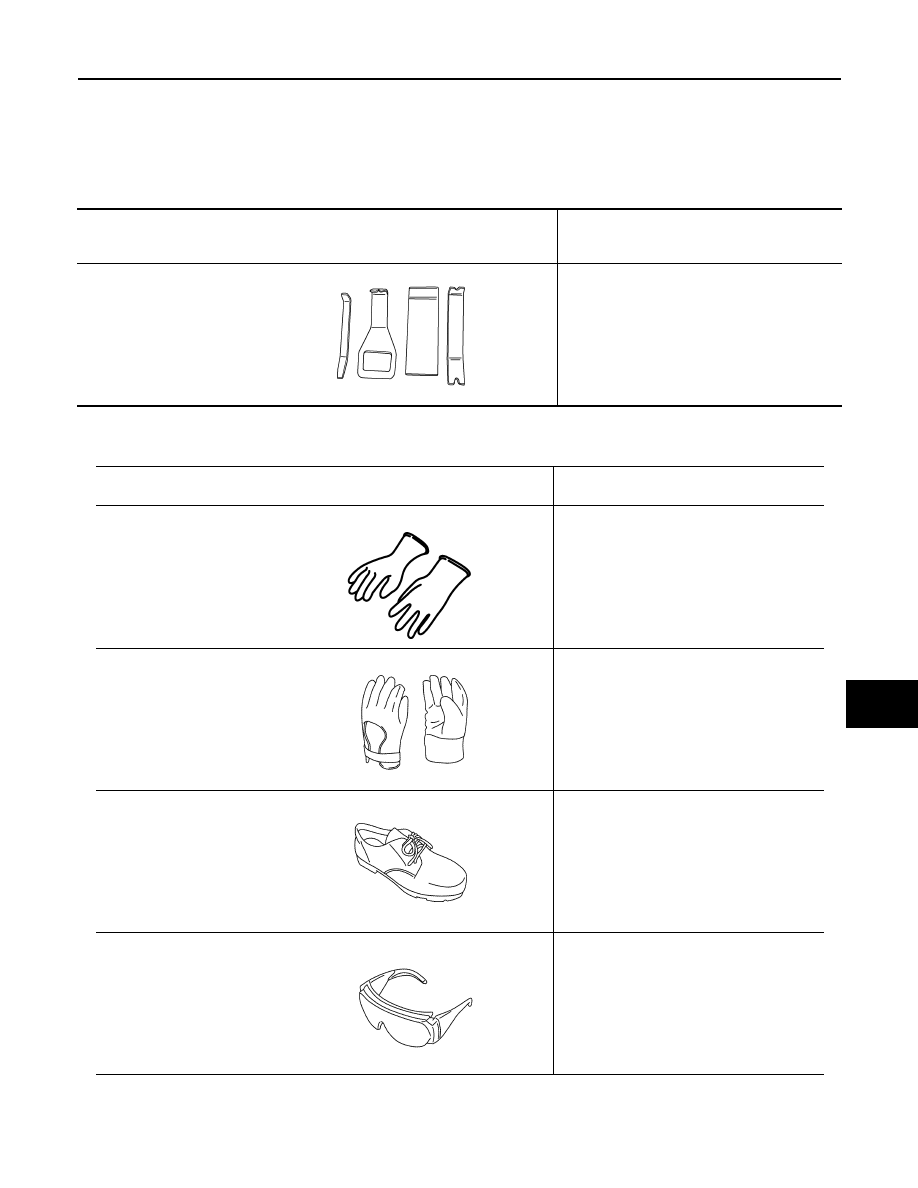

Special Service Tools

INFOID:0000000010119226

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010119227

Tool number
(TechMate No.)
Tool name

Description

  —
(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

Insulated gloves
[Guaranteed insulation
performance for 1000V/
300A]

Removing and installing high voltage com-
ponents

Leather gloves
[Use leather gloves that
can fasten the wrist tight]

• Removing and installing high voltage

components

• Protect insulated gloves

Insulated safety shoes

Removing and installing high voltage com-
ponents

Safety glasses
[ANSI Z87.1]

• Removing and installing high voltage

components

• To protect eye from the spatter on the

work to electric line

JMCIA0149ZZ

JPCIA0066ZZ

JPCIA0011ZZ

JPCIA0012ZZ

SEC-8

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

PREPARATION

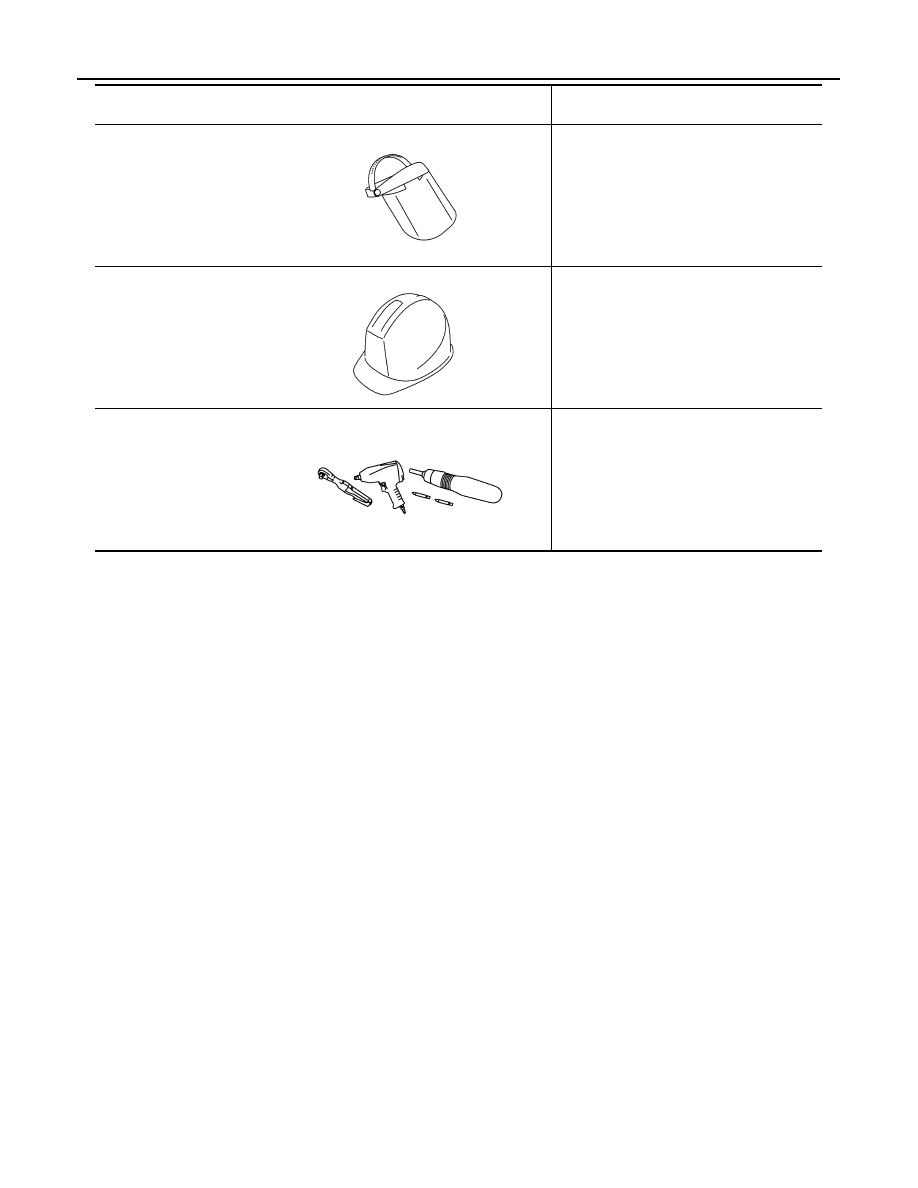

Face shield

• Removing and installing high voltage

components

• To protect eye from the spatter on the

work to electric line

Insulated helmet

Removing and installing high voltage com-
ponents

Power tool

Loosening nuts, screws and bolts

(TechMate No.)
Tool name

Description

JPCIA0167ZZ

JPCIA0013ZZ

PIIB1407E

COMPONENT PARTS

SEC-9

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

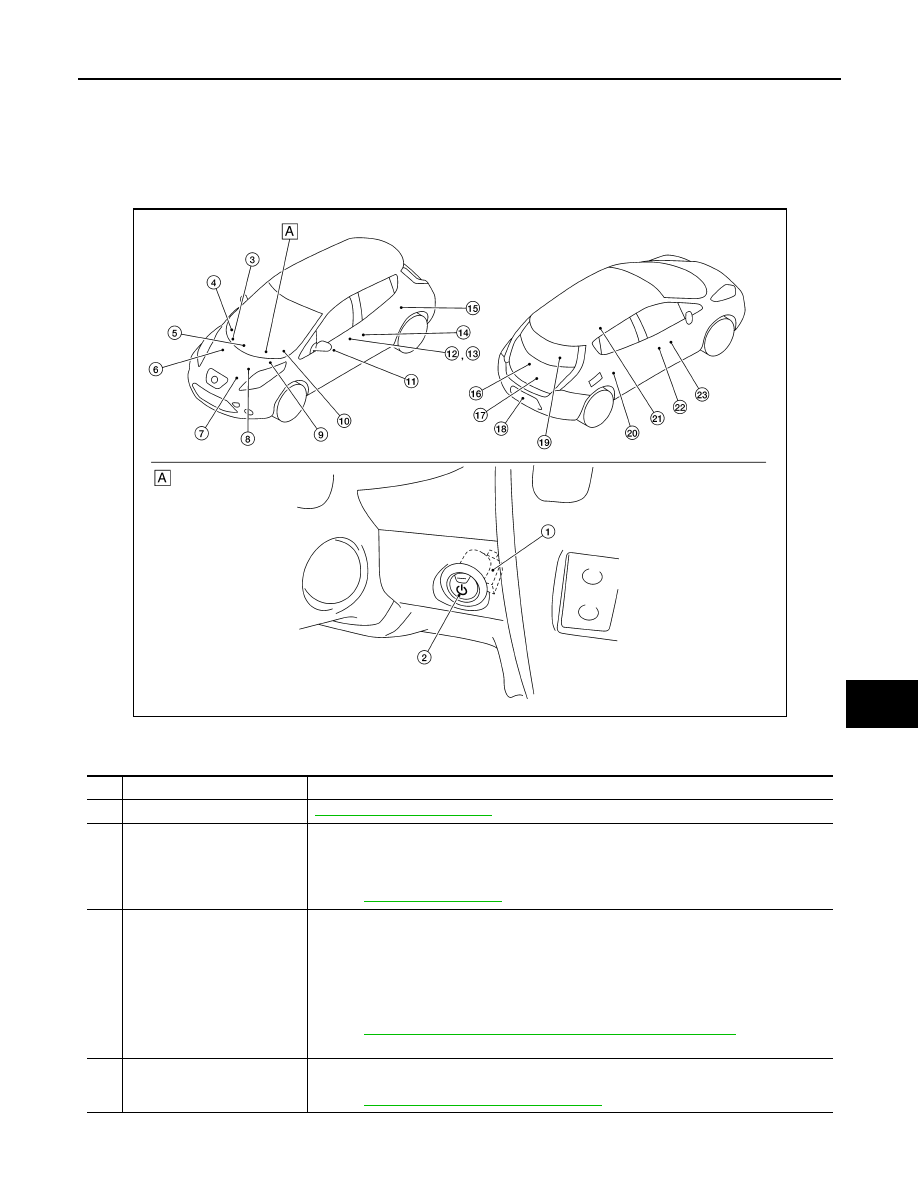

Component Parts Location

INFOID:0000000010119228

A.

Behind power switch

No.

Component Function

1.

NATS antenna amp.

SEC-11, "NATS Antenna Amp."

2.

Power switch

Power switch has push switch inside which detects that power switch is pressed, and then
transmits the signal to BCM. BCM changes the power supply position with the operation of
power switch. BCM maintains the power supply position status while power switch is not op-
erated.
Refer to

PCS-34, "Power Switch"

 for detailed installation location.

3.

BCM

BCM controls INTELLIGENT KEY SYSTEM (READY SET FUNCTION), NISSAN VEHICLE
IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key
is carried into the detection area of inside key antenna, and power switch is pressed. If the
ID verification result is OK, power switch operation is available.
Then, when the power switch is turned to the ON position, BCM performs ID verification be-
tween BCM and VCM. If the ID verification result is OK, vehicle can be set to READY.
Refer to

BCS-5, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

4.

Remote keyless entry receiver

Remote keyless entry receiver receives each button operation signal and electronic key ID
signal from Intelligent Key, and then transmits the signal to BCM.
Refer to

DLK-18, "Remote Keyless Entry Receiver"

 for detailed installation location.

ALKIA3118ZZ
