SEC-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

5.

Inside key antenna (Instrument
center)

Inside key antenna (Instrument center) detects whether Intelligent Key is inside the vehicle
or not, and transmits the signal to BCM.
Refer to

DLK-17, "Inside Key Antenna (Instrument Center)"

 for detailed installation location.

6.

VCM

• VCM controls the vehicle. When power switch is turned to the ON position, BCM starts

communication with VCM and performs the ID verification between BCM and VCM.
If the verification result is OK, the vehicle can be set to READY. If the verification result is
NG, the vehicle can not be set to READY.

• VCM detects the shift position, and then transmits the P position signal to BCM and IPDM

E/R. And VCM transmits the P/N position signal to BCM.

• BCM confirms the shift position with the following 4 signals.
- P position signal from electric shift selector
- P/N position signal from electric shift selector
- P position signal from IPDM E/R (CAN)
Refer to

EVC-15, "Component Parts Location"

 for detailed installation location.

7.

Stop lamp switch

Stop lamp switch detects that brake pedal is depressed, and then transmits the signal to
BCM.
Refer to

BRC-10, "Component Parts Location"

 for detailed installation location.

8.

ABS actuator and electric unit
(control unit)

ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via
CAN communication.
BCM also receives the vehicle speed signal from combination meter via CAN communica-
tion. BCM compares both signals to detect the vehicle speed.
Refer to

BRC-10, "Component Parts Location"

 for detailed installation location.

9.

IPDM E/R

IPDM E/R has headlamp relays inside. Headlamp relays are used for the vehicle security
function. IPDM E/R controls these relays while communicating with BCM.
When IPDM E/R receives the alarm request signal from BCM, IPDM E/R activates vehicle
security horn and headlamps intermittently.
Refer to

PCS-6, "Component Parts Location"

 for detailed installation location.

10.

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN communication.
BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit)
via CAN communication. BCM compares both signals to detect the vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when power switch is in any position other than ON to warn
that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

 for detailed installation lo-

cation.

11.

Door lock and unlock switch

Door lock and unlock switch is integrated into the main power window and lock/unlock switch
and power window and door lock/unlock switch RH.
Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
Refer to

DLK-19, "Door Lock and Unlock Switch"

 for detailed installation location.

12.

Front outside handle LH

Outside key antenna and door request switch are integrated into the front outside handle LH.
• Outside key antenna detects whether Intelligent Key is within the detection area or not, and

then transmits signal to BCM.

• Front door request switch transmits door lock/unlock request signal to BCM.
• Refer to

DLK-19, "Front Door Request Switch (LH)"

 and

DLK-18, "Outside Key Antenna

(LH)"

 for detailed installation location.

13.

Door key cylinder switch

Door key cylinder switch is integrated into front door lock assembly (LH).
Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and
then transmits door lock/unlock operation signal to BCM.
Refer to

DLK-15, "Component Parts Location"

 for detailed installation location.

14.

Front door switch (LH)

Door switch detects door open/close condition, and then transmits ON/OFF signal to BCM.
Refer to

DLK-20, "Door Switch"

 for detailed installation location.

15.

Rear door switch LH

Door switch detects door open/close condition, and then transmits ON/OFF signal to BCM.
Refer to

DLK-20, "Door Switch"

 for detailed installation location.

16.

Back door opener switch as-
sembly

Back door opener switch and back door request switch are integrated into back door switch
assembly.
• Back door opener switch transmits back door opening operation signal to BCM.
• Back door request switch transmits door lock/unlock request signal to BCM.
• Refer to

DLK-20, "Back Door Opener Switch"

 an

DLK-20, "Back Door Request Switch"



for detailed installation location.

No.

Component Function

COMPONENT PARTS

SEC-11

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

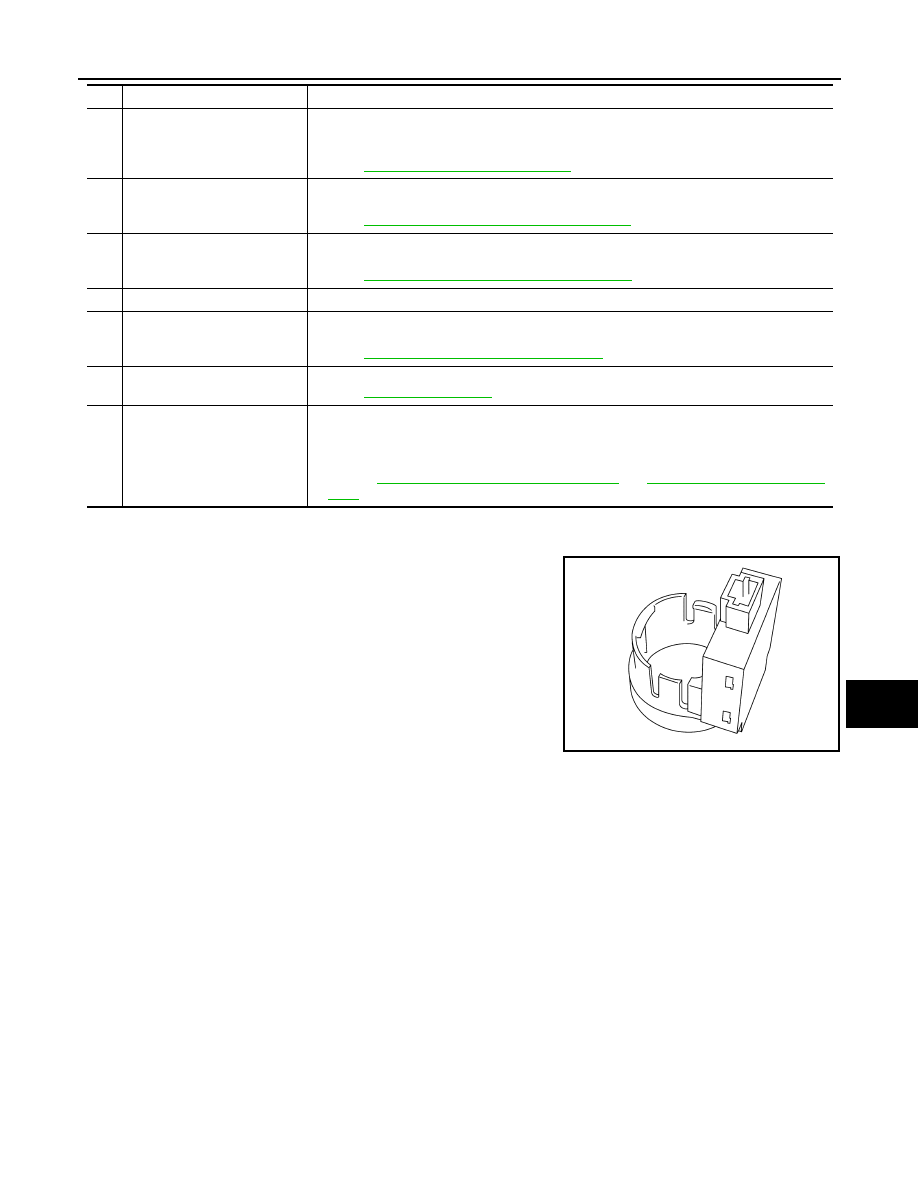

NATS Antenna Amp.

INFOID:0000000010119229

The ID verification is performed between BCM and transponder inte-

grated into Intelligent Key via NATS antenna amp. when Intelligent

Key backside is contacted to power switch in case that Intelligent

Key battery is discharged. If the ID verification result is OK, the oper-

ation of power switch is available.

17.

Back door lock assembly

Back door switch is integrated into back door lock assembly.
Back door switch detects back door open/close condition, and then transmits ON/OFF signal
to BCM.
Refer to

DLK-19, "Back Door Lock Assembly"

 for detailed installation location.

18.

Outside key antenna (Rear
bumper)

Outside key antenna (Rear bumper) detects whether Intelligent Key is within the detection
area or not, and then transmits signal to BCM.
Refer to

DLK-17, "Outside Key Antenna (Rear Bumper)"

 for detailed installation location.

19.

Inside key antenna (Luggage
room)

Inside key antenna (Luggage room) detects whether Intelligent Key is inside the vehicle or
not, and transmits the signal to BCM.
Refer to

DLK-17, "Inside Key Antenna (Luggage Room)"

 for detailed installation location.

20.

Rear door switch RH

Door switch detects door open/close condition, and then transmits ON/OFF signal to BCM.

21.

Inside key antenna (Rear seat)

Inside key antenna (Rear seat) detects whether Intelligent Key is inside the vehicle or not,
and then transmits the signal to BCM.
Refer to

DLK-17, "Inside Key Antenna (Rear Seat)"

 for detailed installation location.

22.

Front door switch (RH)

Door switch detects door open/close condition, and then transmits ON/OFF signal to BCM.
Refer to

DLK-20, "Door Switch"

 for detailed installation location.

23.

Front outside handle RH

Outside key antenna and door request switch are integrated into the front outside handle RH.
• Outside key antenna detects whether Intelligent Key is within the detection area or not, and

then transmits signal to BCM.

• Front door request switch transmits door lock/unlock request signal to BCM.
• Refer  to

DLK-20, "Front Door Request Switch (RH)"

 an

DLK-18, "Outside Key Antenna

(RH)"

 for detailed installation location.

No.

Component Function

JMKIA9350ZZ

SEC-12

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

INTELLIGENT KEY SYSTEM/READY SET FUNCTION
INTELLIGENT KEY SYSTEM/READY SET FUNCTION : System Description

INFOID:0000000010119230

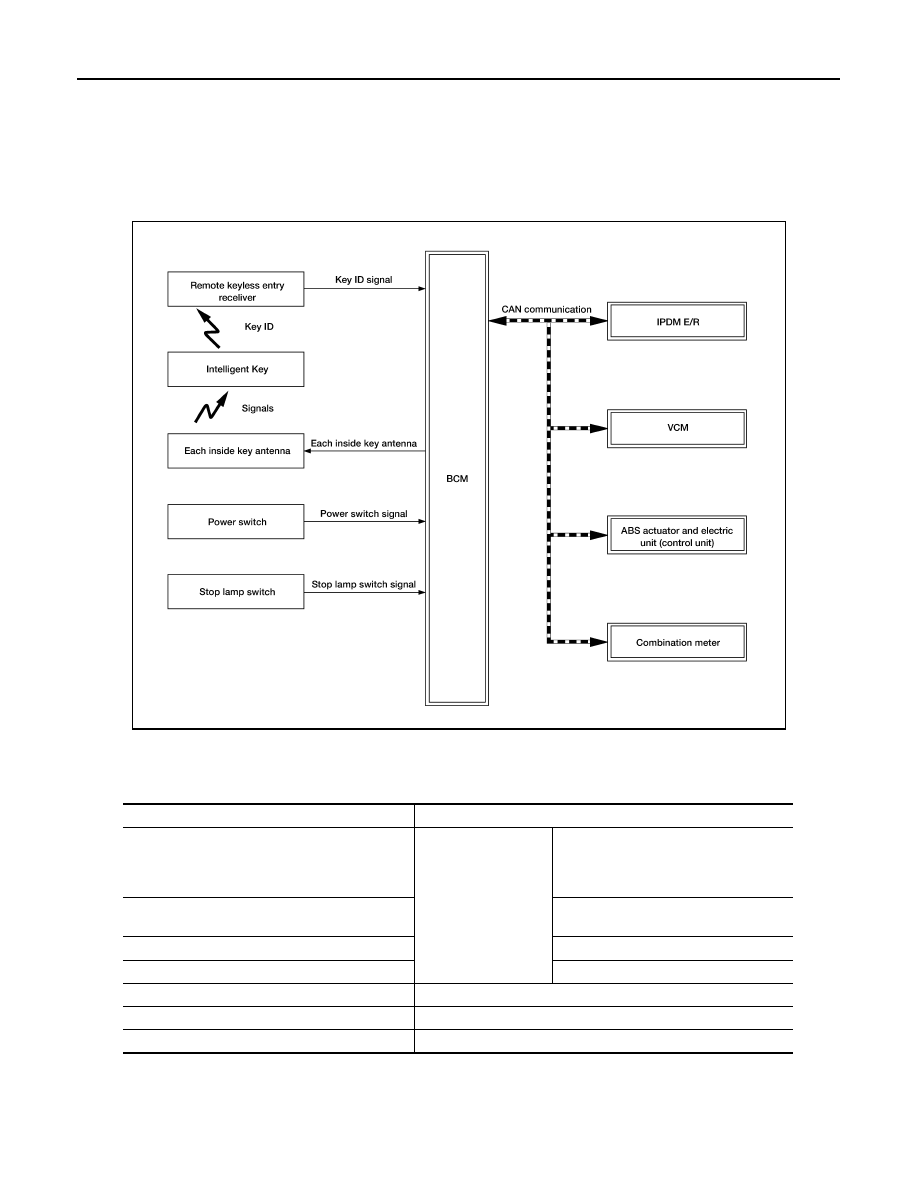

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Output Signal Item

ALKIA3528GB

Transmit unit

Signal name

VCM

CAN communication

ID verification signal
VCM status signal
READY set signal
Shift position signal

IPDM E/R

Power switch status signal
P position signal

Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

Vehicle speed signal

Remote keyless entry receiver

Key ID signal

Power switch

Power switch operation signal

Stop lamp switch

Brake pedal operation signal

SYSTEM

SEC-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM DESCRIPTION

• The READY set function of Intelligent Key system makes it possible to set the vehicle to READY without

using the key, based on the electronic ID verification. The electronic ID verification is performed between

BCM and Intelligent Key when the power switch is pressed while the Intelligent Key is within the detection

area of inside key antenna.

NOTE:

The driver should carry the Intelligent Key at all times.

• Intelligent Key has 2 IDs [Intelligent Key ID and NVIS (NATS) ID]. It can perform the door lock/unlock opera-

tion and the power switch operation when the registered Intelligent Key is carried.

• If the ID is successfully verified, power switch operation can be available and the vehicle can be set to

READY.

• Up to 4 Intelligent Keys can be registered upon request from the customer.

NOTE:

Refer to

DLK-24, "INTELLIGENT KEY SYSTEM : System Description"

 for any functions other than the

READY set function of Intelligent Key system.

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder [the chip for NVIS (NATS) ID verification] is integrated into the Intelligent Key. There-

fore, ID verification cannot be performed using mechanical key only.

When Intelligent Key battery is discharged, the NVIS (NATS) ID verification can be performed by oper-

ating power switch after contacting Intelligent Key backside to power switch. If verification result is

OK, the vehicle can be set to READY.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

1. When the power switch is pressed, BCM activates the inside key antenna and transmits the request signal

to the Intelligent Key.

2. The Intelligent Key receives the request signal and transmits the Intelligent Key ID signal to BCM.
3. BCM receives the Intelligent Key ID signal via remote keyless entry receiver, and verifies it with the regis-

tered ID.

4. BCM turns ACC relay ON and transmits ON power supply signal to IPDM E/R if the verification results are

OK.

5. IPDM E/R turns the ignition relay ON to start ON power supply.
6. BCM detects that the shift position and brake pedal operating condition.
7. BCM transmits READY signal to VCM if BCM judges that the READY set condition* is satisfied.

*: For READY set condition, refer to “READY SET CONDITION TABLE BY POWER SWITCH OPERA-

TION” below.

NOTE:

• If a malfunction is detected in the Intelligent Key system, “I-KEY system fault” on information display

appears. In this case, BCM does not transmits READY signal.

• When the Intelligent Key is carried outside of the vehicle (inside key antenna detection area) while the

power switch position is ACC or ON, BCM does not transmits READY signal even if READY set condi-

tion* is satisfied.

8. When BCM receives feedback signal from VCM indicating that the vehicle is set to READY, BCM stops

transmitting READY signal.

OPERATION RANGE

Vehicle can be set to READY when Intelligent Key is inside the vehicle. However, sometimes vehicle may not

be set to READY when Intelligent Key is on instrument panel or in glove box.

READY SET OPERATION WHEN INTELLIGENT KEY IS CONTACTED TO POWER SWITCH

Reception unit

Signal name

Combination meter

CAN communication

Key warning lamp signal

VCM

ID verification signal

READY signal

Inside key antenna

Key ID request signal
