REAR SEAT

SE-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback hinge bracket bolt to specification. Refer to

SE-36, "Exploded View"

.

SEATBACK STRIKER
SEATBACK STRIKER : Removal and Installation

INFOID:0000000010122969

REMOVAL

1. Remove the luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

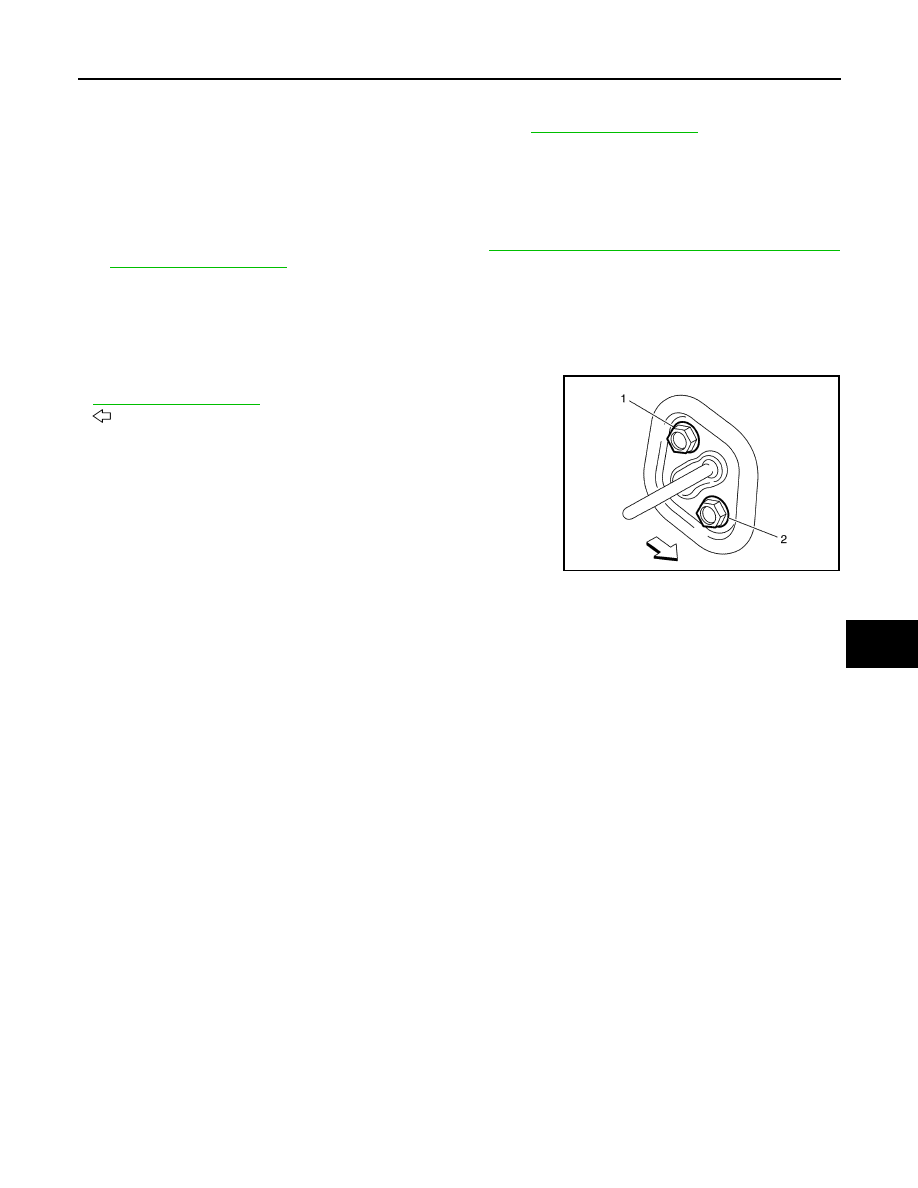

2. Remove bolts and the seatback striker.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• Temporarily tighten bolts.

• Then tighten the bolts to specification, in the order shown. Refer to

SE-36, "Exploded View"

.

: Front

JMJIA5065ZZ

SE-44

< REMOVAL AND INSTALLATION >

HEATED SEAT SWITCH

HEATED SEAT SWITCH

FRONT
FRONT : Removal and Installation

INFOID:0000000010122970

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1. Remove console finisher assembly from center console assembly. Refer to

IP-28, "Removal and Installa-

tion"

.

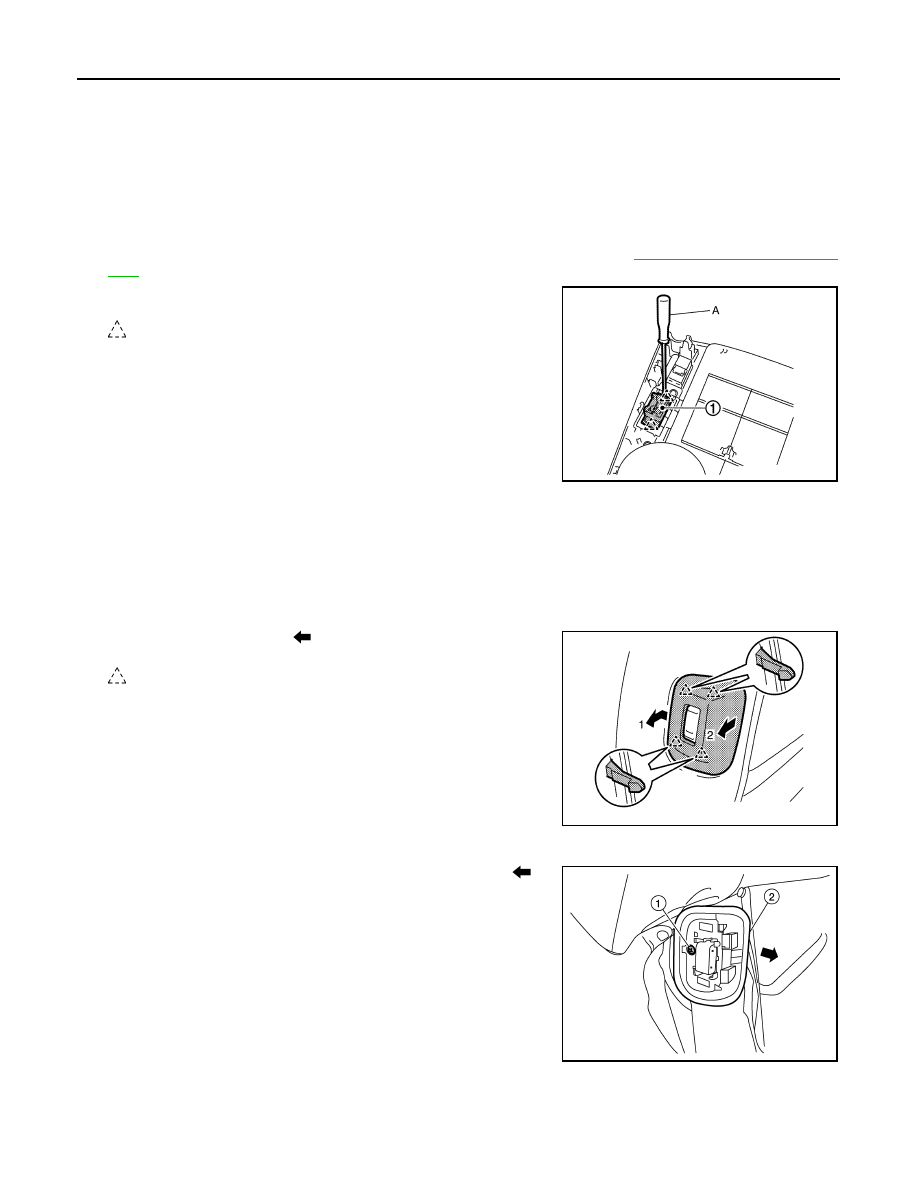

2. Release pawls using a suitable tool (A) and remove front heated

seat switch (1) from console finisher assembly.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

REAR
REAR : Removal and Installation

INFOID:0000000010122971

REMOVAL

1. Release pawls as shown (

) and remove the rear heated seat

switch finisher from seatback.

: Pawl

2. Unzip the seatback zipper.
3. Remove screw (1) then slide switch bracket (2) as shown (

) to

remove.

4. Disconnect the harness connector for the rear heated seat switch and unclip from the seat frame assem-

bly.

JMJIA5316ZZ

JMJIA6587ZZ

ALJIA1194ZZ

HEATED SEAT SWITCH

SE-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

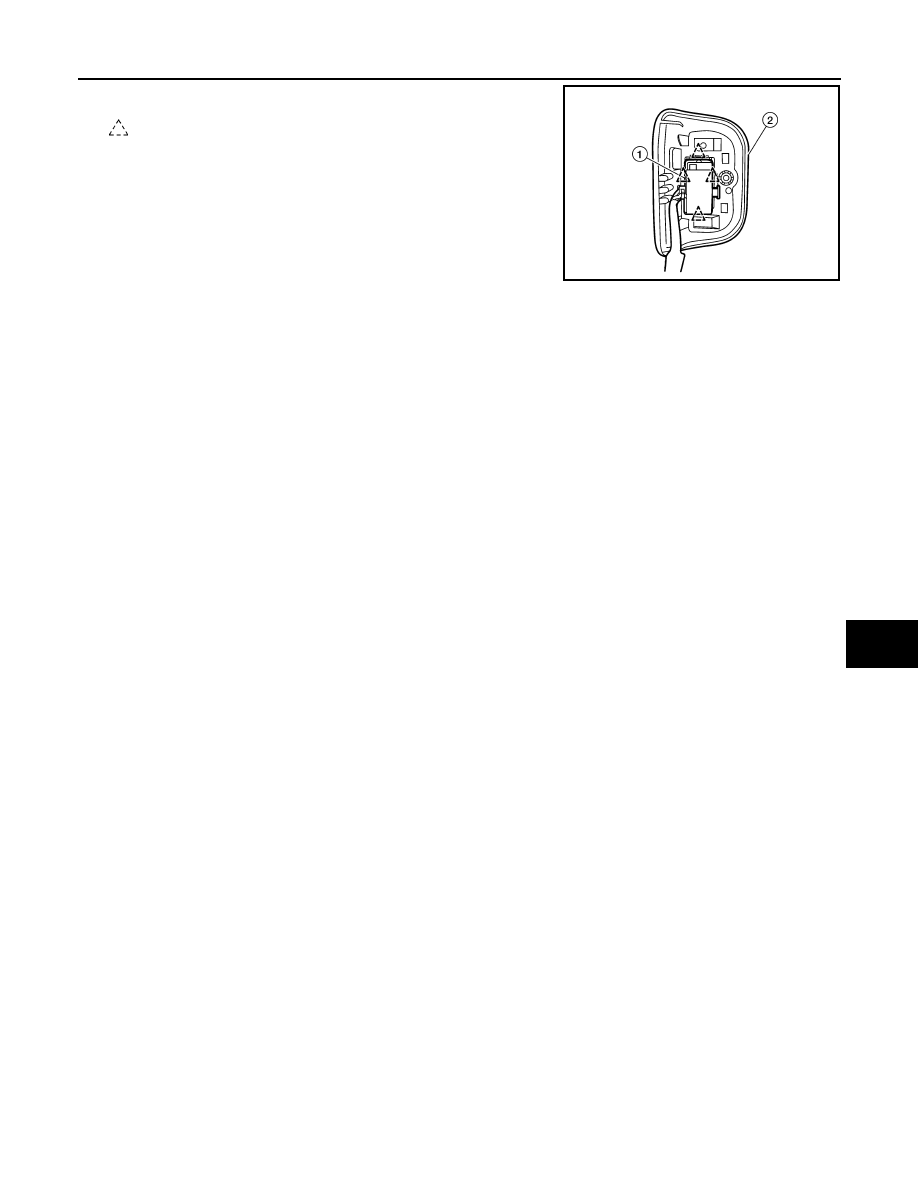

5. Release pawls and remove the rear heated seat switch (1) from

the switch bracket (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1195ZZ
