FRONT SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

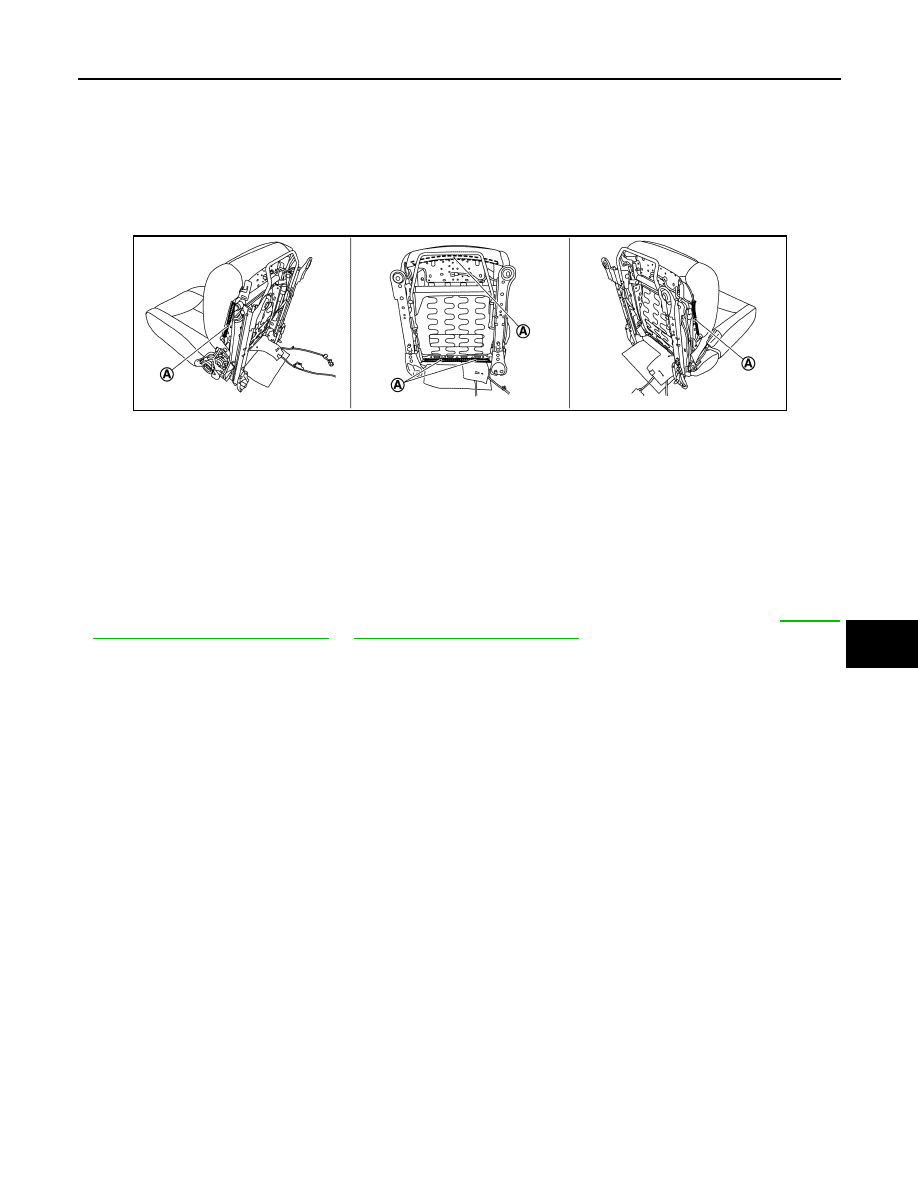

8. Unclip the side air bag module harness from the seat frame assembly and route the harness through the

seat cushion trim.

NOTE:

Take note of harness routing and attachment location for correct installation.

9. Disconnect the seat cushion harness connector and unclip it from the seat frame assembly.

NOTE:

Take note of harness routing and attachment location for correct installation.

10. Release J-clip retainers (A) from the seat frame assembly.

11. Remove the seat cushion from the seat frame assembly.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the self diagnosis using the air bag warning lamp or CONSULT. Refer to

SRC-11,

"On Board Diagnosis Function"

 or

SRC-13, "CONSULT Function"

.

JMJIA8334ZZ

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

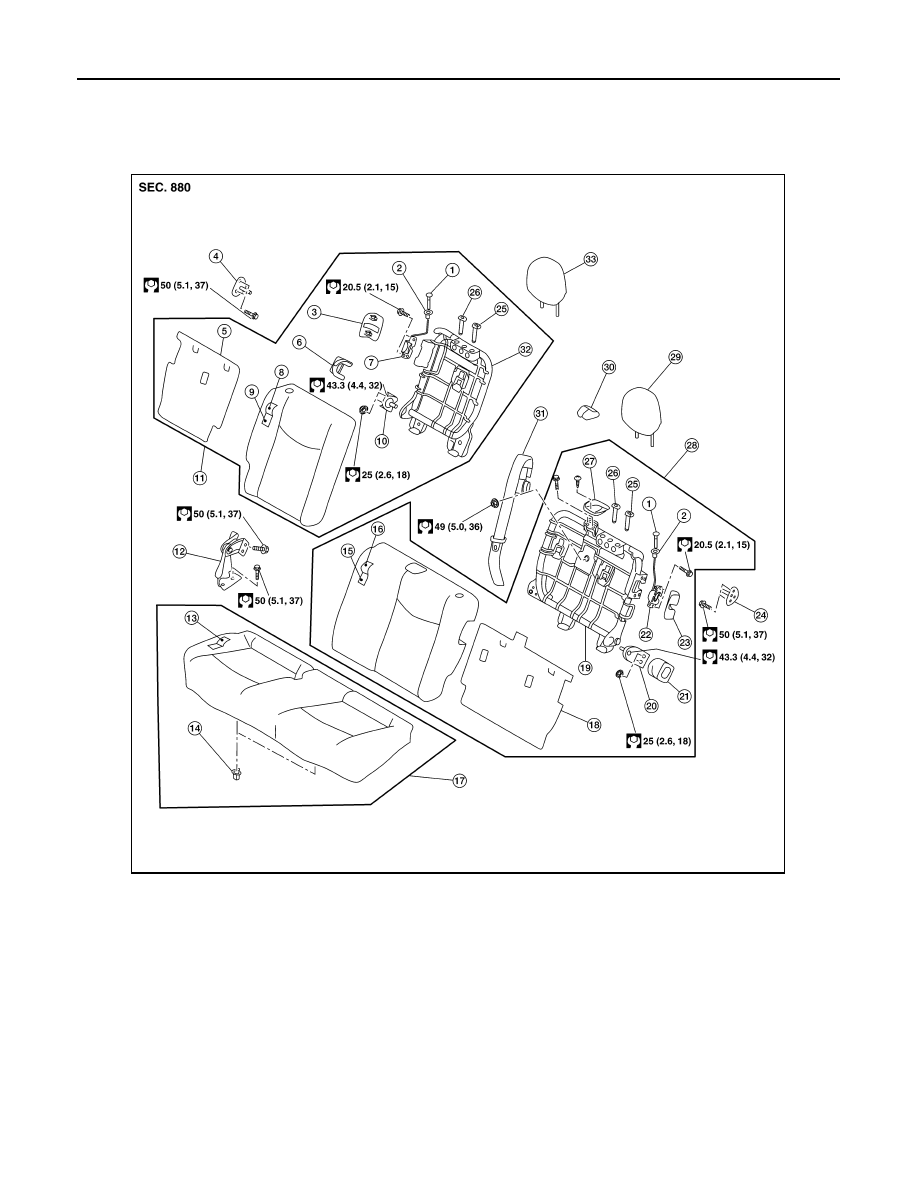

Exploded View

INFOID:0000000010122963

SEATBACK

1.

Seatback latch release knob

2.

Seat latch release knob finisher 3.

Seatback latch finisher (RH)

4.

Seatback striker (RH)

5.

Seatback support (RH)

6.

Seatback hinge bracket finisher (RH)

7.

Seatback latch assembly (RH) 8.

Seatback trim (RH)

9.

Seatback pad (RH)

10. Seatback hinge bracket (RH)

11. Seatback assembly (RH)

12. Seatback hinge bracket (center)

13. Seat cushion trim

14. Seat cushion hook

15. Seatback pad (LH)

16. Seatback trim (LH)

17. Seat cushion assembly

18. Seatback support (LH)

19. Seatback frame (LH)

20. Seatback hinge bracket (LH)

21. Seatback hinge bracket finisher (LH)

22. Seatback latch assembly (LH)

23. Seatback latch finisher (LH)

24. Seatback striker (LH)

25. Headrest holder (locked)

26. Headrest holder (free)

27. Center seat belt cover

28. Seatback assembly (LH)

29. Headrest (LH)

30. Center seat belt finisher

31. Center seat belt retractor

32. Seatback frame (RH)

33. Headrest (RH)

AWJIA1054ZZ

REAR SEAT

SE-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEATBACK : Removal and Installation

INFOID:0000000010122964

REMOVAL

Seatback Assembly (LH)

1. Remove the seat cushion assembly. Refer to

SE-40, "SEAT CUSHION : Removal and Installation"

.

2. Remove center anchor bolt of center seat belt retractor. Refer to

SB-15, "Exploded View"

.

3. Place the rear seatback assembly (LH) in the folded down position.
4. Pull up seatback trim, then remove bolts from the seatback hinge bracket (center).
5. Remove the luggage finisher mask (LH). Refer to

INT-42, "LUGGAGE FINISHER MASK : Removal and

Installation"

.

6. Remove nuts from the seatback hinge bracket (LH).
7. Remove seatback assembly (LH) from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Seatback Assembly (RH)

1. Remove the seat cushion assembly. Refer to

SE-40, "SEAT CUSHION : Removal and Installation"

.

2. Place the seatback assembly (RH) in the folded down position.
3. Pull up seatback trim, then remove bolts from the seatback hinge bracket (center).
4. Remove the luggage finisher mask (RH). Refer to

INT-42, "LUGGAGE FINISHER MASK : Removal and

Installation"

.

5. Remove nuts from the seatback hinge bracket (RH).
6. Remove seatback assembly (RH) from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Installation is in the reverse order of removal.

• Temporary install bolts, position seatback assembly (LH/RH) to the latched position. Check that seatback

latch assembly and seatback striker do not interfere, then tighten bolts to specification. Refer to

SE-36,

"Exploded View"

.

• Tighten the center anchor bolt to specification. Refer to

SB-15, "Exploded View"

.

SEATBACK : Disassembly and Assembly

INFOID:0000000010122965

DISASSEMBLY

1. Remove seatback hinge bracket (LH/RH). Refer to

SE-41, "SEATBACK HINGE : Removal and Installa-

tion"

.

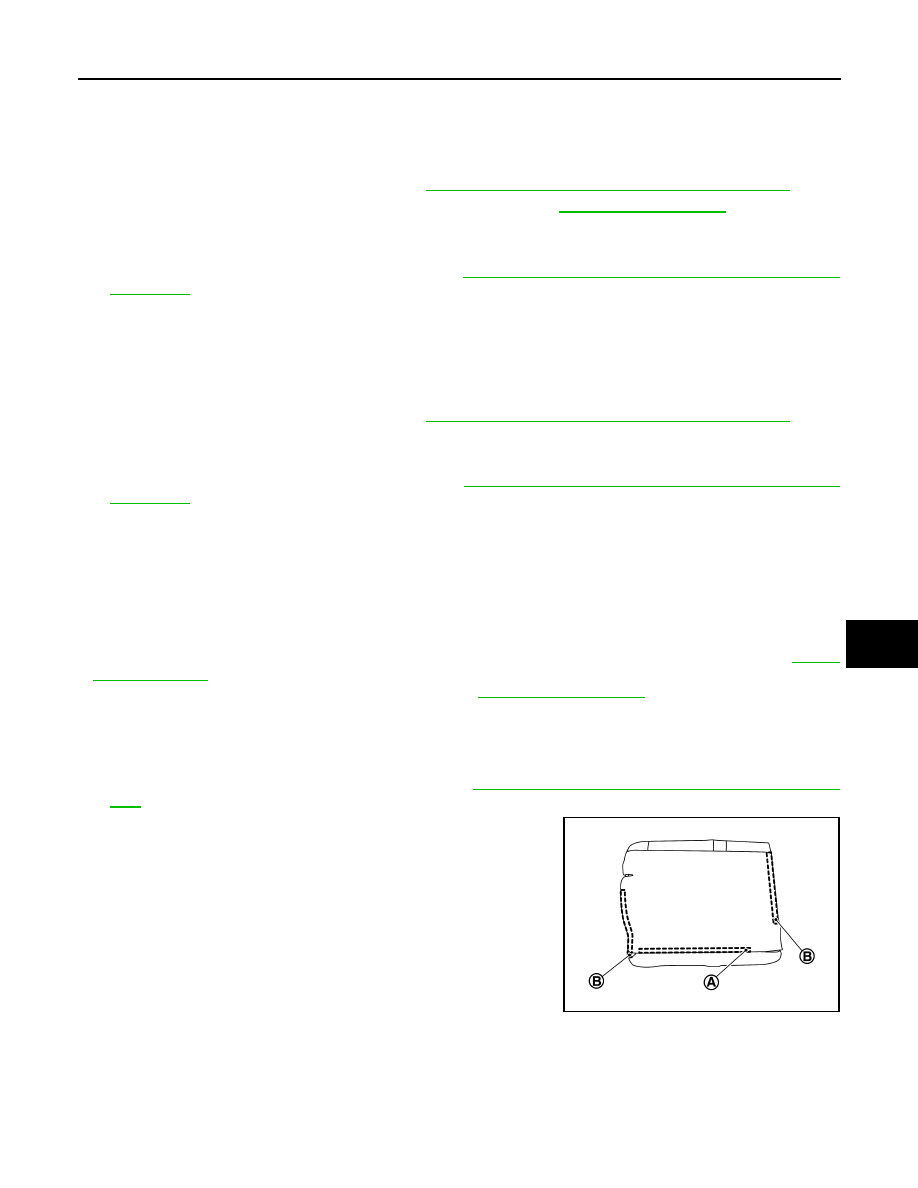

2. Release J-clip retainer (A) and then unzip seatback zippers (B).

• Seatback assembly (LH)

JMJIA8708ZZ

SE-38

< REMOVAL AND INSTALLATION >

REAR SEAT

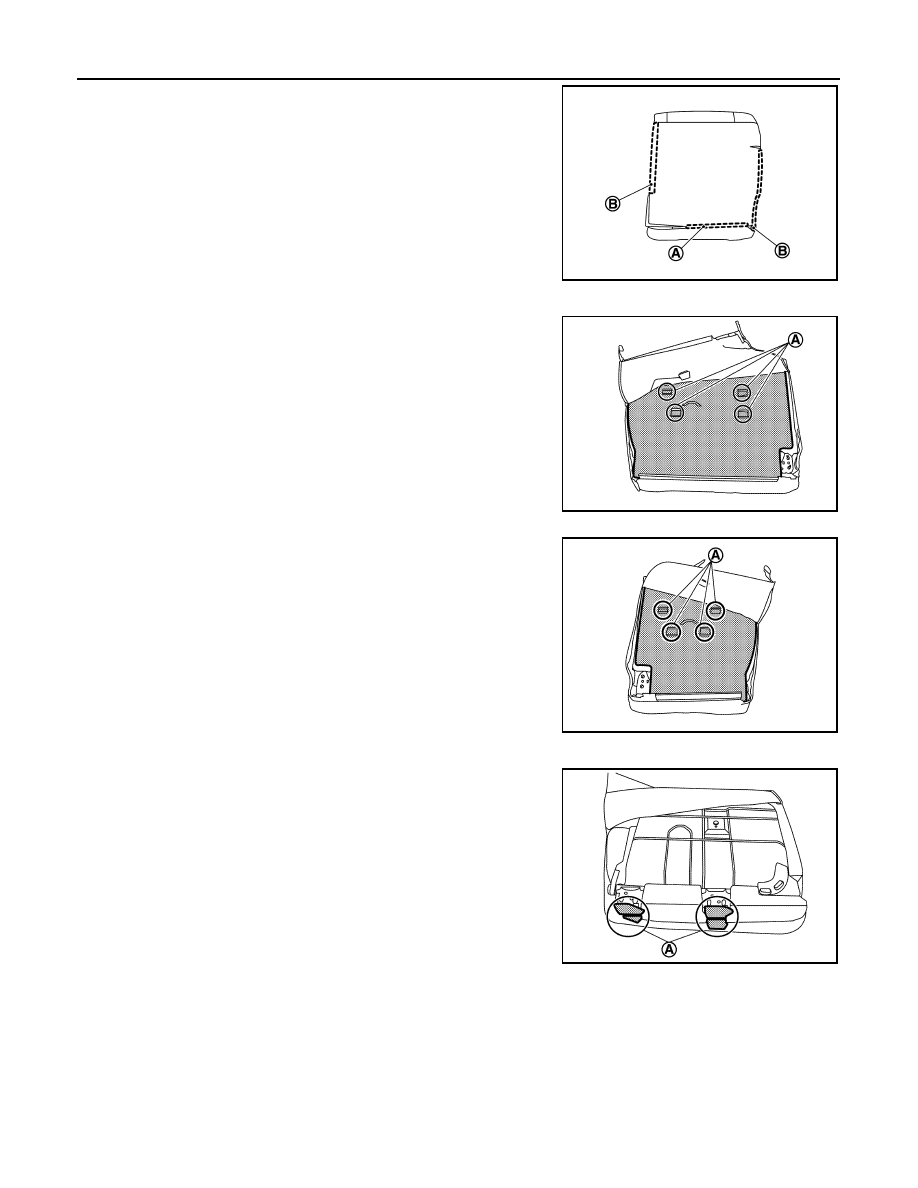

• Seatback assembly (RH)

3. Remove seatback support.

Release the seatback support from seatback frame at locations

(A) and remove the seatback support.

• Seatback assembly (LH)

• Seatback assembly (RH)

4. Pull out seatback trim from ISO FIX at locations (A).

• Seatback assembly (LH)

JMJIA8709ZZ

JMJIA8356ZZ

JMJIA8357ZZ
