FRONT SEAT

SE-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Seatback

2.

Seat belt buckle

3.

Seat cushion outer finisher (RH)

4.

Seat frame assembly

5.

Seat cushion

6.

Seat cushion outer finisher (LH)

7.

Lift lever

8.

Lift lever finisher

9.

Recline lever finisher

10. Side air bag module (not service-

able)

11.

Slide finisher (rear)

12. Seat cushion inner finisher (LH)

13. Seat cushion inner finisher (RH) 14.

Headrest holder (locked)

15. Headrest holder (free)

16. Headrest

SE-28

< REMOVAL AND INSTALLATION >

FRONT SEAT

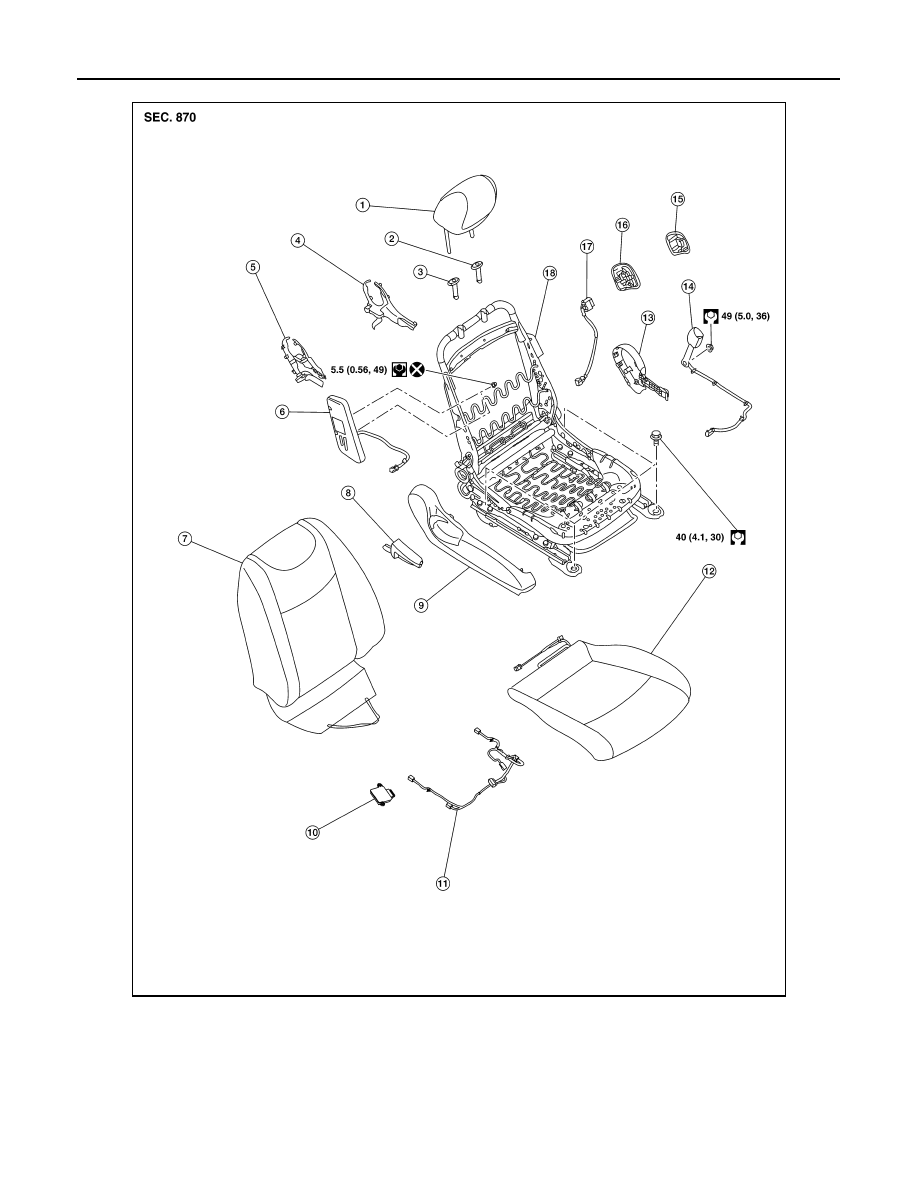

PASSENGER SEAT

AWJIA1045ZZ

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seat cushion inner finisher (LH)

5.

Seat cushion inner finisher (RH) 6.

Side air bag module (not service-
able)

7.

Seatback

8.

Lift lever finisher

9.

Seat cushion outer finisher (RH)

10. Occupant Classification System

control unit

11.

Seat harness

12. Seat cushion

FRONT SEAT

SE-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000010122960

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag module should accidentally deploy.

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After the side air bag module inflates, the seat frame assembly must be replaced.

• When removing and installing the seat, use shop cloths to protect components from damage.

• Before removing the front seat, turn the ignition switch OFF, disconnect both 12V battery cables and

wait at least three minutes.

1. Disconnect the negative and positive 12V battery terminals and wait at least three minutes. Refer to

PG-

89, "Removal and Installation"

.

2. Slide the seat to the full forward position.
3. Remove the seat rear bolts.
4. Slide the seat to the full rearward position.
5. Remove the seat front bolts.
6. Tilt the seat rearward to disconnect the harness connectors and unclip from the seat frame assembly.

NOTE:

Take note of harness routing and attachment location for correct installation.

7. Remove seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

• Perform additional services when installing front passenger seat. Refer to

SRC-37, "ZERO POINT

RESET : Description"

.

• Zero point reset must be performed every time the front passenger seat is removed from the vehicle.

• Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tight-

ened to specification.

CAUTION:

Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

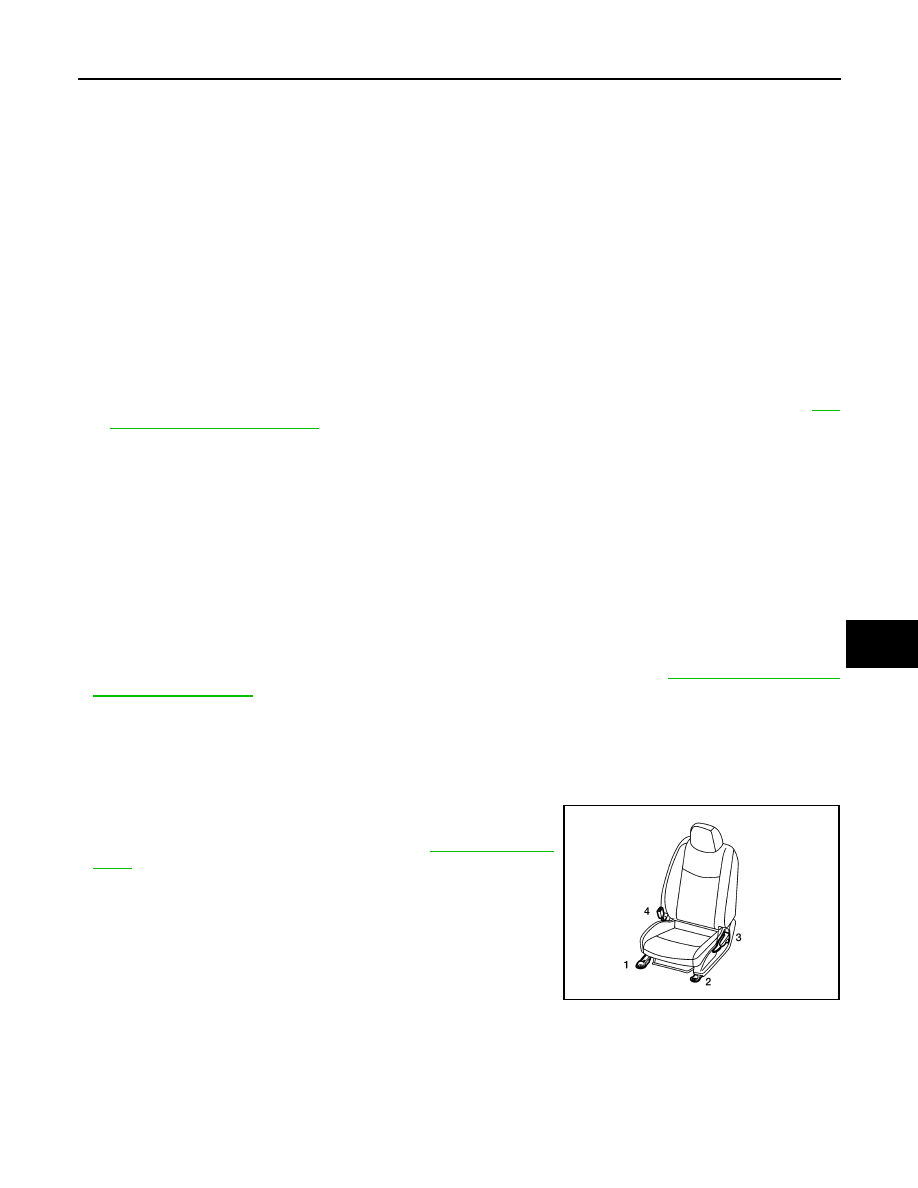

• When installing the front seat (LH), tighten the bolts in the order

shown.

• Tighten the seat bolts to specification. Refer to

SE-26, "Exploded

View"

.

13. Seat cushion outer finisher (LH) 14. Seat belt buckle

15. Rear heated seat switch finisher

16. Switch bracket

17. Rear heated seat switch

18. Seat frame assembly

ALJIA1192ZZ

SE-30

< REMOVAL AND INSTALLATION >

FRONT SEAT

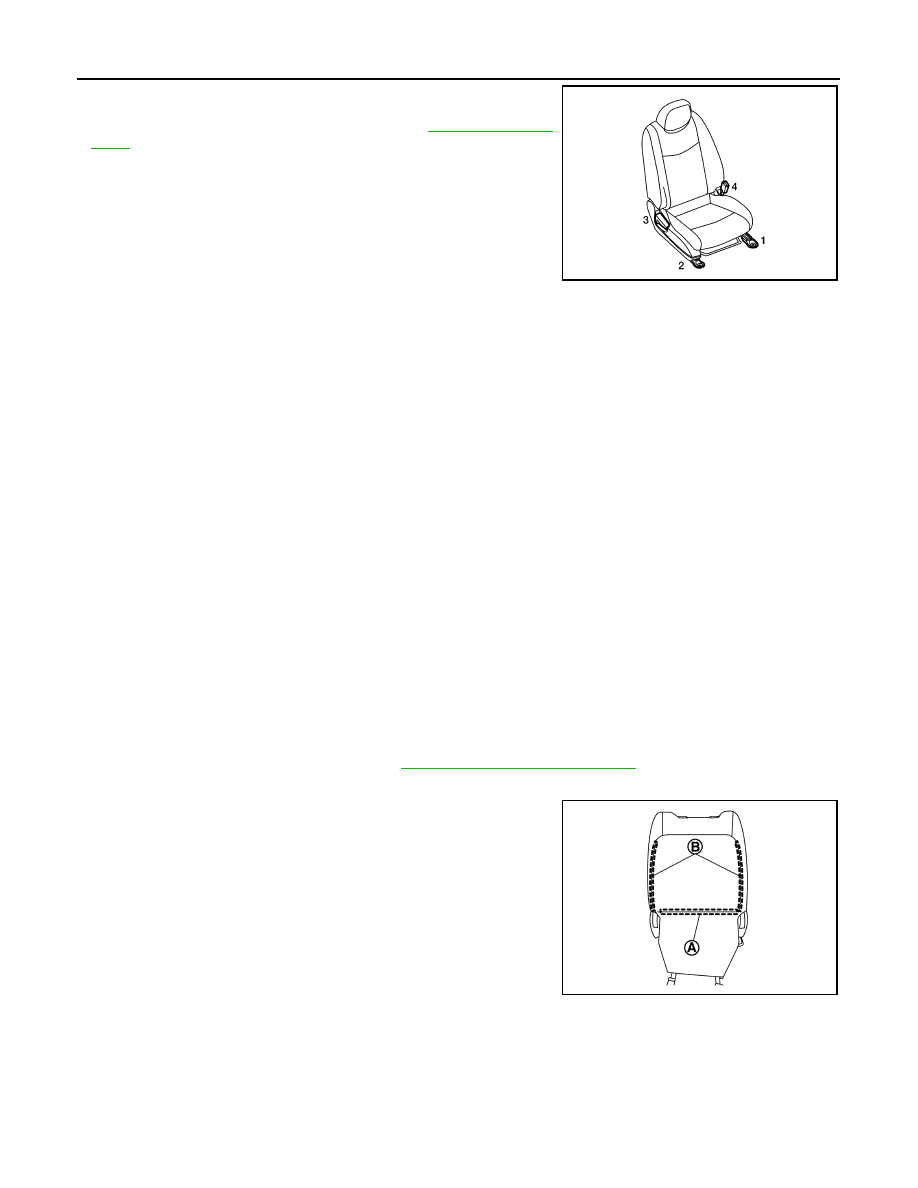

• When installing the front seat (RH), tighten the bolts in the order

shown.

• Tighten the seat bolts to specification. Refer to

SE-26, "Exploded

View"

.

SEATBACK
SEATBACK : Disassembly and Assembly

INFOID:0000000010122961

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag module should accidentally deploy.

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both 12V battery terminals and wait at

least three minutes.

• Handle the side air bag module carefully. During disassembly, always hold the side air bag module,

do not let it hang by the wire harness.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• Replace the side air bag module if it has been dropped or sustained an impact.

• Do not insert any objects into the side air bag module.

• Do not attempt to disassemble the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 90

°C (194°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module

harness or the side air bag module.

NOTE:

If the vehicle has been involved in a collision and the side air bag module has deployed, the seatback assem-

bly must be replaced.
1. Remove the front seat assembly. Refer to

SE-29, "Removal and Installation"

.

2. Release seatback trim strap and J-hook retainers on underside of seat.
3. Release J-clip retainer (A) and unzip the seatback zippers (B).

ALJIA1193ZZ
