Nissan Leaf. Manual - part 1048

REAR SEAT BELT

SB-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

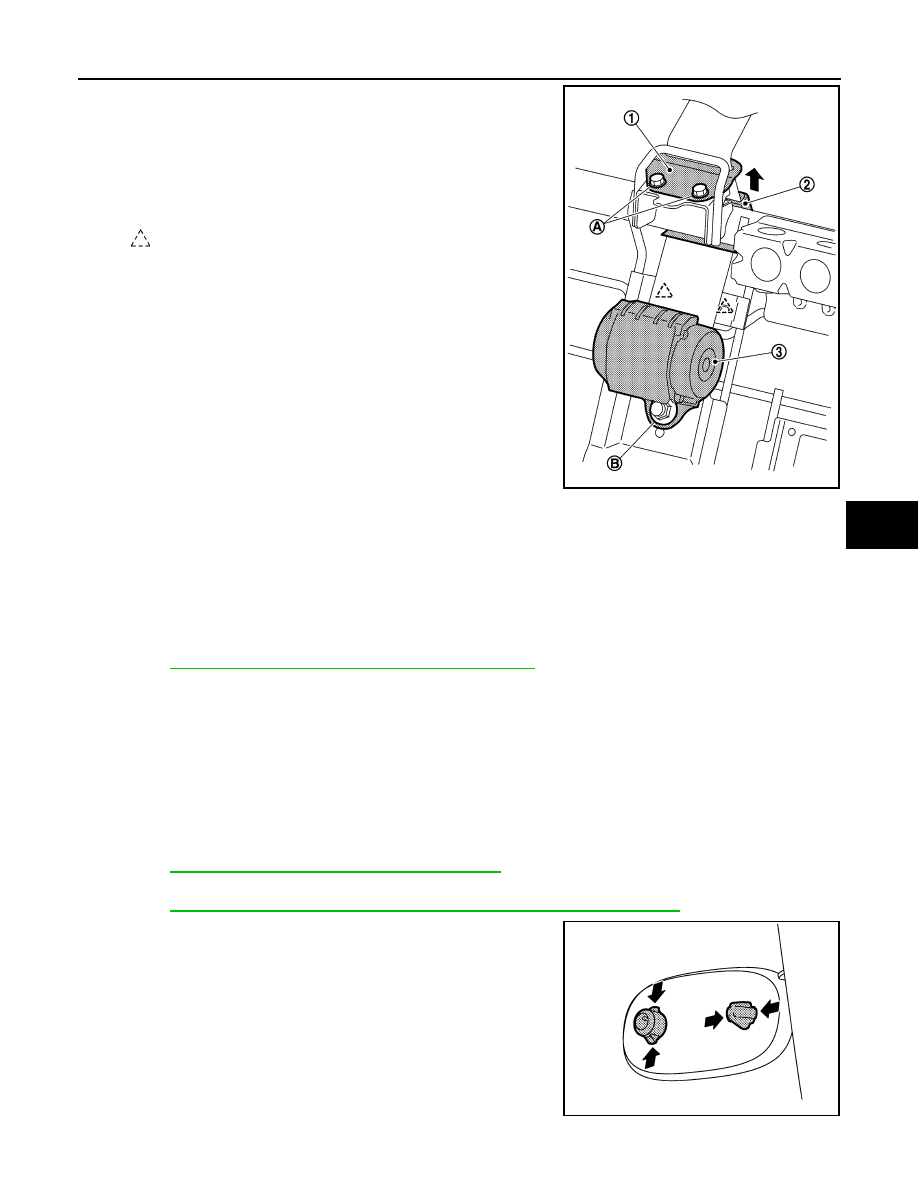

1. Remove mounting bolts (A) of upper webbing guide (1).

Remove upper webbing guide from seatback frame.

2. Disengage pawls of lower webbing guide (2). Remove lower

webbing guide in direction indicated by arrow as shown in

the figure.

3. Remove mounting anchor nut (B) of center seat belt retrac-

tor (3) from seatback frame.

INATALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000010119341

REMOVAL

1. Remove rear seat cushion from the vehicle.

Refer to

SE-40, "SEAT CUSHION : Removal and Installation"

.

2. Remove seat belt buckle mounting anchor bolt, and then remove seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT HOOK
SEAT BELT HOOK : Removal and Installation

INFOID:0000000010119343

REMOVAL

1. Remove rear seatback from the vehicle.

Refer to

SE-37, "SEATBACK : Removal and Installation"

.

2. Remove luggage side lower finisher.

Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation"

.

3. From back of luggage side lower finisher, press pawls indicated

by arrows as shown in the figure and remove seat belt hook

from luggage side lower finisher.

INSTALLATION

: Pawl

JMHIA1803ZZ

JMHIA1638ZZ

SB-18

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

Install in the reverse order of removal.
