FRONT SEAT BELT
SB-13
< REMOVAL AND INSTALLATION >
C
D
E
F
G
I
J
K
L
M
A
B
SB
N
O
P

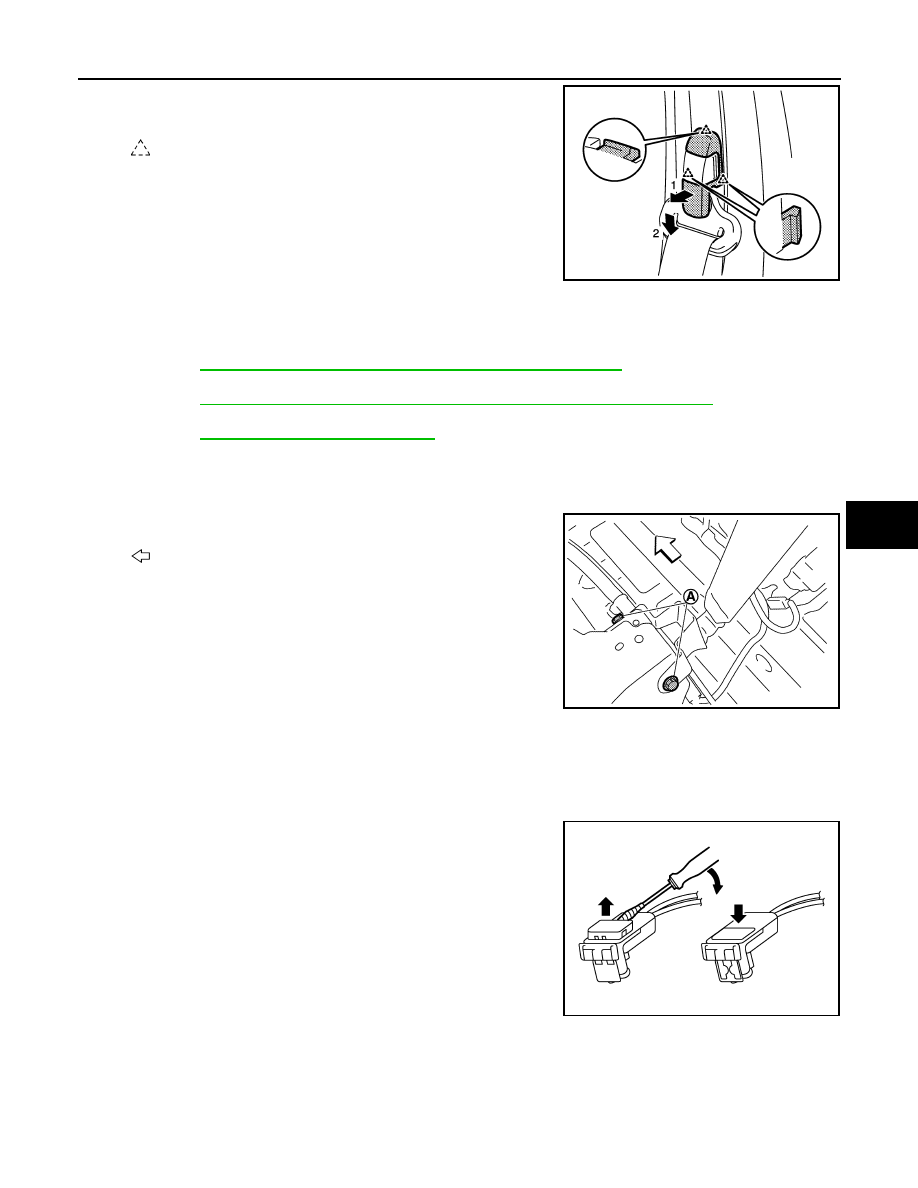

2. Pull adjuster cover in direction indicated by arrows as
shown in the figure. Remove adjuster cover.
3. Remove shoulder anchor mounting anchor bolt.
2. Remove outer anchor.
1. Remove front kicking plate inner and rear kicking plate inner.
Refer to
INT-28, "KICKING PLATE INNER : Removal and Installation"
.
2. Remove center pillar lower garnish.
Refer to
INT-30, "CENTER PILLAR LOWER GARNISH : Removal and Installation"
3. Remove driver seat from the vehicle.
Refer to
SE-29, "Removal and Installation"
.
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
4. Pull up floor carpet.
5. Remove front floor spacer and rear floor spacer.
6. Remove joint bracket assembly RH mounting bolts (A).
7. Remove mounting anchor bolt of outer anchor, and then remove outer anchor from joint bracket
assembly RH.
3. Remove seat belt pre-tensioner retractor.
1. Disconnect seat belt pre-tensioner harness connector.
CAUTION:
• For installing/removing seat belt pre-tensioner con-
nector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.
• Install connector with lock raised, and push lock into
connector.
• After installing the connector, check that the lock is
pushed securely into it.
2. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.
CAUTION:
Never place pre-tensioner seat belt in an area where the temperature reaches 80
°C or more.
4. Remove seat belt adjuster.
1. Remove center pillar upper garnish.
: Pawl
JMHIA1630ZZ
Vehicle front
JMHIA1802ZZ
PHIA0953J
