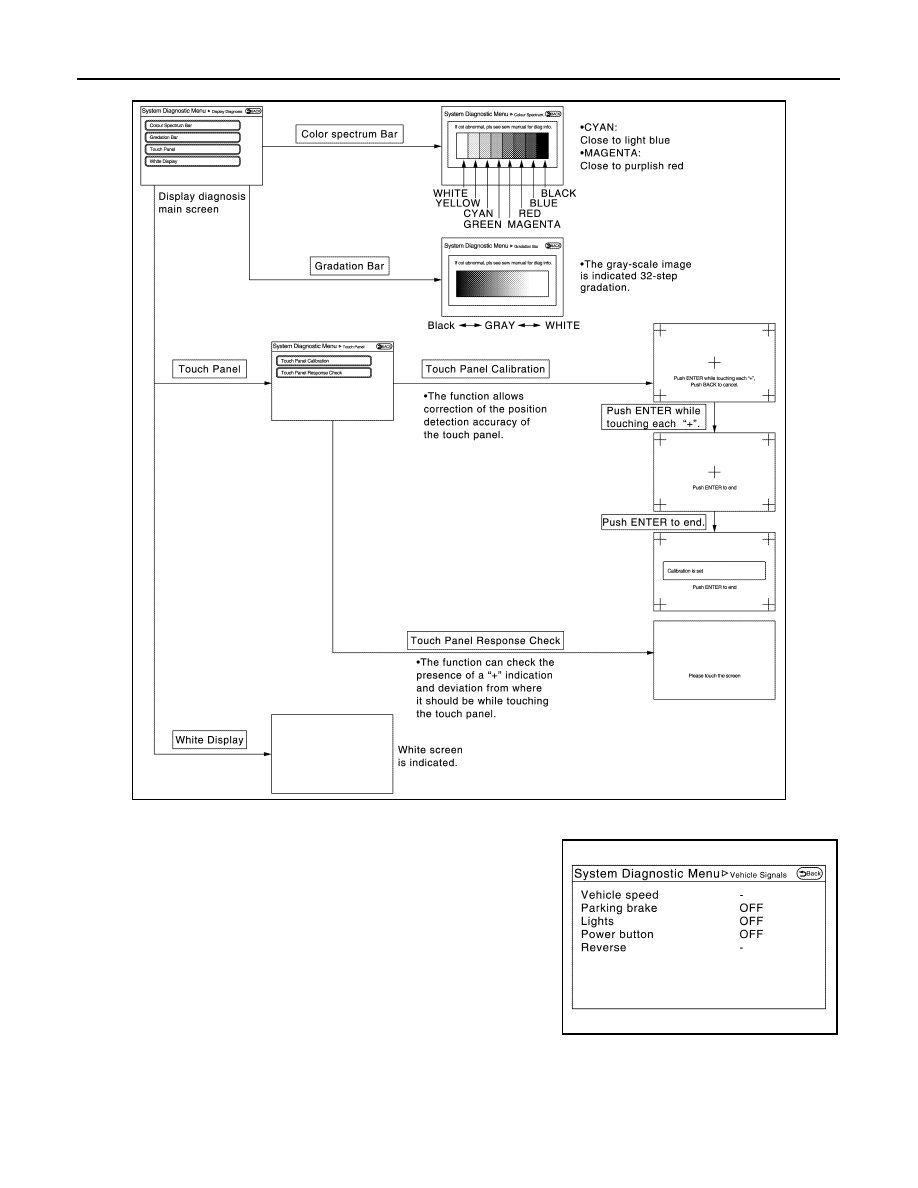

AV DIAGNOSIS SYSTEM (AV CONTROL UNIT) AV-239 < SYSTEM DESCRIPTION > [NAVIGATION WITHOUT BOSE] C D E F G H I J K L M B A O P Starting procedure 1. Turn the power switch ON. times. Press the “MAP” switch once. NOTE: If the on board self-diagnosis does not start, perform diagnosis Confirmation/ Adjustment Display Diagnosis The following check functions are available: color tone check by Color Vehicle Signals Diagnosis of signals can be performed for vehicle speed, parking brake, Navigation Steering Angle Ad- When there is a difference between the actual turning angle and the ve- Speed Calibration When there is a difference between the current location mark and the ac- Sensor information Displays the reception status of the GPS antenna connector. XM Subscription The XM subscription status can be checked. Error location display The system malfunction and the frequency when occurring in the past AV COMM Diagnosis The communication condition of each unit of Multi AV system can be Hands-free Phone, CARWINGS • The received volume adjustment of hands-free phone and microphone speaker check can be performed. • Mileage display of remote maintenance can be turned ON/OFF. Clock Settings The current time can be set. Delete Unit Connection Log Erase the connection history of unit and error history. User Data Initialization Initializes the AV control unit memory. Version Information Version information of the AV control unit is displayed. Software Update The current version of the AV control unit software can be updated. Export Error Log AV control unit error log can be exported. XM Change Channel Any necessary channels required to receive traffic information etc. from Change Application Any application ID'-s required to receive traffic information etc. from the Diag XM authentication diagnosis. Mode Description JSNIA3755ZZ |
