• *1: Displayed when iPod

®

 is connected.

• *2: Displayed when Bluetooth

®

audio is registered and “Bluetooth connection” setting is ON.

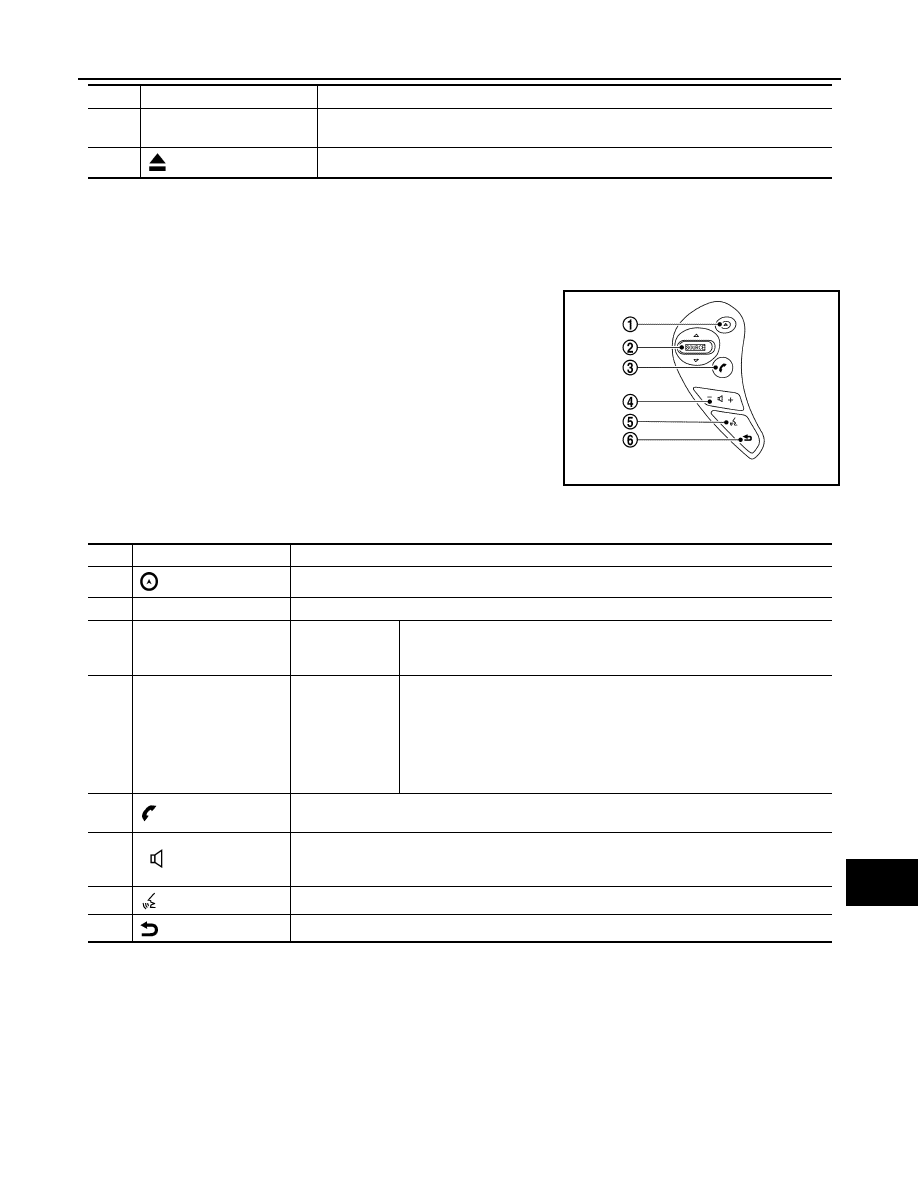

Names and functions of steering switch

By using the steering switch, various operations on the audio, navigation, telephone, and others can be per-

formed without releasing hands from the steering wheel.

1. Design

2. Switch name and function

Menu Display by Pressing Each Switch

INFOID:0000000010122524

NOTE:

For Navigation system and Telematics system operation detailed information, refer to Navigation system

Owner's Manual.

MENU

13

MAP/VOICE

• Press to display the current location map screen.
• Press and hold to repeat voice guidance.

14

 (Disk eject)

Press to eject a disk.

No.

Switch name

Function

JSNIA3634ZZ

No.

switch name

Major functions

1

 (Driving range)

Press to display the driving range screen. Press again to return to the previous screen.

2

SOURCE

Press to change source menu.

Tilt up/down for a
short period of
time

• During the radio switches the preset channel.
• During the CD mode, USB mode, iPod mode, and Bluetooth audio mode

selects the track.

Tilt up/down for a
long period of
time

• During the radio mode, good sensitivity frequency is automatically select-

ed.

• The CD mode, iPod mode, or Bluetooth audio mode allows the fast-for-

warding and rewinding of a music file.

• During the CD mode, a folder selection can be made when an MP3/WMA

disc contains a folder.

• The USB mode allows folder selection.

3

 (Phone)

• Displays the hands-free phone menu.
• When this is pressed during call, telephone communication can be started.

4

 + (Volume control)

• Adjust the audio volume.
• Other than the audio volume, the volume levels of guide sound (at guide interruption), hands-

free phone, and others can be adjusted.

5

 (Talk)

Press to enter the voice recognition mode.

6

 (Cancel)

Press to cancel the voice command.

AV-232

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

OPERATION

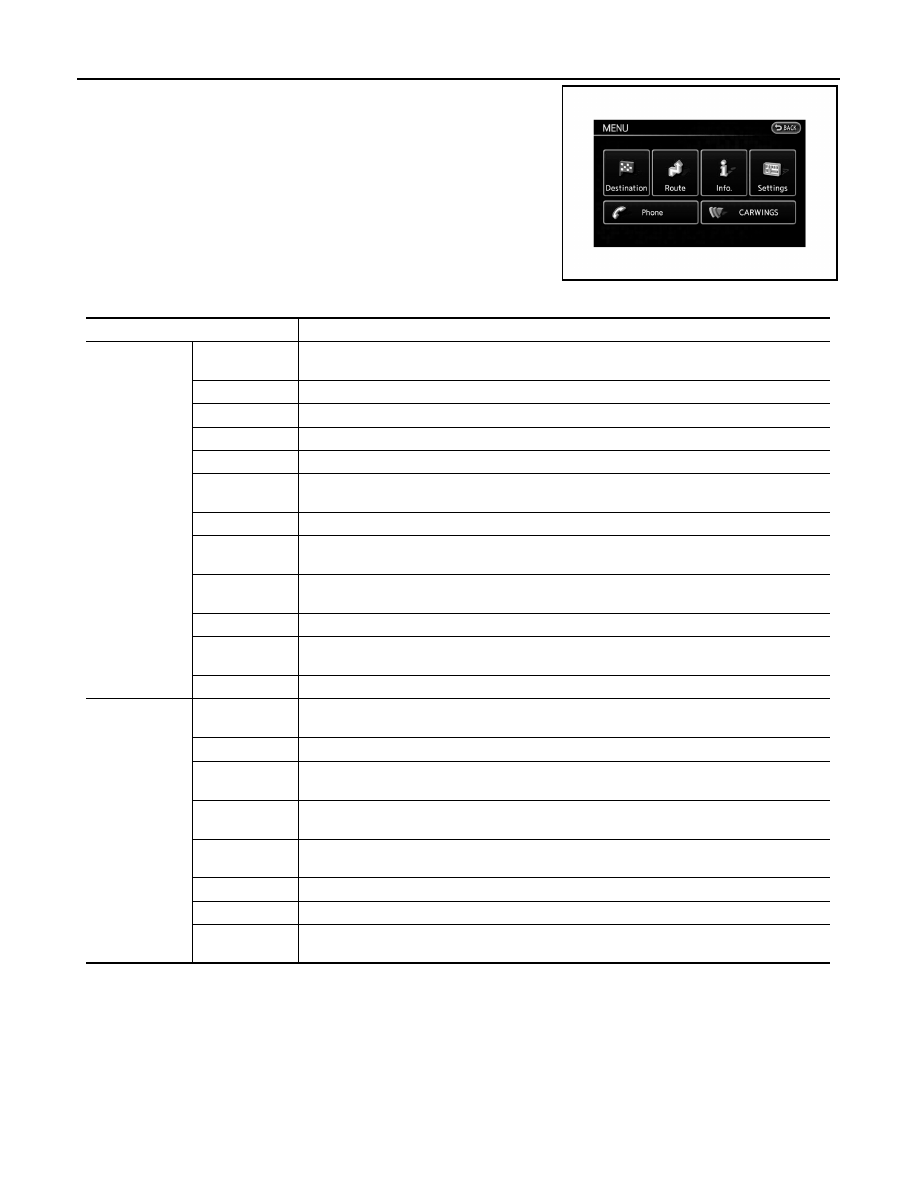

When the MENU switch is pressed, the menu screen is displayed.

AVA1281

Menu list

Description

Destination

Change Country

When setting a destination, the country can be selected. The country that was last selected is
automatically selected by the system as the default.

New Address

Searches for a destination by address.

Home

Searches for a route from the current location to the previously stored home destination.

Points of interest Searches for a destination from various categories of businesses or locations.

Charging Station Searches for the charging stations near the current vehicle location.

Quick Stop

Searches for points of interest near the current vehicle location, such as restaurants and
charging stations, etc.

Address Book

Searches for a destination from the list of the stored locations.

History

• Sets the previous starting point as destination.
• Searches for the destination from the previous destinations.

M-way En-
trance/Exit

Searches for a destination from a motorway entrance/exit.

Stored Routes

Selects a stored route.

Latitude/Longi-
tude

Searches for a destination by entering the latitude and the longitude.

Junction

Searches for a destination from junctions.

Route

Cancel Route/
Resume Route

Cancels the current route guidance. A canceled route can also be reactivated. If the suggest-
ed route is canceled, “Cancel Route” changes to “Resume Route”.

Edit Route

Edit or add a destination or waypoints to the route that is already set.

Route Info

Confirm the route by the route information or simulation. The confirmed route can also be
stored.

Guidance Voice

Activates or deactivates route, voice guidance and/or traffic announcement and adjust the vol-
ume level of voice guidance.

Recalculate

Manually search for the route again after changing the search condition and have the system
calculate a route.

Detour

A detour of a specified distance can be calculated.

Traffic Detour

Manually search for an alternative detour route taking the traffic information into consideration.

Route Calcula-
tion Criteria

Changes the route calculation conditions anywhere along the route.

AV

OPERATION

AV-233

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

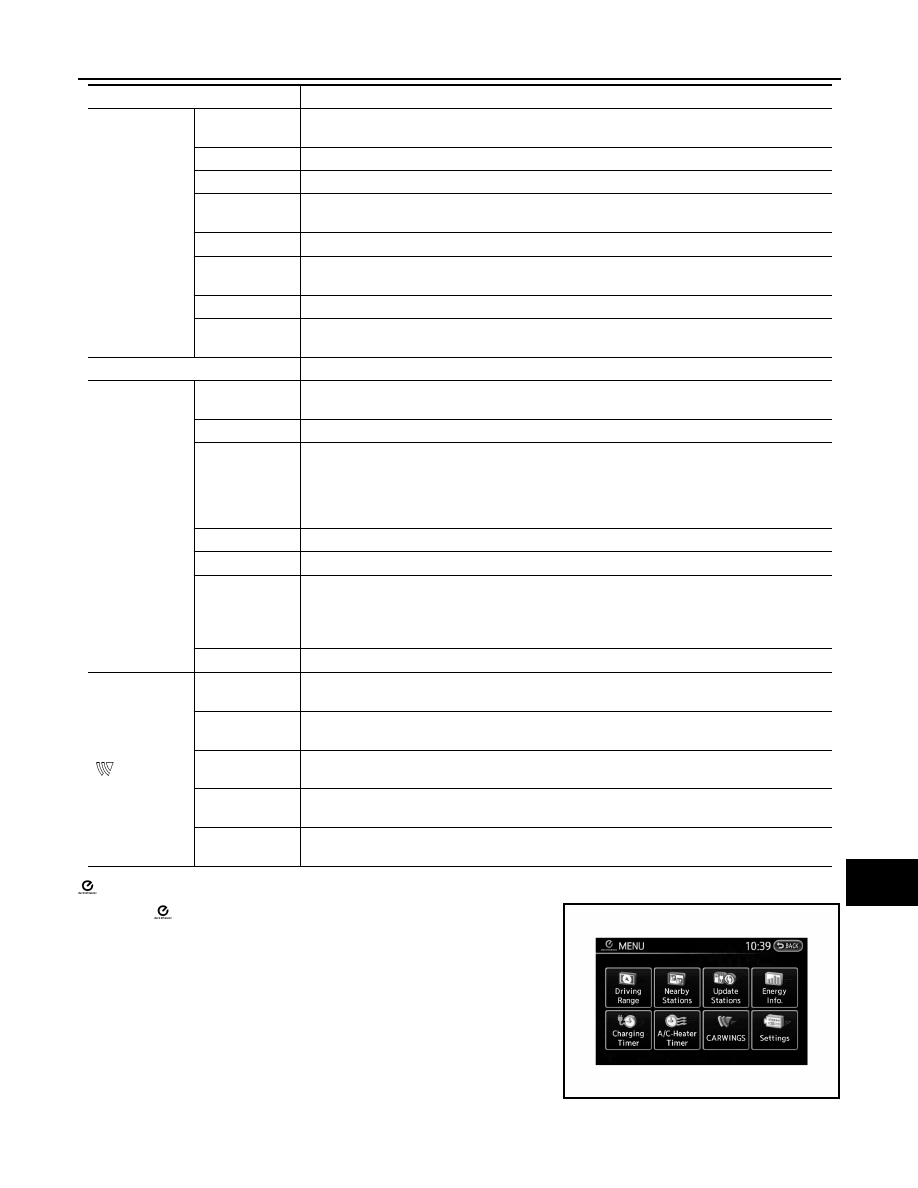

ZERO EMISSION MENU

When the  ZERO EMISSION switch is pressed, the menu screen

is displayed.

Info.

Traffic Informa-
tion

Displays the Traffic Information.

Energy Info.

Energy information is displayed on the screen.

Maintenance

Displays the vehicle maintenance information.

Charging Station
Info

Displays charging station information for the current location.

Where am I?

Displays information regarding the current vehicle location.

Voice Recogni-
tion

Displays the voice command list.

GPS Position

Displays GPS information regarding the current vehicle location.

Navigation Ver-
sion

Displays the current navigation system version.

Settings

The system can be customized the following items.

Phone

Phonebook

Select a telephone number from the phone book, and then make a call. Before making a call,
the telephone number must be registered in the phone book.

Call History

Select a telephone number from the incoming or outgoing history lists, and then make a call.

Handset Memo-
ry

Download the phone book from a cellular phone that is connected to the vehicle, select a tele-
phone number from the phone book, and then make a call. Phone book data should be regis-
tered in the system after downloading the phone book from the cellular phone that is
connected to the vehicle. If the phone book is not registered, a message that reminds you of
phone book data download will be displayed.

Keypad

Input the phone number manually using the keypad displayed on the screen.

Volume

Adjust various settings of phone volume.

Pair Phone

• When a PIN code appears on the screen, operate the compatible Bluetooth

®

 cellular phone

to enter the PIN code.

•  When the connection process is completed, the screen will return to the Phone menu dis-

play.

Paired Phone

The list of the registered cellular phones is displayed.

CARWINGS

Favorite Chan-
nels

A maximum of 16 favorite channels selected from the information channels can be stored in
a folder.

Information
Channels

Touch the preferred folder. An information channel list is displayed.

CARWINGS
Records

The information channels that were referred to previously are displayed. A maximum of 3
channels are stored in the history.

Update Stations

Charging station information is updated through connection to the NISSAN CARWINGS Data
Center.

CARWINGS
Settings

The CARWINGS system can be customized.

Menu list

Description

AVA1283

AV-234

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

OPERATION

MAP MENU

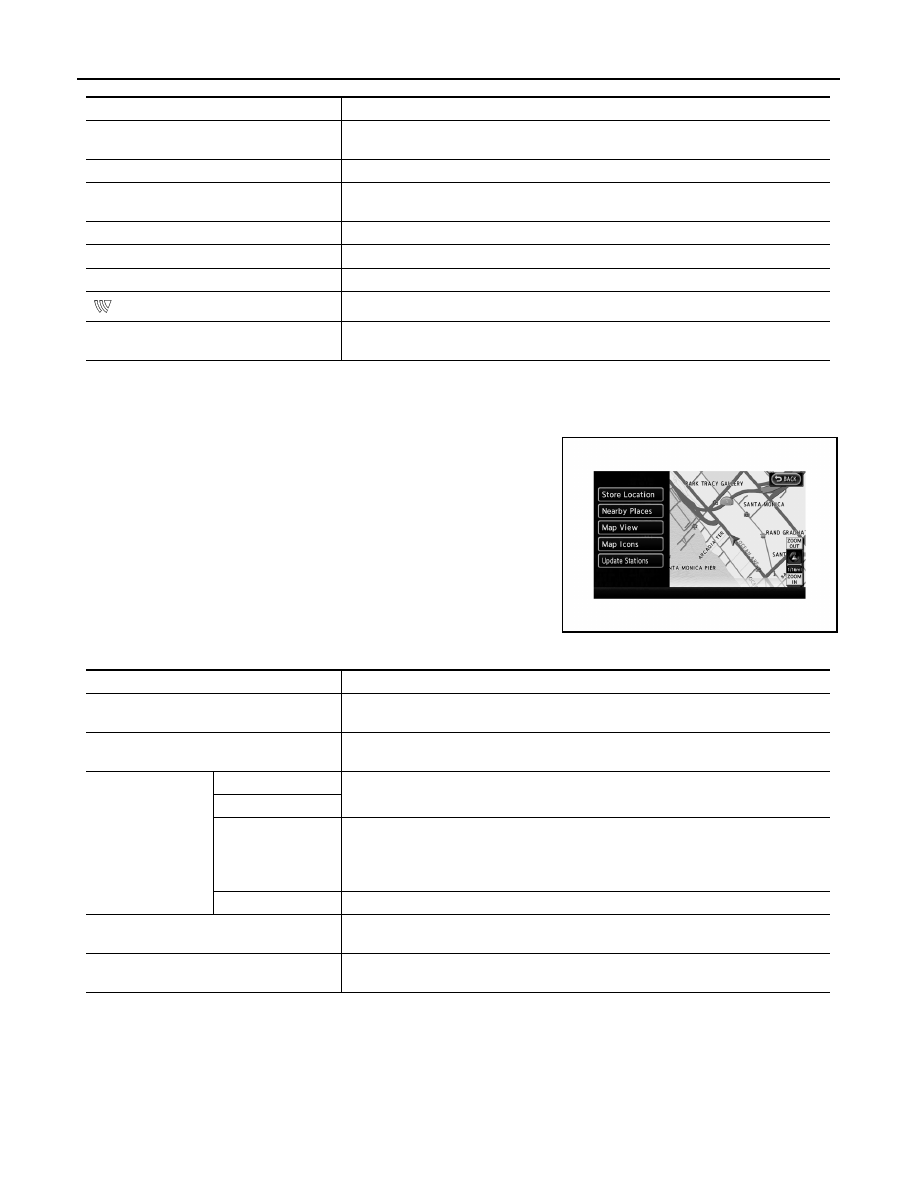

Map menu at current location

If the following operation is performed at the current location, the available map menu is displayed.

• Touch the “Map Menu” switch on the map.

Map menu after scroll of map

If the following operation is performed after scrolling the map, the available map menu is displayed.

Menu list

Description

Driving Range

The estimated driving area within range, including the current position is displayed on
the map screen.

Nearby Stations

Charging station information for the current position area is displayed.

Update Stations

Charging station information is updated through connection to the NISSAN CAR-
WINGS Data Center.

Energy Info.

Energy information is displayed on the screen.

Charging Timer

The timer charge function can be set.

A/C-Heater Timer (Climate Ctrl. Timer)

The A/C-Heater Timer (Climate Ctrl. Timer) function can be set.

CARWINGS

Information channels are displayed and settings for CARWINGS can be performed.

Settings

Setting of the warning message display or the charging status notification can be per-
formed.

AVA1282

Menu item

Description

Store Location

Stores the current vehicle location in the Address Book. The stored location can be re-
trieved as necessary to set it as a destination (waypoint).

Quick Stop

Searches for points of interest near the current vehicle location, such as restaurants
and charging stations, etc.

Map Settings

Map View

The screen display [Plan view, Birdview

®

, split screen (2D/2D), split screen (2D/2D)]

can be changed.

Split Screen

Map Settings

Map Orientation (sets the map direction to North Up or Heading Up), Long Range (on/
off), Birdview Angle (Changes the Birdview

®

 angle), Left Settings (sets the map set-

tings for the left screen of the split map) and Automatic Display of Highway Mode (on/
off) can be set.

Back to Map.

Return to the current position screen.

Landmark Icons

Displays map icons of certain points of interest (such as restaurants and charging sta-
tions, etc.) on the map around the current vehicle location

Update Station

Charging station information is updated through connection to the NISSAN CAR-
WINGS Data Center.
