Nissan Leaf. Manual - part 55





AV

PREPARATION

AV-211

< PREPARATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

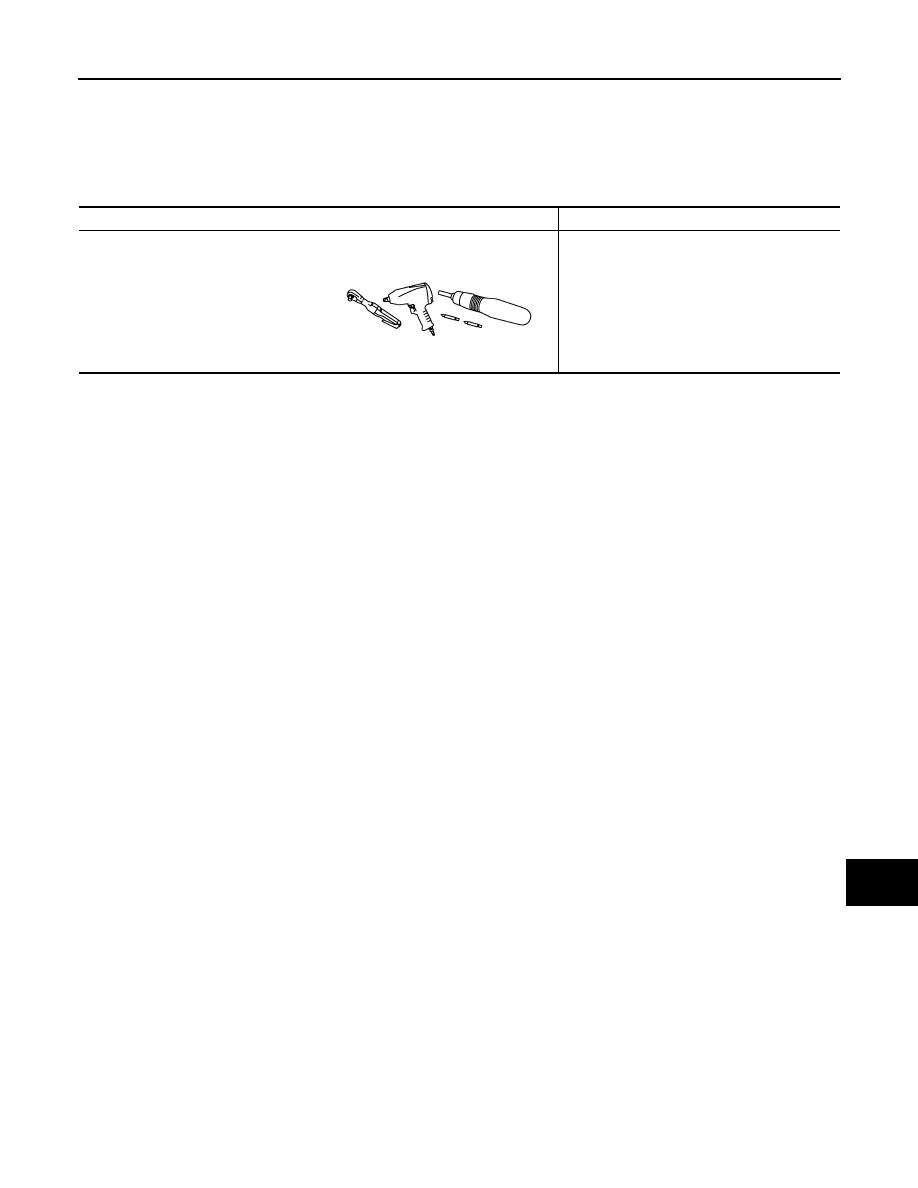

Commercial Service Tool

INFOID:0000000010122505

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV-212

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

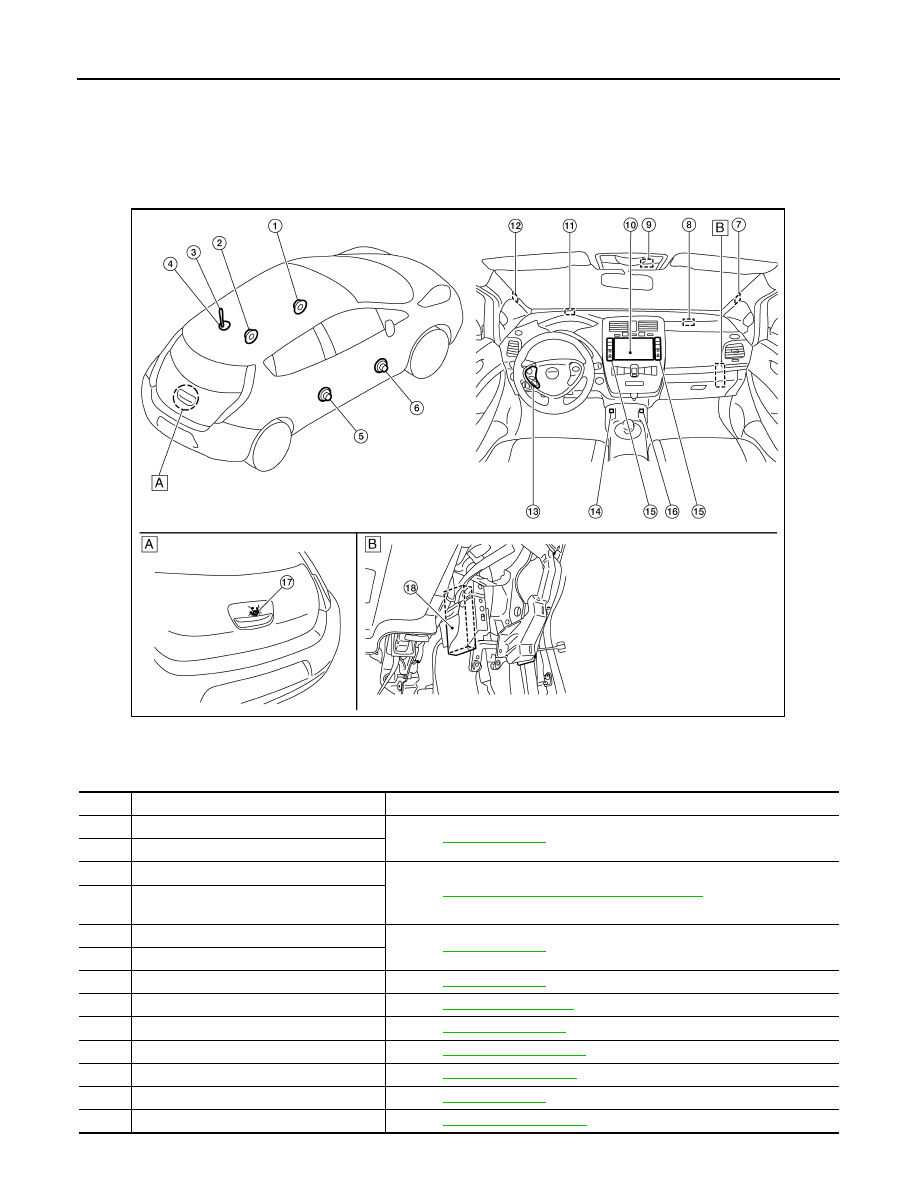

Component Parts Location

INFOID:0000000010122506

A. Center of the back door

B. Glove box cover assembly is re-

moved.

AWNIA3468ZZ

No.

Component

Function

1.

Front door speaker LH

Refer to

AV-214, "Speaker"

.

2.

Rear door speaker LH

3.

Antenna rod

Refer to

AV-215, "Radio Antenna and Antenna Feeder"

.

4.

Antenna base (antenna amp. and satellite
radio antenna)

5.

Rear door speaker RH

Refer to

AV-214, "Speaker"

.

6.

Front door speaker RH

7.

Tweeter RH

Refer to

AV-214, "Speaker"

.

8.

TEL antenna

Refer to

AV-218, "TEL Antenna"

.

9.

Microphone

Refer to

AV-218, "Microphone"

.

10.

AV control unit

Refer to

AV-213, "AV Control Unit"

.

11.

GPS antenna

Refer to

AV-217, "GPS Antenna"

.

12.

Tweeter LH

Refer to

AV-214, "Speaker"

.

13.

Steering switch

Refer to

AV-217, "Steering Switch"

.

AV

COMPONENT PARTS

AV-213

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

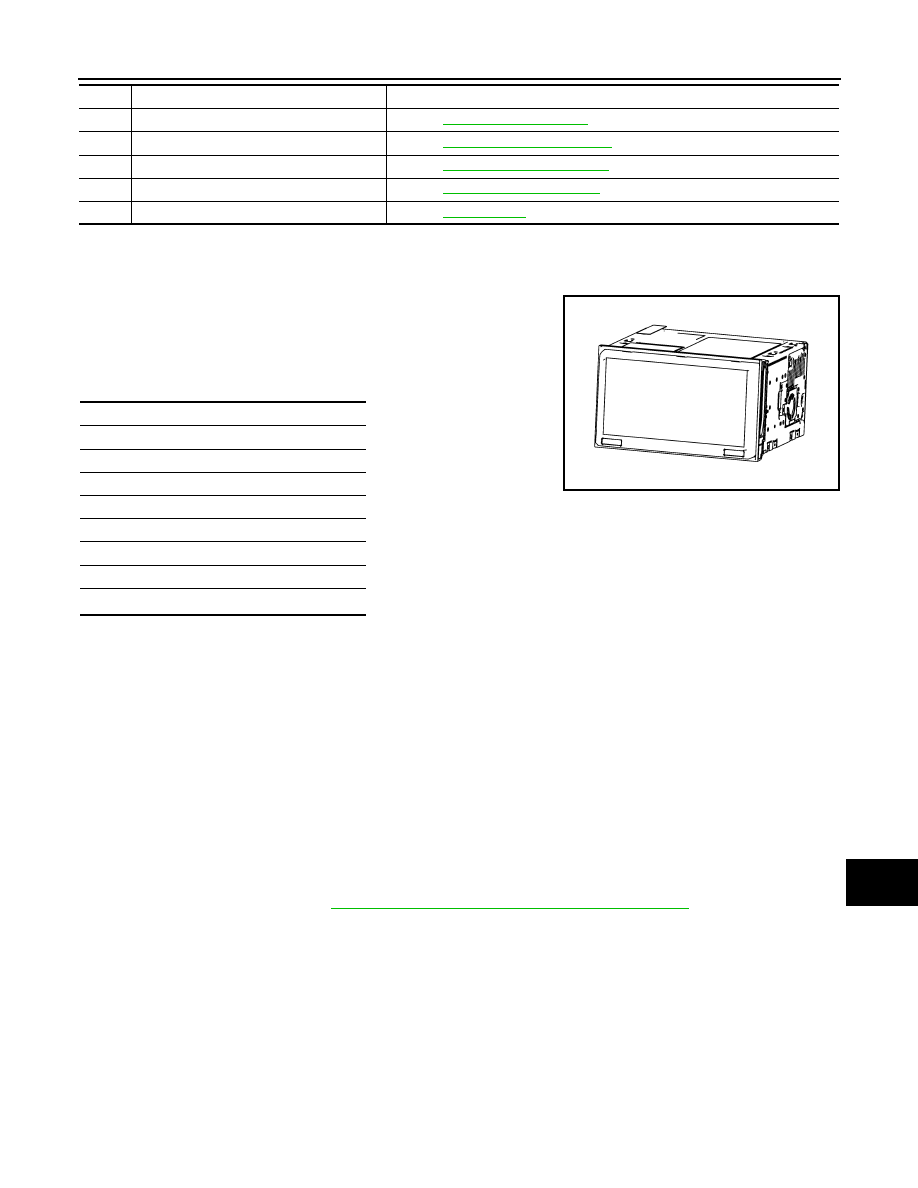

AV Control Unit

INFOID:0000000010122507

DESCRIPTION

• High-resolution 7-inch wide VGA display integrated AV control unit

is installed at the center of the instrument panel.

• The AV control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-

tem.

• Signals necessary for the vehicle information display function are received from ECM and the combination

meter via CAN communication.

• It is connected to TCU in USB communication, and signals necessary for the Telematics function and CAR-

WINGS function are sent and received.

• Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.

• It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake sig-

nal).

• It has the built-in gyro sensor and acceleration sensor as a vehicle position calculation sensor. Map data is

read from an SD card in the SD slot.

- SD  card

• It records the map data, traffic control data, and guide information, etc.

- Gyroscope

• Detects vehicle cornering condition.

- Acceleration sensor

• Detects the inclination angle and height variation of the vehicle.

NOTE:

For details of each function, refer to

AV-221, "MULTI AV SYSTEM : System Description"

.

SD Card Slot

With the display opened, the map card slot is located on the right (main slot), and the card slot used for import/

export of stored location is located on the left (sub slot).

Display

• High resolution 7-inch wide VGA LCD monitor is adopted to display a high definition image including digital

image signals.

• Touch panel function is adopted to improve operability.

• RGB digital image signals (navigation image/menu image) are displayed.

Audio Amplifier

• 45W x 4ch amplifiers are installed.

• Audio sound, TEL voice and guiding voice are output to each speaker.

14.

USB connector

Refer to

AV-218, "USB Connector"

15.

Multifunction switch

Refer to

AV-217, "Multifunction Switch"

.

16.

Auxiliary input jack

Refer to

AV-219, "Auxiliary Input Jack"

.

17.

Rear view camera

Refer to

AV-88, "Rear View Camera"

.

18.

TCU

Refer to

AV-217, "TCU"

.

No.

Component

Function

Units equipped

SD card slot

High resolution 7-inch wide VGA LCD monitor

Audio amplifier

AM/FM electronic tuner

Satellite radio tuner

CD drive

USB interface

Bluetooth

®

 module

JSNIA3618ZZ

AV-214

< SYSTEM DESCRIPTION >

[NAVIGATION WITHOUT BOSE]

COMPONENT PARTS

AM/FM Electronic Tuner

• The AM/FM electric tuner includes the PLL frequency synthesizer system.

Satellite Radio Tuner

• The adoption of the PPL synthesizer method allows the signal reception at more accurate frequencies.

• The satellite radio tuner receives a satellite radio antenna signal and converts the signal into an audio sound

signal and a data signal.

• The audio sound signal is transmitted to the audio amplifier and the data signal is transmitted to the display.

CD Drive

• It is CD-R/CD-RW compliant and enables MP3 and WMA files to play music.

• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag display func-

tion.

USB Interface

• Music can be played by connecting an iPod

®

 or USB memory.

Bluetooth

®

Module

• Wireless connection to the audio device equipped with Bluetooth

®

communication can play music.

• Once a Bluetooth

®

 communication compliant phone has been registered in the AV control unit, hands-free

phone communication and connection to the CARWINGS information center can be carried out without con-

necting the cellular phone to the TEL harness.

• Five units of Bluetooth

®

 communication devices including audio devices and cellular phones can be regis-

tered to the AV control unit.

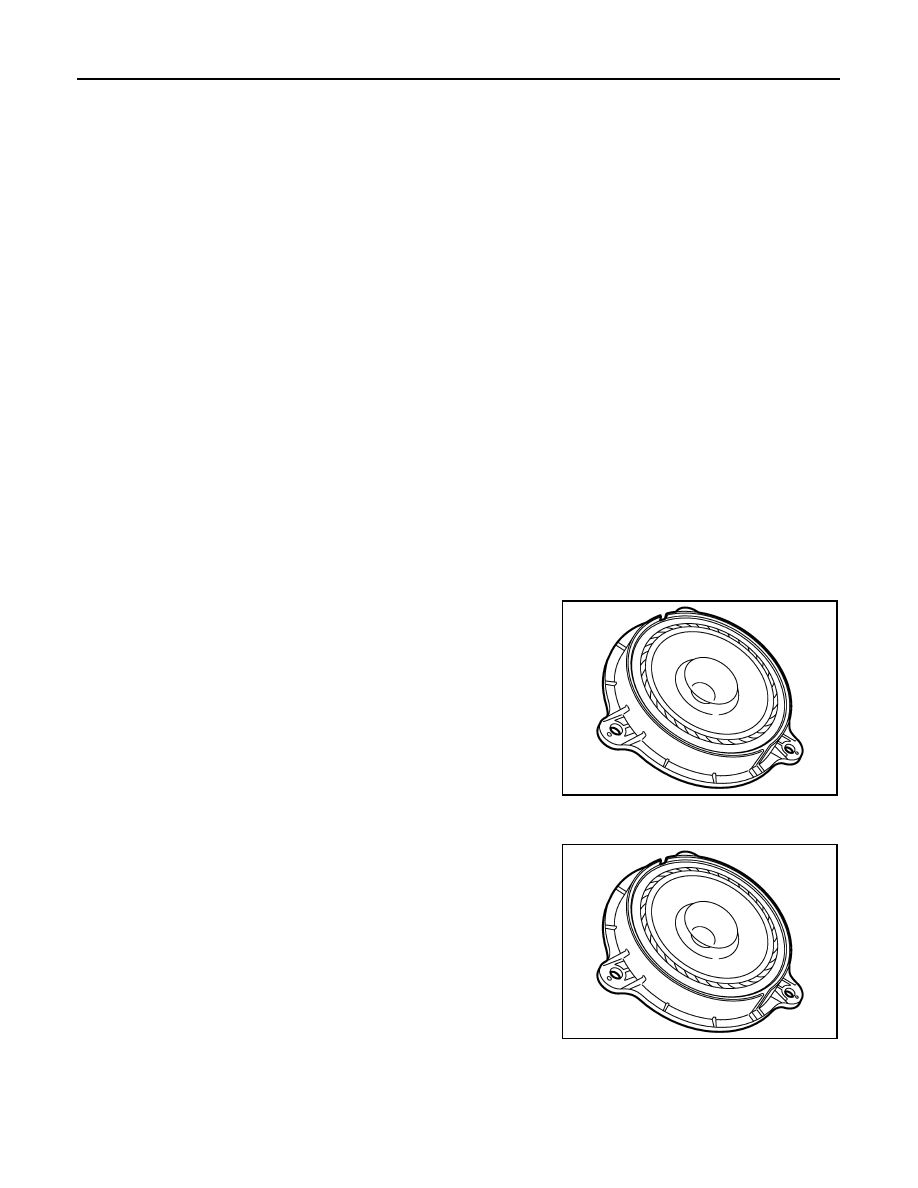

Speaker

INFOID:0000000010122508

The 6-speaker system is adopted.

Front door speaker

•

φ16.5 cm (6.5 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the AV control unit to output mid and low

range sounds.

Rear door speaker

•

φ16.5 cm (6.5 in) speaker is installed to the bottom of the rear door.

• Sound signal is input from the AV control unit to output high, mid

and low range sounds.

Tweeter

•

φ2.5 cm (1 in) tweeter for high-range sounds is installed in the front pillar.

JPNIA1454ZZ

JPNIA1454ZZ
