Nissan Leaf. Manual - part 39

INSPECTION AND ADJUSTMENT

AV-147

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

CONSULT Configuration

Perform “Manual Configuration.” Refer to the Configuration List to write vehicle specification into the AV con-

trol unit. Refer to

AV-147, "CONFIGURATION (AV CONTROL UNIT) : Configuration List"

NOTE:

If selection items are not displayed on the CONSULT screen, touch “NEXT.”

>> GO TO 4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> Work End.

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000010385213

CAUTION:

Check vehicle specifications before servicing.

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)
CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure

INFOID:0000000010558337

SAVING VEHICLE SPECIFICATION

-CONSULT Configuration

Perform “Before Replace ECU”, and save the current vehicle specification in CONSULT.
Is the vehicle specification saved normally?

YES

>> GO TO 2.

>> GO TO 4.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-204, "Removal and Installation"

>> GO TO 3.

WRITING VEHICLE SPECIFICATION

-CONSULT Configuration

Select “Configuration” or “After Replace ECU”, and write the vehicle specification saved in CONSULT to

around view monitor control unit.

>> GO TO 6.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-204, "Removal and Installation"

>> GO TO 5.

WRITE VEHICLE SPECIFICATION

MANUAL SETTING ITEM

Items

Setting value

STEERING

LHD

RHD

SOUND SYSTEM

BASE

BOSE

AV-148

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

INSPECTION AND ADJUSTMENT

CONSULT Configuration

Select “Manual Configuration”, and write the vehicle specification to around view monitor control unit.

NOTE:

Around view monitor control unit does not have any setting items. Selection of items on “Manual Configura-

tion” screen is not required.

>> GO TO 6.

PERFORM SELF-DIAGNOSIS

CONSULT Self Diagnostic Result

Perform self-diagnosis of CONSULT, and check whether or not DTC U1305 is detected.
Is DTC U1305 detected?

>> GO TO 5.

>> GO TO 7.

OPERATION CHECK

Check that the operation of the around view monitor control unit and camera images (fixed guide lines and

predictive course lines) are normal.

>> WORK END

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT
PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000010558338

Adjust the center position of the predictive course line of the rear view monitor if it is shifted.

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure

INFOID:0000000010558339

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)
CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description

INFOID:0000000010558340

• Calibration must be performed after removing/replacing the cameras, removing parts (e.g. front grille, door

mirror, and others) mounted on the cameras, or replacing the Around view monitor control unit.

• The use of CONSULT is required to perform calibration or writing of calibration results to the Around view

monitor control unit.

• Align the white lines on the road near the vehicle at the boundary of each camera image by this camera cal-

ibration. The white lines far from the vehicle may not be aligned at the boundary of each camera image. The

farther the line, the greater the difference is.

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure

INFOID:0000000010558341

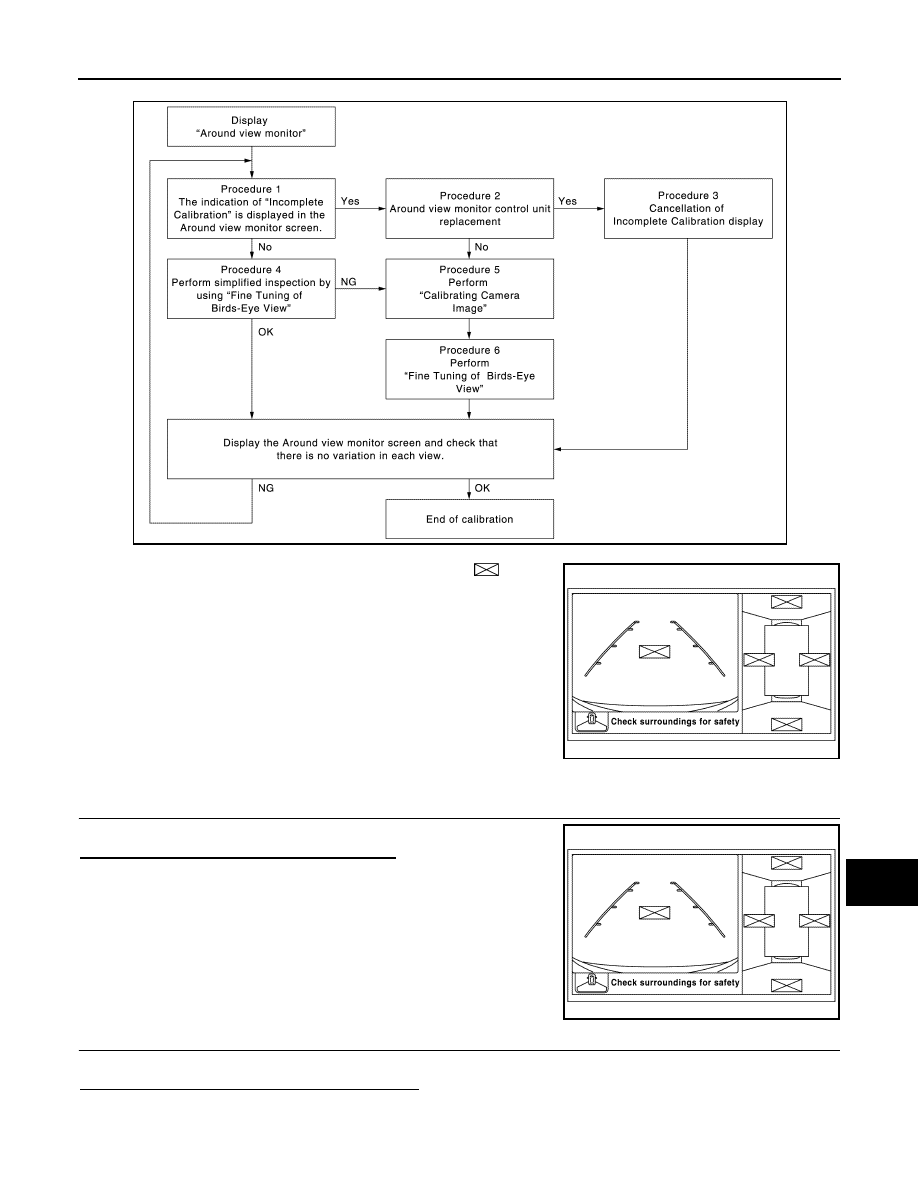

CALIBRATION FLOWCHART

INSPECTION AND ADJUSTMENT

AV-149

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

Following the flowchart shown in the figure, perform the calibration.

NOTE:
View in the incomplete calibration state is indicated by “

” on the

around view monitor.

CALIBRATION PROCEDURE

AROUND VIEW MONITOR SCREEN CONFIRMATION

Check that there is no indication of “Incomplete calibration”.
Is the “Incomplete calibration” display visible?

YES

>> GO TO 2.

>> GO TO 4.

CHECK THAT AROUND VIEW MONITOR CONTROL UNIT IS REPLACED

Check that the around view monitor control unit is replaced.
Is the around view monitor control unit replaced?

YES

>> GO TO 3.

>> GO TO 5.

JSNIA4210GB

JSNIA4606ZZ

AV-150

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

INSPECTION AND ADJUSTMENT

CANCEL THE INDICATION OF INCOMPLETE CALIBRATION (PERFORM THIS ONLY AFTER REPLAC-

ING AROUND VIEW MONITOR CONTROL UNIT.)

CONSULT work support

1. On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING

CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRATING CAMERA IMAGE (DR-SIDE CAMERA)”, or

“CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection.

NOTE:

To cancel the indication of Incomplete calibration, select items based on the target camera.

2. On the adjustment screen of each camera, touch “APPLY” but-

ton. After this, touch “OK” button.

CAUTION:

• Never perform operations other than those mentioned

above.

• Never perform “Initialize Camera Image Calibration”.

3. Display the around view monitor screen to check that there is no

errors, such as deviations among the camera images.

Is there a malfunction?

YES

>> Calibration end

>> GO TO 1.

PERFORM SIMPLIFIED CONFIRMATION/ADJUSTMENT BY “FINE TUNING OF BIRDS-EYE VIEW”

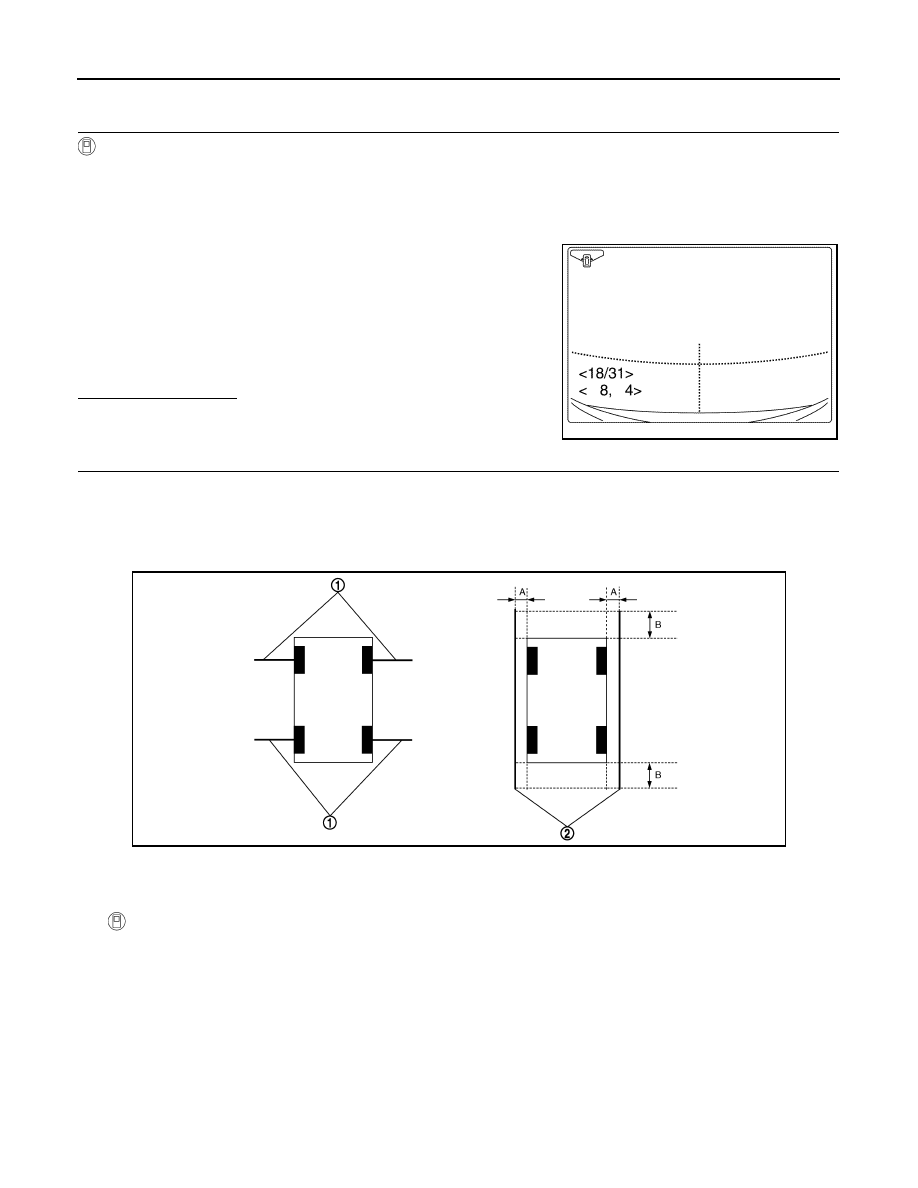

1. Put target line 1 on the ground beside each axle using packing tape, etc.

2. Put target lines 2 equal to the vehicle total length + approximately 1.0 m (39.3 in) from the vehicle side

(right and left) at approximately 30 cm (11.8 in) away from the vehicle (make the line as parallel with the

vehicle as possible)

Preparation of simplified target line

CONSULT work support

Touch “FINE TUNING OF BIRDS-EYE VIEW” on the CONSULT screen.

4. On the CONSULT screen, touch “SELECT” button to select right or left camera and perform camera cali-

bration as instructed below:

If the marker on the screen deviates from Target line 1, touch “AXIS X” button and “AXIS Y” button to

adjust so that the marker is placed on the Target line 1.

If Target line 2 is misaligned among the cameras, adjust each camera image to bring Target line 2 into a

straight line.

CAUTION:

Never adjust the front camera and rear camera. Only adjust the right and left cameras.

JSNIA4212ZZ

JSNIA0927ZZ

Target lines 1

Target lines 2

Approx. 30 cm (11.8 in)

Approx. 1.0 m (39.3 in)
