Nissan Leaf. Manual - part 37

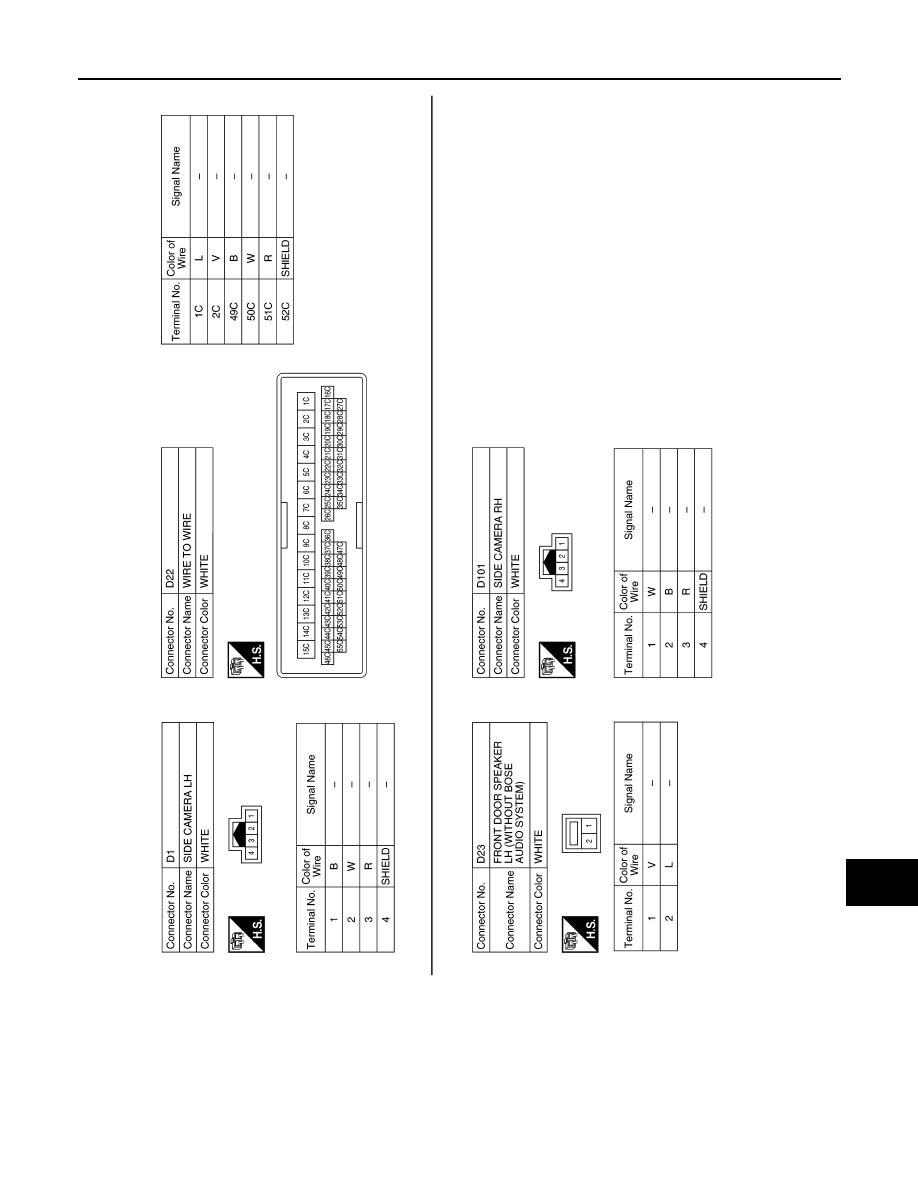

AV

AUDIO W/O NAVI (FOR MEXICO)

AV-139

< WIRING DIAGRAM >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA2788GB

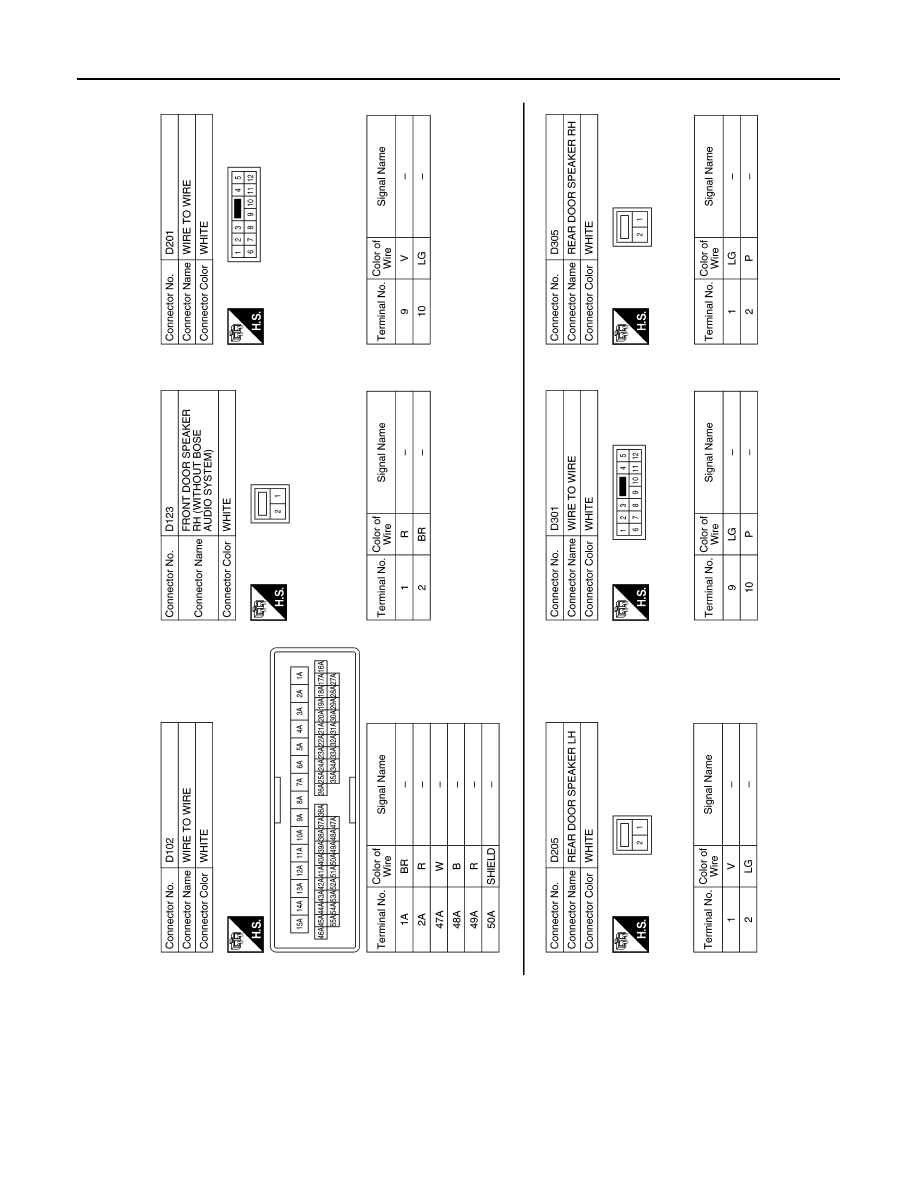

AV-140

< WIRING DIAGRAM >

[AUDIO W/O NAVI (FOR MEXICO)]

AUDIO W/O NAVI (FOR MEXICO)

AANIA2789GB

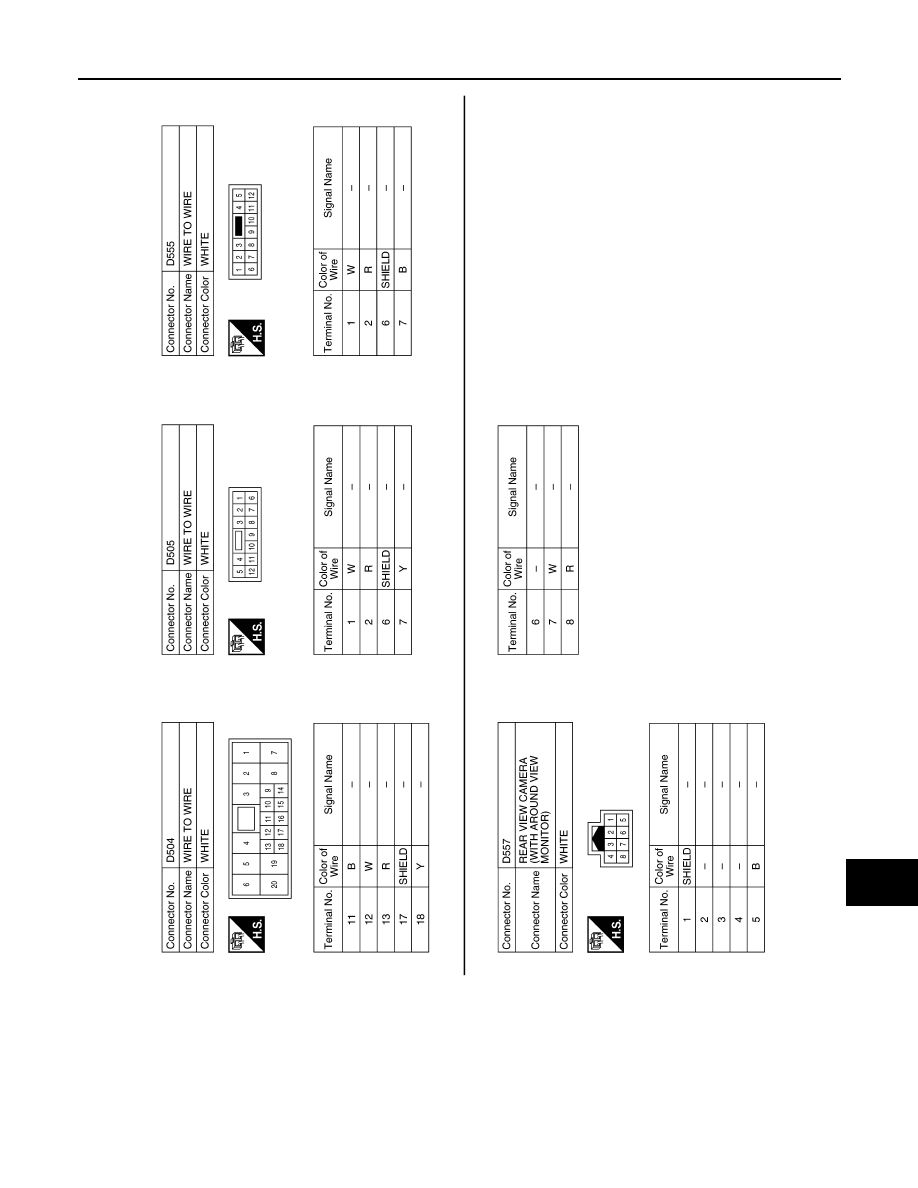

AV

AUDIO W/O NAVI (FOR MEXICO)

AV-141

< WIRING DIAGRAM >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA2790GB

AV-142

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010558331

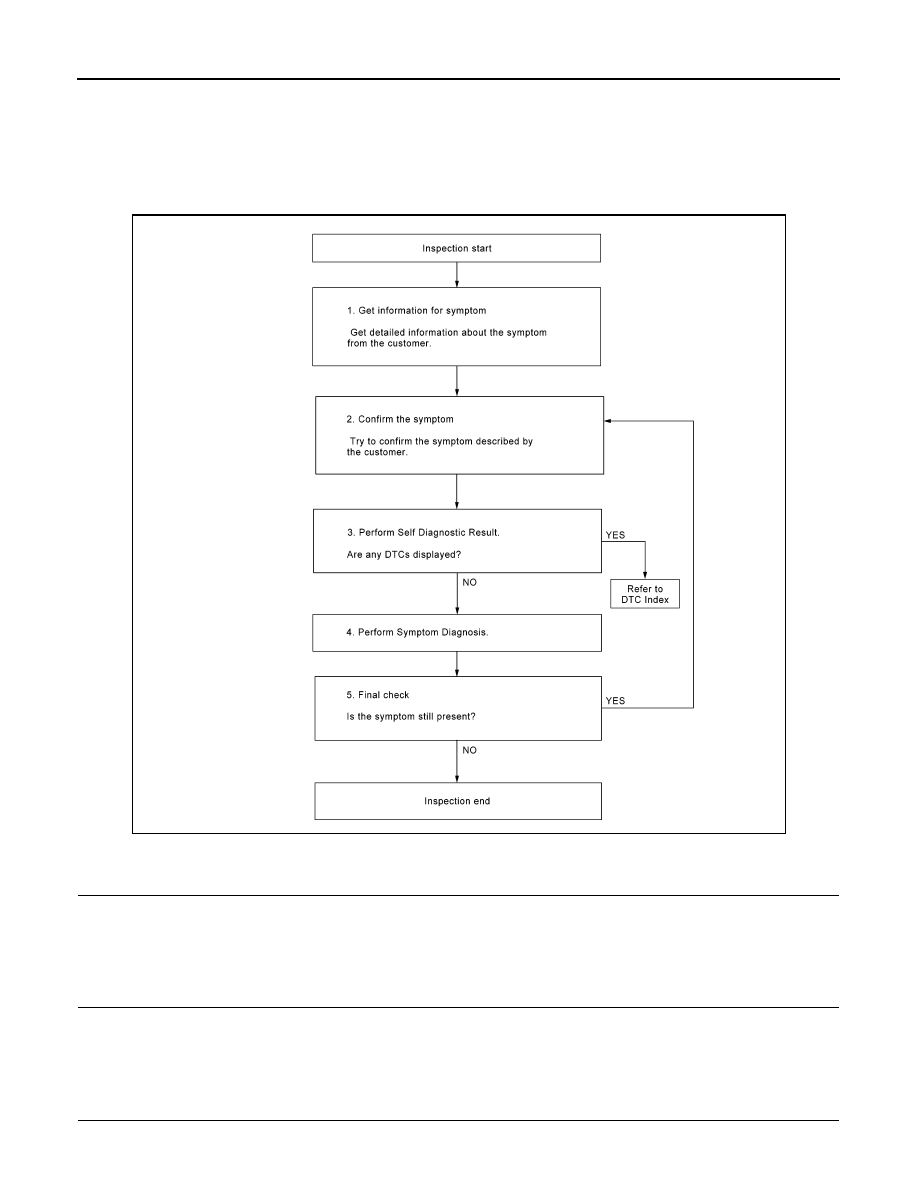

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn power switch ON and wait for 2 seconds or more.

AWNIA2982GB
