Nissan Leaf. Manual - part 40

AV

INSPECTION AND ADJUSTMENT

AV-151

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

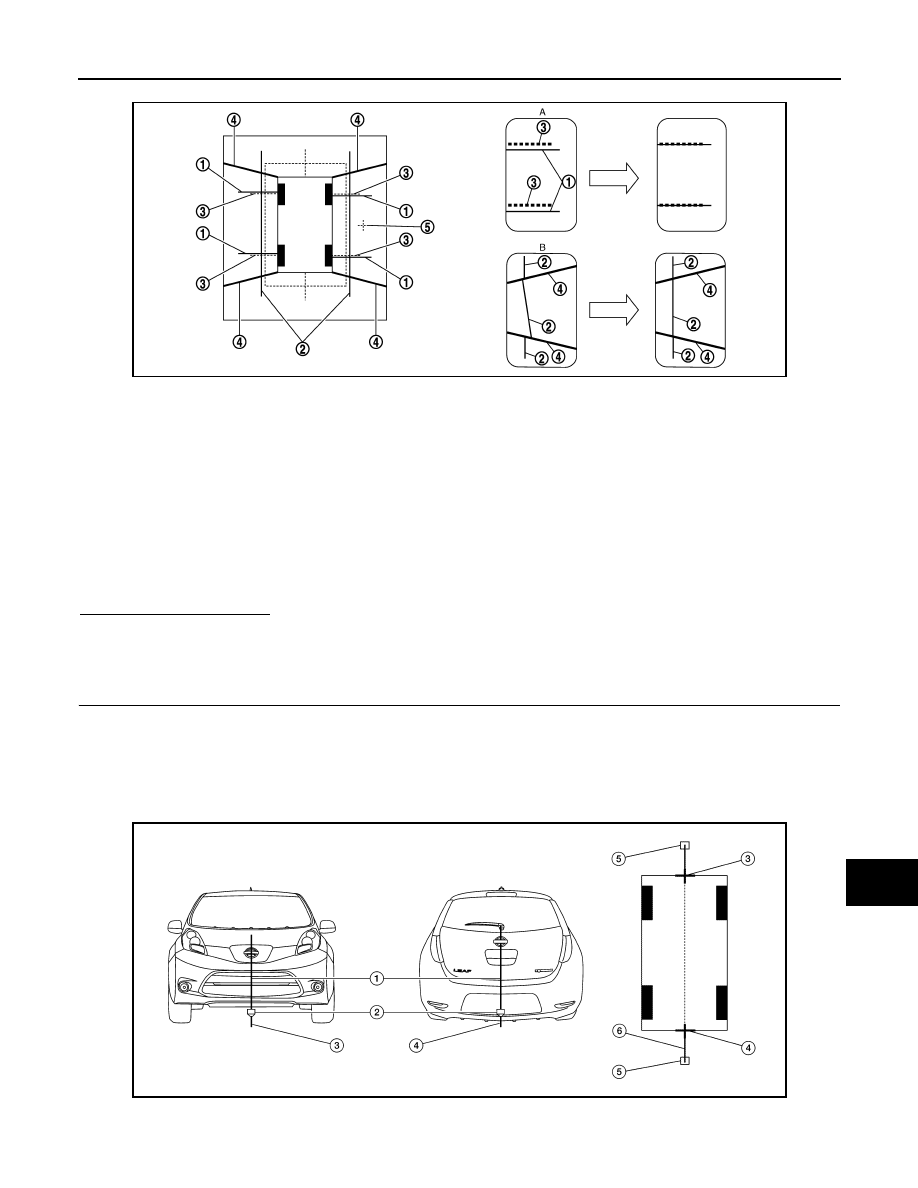

Simplified target line adjustment method

5. Adjust right and left cameras. Touch "APPLY" on the CONSULT screen to display adjustment results.

6. After adjusting right and left cameras, check that the marker is properly placed on the screen and there is

no deviation in Target line 1.

NOTE:

• It can be initialized to the NISSAN factory default condition with “Initialize Camera Image Calibration”.

• The adjustment value is cancelled on this mode by performing “Initialize Camera Image Calibration”.

Is the difference corrected?

YES

>> On the CONSULT screen, touch “OK” button to complete writing to the around view monitor con-

trol unit.

NO

>> GO TO 5.

5.

PERFORM “CALIBRATING CAMERA IMAGE”

Preparation of target line

1. Hang a string with a weight as shown in the figure. Put the points FM0, RM0 (mark) on the ground at the

center of the vehicle front end and rear end with white packing tape or a pen.

2. Route the vinyl string under the vehicle, and then pull and fix it on the point approximately 1.0 m (39.9 in)

to the front and rear of the vehicle through the points FM0 and RM0 using packing tape.

Target line preparation procedure 1

JSNIA0929ZZ

1.

Target lines 1

2.

Target lines 2

3.

Marker for target line 1

4.

Boundary between cameras

5.

Crosshairs cursor (mark indicated
the selected camera)

A.

Adjustment method for target lines 1
(right)

B.

Adjustment method for target lines 2
(right)

AWNIA3022ZZ

AV-152

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

INSPECTION AND ADJUSTMENT

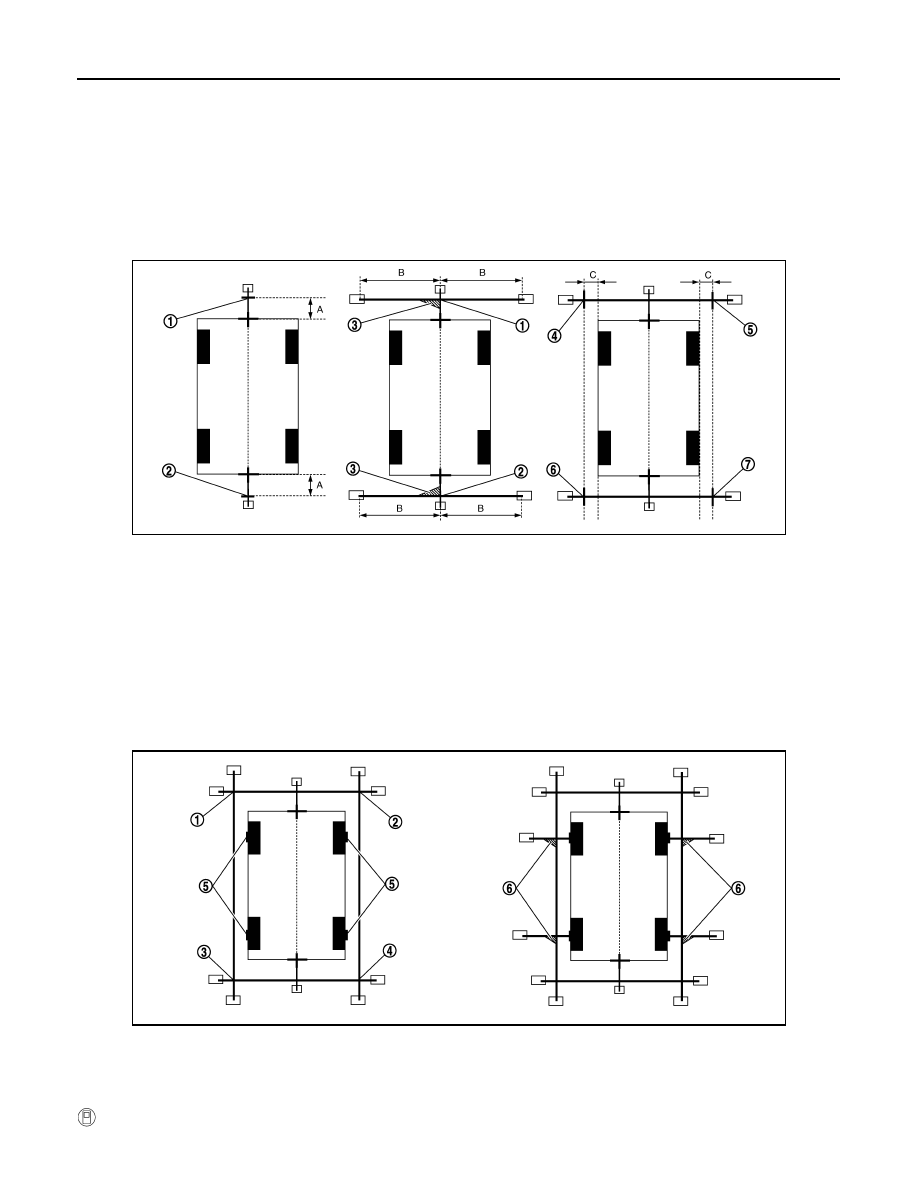

3. Put the points FM and RM (mark) 75 cm (29.5 in) from the points FM0 and RM0 individually.

4. Route the vinyl string through the points FM and RM using a triangle scale, and then fix it at approximately

1.5 m (59 in) on both sides with packing tape.

5. Put the points FL, FR, RL, and RR (mark) to both right and left [vehicle width / 2 + 30 cm (11.8 in)] from the

points FM and RM.

Target line preparation procedure 2

6. Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing tape.

7. Put a mark on the center of each axle, draw vertical lines to the lines of the points FL – RL and FR – RR

from the marks on the center of the axle using a triangle scale, and then fix the lines using packing tape.

Target line preparation procedure 3

Perform “Calibrating Camera Image”

CONSULT work support

1.

Thread

2.

Weight

3.

Point FM0 (mark)

4.

Point RM0 (mark)

5.

Packing tape (to fix the vinyl string)

6.

Vinyl string

JSNIA0921ZZ

1.

Point FM

2.

Point RM

3.

Triangle scale

4.

Point FL (mark)

5.

Point FR (mark)

6.

Point RL (mark)

7.

Point RR (mark)

A.

75 cm (29.5 in)

B.

Approx. 1.5 m (59 in)

C.

30 cm (11.8 in)
[Vehicle width/ 2 + 30 cm (11.8 in)
from the points FM and RM]

JSNIA0922ZZ

1.

Point FL

2.

Point FR

3.

Point RL

4.

Point RR

5.

Center position of axle

6.

Triangle scale

AV

INSPECTION AND ADJUSTMENT

AV-153

< BASIC INSPECTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING

CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRATING CAMERA IMAGE (DR-SIDE CAMERA)”, or

“CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection.

NOTE:

To cancel the indication of Incomplete calibration, select items based on the target camera.

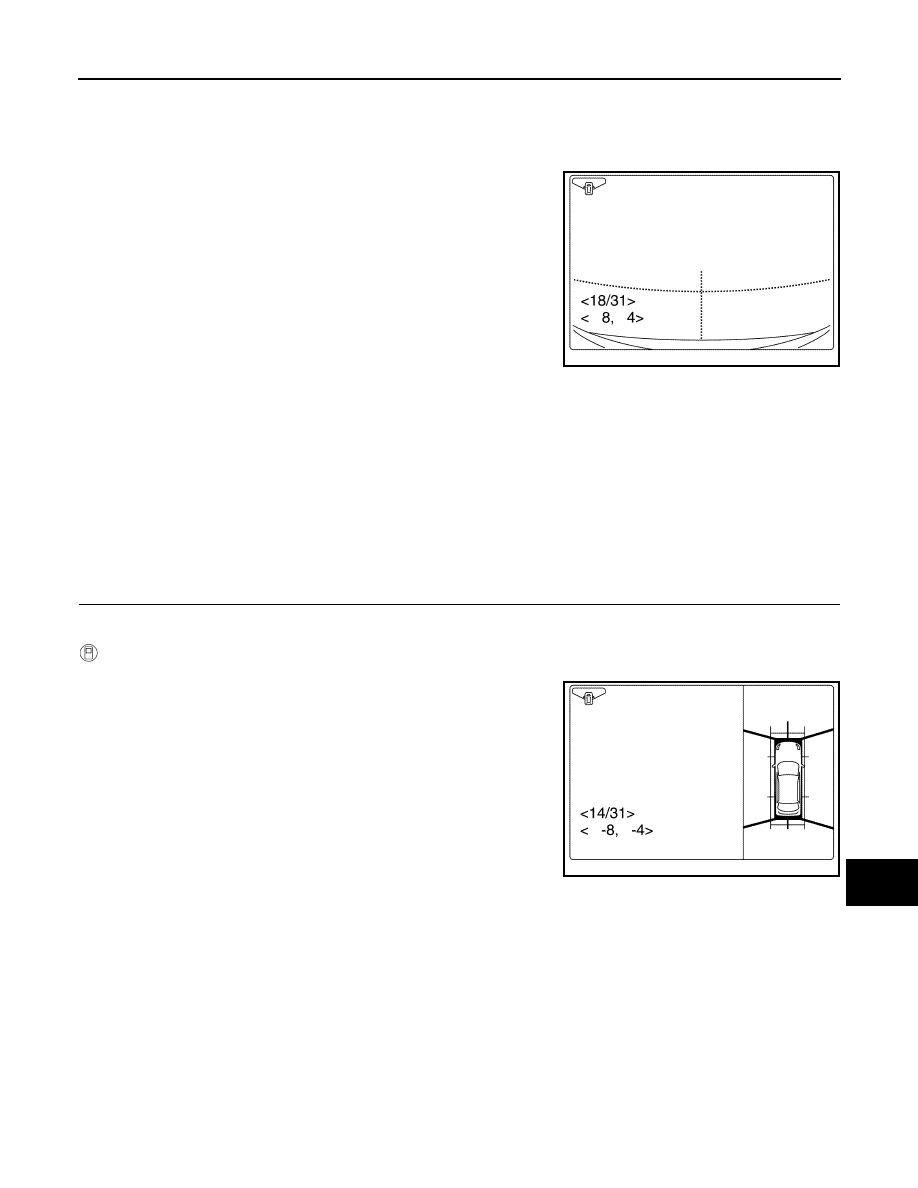

2. On the adjustment screen of each camera, adjust the parameter

by touching the “AXIS X” button, “AXIS Y” button, and

“ROTATE” button to place the calibration marker shown on the

camera screen on the target line drawn on the ground.

3. Touch “APPLY” button on the CONSULT screen. “PRCSNG” is

displayed and adjustment results are shown on the camera screen.

CAUTION:

Check that “PRCSNG” is displayed. Do never perform other operations while “PRCSNG” is dis-

played.

4. Touch “OK” button on the CONSULT screen. “PRCSNG” is displayed and adjustment results are written to

the around view monitor control unit.

CAUTION:

Check that “PRCSNG” is displayed. Do never perform other operations while “PRCSNG” is dis-

played.

>> GO TO 6.

6.

PERFORM “FINE TUNING OF BIRDS-EYE VIEW”

This mode is designed to align the boundary between each camera image that could not be aligned in the

“Calibrating Camera Image” mode.

CONSULT work support

1. Select “FINE TUNING OF BIRDS-EYE VIEW” by touching CONSULT screen.

2. On the adjustment screen of each camera, adjust the parameter

by touching the “AXIS X” button, “AXIS Y” button”, and

“ROTATE” button to place the calibration marker shown on the

camera screen on the target line drawn on the ground.

NOTE:

Touch “SELECT” button on the CONSULT screen to select the

target camera.

3. Touch “APPLY” button on the CONSULT screen. “PRCSNG” is

displayed and adjustment results are shown on the camera

screen.

CAUTION:

Check that “PRCSNG” is displayed. Do never perform other

operations while “PRCSNG” is displayed.

4. Touch “OK” button on the CONSULT screen. “PRCSNG” is displayed and adjustment results are written to

the around view monitor control unit.

CAUTION:

• Check that “PRCSNG” is displayed. Never perform other operations while “PRCSNG” is dis-

played.

• After pressing the “OK” button, never press buttons other than the “BACK” button.

NOTE:

• It can be initialized to the NISSAN factory default condition with “Initialize Camera Image Calibration”.

• The adjustment value is cancelled in this mode by performing “Initialize Camera Image Calibration”.

>> Calibration end

Adjustment range
Rotation direction (Center dial)

: 31 patterns (16 on the center)

Upper/lower direction (upper/lower
switch)

:

−22 – 22

Left/right direction (left/right switch)

:

−22 – 22

JSNIA4212ZZ

JSNIA4214ZZ

AV-154

< DTC/CIRCUIT DIAGNOSIS >

[AUDIO W/O NAVI (FOR MEXICO)]

U0428 STEERING ANGLE SENSOR

DTC/CIRCUIT DIAGNOSIS

U0428 STEERING ANGLE SENSOR

DTC Logic

INFOID:0000000010558350

Diagnosis Procedure

INFOID:0000000010558351

1.

ADJUST THE NEUTRAL POSITION OF THE STEERING ANGLE SENSOR

When U1232 is detected, adjust the neutral position of the steering angle sensor.

>> Perform adjustment of the neutral position of the steering angle sensor. Refer to

AV-112, "CON-

SULT Function"

.

CONSULT Display

DTC Detection Condition

Possible Cause

ST ANGLE SENSOR CALI-
BRATION
[U0428]

The neutral position adjustment of the steering
angle sensor is incomplete.

Adjust neutral position of the steering angle sen-
sor.
