AV

SYSTEM

AV-95

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

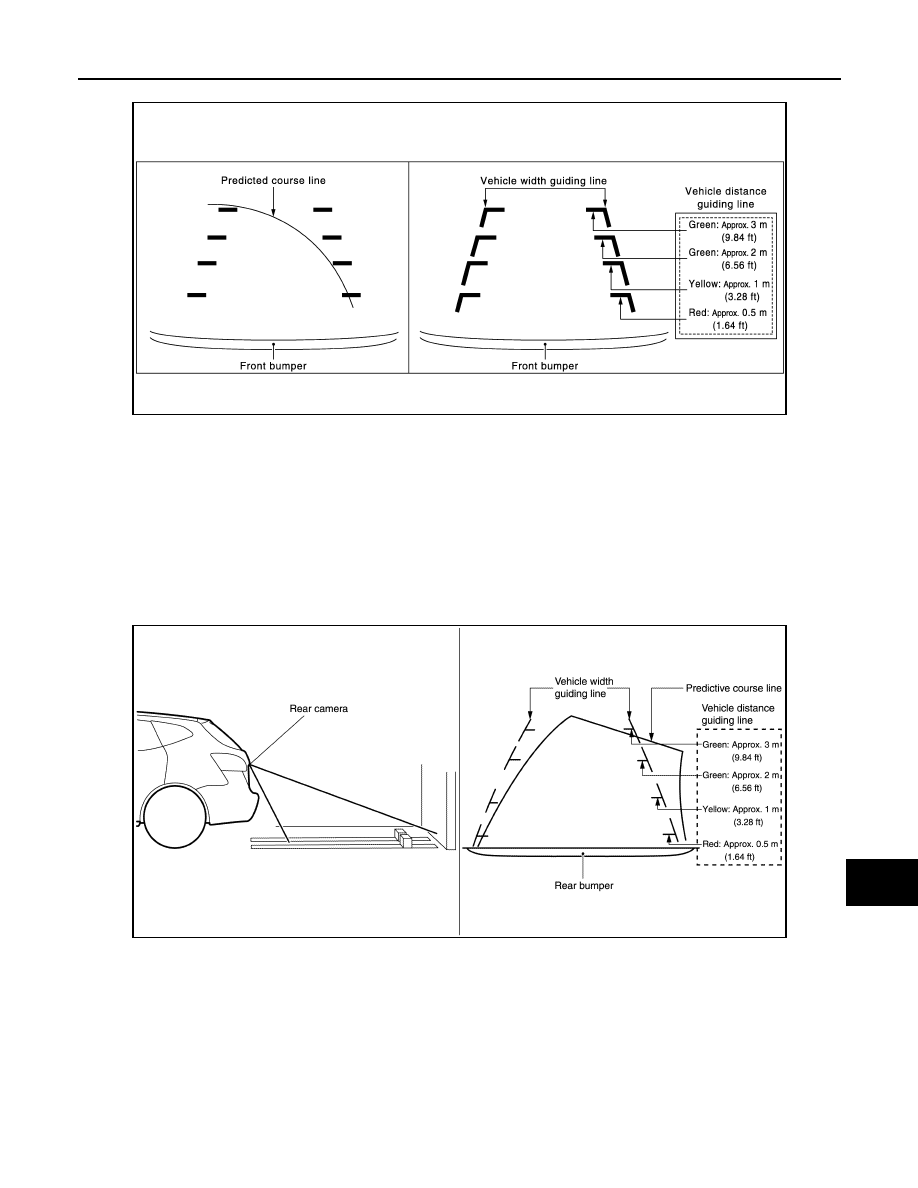

Front view guiding lines

Rear View

• The rear view image improves the visibility of obstacles in the rear of the vehicle and assists backing and

parking by displaying images from birds-eye view and front side view.

• The rear view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to

the predictive course line according to the steering angle.

NOTE:

The predictive course line is not displayed at the steering neutral position.

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN

communication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed using CONSULT.

Rear view guiding lines

Front-Side View

• The front-side view image improves the visibility of obstacles in the front RH side of the vehicle and assists

backing and parking.

• The front-side view image displays the vehicle distance guiding line and vehicle width guiding line.

JSNIA0770GB

JSNIA4567GB

AV-96

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

SYSTEM

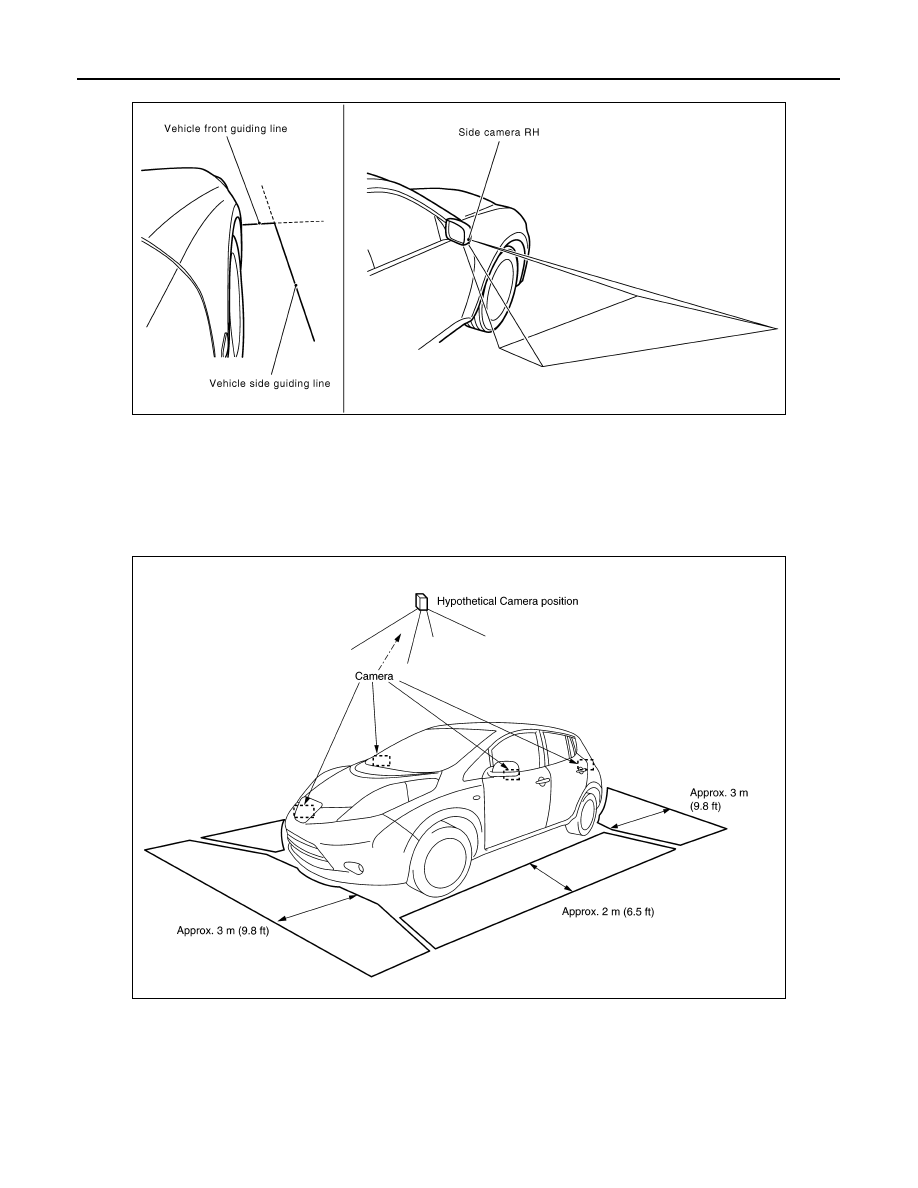

Front-side view area and guiding line

Birds-Eye View

• The birds-eye view image improves the visibility of obstacles all around the vehicle and assists backing and

parking.

• The images from the four cameras are converted into an overhead view, and the surroundings of the vehicle

are displayed.

• The blind spot area is displayed on the image to specify the boundary of the four cameras.

Birds-Eye view display image

JSNIA0771GB

AWNIA3471GB

AV

SYSTEM

AV-97

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

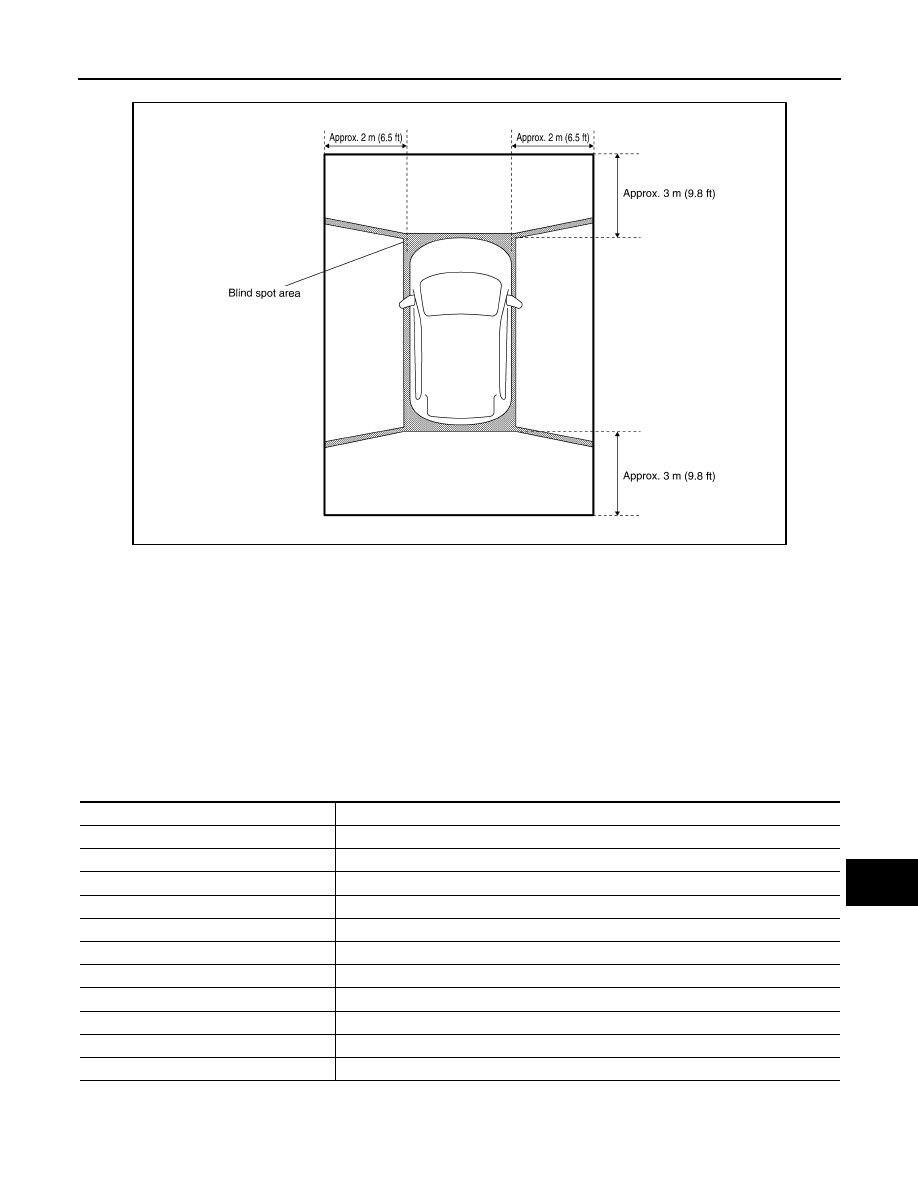

Birds-Eye view display area

MULTI AV SYSTEM : Fail-safe

INFOID:0000000010505324

When a malfunction occurs within the system, the AV control unit outputs a message on the display, and it

restricts the AV control unit functions.

FAIL-SAFE CONDITIONS

SD card not inserted, SD card malfunction, internal malfunction of navigation, etc.

Display Indication

• When the system is in the fail-safe status at the start of the AV control unit, an error message is shown on

the display.

•  When the system is in the fail-safe status after the start of the AV control unit, an error message is not

shown on the display. The MULTI AV system may be rebooted in the fail-safe state. If the fail-safe state is

maintained after the system is rebooted, an applicable message is shown.

CONTROL

When the system is in the fail-safe status at or after start of the AV control unit, the following functions are

restricted.

AWNIA3142GB

Cause

Display monitor

Malfunction of flash ROM information

TARGET INFO NG

No SD card

NO SD CARD

Unsuccessful security unlock

SD UNLOCK NG

Malfunction of SD card mount

SD INIT NG

Malfunction of SD card access

SD ACCESS NG

No program data

NO NAVI-2 DATA

Malfunction of program data (SUM NG)

NAVI-2DATA READ NG

Inconsistent program version (Flash/SD)

NAVI VERSION NG

Difference of map destination

DIFFERENT MAP CODE

Not compliant with map database version

MAP DATA BASE UNMATCH

Malfunction of navigation

NAVI STARTUP NG

AV-98

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

SYSTEM

CANCELLATION CONDITIONS

The fail-safe status is canceled under the following conditions, and then the system returns to the normal

mode.

• When the SD card is not inserted, the SD card is inserted and the power of the AV control unit is turned ON

again.

• When the SD card is not functional at the start of navigation due to a malfunction of the SD card, a normal

SD card is inserted and the power of the AV control unit is turned ON again.

Function

In fail-safe mode

A/C

Dis-
play

No display (fail-safe status display)

Audio

Opera-

tion

Mute audio

Dis-
play

No display (fail-safe status display)

Hands-free phone

Opera-

tion

It cannot be operated

Navigation

Opera-

tion

It cannot be operated

Display

Opera-

tion

Open/close operation is available

Dis-
play

Fail-safe factors are displayed

Self-diagnosis

It cannot be diagnosed

CONSULT diagnosis

It cannot be diagnosed

AV communication diagnosis

It cannot be diagnosed

Frequency transmission for VCM

Normal

SD read access

Access cannot be gained.

SD write access

Access cannot be gained.
