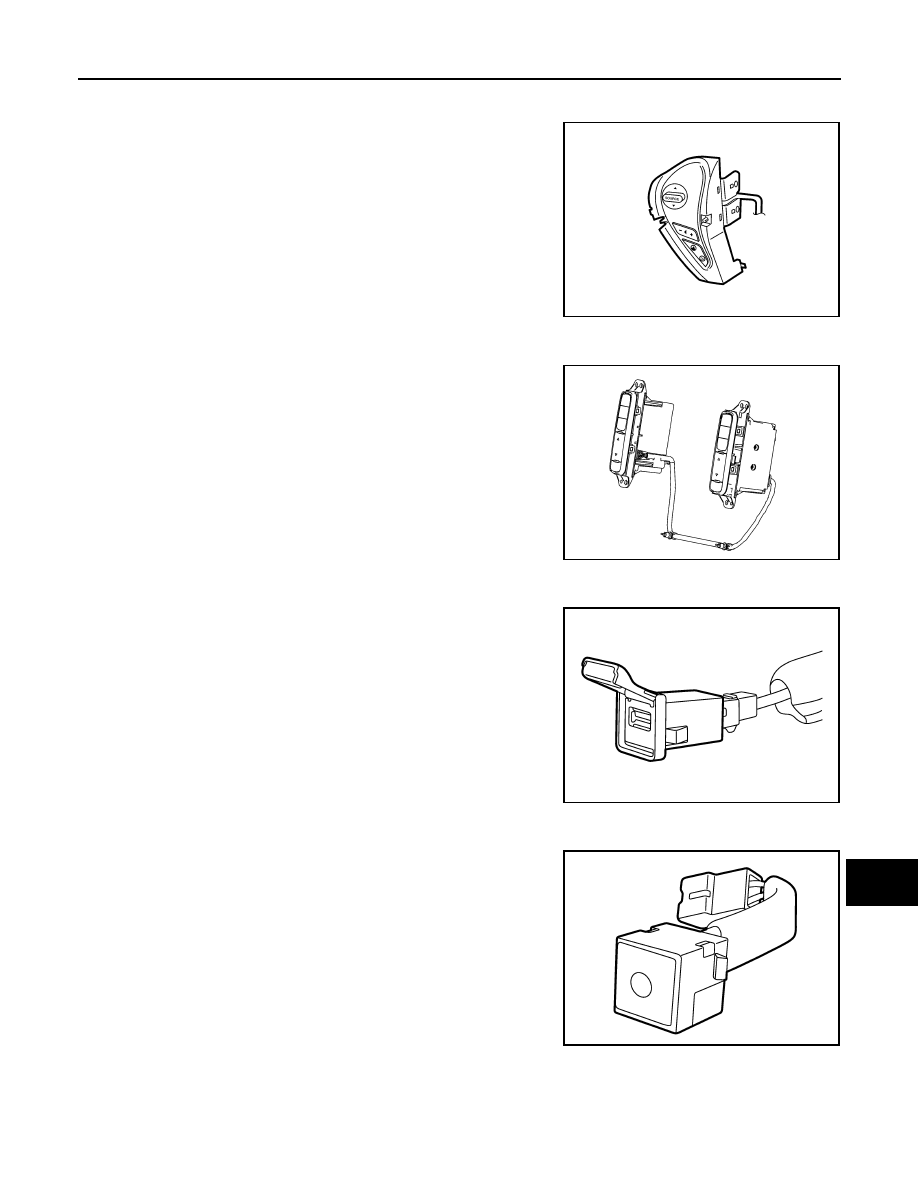

Steering Switch

INFOID:0000000010385175

• Hands-free phone, possible driving distance display, voice control,

and audio operations can be performed.

• This switch is connected to the AV control unit, and the switch

operation signal is transmitted to the AV control unit via voltage

multiplex communication.

Multifunction Switch

INFOID:0000000010385176

• Audio, navigation, Telematics, etc. can be controlled.

• Switch operation signals are input to the AV control unit via AV

communication.

USB Connector

INFOID:0000000010385179

• USB connector is installed on the lower left side of the instrument

panel.

• iPod

®

 and USB memory can be connected to the AV control unit.

Microphone

INFOID:0000000010385180

• The voice control/TEL microphone is installed on the right side of

the map lamp assembly.

• The power is supplied from the AV control unit to the microphone,

transmitting sound signals to the AV control unit at the voice con-

trol or during hands-free phone communication.

AWNIA3466ZZ

JSNIA3620ZZ

JPNIA1447ZZ

JPNIA1448ZZ

AV-88

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

COMPONENT PARTS

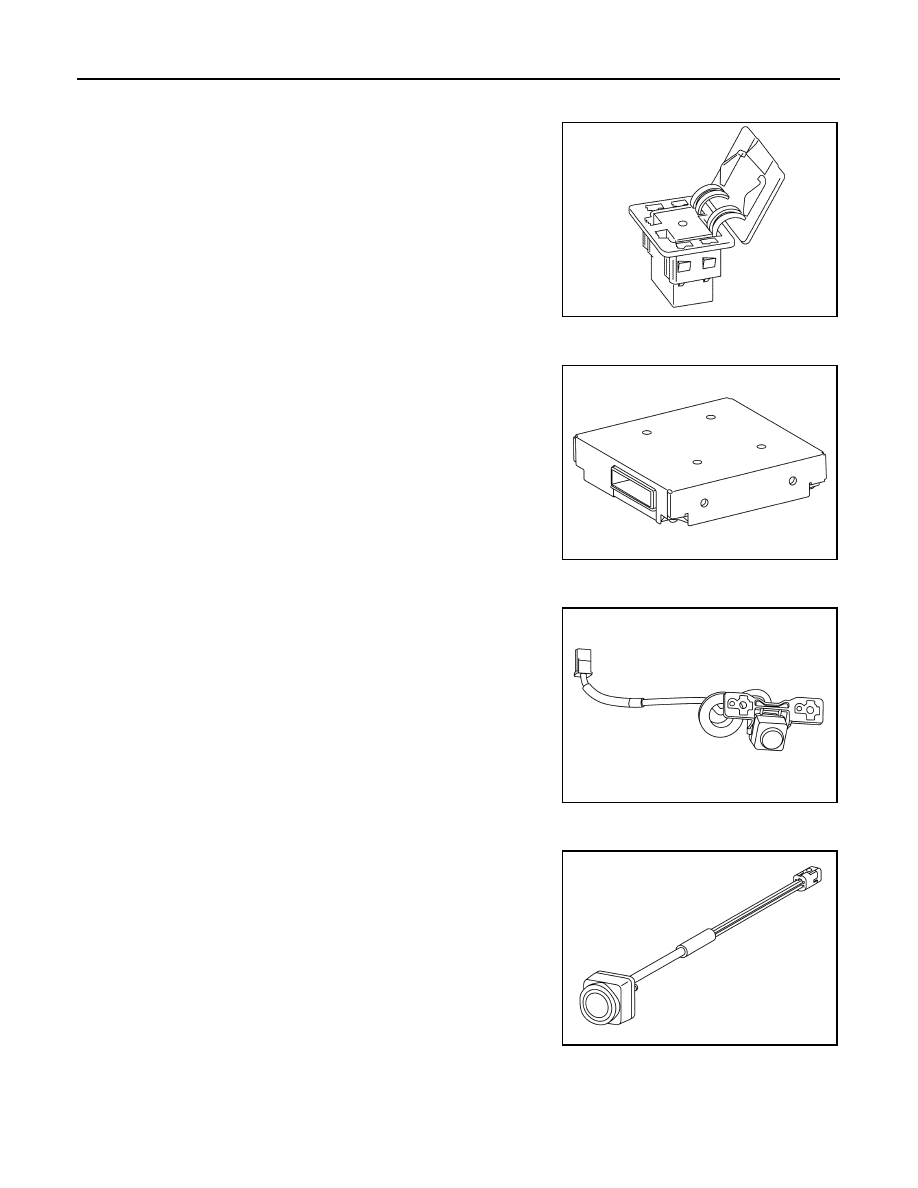

Auxiliary Input Jack

INFOID:0000000010385182

• AUX jack is installed at the lower right of the instrument panel.

• Connection to an external audio device can provide sound output.

NOTE:

When connected to monaural mini-jack plug cable, sound may not

be output.

Around View Monitor Control Unit

INFOID:0000000010505319

• The around view monitor control unit is installed behind the RH

side of the instrument panel.

• Necessary signals are transmitted/received to/from control unit via

CAN communication.

• Camera image signals received from each camera are converted/

synthesized in the around view monitor control unit and transmitted

to the front display unit.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are rendered with

the around view monitor control unit and combined with camera

image.

Rear View Camera

INFOID:0000000010505320

• The rear camera is installed to the back door finisher.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the rear of the vehicle is sent to the

around view monitor control unit.

Side Camera

INFOID:0000000010505321

• The side camera is installed to the door mirror.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the side of the vehicle is sent to the

around view monitor control unit.

External input terminal for connection

φ3.5 mm stereo mini-jack

JSNIA3792ZZ

JSNIA5395ZZ

JSNIA5396ZZ

JSNIA5397ZZ

AV

COMPONENT PARTS

AV-89

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

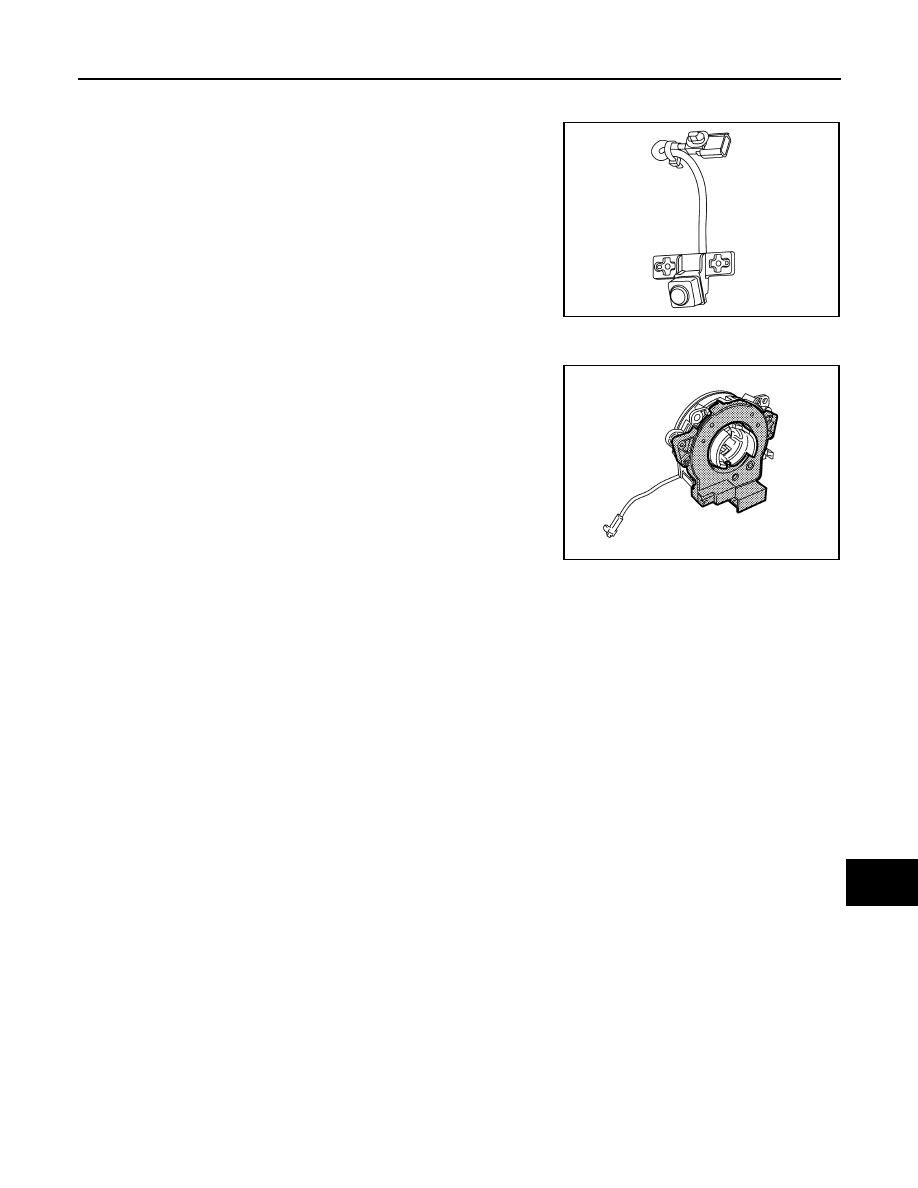

Front Camera

INFOID:0000000010505322

• The front camera is installed to the front grille.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the front of the vehicle is sent to the

around view monitor control unit.

Steering Angle Sensor

INFOID:0000000010505323

• Steering sensor is installed to the spiral cable.

• Steering angle sends the steering signal necessary for possible

route line of the around view monitor function to the AV control unit

via CAN communication.

JSNIA5398ZZ

JSNIA1571ZZ

AV-90

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

SYSTEM

SYSTEM

MULTI AV SYSTEM

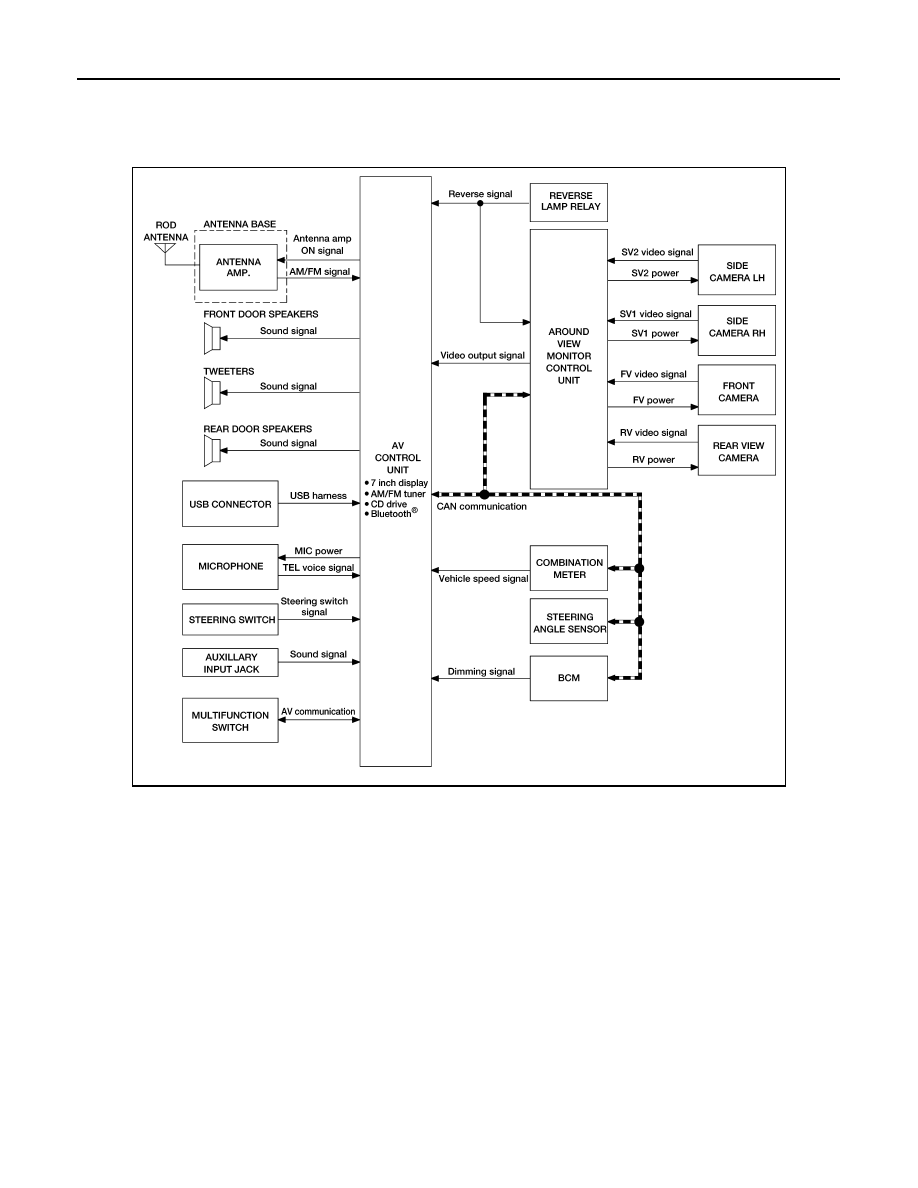

MULTI AV SYSTEM : System Diagram

INFOID:0000000010385184

MULTI AV SYSTEM : System Description

INFOID:0000000010385185

• AV control unit is connected to the following parts. It performs power supply, signal input and communica-

tion, and it controls the multi-AV system.

- Radio antenna (radio antenna amplifier)

- Around view monitor control unit

- Front camera

- Side cameras (LH and RH)

- Rear view camera

- USB connector

- Auxiliary input jack

- BCM

- Combination meter

- Steering switch

- Multifunction switch

- Microphone

- Speakers

- Vehicle signals (reverse signal, vehicle speed signal and illumination signal)

• Data of external device connected to the USB connector is played and transferred.

AWNIA3451GB
