AV Control Unit

INFOID:0000000010385172

DESCRIPTION

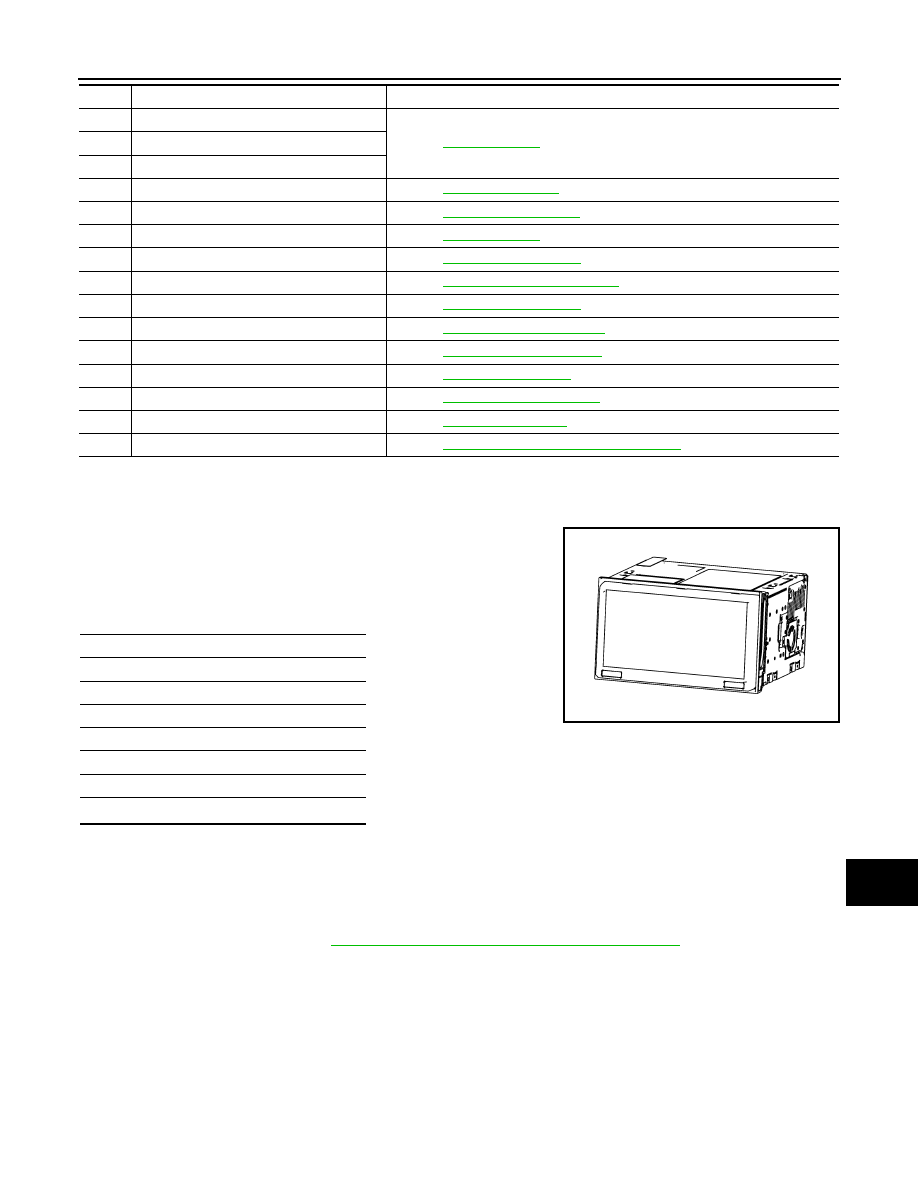

• High-resolution 7-inch wide VGA display integrated AV control unit

is installed at the center of the instrument panel.

• The AV control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-

tem.

• Signals necessary for the vehicle information display function are received from combination meter via CAN

communication.

• Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.

• It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake sig-

nal).

NOTE:

For details of each function, refer to

AV-90, "MULTI AV SYSTEM : System Description"

.

SD Card Slot

With the display opened, the card slot used for software update is located on the left (sub slot).

Display

• High resolution 7-inch wide VGA LCD monitor is adopted to display a high definition image including digital

image signals.

• Touch panel function is adopted to improve operability.

• RGB digital image signals are displayed.

Audio Amplifier

• 45W x 4ch amplifiers are installed.

5.

Rear door speaker RH

Refer to

AV-84, "Speaker"

.

6.

Front door speaker RH

7

Tweeter RH

8.

Microphone

Refer to

AV-87, "Microphone"

.

9.

AV control unit

Refer to

AV-83, "AV Control Unit"

.

10.

Tweeter LH

Refer to

AV-84, "Speaker"

.

11.

Steering switch

Refer to

AV-87, "Steering Switch"

.

12.

Steering angle sensor

Refer to

AV-89, "Steering Angle Sensor"

.

13.

USB connector

Refer to

AV-87, "USB Connector"

14.

Multifunction switch

Refer to

AV-87, "Multifunction Switch"

.

15.

Auxiliary input jack

Refer to

AV-88, "Auxiliary Input Jack"

.

16.

Front camera Refer

to

AV-89, "Front Camera"

.

17.

Rear view camera

Refer to

AV-88, "Rear View Camera"

.

18.

Side camera

Refer to

AV-88, "Side Camera"

.

19.

Around view monitor control unit

Refer to

AV-88, "Around View Monitor Control Unit"

.

No.

Component

Function

Units equipped

SD card slot

High resolution 7-inch wide VGA LCD monitor

Audio amplifier

AM/FM electronic tuner

CD drive

USB interface

Bluetooth

®

 module

JSNIA3618ZZ

AV-84

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

COMPONENT PARTS

• Audio sound and TEL voice are output to each speaker.

AM/FM Electronic Tuner

• The AM/FM electric tuner includes the PLL frequency synthesizer system.

CD Drive

• It is CD-R/CD-RW compliant and enables MP3 and WMA files to play music.

• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag display func-

tion.

USB Interface

• Music can be played by connecting an iPod

®

 or USB memory.

Bluetooth

®

Module

• Wireless connection to the audio device equipped with Bluetooth

®

communication can play music.

• Once a Bluetooth

®

 communication compliant phone has been registered in the AV control unit, hands-free

phone communication can be carried out without connecting the cellular phone.

• Five units of Bluetooth

®

 communication devices including audio devices and cellular phones can be regis-

tered to the AV control unit.

Speaker

INFOID:0000000010385173

The 6-speaker system is adopted.

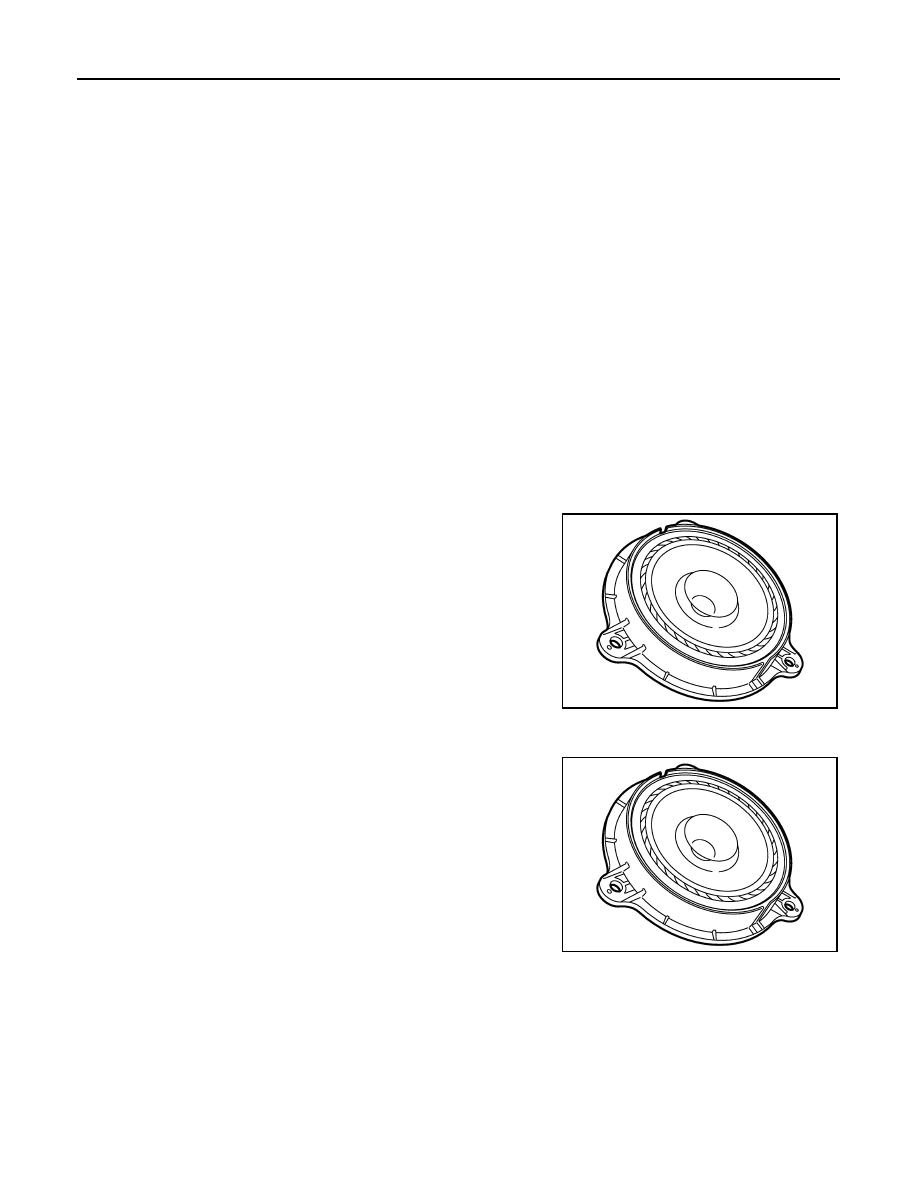

Front door speaker

•

φ16.5 cm (6.5 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the AV control unit to output mid and low

range sounds.

Rear door speaker

•

φ16.5 cm (6.5 in) speaker is installed to the bottom of the rear door.

• Sound signal is input from the AV control unit to output high, mid

and low range sounds.

Tweeter

•

φ2.5 cm (1 in) tweeter for high-range sounds is installed in the front pillar.

JPNIA1454ZZ

JPNIA1454ZZ

AV

COMPONENT PARTS

AV-85

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Sound signal is input from the AV control unit to output high range

sounds.

Radio Antenna and Antenna Feeder

INFOID:0000000010385174

RADIO ANTENNA

Rod Antenna

A rod antenna is installed to the rear center of the roof.

Antenna Base

• To obtain sufficient reception sensitivity, an antenna amplifier is built into the antenna base.

• Power of the antenna amplifier is supplied from the AV control unit.

• The radio signal received by the rod antenna is input to the antenna base and the antenna signal is amplified

and sent to the AV control unit.

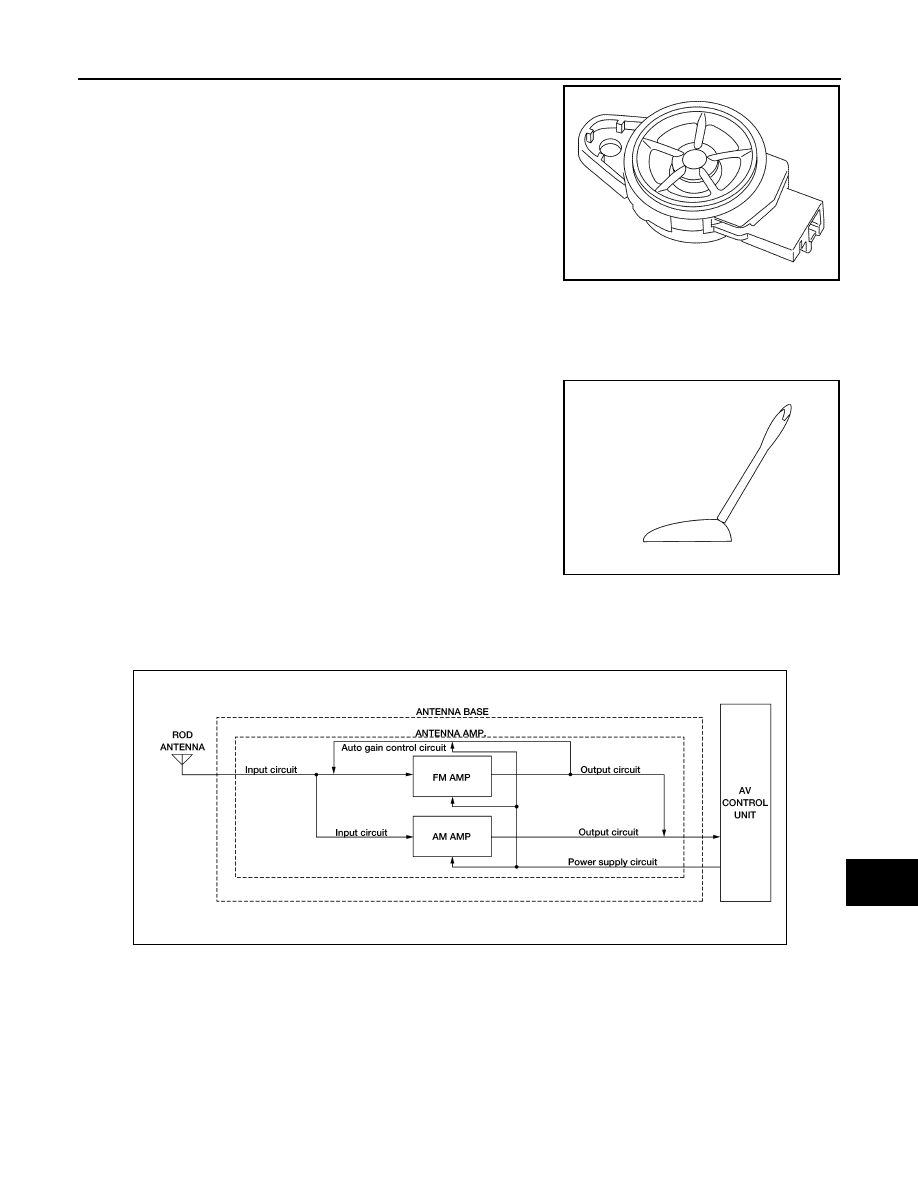

Antenna circuit

JSNIA3849ZZ

ALNIA1616ZZ

AWNIA3475GB

AV-86

< SYSTEM DESCRIPTION >

[AUDIO W/O NAVI (FOR MEXICO)]

COMPONENT PARTS

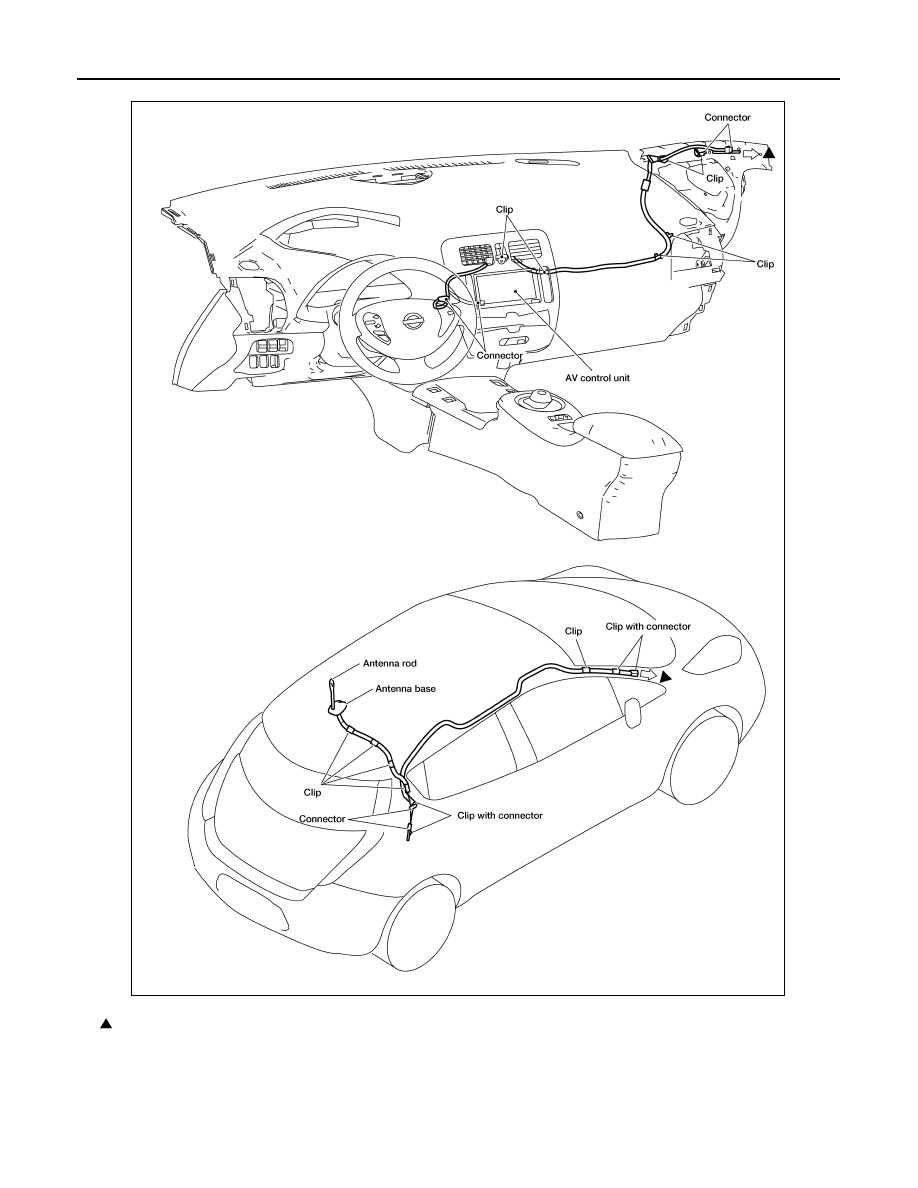

: Indicates that the part is connected at points with same symbol in actual vehicle.
