Nissan Primera P11. Manual - part 552

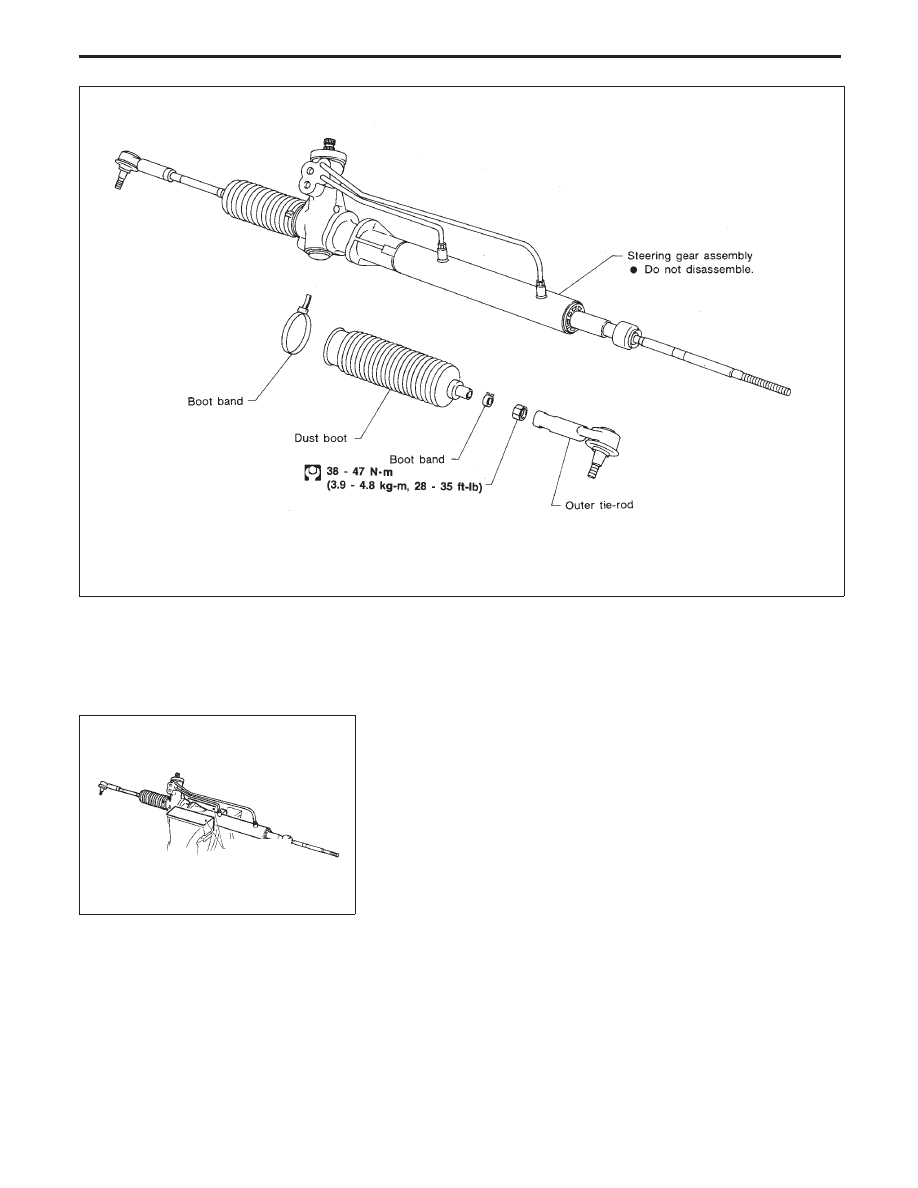

Disassembly

Always use soft jaws when clamping steering gear housing
in a vise. Handle gear housing carefully, as it is made of
aluminum.
1. Remove outer tie-rod.
2. Remove dust boot.

Inspection

Thoroughly clean all parts in cleaning solvent or automatic trans-
mission fluid “Dexron

TM

” type, and blow dry with compressed air,

if available.

SST585B

SEC. 492

NST022

.

Jaw
protectors

POWER STEERING GEAR AND LINKAGE

Removal and Installation (Cont’d)

ST-17

STEERING GEAR ASSEMBLY

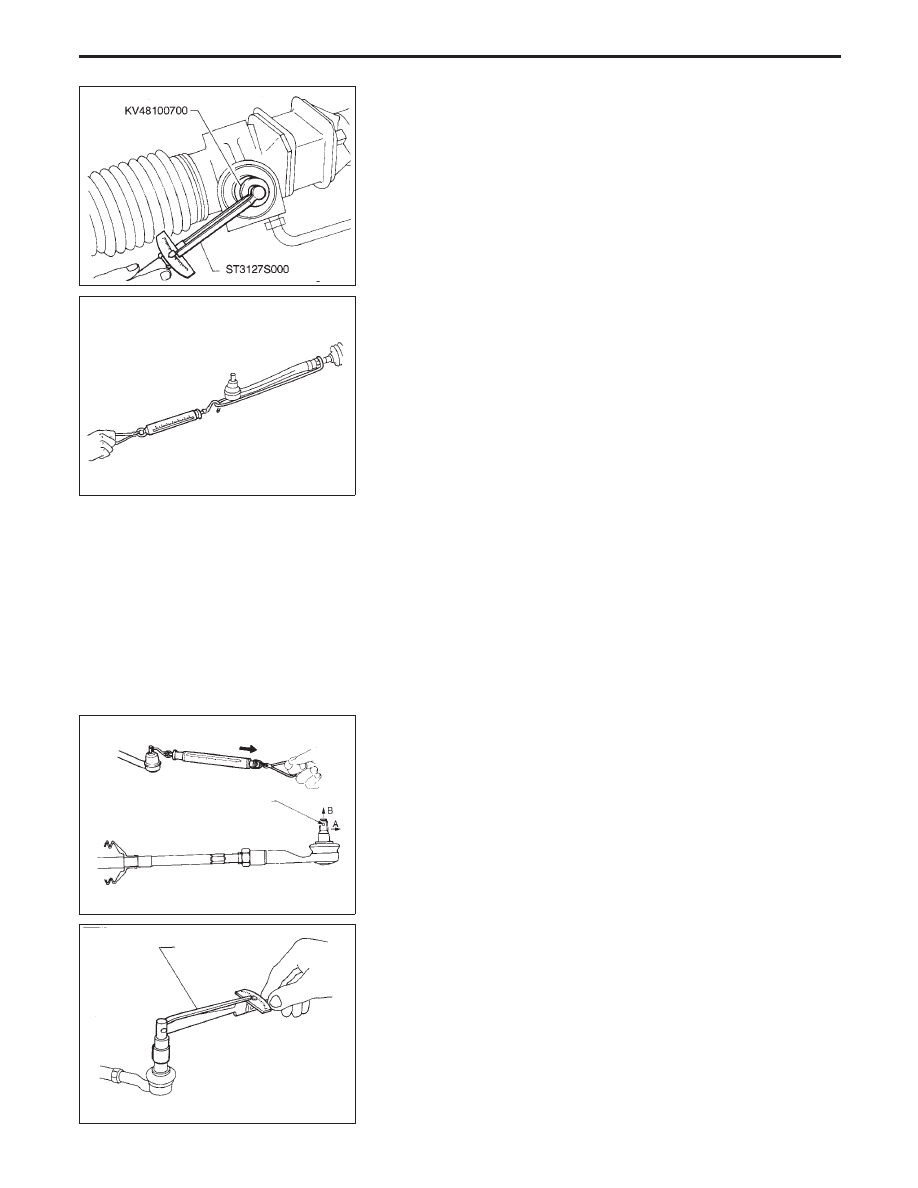

Check for smooth operation through a full stroke.

Check rack and tie-rod for cracks, deformation or other dam-
age.

Check pinion rotating torque.

Pinion rotating torque:

0.8 - 1.3 N·m (8 - 13 kg-cm, 6.9 - 11.3 in-lb)

Check rack sliding force.

Rack sliding force:

284 N (29 kg, 64 lb) or less

BOOT

Check condition of boot. If cracked, replace it.

TIE-ROD OUTER AND INNER SOCKET

Check ball joint for swinging force.

A Tie-rod outer ball joint:

3.3 - 67 N
(0.34 - 6.8 kg, 0.74 - 15.1 lb)

B Tie-rod inner ball joint:

0.3 - 24.5 N
(0.03 - 2.5 kg, 0.07 - 5.5 lb)

Check ball joint for rotating torque.

Tie-rod outer ball joint:

0.15 - 2.9 N·m
(1.5 - 30 kg-cm, 1.3 - 26.0 in-lb)

SST587B

SST090B

SST588B

Measuring point

SST751A

ST3127S000

POWER STEERING GEAR AND LINKAGE

Inspection (Cont’d)

ST-18

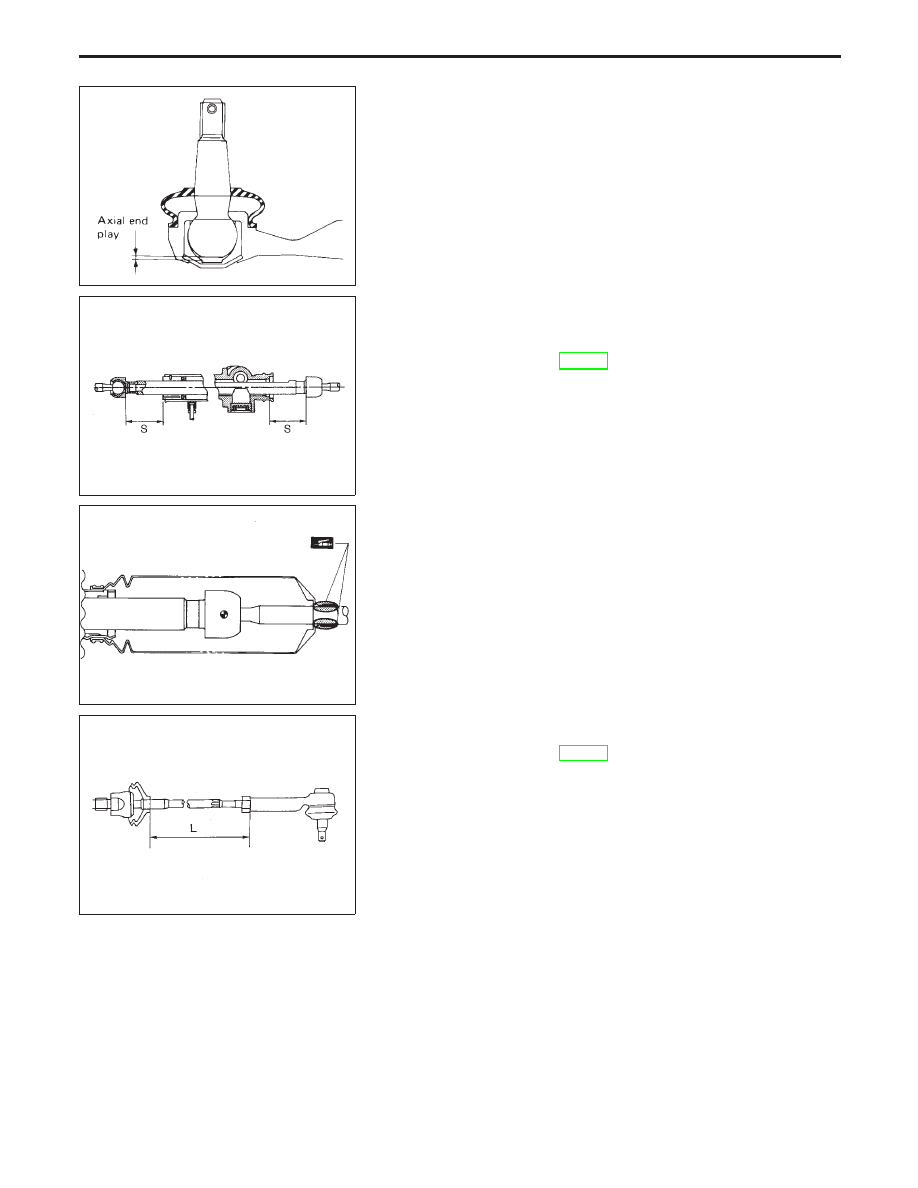

Check ball joint for axial end play.

Tie-rod outer ball joint:

0 mm (0 in)

Tie-rod inner ball joint:

0 mm (0 in)

Check condition of dust cover. If cracked excessively, replace
it.

Assembly

1. Measure rack stroke.

Rack stroke “S”:

Refer to SDS (ST-23)

2. Before installing boot, coat the contact surfaces between

boot and tie-rod with grease.

3. Tighten outer socket lock nut.

Tie-rod length “L”:

Refer to SDS (ST-24)

SST334B

NST023

SST589B

SST093B

POWER STEERING GEAR AND LINKAGE

Inspection (Cont’d)

ST-19

NST043

Bracket

13.4 - 18
(1.4 - 1.8, 10 - 13)

: N·m (kg-m, ft-lb)

: Do not re-use

49 - 68 (5.0 - 6.9,
37 - 50)

Adjuster bolt

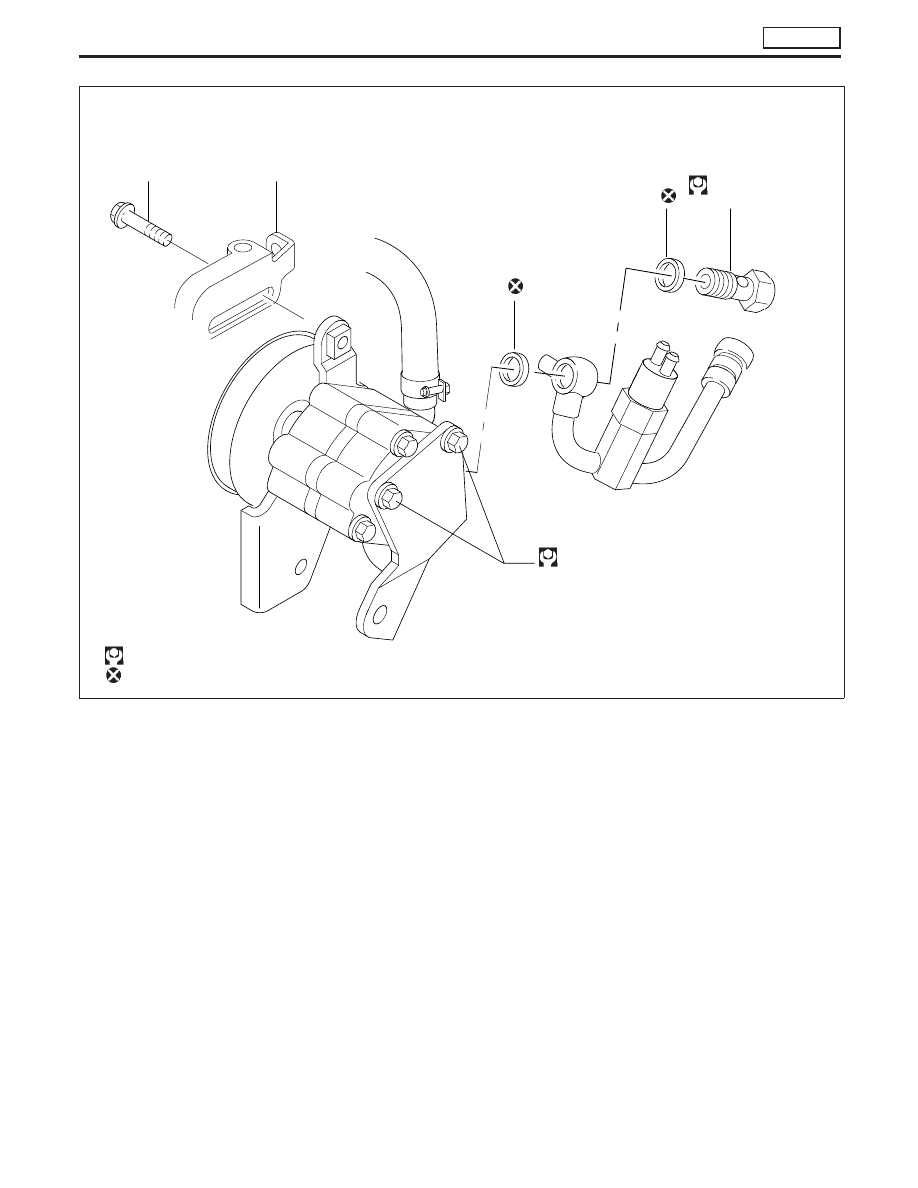

POWER STEERING OIL PUMP

SR20DE

ST-20
