If air bag warning lamp blinks or stays ON (at the user mode),
it shows the spiral cable may be snapped due to its improper
position. Perform self-diagnosis again (use CONSULT-II or
warning lamp). If a malfunction is detected, replace the spi-
ral cable with a new one.

13. Perform self-diagnosis again to check that no malfunction is

detected.

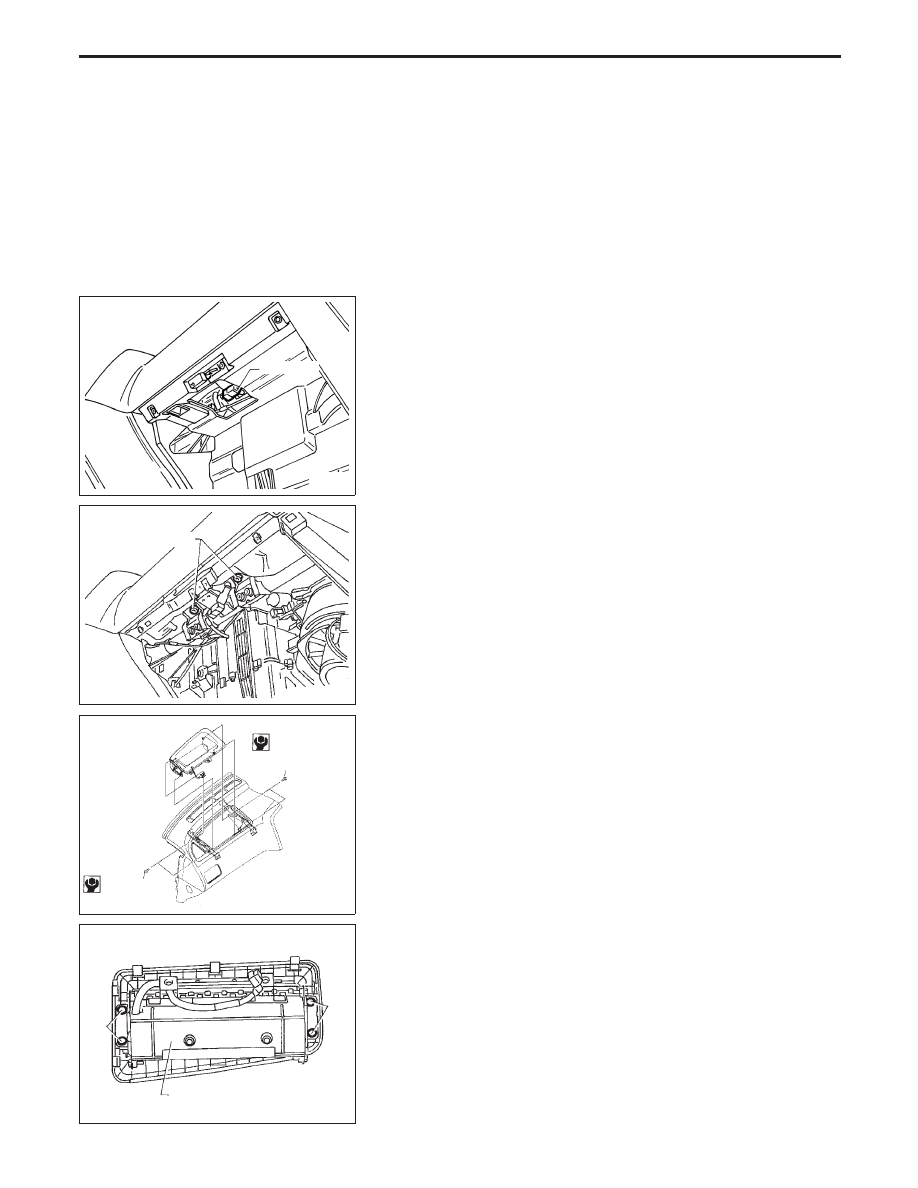

Removal — Front Passenger’s Air Bag
Module

CAUTION:

Before servicing SRS, turn the ignition switch “OFF”,
disconnect both battery cables and wait at least 3 min-
utes.

Always work from the side of or under air bag module.

1. Open the glove box lid.
2. Disconnect inflator connector from body harness air bag con-

nector.

3. Remove glove box assembly. Refer to “INSTRUMENT

PANEL” in BT section for details.

4. Remove the bolts and special bolts using the TAMPER

RESISTANT TORX (Size T50) from front passenger’s air bag
module.
Take out the air bag module from the instrument panel.

The air bag module is heavy and should be supported using
both hands during removal.

CAUTION:

Always place air bag module with pad side facing
upward.

Do not attempt to disassemble air bag module.

The special bolts are coated with bonding agent. Do not
use old bolts after removal; replace with new coated
bolts.

Do not insert any foreign objects (screwdriver, etc.) into
air bag module connector.

.

NRS009

.

Connector

.

NRS010

.

Remove special bolts

NRS124

5.2 - 7.0 N·m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)

5.2 - 7.0 N·m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)

NRS011

Nuts

Passenger’s air bag module

Bolts

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Installation — Air Bag Module and Spiral
Cable (Cont’d)

RS-17

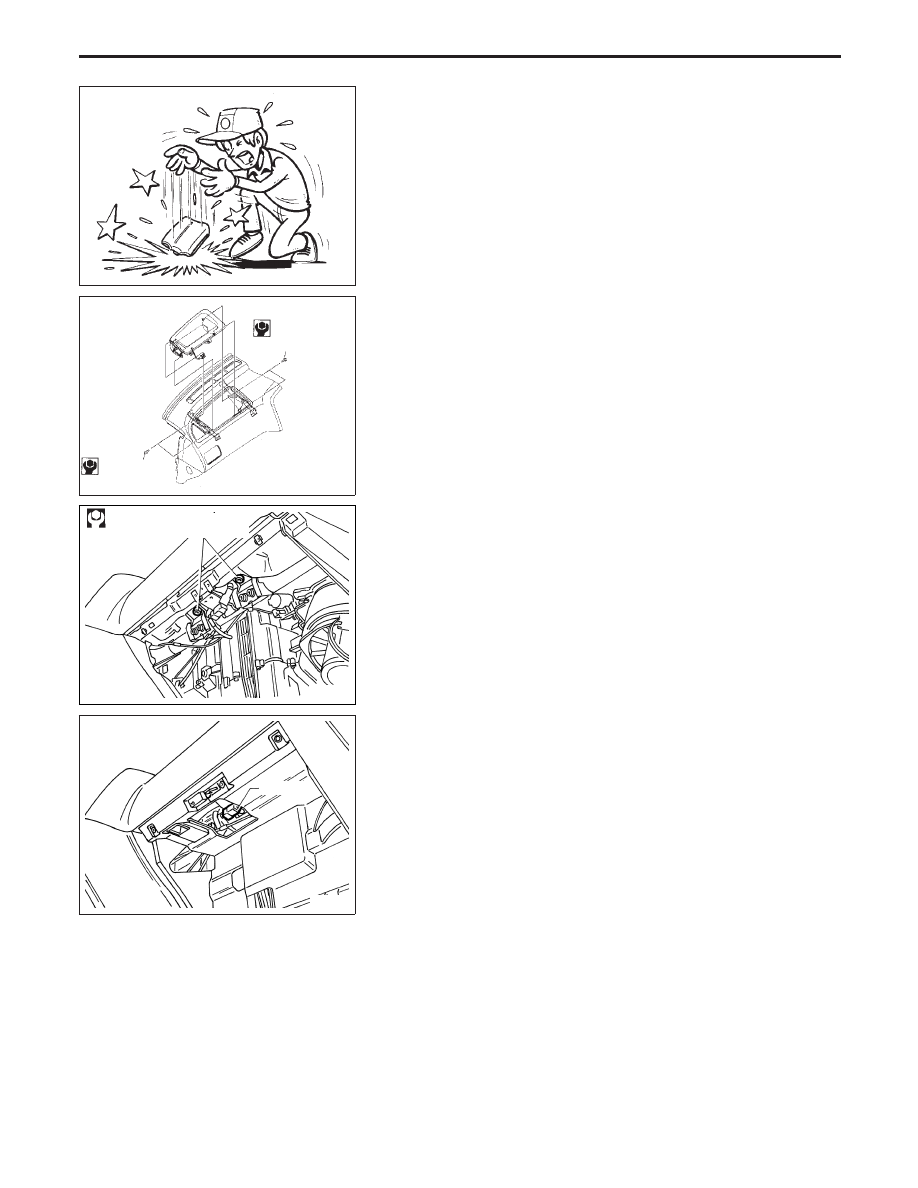

Replace air bag module if it has been dropped or sus-
tained an impact.

Do not expose the air bag module to temperatures
exceeding 90°C (194°F).

Do not allow oil, grease or water to come in contact with
the air bag module.

After air bag inflates, the front instrument panel assem-
bly should be replaced if damaged.

Installation — Front Passenger’s Air Bag
Module

Always work from the side of or under air bag module.

1. Install front passenger’s air bag module on steering member.

Ensure harness is not caught between rear of air bag
module and steering member.

2. Install lower instrument panel.

3. Connect air bag module connector to air bag harness con-

nector.

4. Install glove box.
5. Connect both battery cables.
6. Conduct self-diagnosis to ensure entire SRS operates cor-

rectly. (Use CONSULT-II or warning lamp check).

SBF814E

Air bag
module

NRS124

5.2 - 7.0 N·m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)

5.2 - 7.0 N·m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)

.

NRS014

.

15 - 25 N·m
(1.5 - 2.5 kg-m, 11 - 18 ft-lb)

.

NRS009

.

Connector

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Removal — Front Passenger’s Air Bag
Module (Cont’d)

RS-18

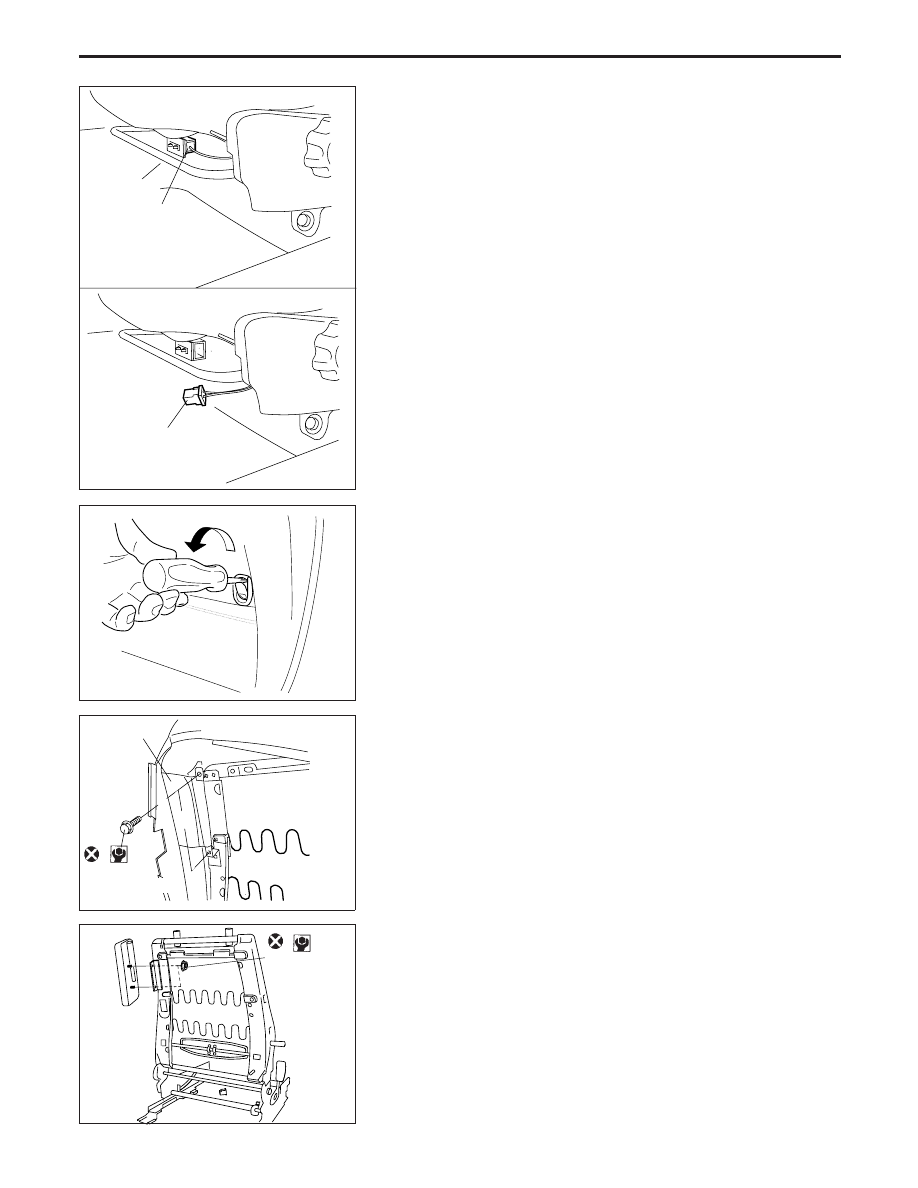

Removal — Side Air Bag Module

CAUTION:

Before servicing SRS, turn the ignition switch “OFF”,
disconnect both battery cables and wait at least 3 min-
utes.

1. Slide the front seat all the way forward.
2. Disconnect side air bag module connector under the seat.

(The connector with a different shape is for a side air bag
module of Renault make.)

3. Remove screw securing the front seat convenience hook

(where fitted).

When using a clip removal tool to remove the seat back
finisher, take care not to damage the air bag harness.

4. Remove the seat back board.

5. Pull up the seat back trim.
6. Remove the bolts securing the inner cloth with seat back

frame.
Then pull up the inner cloth.

7. Remove the seat back trim. Refer to “Front Seat” in BT sec-

tion for details.

8. Remove the torx nuts coated with bonding agent from the

side air bag module.

9. Remove side air bag connector. Side air bag module can

then be removed.

NRS064

Connector

Connector

NRS068

NRS065

Inner cloth

.

6.1 - 7.7 N·m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)

NRS066

Side air bag
module

.

6.1 - 7.7 N·m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

RS-19

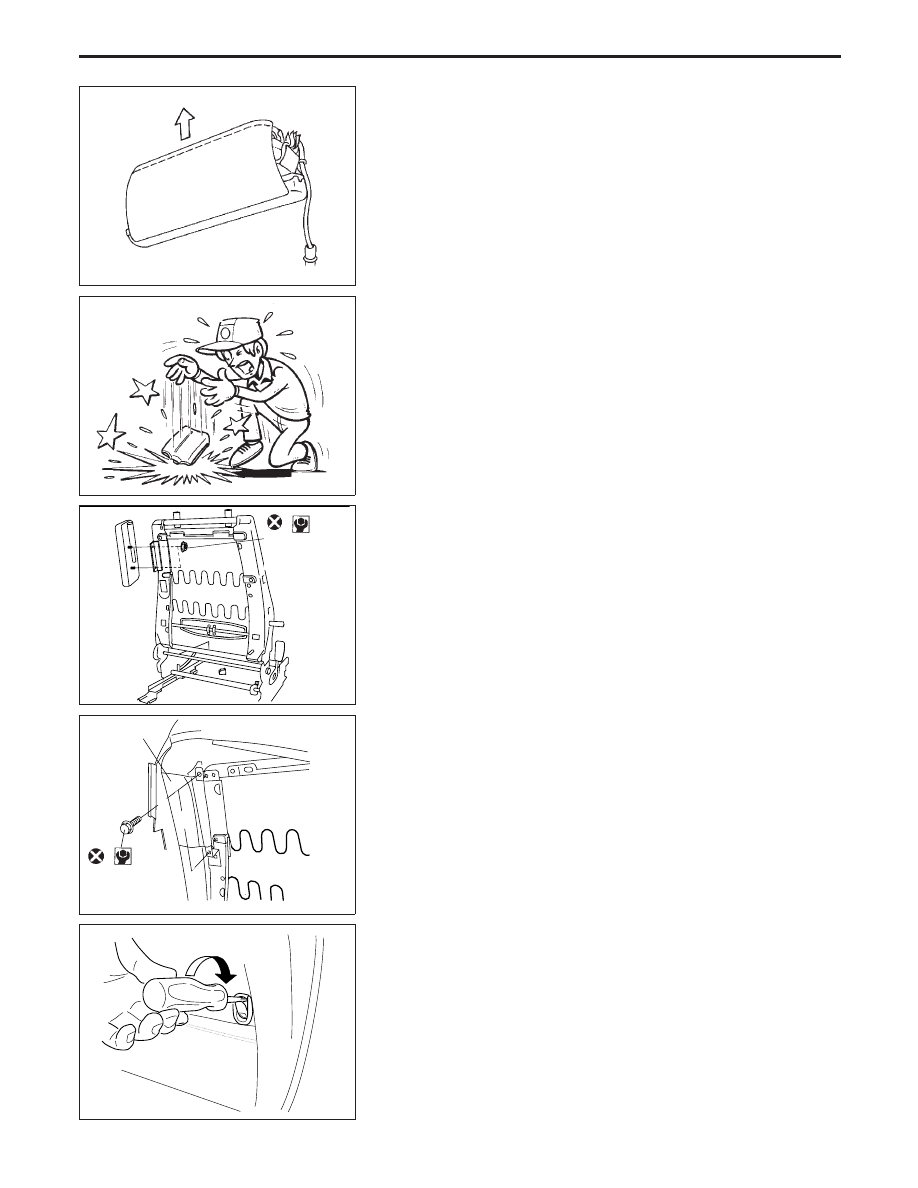

CAUTION:

Always place the air bag module with the stud bolts side
facing down.

Do not attempt to disassemble air bag module.

The torx nuts are coated with bonding agent. Do not use
old nuts after removal; replace with new coated nuts.

Do not insert any foreign objects (screwdriver, etc.) into
air bag module connector.

Replace air bag module if it has been dropped or sus-
tained an impact.

Do not expose the air bag module to temperatures
exceeding 90°C (194°F).

Do not allow oil, grease or water to come in contact with
the air bag module.

After air bag inflates, all parts of front seat back (includ-
ing front seat back frame) should be replaced.

Installation — Side Air Bag Module

1. Install side air bag module on seat back frame with new torx

nuts coated with bonding agent.

2. Install the seat back trim. Refer to “Front Seat” in BT-section.
3. Secure the inner cloth which covers the side air bag module

with bolts.

4. Install the seat back board with new clips.
5. Install the front seat convenience hook (where fitted) and

secure with screw.

SRS483

UP

SBF814E

Air bag
module

NRS066

.

6.1 - 7.7 N·m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)

Side air bag
module

NRS065

Inner cloth

.

6.1 - 7.7 N·m
(0.62 - 0.79 kg-m,
53.8 - 68.6 ft-lb)

NRS081

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Removal — Side Air Bag Module (Cont’d)

RS-20
